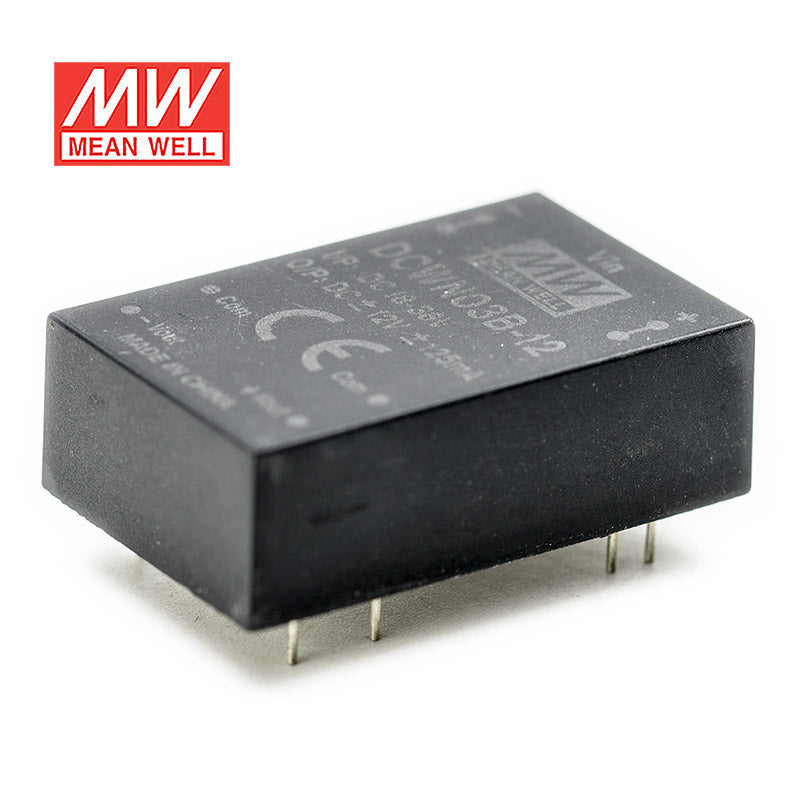

Mean Well DCWN03B-12 DC-DC Converter - 3W 18~36V DC in 12V out
Description
Description
Features
| DIP24 package with industry-standard pinout |
| 2:1 wide input range |
| Operating temperature range -40~+90°C |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High efficiency up to 87% |
| Protections: Short circuit(Continuous)/Overload/Input under voltage |
| 3KVDC I/O isolation |
| 3 years warranty |
General Specification
| Voltage set point accuracy | ±1.5% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | Single output models:±0.5%, Dual output models:±1% |
| Overload protection | 120%~250%, auto-recovery |
| Efficiency | 87% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I/O isolation voltage | I/P-O/P:3KVDC |
| I/O isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| Isolation capacitance | 250pF (max.) |
| Working temperature | -40~+90°C |
| Storage temperature | -40°C to +105°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 31.8*20.3*10.2mm (1.25*0.8*0.4 inch) |
| Case material | Non-conductive black plastic(UL 94V-0 rated) |
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage12 Volt
-
Rated Current0.12 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03B-12 typically used for?
The Mean Well DCWN03B-12 is typically used for isolated low-power DC-DC conversion from an 18-36V DC source to a regulated 12V output. With 3W rated power and 0.125A output current, it fits compact auxiliary and control circuits that need isolated 12V power.
Is the DCWN03B-12 a good fit for 18-36V input systems that need 12V output?
Yes. The DCWN03B-12 is intended for 18-36V input and 12V output service, provided the load stays within the unit's 3W and 0.125A output capacity.
Can the DCWN03B-12 be used in isolated low-power support circuits?
Yes. The converter includes 3KVDC I/O isolation, no minimum load requirement, and a compact DIP24 package, making it suitable for isolated auxiliary 12V rails in small electronic systems.
Is the DCWN03B-12 suitable for broad operating temperatures?
It is rated for -40°C to +90°C working temperature, which makes it suitable for demanding protected electronic environments. It should still be used inside equipment or enclosure-protected systems.
How does the DCWN03B-12 compare with other DCWN03 12V variants?
The DCWN03B-12 provides 3W at 12V from an 18-36V input range. The A, C, and E variants provide the same general 12V output class but with 9-18V, 36-72V, and 4.5-9V input ranges respectively. The main difference is the source-side voltage window.
