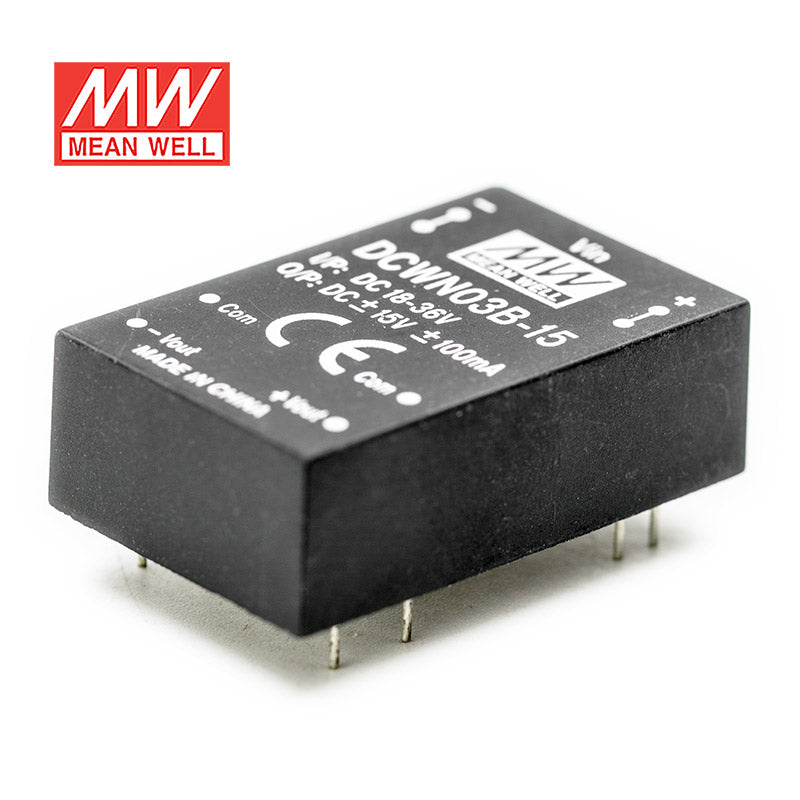

Mean Well DCWN03B-15 DC-DC Converter - 3W 18~36V DC in 15V out

Name: Mean Well DCWN03B-15 DC-DC Converter - 3W 18~36V DC in 15V out
Brand: Mean Well
SKU: DCWN03B-15
Price: 8.64 USD
Availability: InStock

$8.64 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

DIP24 package with industry-standard pinout

2:1 wide input range

Operating temperature range -40~+90°C

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 87%

Protections: Short circuit(Continuous)/Overload/Input under voltage

3KVDC I/O isolation

3 years warranty

General Specification

Voltage set point accuracy	±1.5% (max.)
Line regulation	±0.5% (max.)
Load regulation	Single output models:±0.5%, Dual output models:±1%
Overload protection	120%~250%, auto-recovery
Efficiency	87% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	I/P-O/P:3KVDC
I/O isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Isolation capacitance	250pF (max.)
Working temperature	-40~+90°C
Storage temperature	-40°C to +105°C
EMC	Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	31.820.310.2mm (1.250.80.4 inch)
Case material	Non-conductive black plastic(UL 94V-0 rated)

Specifications

Brand

Mean Well
Series

DCWN Series
Power Rating

3 Watt
Output Voltage

15 Volt
Rated Current

0.1 Ampere
Input Voltage

18V~36V
No of Output

1
Dimming Control

None
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

3 Year
Length

1.25 in
Width

0.8 in
Height

0.4 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

DIP24 package with industry-standard pinout

2:1 wide input range

Operating temperature range -40~+90°C

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 87%

Protections: Short circuit(Continuous)/Overload/Input under voltage

3KVDC I/O isolation

3 years warranty

General Specification

Voltage set point accuracy

±1.5% (max.)

Line regulation

±0.5% (max.)

Load regulation

Single output models:±0.5%, Dual output models:±1%

Overload protection

120%~250%, auto-recovery

Efficiency

87% (typical)

Short circuit protection

Continuous, auto-recovery

I/O isolation voltage

I/P-O/P:3KVDC

I/O isolation resistance

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

Isolation capacitance

250pF (max.)

Working temperature

-40~+90°C

Storage temperature

-40°C to +105°C

EMC

Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8

Temp. Coefficient

0.03% / ℃ (0 ~ 85℃)

Dimension (LxWxH) (mm)

31.8*20.3*10.2mm (1.25*0.8*0.4 inch)

Case material

Non-conductive black plastic(UL 94V-0 rated)
