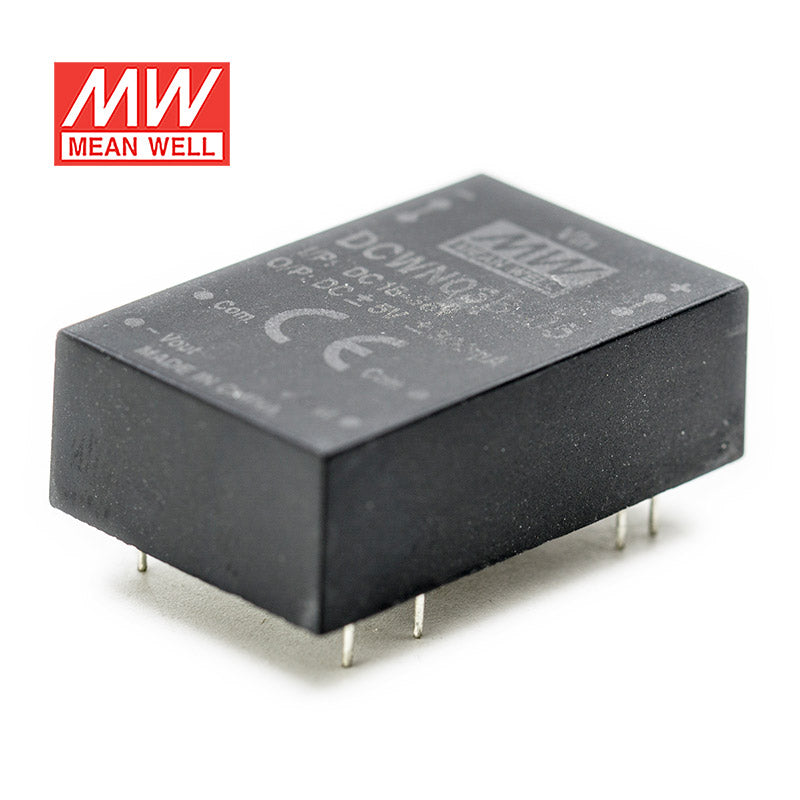

Mean Well DCWN03B-05 DC-DC Converter - 3W 18~36V DC in 5V out
Description
Description
The DCWN03B is a 3W Mean Well. power converter. and an input range of 4.5~9Vdc.
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.3 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03B-05 typically used for?
The Mean Well DCWN03B-05 is typically used for isolated low-power DC-DC conversion where an 18-36V DC source needs to provide a regulated 5V output. With 3W rated power and 0.3A output current, it is suited to compact embedded, telecom, and control applications using an 18-36V input rail.
Is the DCWN03B-05 a good fit when the source voltage is 18-36V and the load needs 5V?
Yes. The DCWN03B-05 is designed for exactly that conversion range, provided the load stays within the converter's 3W and 0.3A output rating.
Can the DCWN03B-05 be used in compact isolated electronics?
Yes. The published features include a compact DIP24 package, 3KVDC I/O isolation, and no minimum load requirement, which support use in compact isolated power designs needing a 5V auxiliary rail.
What kind of operating environment is the DCWN03B-05 rated for?
The DCWN03B-05 is rated for -40°C to +90°C working temperature, which supports use in demanding electronic environments. It is still intended for protected equipment use rather than direct outdoor exposure.
How does the DCWN03B-05 compare with other 5V DCWN03 models?
The DCWN03B-05 provides 3W at 5V from an 18-36V input range. Other 5V DCWN03 variants shift the input window, such as A at 9-18V, C at 36-72V, and E at 4.5-9V. The best choice depends on the source voltage range available in your design.
