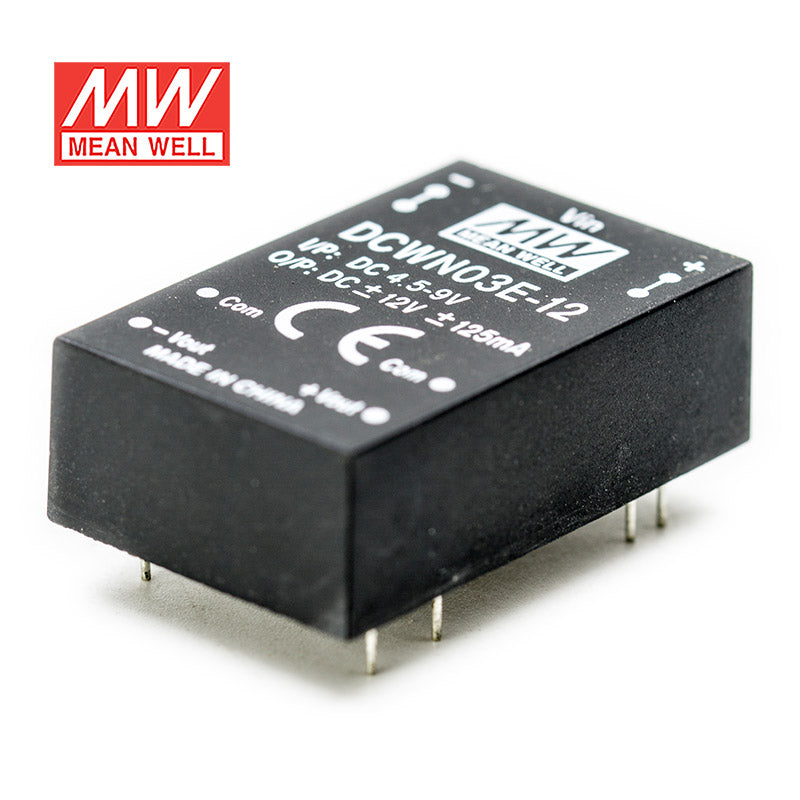

Mean Well DCWN03E-12 DC-DC Converter - 3W 4.5~9V DC in 12V out
Description
Description
The DCWN03E is a 3W Mean Well. power converter. and an input range of 4.5~9Vdc.
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage12 Volt
-
Rated Current0.12 Ampere
-
Input Voltage4.5V~9V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03E-12 typically used for?
The Mean Well DCWN03E-12 is typically used as a compact isolated DC-DC converter when a 4.5-9V DC input needs to be converted to a regulated 12V output. With 3W of rated power and 0.125A output current, it suits low-power 12V control, signal, and auxiliary supply applications.
Is the DCWN03E-12 a good fit for low-power 12V rails from a low-voltage DC source?
Yes. The DCWN03E-12 converts a 4.5-9V DC input to a regulated 12V output at up to 0.125A, making it appropriate for low-power 12V circuits when the load stays within the converter's 3W rating.
What makes the DCWN03E-12 useful in compact isolated designs?
The DCWN03E-12 combines a DIP24 package, no minimum load requirement, and 3KVDC I/O isolation. That makes it suitable for compact designs where isolation and small footprint matter as much as output regulation.
Is the DCWN03E-12 suitable for wide operating temperatures?
Yes. The published working temperature range is -40°C to +90°C, which supports use in a broad range of industrial and embedded environments when the rest of the design remains within specification.
How does the DCWN03E-12 compare with nearby DCWN models?
The DCWN03E-12 is the 12V output option in the 3W 03E group, while the DCWN03E-05 and DCWN03E-15 provide 5V and 15V outputs from the same 4.5-9V input class. The 06A and 06B models step up to 6W output capacity for higher load demand.
