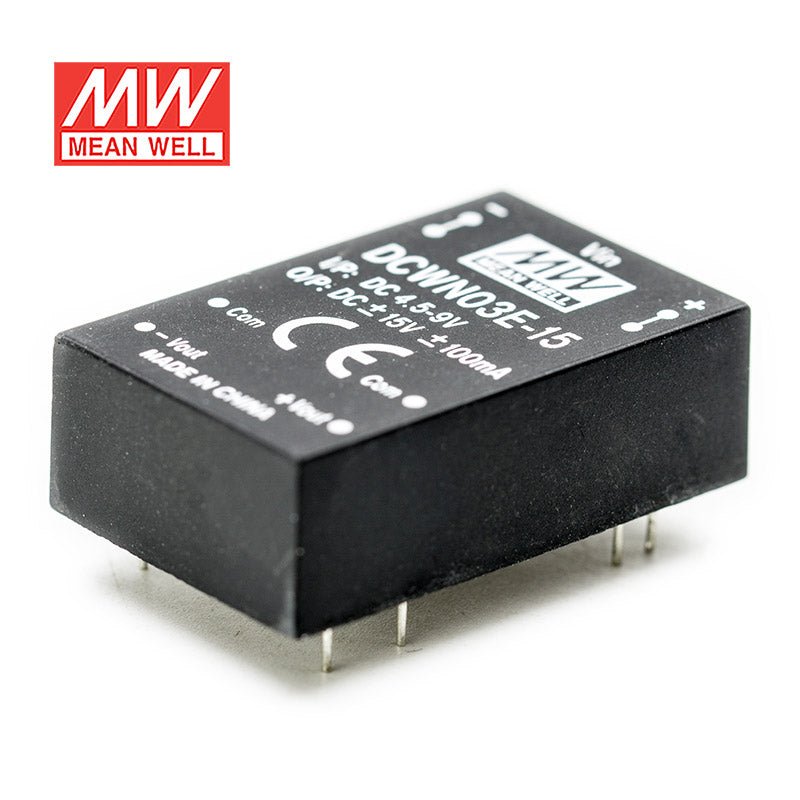

Mean Well DCWN03E-15 DC-DC Converter - 3W 4.5~9V DC in 15V out
Description
Description
The DCWN03E is a 3W Mean Well. power converter. and an input range of 4.5~9Vdc.
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.1 Ampere
-
Input Voltage4.5V~9V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03E-15 typically used for?
The Mean Well DCWN03E-15 is typically used as a compact isolated DC-DC converter when a 4.5-9V DC input must be converted to a regulated 15V output. With 3W rated power and 0.1A output current, it is intended for low-power 15V auxiliary and control applications.
Is the DCWN03E-15 suitable for generating a small 15V rail from low-voltage DC input?
Yes. The DCWN03E-15 converts a 4.5-9V DC input to a 15V output at up to 0.1A, making it suitable for low-power 15V circuits that fit within its 3W output capability.
What design features make the DCWN03E-15 useful in embedded or industrial electronics?
The DCWN03E-15 offers a DIP24 package, 3KVDC input-to-output isolation, no minimum load requirement, and typical efficiency up to 87%. Those features make it useful in compact isolated electronics designs.
Can the DCWN03E-15 operate in demanding temperature conditions?
Yes. Its published operating temperature range is -40°C to +90°C, which makes it suitable for a broad range of industrial and embedded environments when the overall system design stays within rated limits.
How does the DCWN03E-15 compare with the other 03E models?
The DCWN03E-15 is the 15V output member of the 3W 03E group, while the DCWN03E-05 and DCWN03E-12 provide 5V and 12V outputs from the same 4.5-9V input class. Selection mainly depends on which output voltage your low-power circuit requires.
