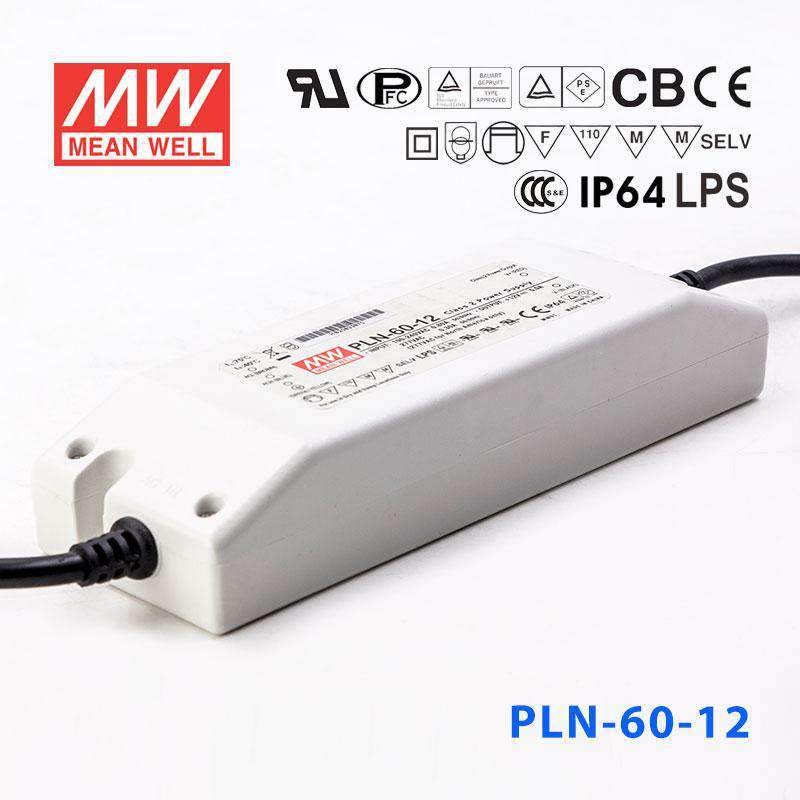

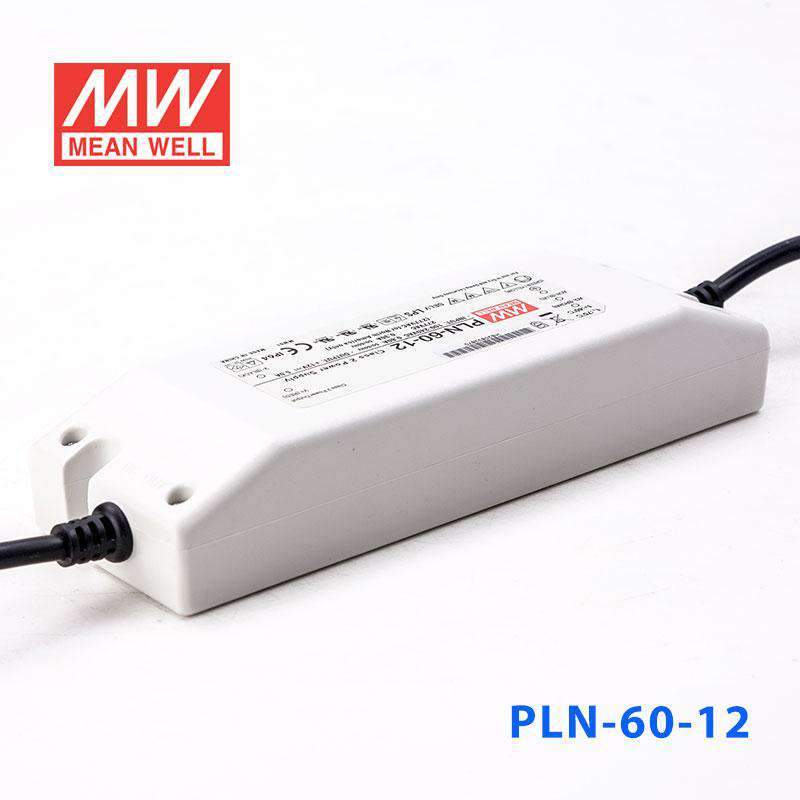

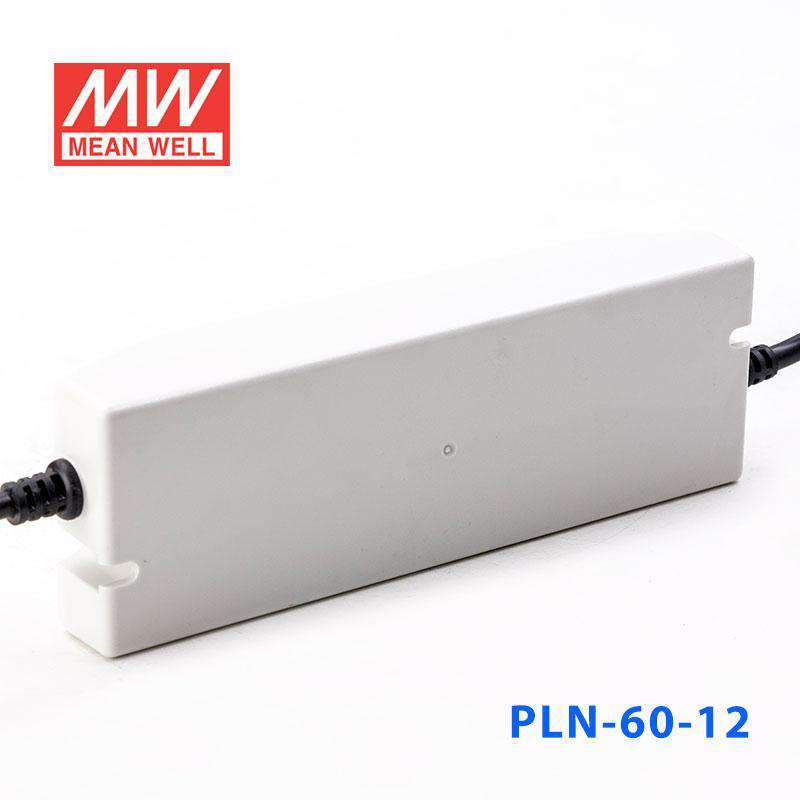

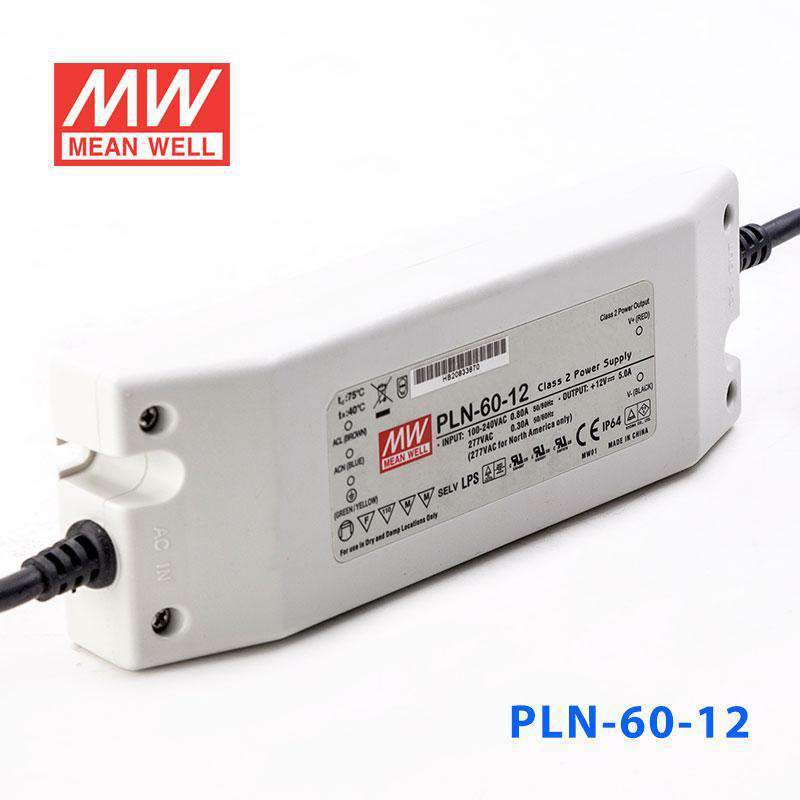

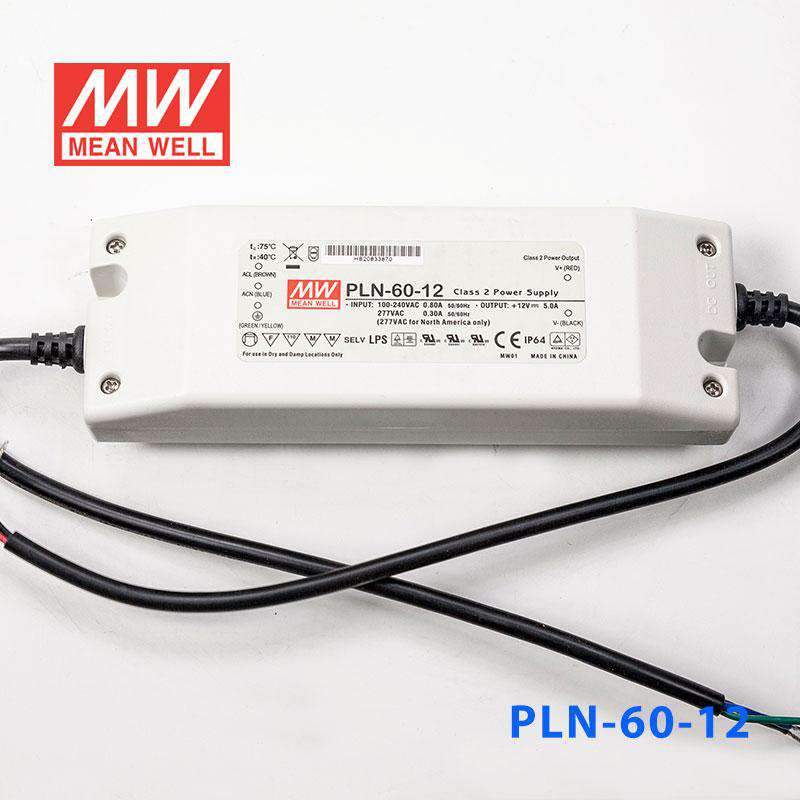

Mean Well PLN-60-12 Power Supply 60W 12V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-60-12

$35.98 USD ~~$132.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	95%~108% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	115%~140% rated output voltage
Setup, rise, hold up time	1500ms(setup time) at full load and 230VAC, no hold up time
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750(PLN-45/60), TUV EN61347-1, EN61347-2-13,PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	181x 61.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.13 in
Width

2.42 in
Height

1.38 in
Weight

1.1 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-60-12 for 12V LED strip lighting in signage?

Yes, for 12V signage lighting loads that stay within 60W and 5A. The product is specifically noted as suitable for signage applications and carries an IP64 enclosure rating.

Is the PLN-60-12 a good fit for 12V under-canopy or display lighting?

It can be a fit for 12V display or under-canopy lighting when the total load does not exceed 60W. Its IP64 housing is better suited to dust and splash exposure than a non-protected indoor driver.

Can this power 12V LED strip runs for retail shelving or cove lighting?

It can support 12V strip lighting as long as the combined load remains at or below 60W and 5A. For longer or higher-density runs, the deciding factor is the strip's actual wattage per meter.

How do I estimate the maximum 12V LED strip length for the PLN-60-12?

Use the strip wattage to calculate the limit: 60W ÷ strip watts per meter = maximum meters. Check your strip rated power per meter and keep the total connected load within 60W and 5A.

Is the PLN-60-12 suitable for outdoor or damp-area lighting?

The IP64 rating means it is designed to resist dust and splashing water, so it is more appropriate for damp or sheltered locations than an open indoor-only unit. It is also rated to operate from -30°C to +50°C, which helps in a wide range of ambient conditions.
