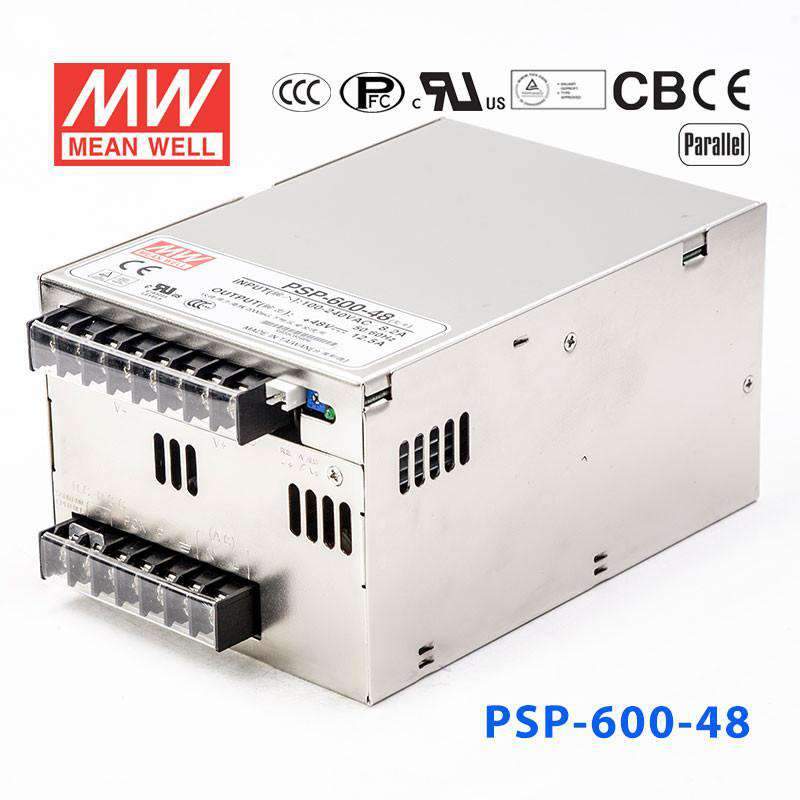

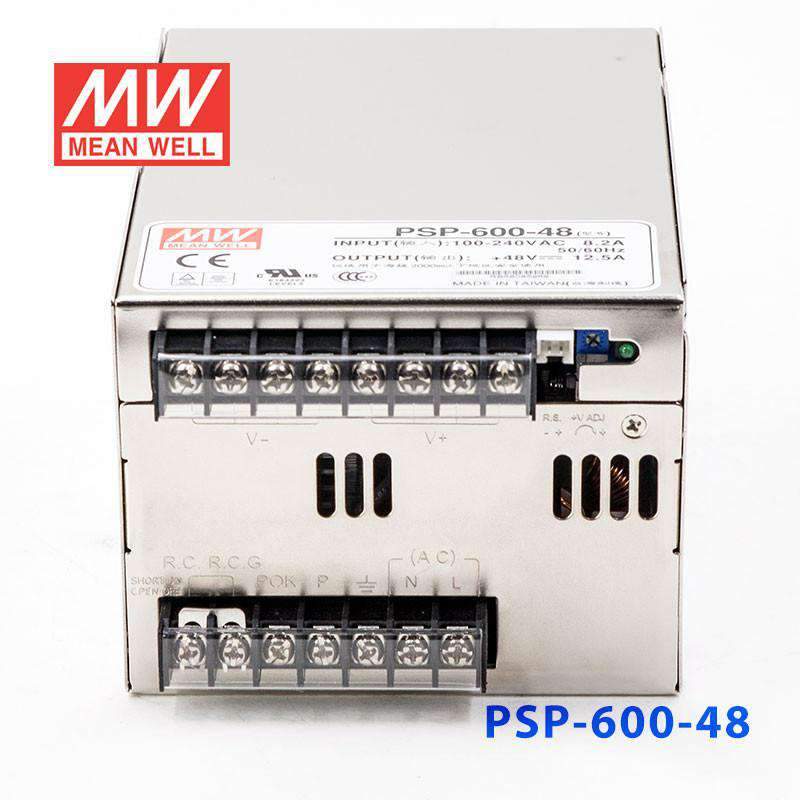

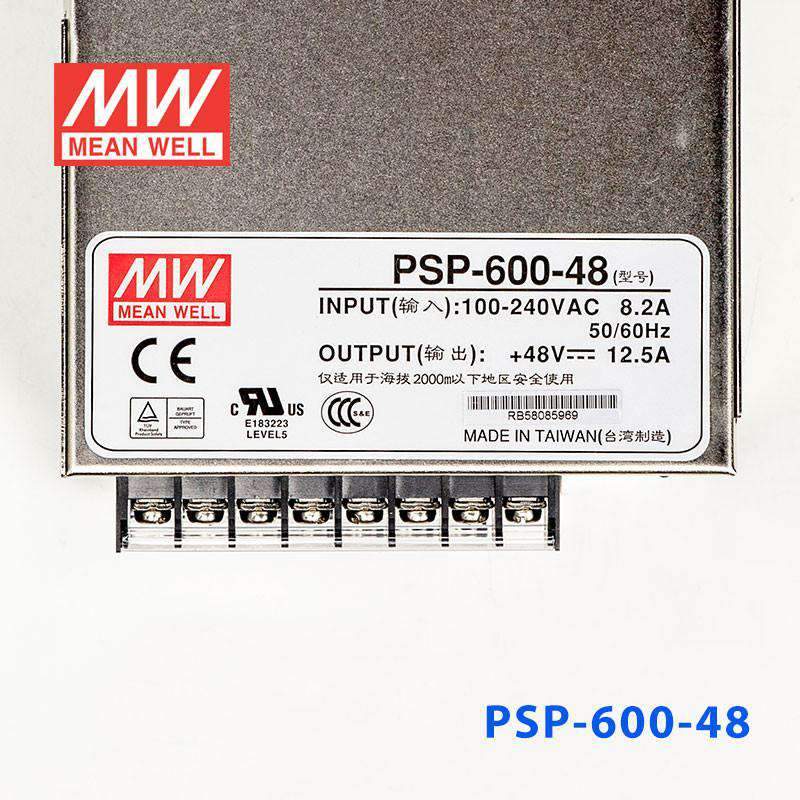

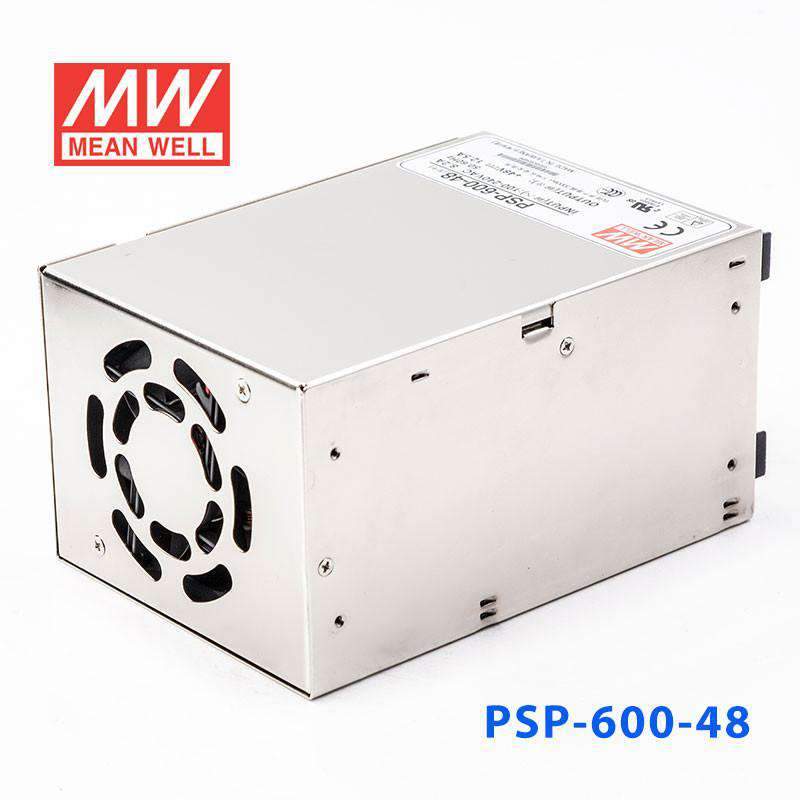

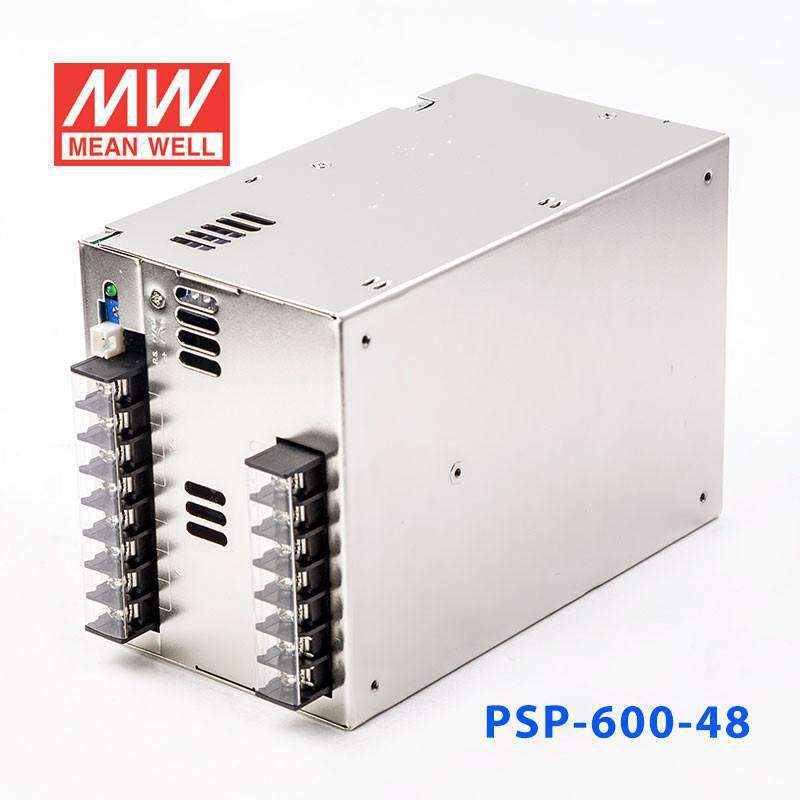

Mean Well PSP-600-48 Power Supply 600W 48V

built-in active PFC, current sharing up to 2400W(3+1)

SKU:

PSP-600-48

Model

600W 48V

$152.76 USD

SKU: PSP-600-48

1000W 48V

$219.47 USD

SKU: PSPA-1000-48

Product variants

$152.76 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in remote sense function and ON/OFF control

Current sharing up to 2400W (3+1)

With DC OK signal output

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	88~264VAC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~140%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute
Working temperature	-20~+60°C
Safety standards	UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V)
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
Connection	7+8P / 9.5mm pitch terminal block with cover
Dimension (LxWxH)	170x120x93
Case No.	910A
Packing	8pcs / 15.5kg

Specifications

Brand

Mean Well
Series

PSP Series
Power Rating

600 Watt
Output Voltage

48 Volt
Rated Current

12.5 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

3 Year
Length

6.69 in
Width

4.72 in
Height

3.66 in
Weight

4.19 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PSP-600-48 for 48V telecom or network equipment?

Yes, if the equipment is designed for a constant 48V DC source. This unit provides 600W at 48V with up to 12.5A, which suits 48V telecom, networking, or control loads that stay within those limits.

Is the PSP-600-48 suitable for 48V industrial control and embedded systems?

It is suitable when the system requires regulated 48V DC and the total demand is no more than 12.5A or 600W. The constant voltage design is intended for equipment that expects a fixed 48V supply.

Can this model support a centralized 48V DC power rail for multiple loads?

Yes, as long as the combined 48V load does not exceed 600W and 12.5A. For larger systems, the feature set includes current sharing up to 2400W (3+1).

Is the PSP-600-48 appropriate for outdoor or unsealed locations?

The specs state an operating temperature range of -20°C to +60°C, which defines thermal operation. The provided data does not list an IP rating, so outdoor or unsealed use should not be assumed from the published specs alone.

How does the PSP-600-48 compare with other PSP series outputs?

The sibling list includes PSP-1000-24 at 1000W, 24V, 37.6A; PSP-1500-24 at 1500W, 24V, 56.4A; PSP-500-13.5 at 499.5W, 13.5V, 37A; PSP-500-15 at 495W, 15V, 33A; PSP-500-24 at 499.2W, 24V, 20.8A; and PSP-500-27 at 499.5W, 27V, 18.5A. The other 600 series models are PSP-600-12 at 600W, 12V, 50A; PSP-600-13.5 at 600.75W, 13.5V, 44.5A; PSP-600-15 at 600W, 15V, 40A; PSP-600-24 at 600W, 24V, 25A; PSP-600-27 at 599.4W, 27V, 22.2A; and PSP-600-5 at 400W, 5V, 80A.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PSP-600-15 Power Supply 600W 15V	600W	15V	40A	Indoor	$142.02	View
Mean Well PSP-600-24 Power Supply 600W 24V	600W	24V	25A	Indoor	$152.76	View
Mean Well PSP-600-5 Power Supply 400W 5V	400W	5V	80A	Indoor	$152.76	View
Mean Well PSP-600-27 Power Supply 600W 27V	599.4W	27V	22.2A	Indoor	$144.73	View
Mean Well PSP-600-13.5 Power Supply 600W 13.5V	600.75W	13.5V	44.5A	Indoor	$156.98	View
Mean Well PSP-600-12 Power Supply 600W 12V	600W	12V	50A	Indoor	$152.76	View
