Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

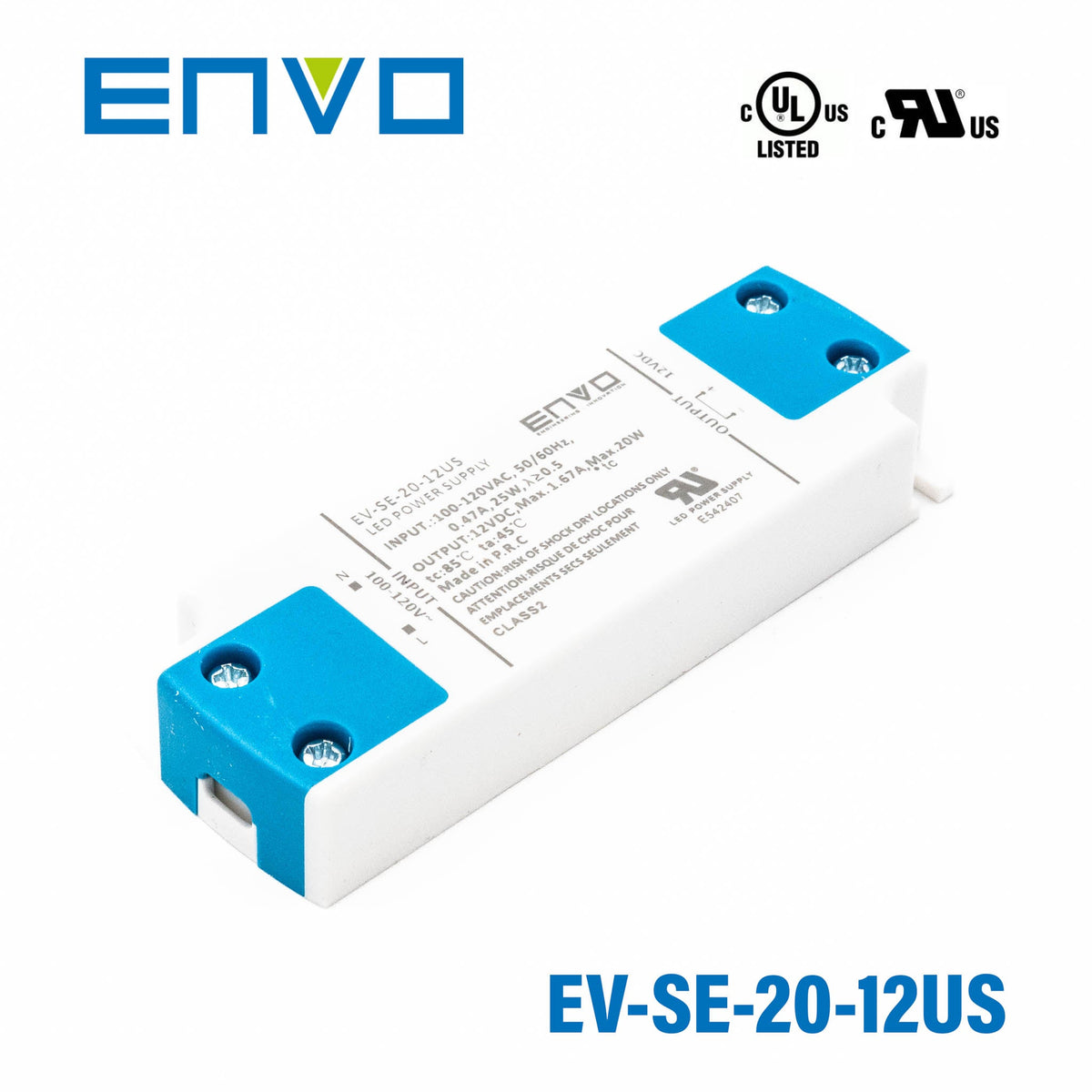

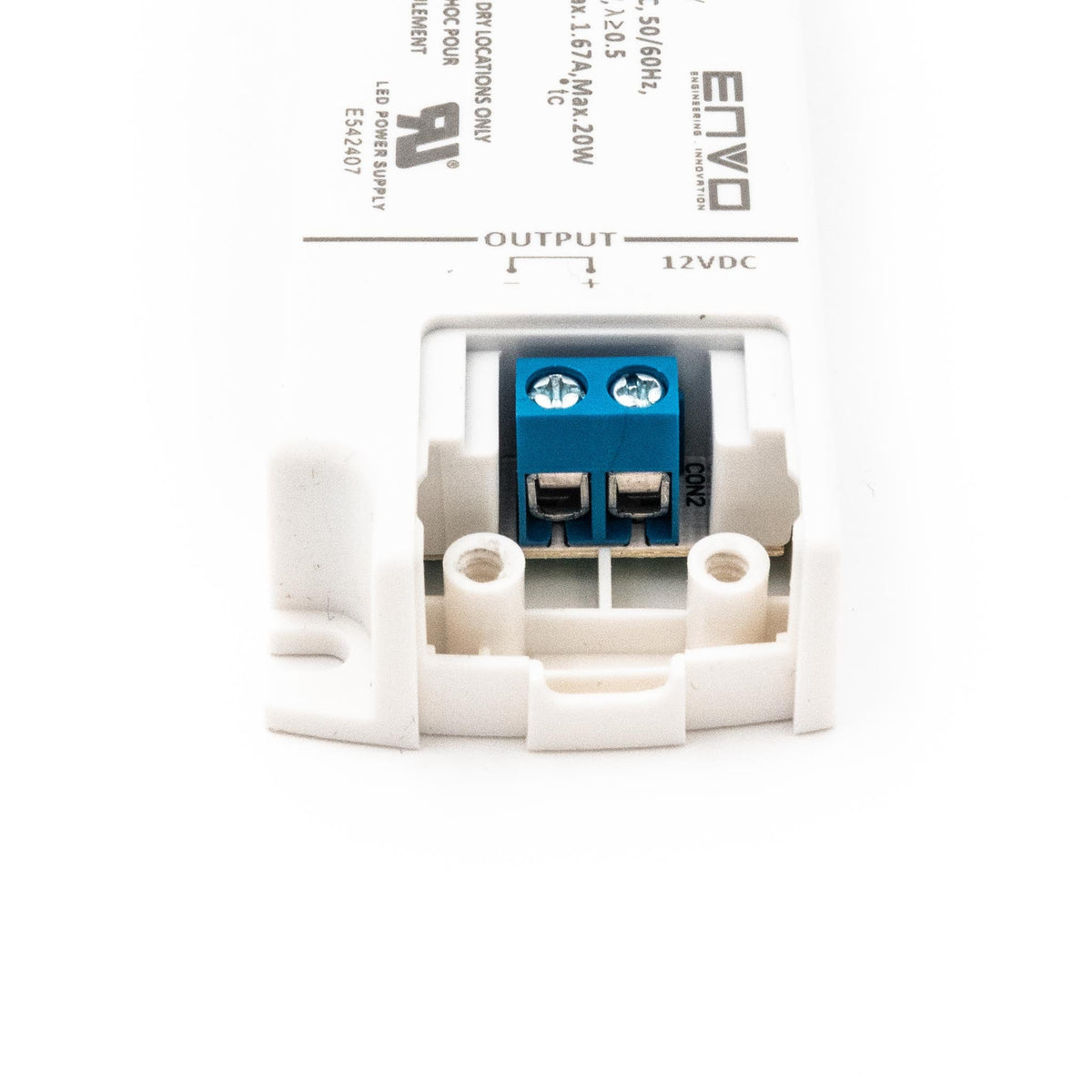

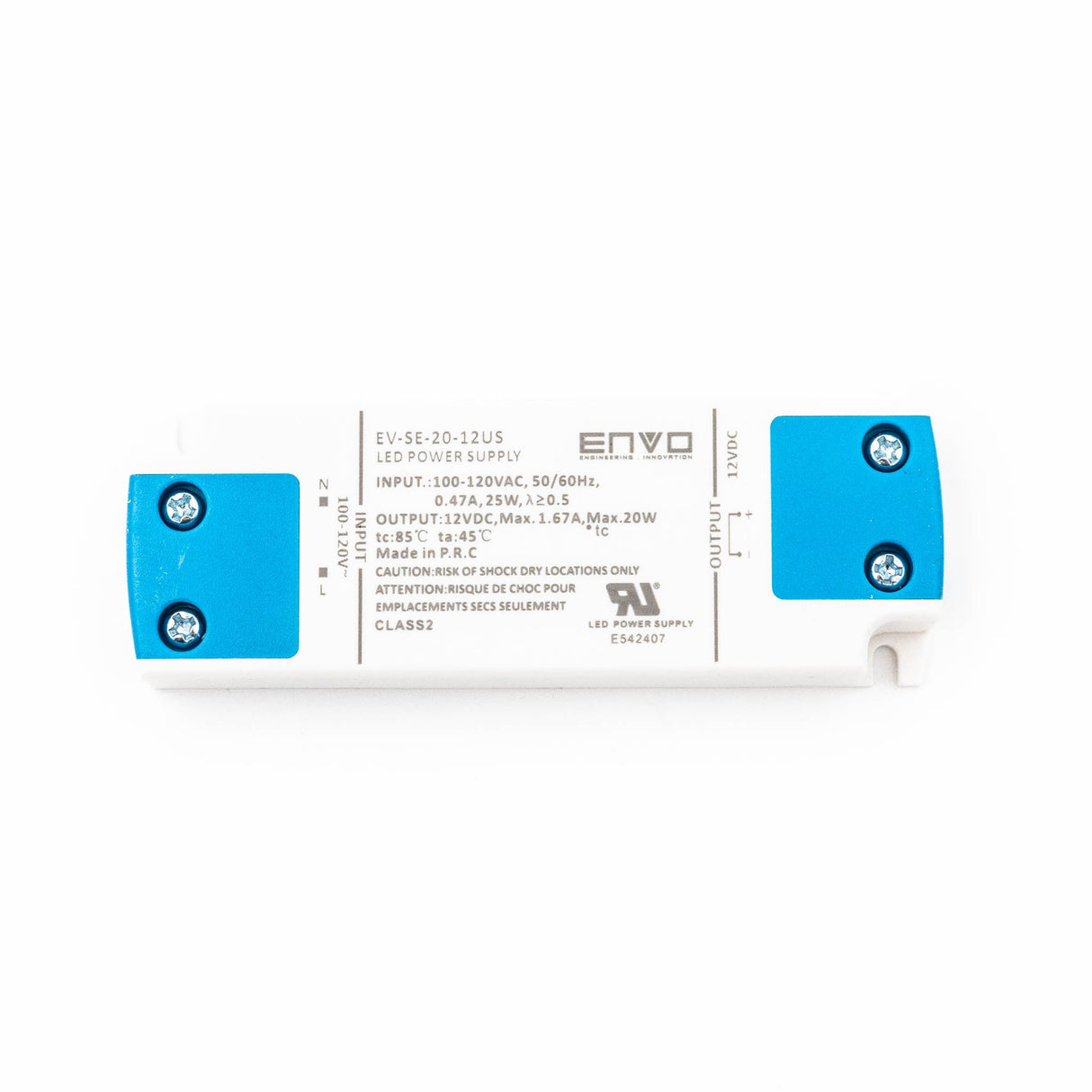

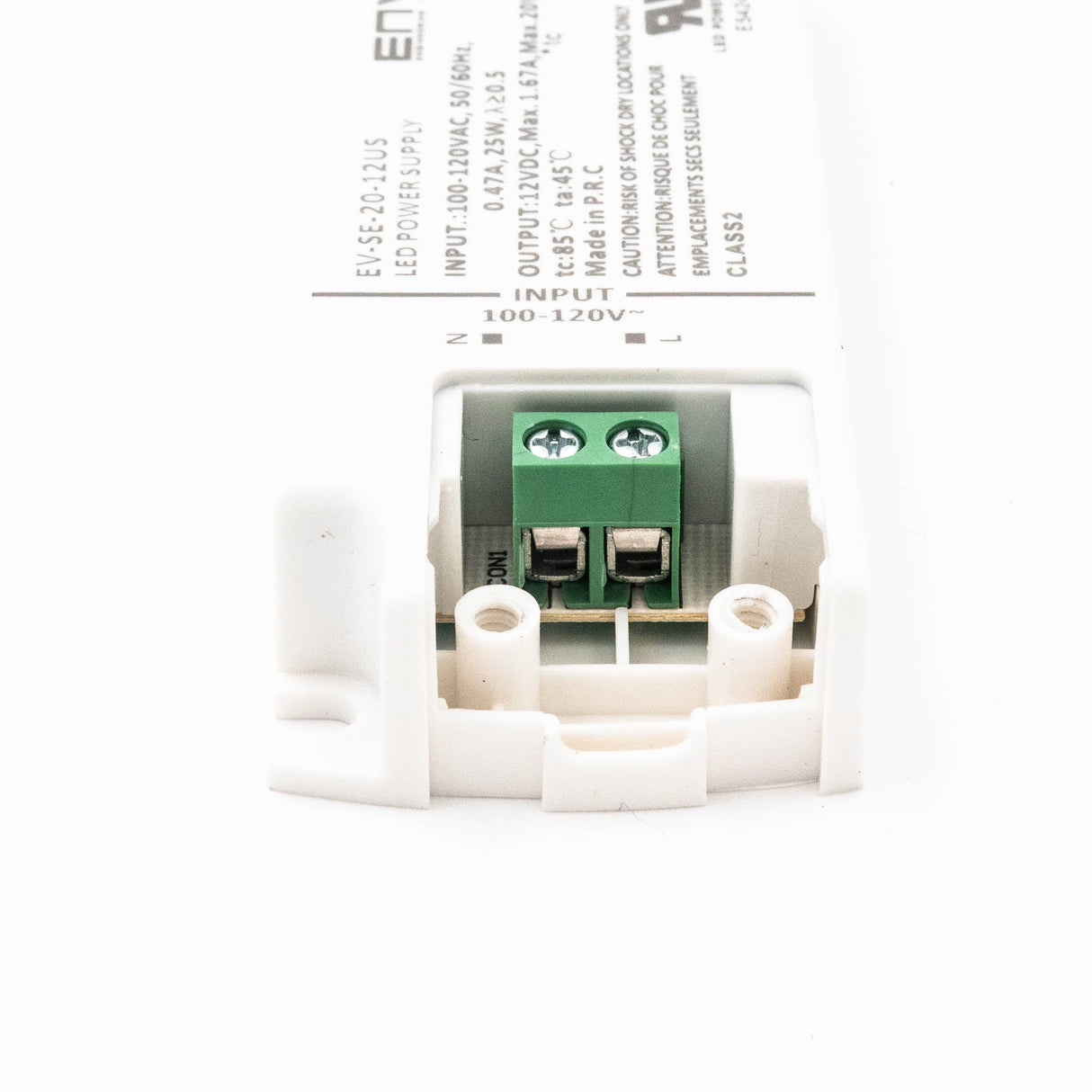

ENVO EV-SE-20-12US LED Driver 20W 12V
90~132VAC US input, ultra thin 0.63"(16mm)
SKU:
EV-SE-20-12US
Datasheet:
$4.70 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Your order will be processed within 24 hours
ENVO EV-SE-20-12US LED Driver 20W 12V
$4.70 USD
Unit price /
Unavailable
Description
Description
- Output constant voltage
- Input voltage range is 90-132Vac
- Maximum conversion efficiency of 86%
- Working Temperature at -20℃~+45°C
- Short circuit/overload / over voltage protection
- Low standby power consumption
- Compliance with worldwide safety regulations for lighting
- Full protection plastic case
- IP20 for indoor installation
- 5 years warranty
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO SE Series
-
Power Rating20 Watt
-
Output Voltage12 Volt
-
Rated Current1.67 Ampere
-
Input Voltage100V~120V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetcUL,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length4.06 in
-
Width0.63 in
-
Height1.4 in
-
Weight0.14 lb
File Downloads
File Downloads
Specification Sheet
