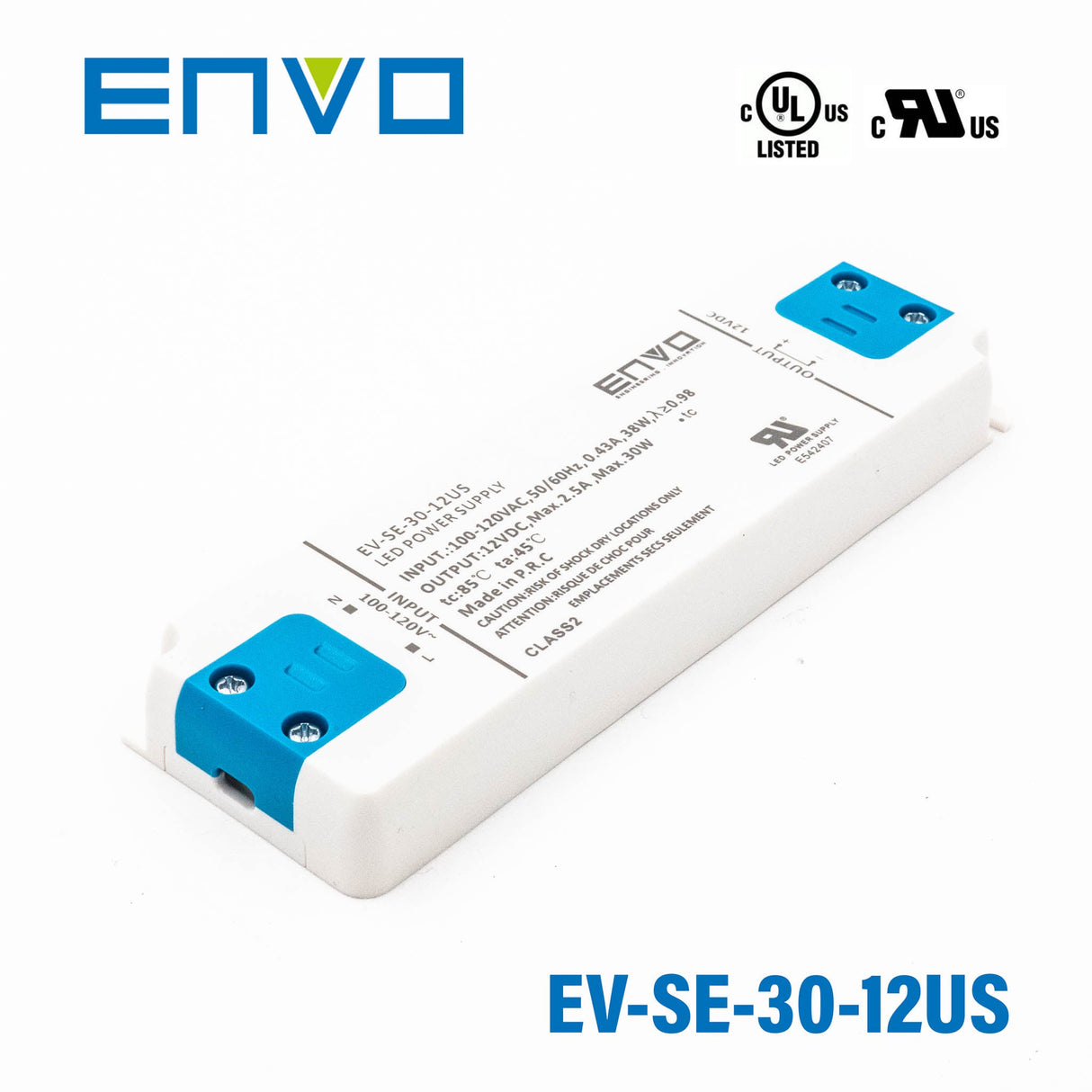

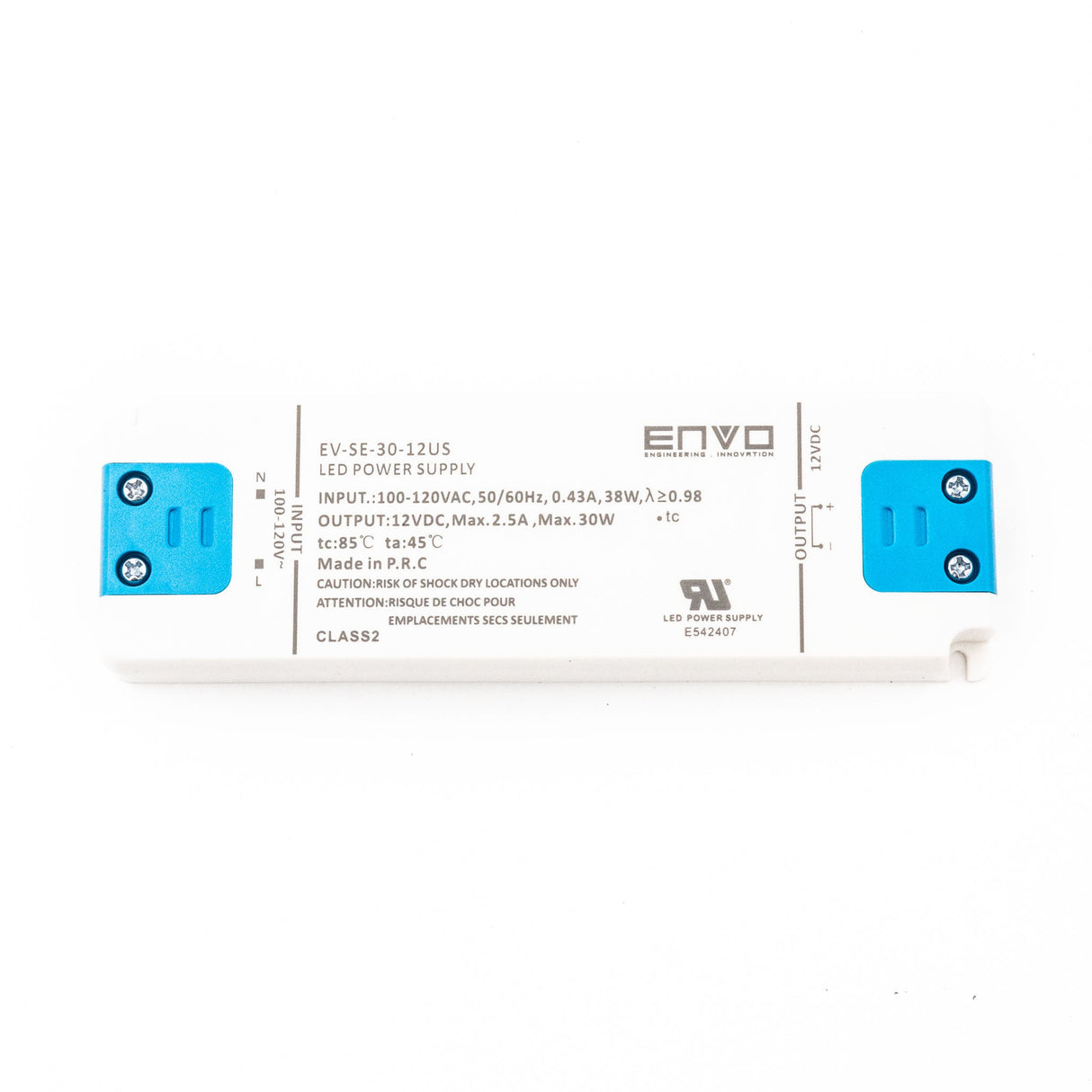

ENVO EV-SE-30-12US LED Power Supply 30W 12V 2.5A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SE-30-12US LED Power Supply 30W 12V 2.5A
Overview
EV-SE-30-12US is the model of this series: typical efficiency 84%.
EV-SE-30-12US/24US is a US standard indoor ultra-thin constant voltage LED driver. Its input voltage range is 90-132Vac, with a maximum conversion efficiency of 86%, working at -20°C to +45°C ambient temperature range, low standby power consumption, all-round protection functions, not only greatly improves the reliability of the products, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamps and other lighting lamps.
Features
- US standard input voltage 90-132 Vac
- IP20
- Short circuit / overload / over voltage protection
- Compliance to worldwide safety regulations for lighting
- 5 years warranty
Specifications
Input
- Rated input voltage
- 100 Vac - 120Vac
- Input voltage
- 90Vac - 132Vac
- Input frequency
- 47Hz - 63Hz
- Power factor
- 0.98 - 0.99 (120Vac, Full Load)
- Total harmonic input
- 8% - 8.5% (120Vac, Full Load)
- Stand-by power consumption
- 0.35W - 0.5W (120Vac/60Hz, No Load)
Output
- Rated output voltage
- 12VDC
- Rated output current
- 0-2.5A
- Rated output power
- 30W
- Rated output efficiency
- 84%
- Output voltage ripple (PK-PK)
- ±2%
- Line regulation
- ±1%
- Load regulation
- ±2%
- Max.output Tolerance
- ±5%
- harmonic distortion
- 8%
- Power factor (Typ.)
- 0.99
Protection
- Over load
- 1.5 times rated load
- Short circuit
- Short circuit power≤0.4W
- Over voltage
- 1.5 times of rated output voltage
Environment Requirement
- Working temp.
- -20°C to +45°C
- Storage temp.
- -40°C to +85°C
- Working humidity
- 10%RH - 90%RH
- Storage humidity
- 5%RH - 95%RH
- IP grade
- IP20
- Cooling mode
- Natural cooling
Safety&EMC Standard
- UL/CUL
- UL8750 √
- Safety project
- UL8750
- EMC
- FCC PART 15
Others
- Lifetime
- 55,000 hours
- MTBF
- 200,000hours
- TC
- 85°C
- Warranty
- 5 years
- Weight
- 140g
- Dimensions
- 156*50*17mm
- Input inrush current
- 60A (120Vac/60Hz, Cold Start)
- Leakage current
- 0.7mA (120Vac/60Hz, Full Load)
Certifications & ratings
- Certification marks
- UL, CUL, FCC
Test conditions and notes2
- Remark: All parameters NOT specially mentioned are measured at 120VAC input, full load and 25°C of ambient temperature.
- Remark: All parameters NOT specially mentioned are typical values measured at 25°C of ambient temperature.
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is an ultra-thin constant voltage LED driver designed for indoor LED lighting, such as bathroom mirror lamps and other indoor fixtures.
What are the output specifications?
It provides a 12VDC output with a rated current of 0-2.5A and a maximum power of 30W. The typical efficiency is 84%.
What is the input voltage range?
It accepts a US standard input voltage range of 90-132Vac at 47-63Hz.
Where can this driver be installed?
It has an IP20 rating, making it suitable for indoor use only. It operates in ambient temperatures from -20°C to +45°C using natural cooling.
What protections are included?
The driver includes short circuit, overload, and over voltage protection. Short circuit and overload protections feature auto-recovery.
Is this driver certified?
Yes, it complies with UL8750 safety standards and FCC Part 15 EMC standards.
What is the warranty period?
The product comes with a 5-year warranty.
