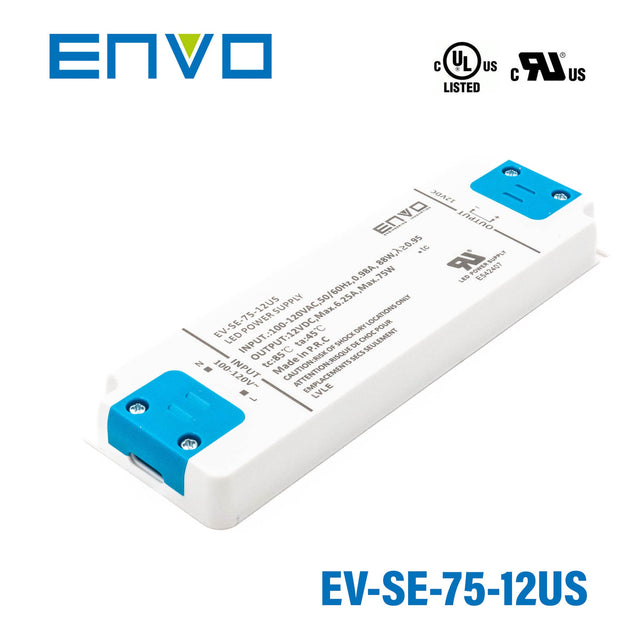

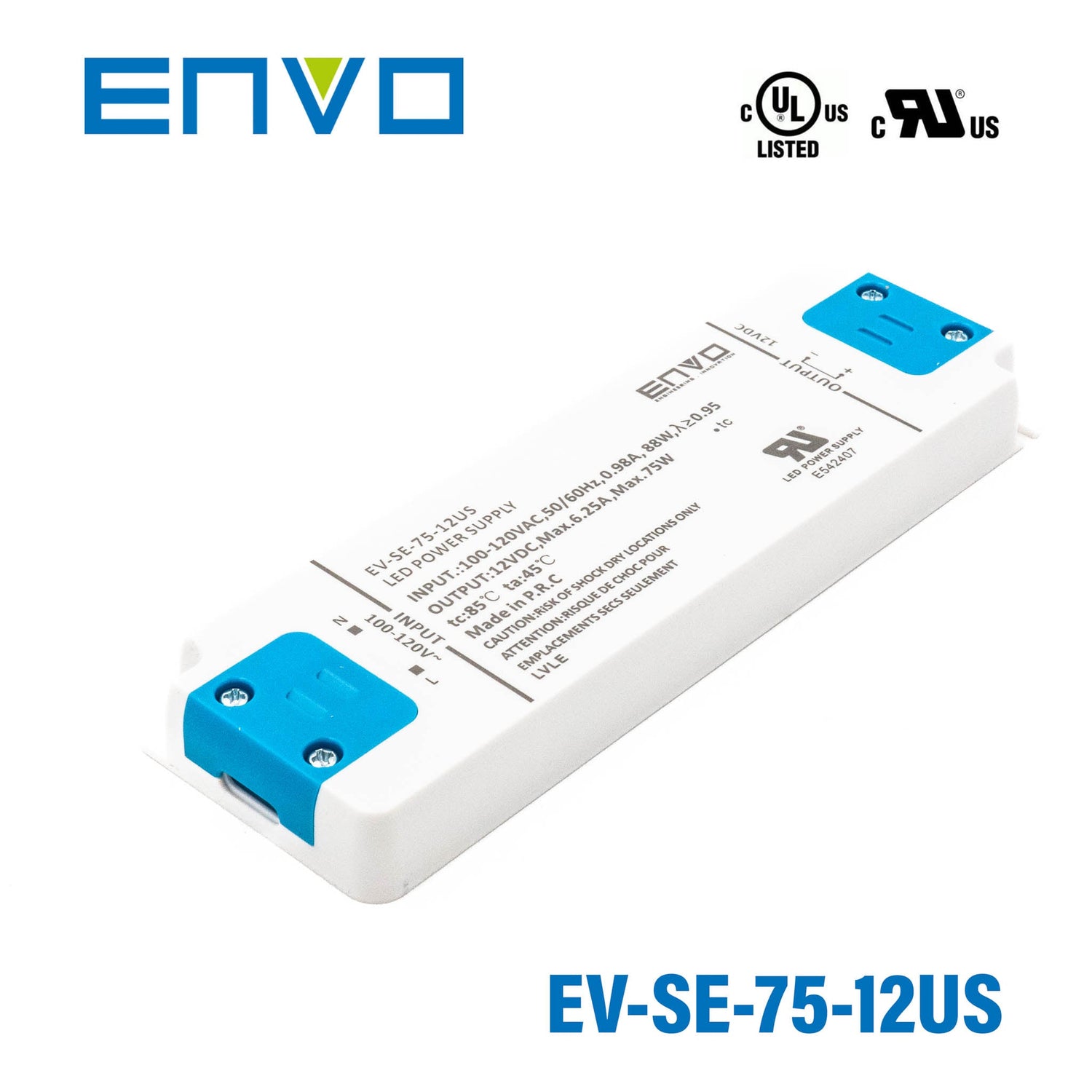

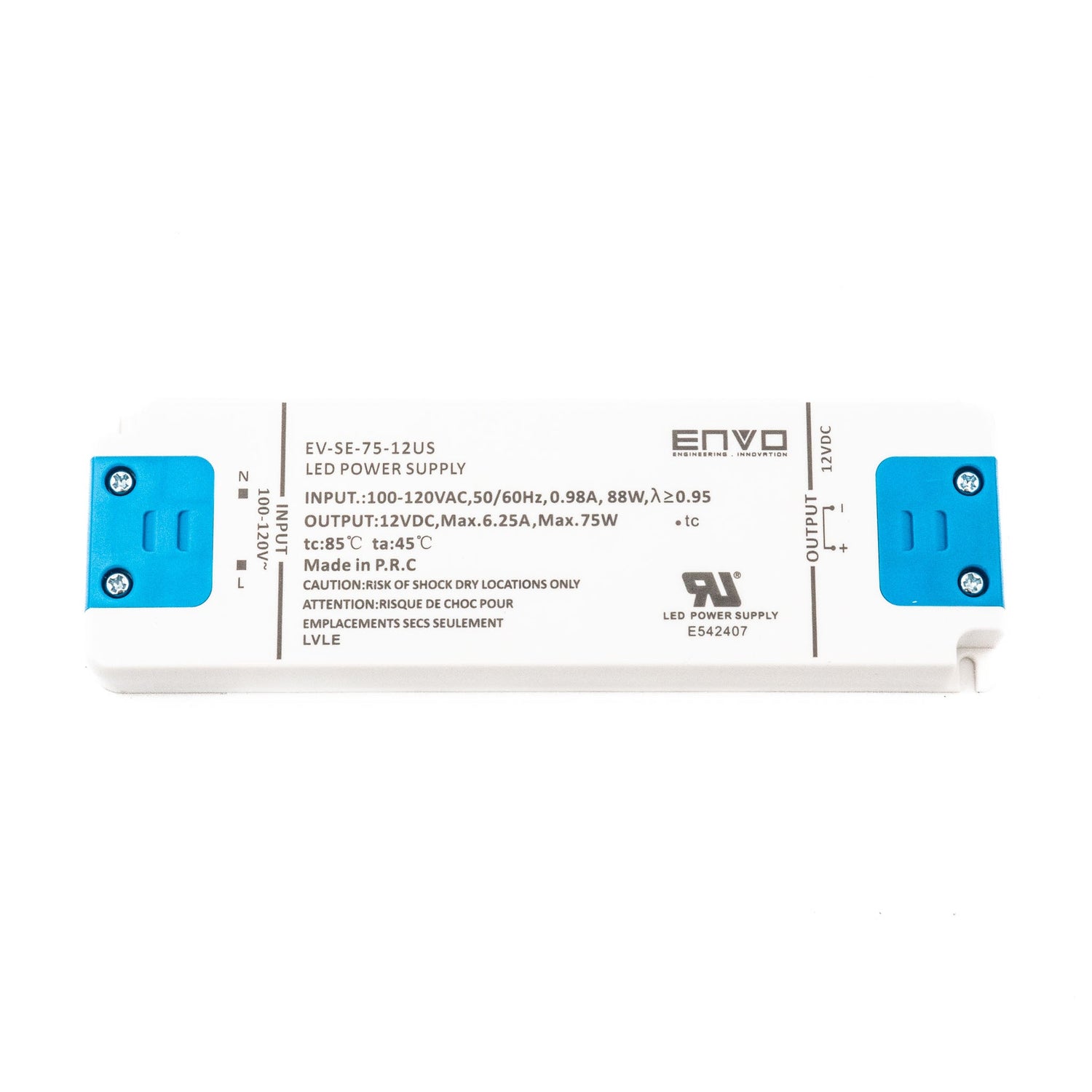

ENVO EV-SE-75-12US LED Power Supply 75W 12V 6.25A
Overview
EV-SE-75-12US/24US is a US standard indoor ultra-thin constant voltage LED driver. Its input voltage range is 90-132Vac, with a maximum conversion efficiency of 88%, working at -20°C to +45°C ambient temperature range, low standby power consumption, all-round protection functions, not only greatly improves the reliability of the products, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamps and other lighting lamps.
Features
- US standard input voltage 90-132 Vac
- IP20
- Protections: Short circuit / Overload / Overvoltage
- Compliance with worldwide safety regulations for lighting
- 5 years warranty
Specifications

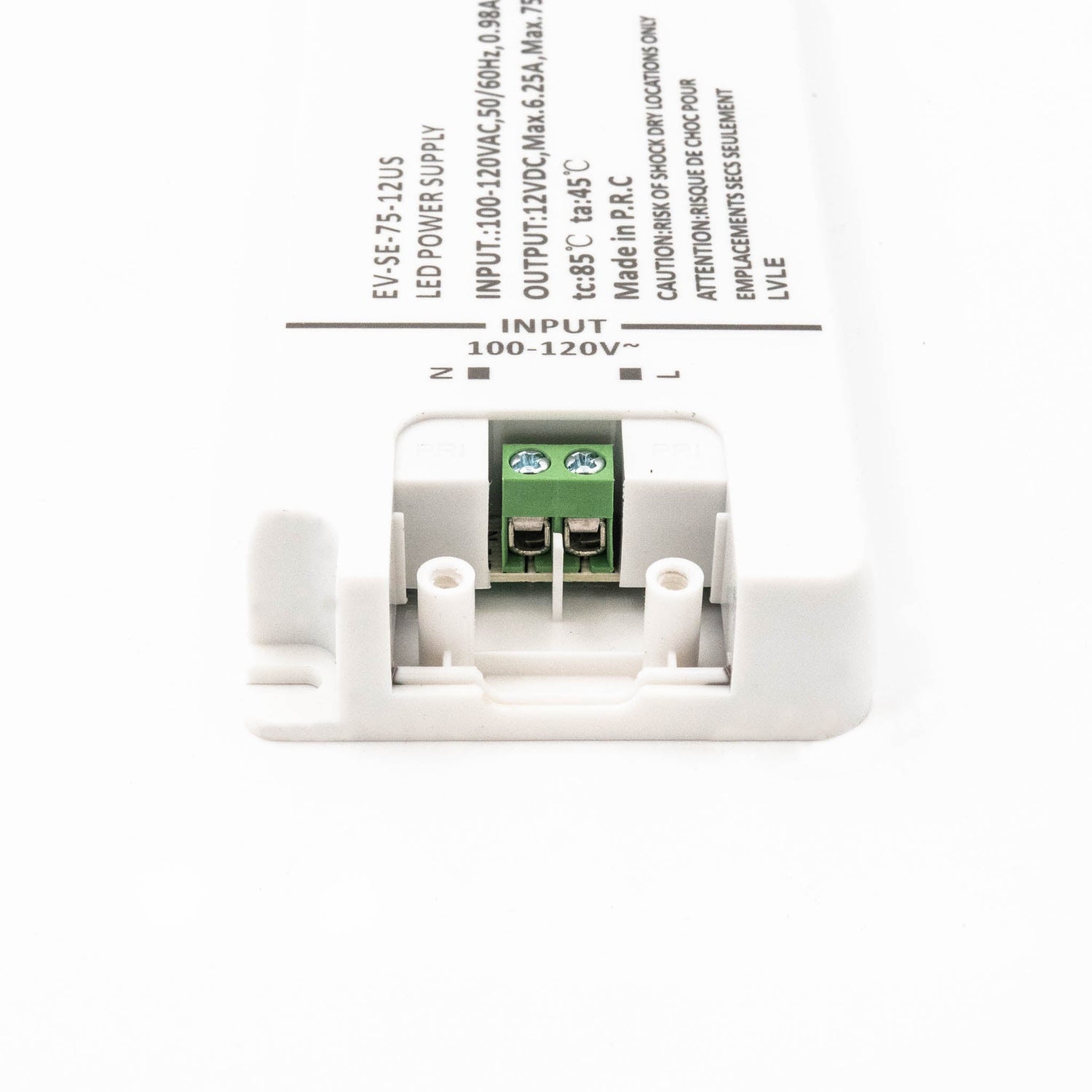

Input
- Rated input voltage
- 100 Vac - 120Vac
- Input voltage
- 90Vac - 132Vac
- Input frequency
- 47Hz - 63Hz
- Power factor
- 0.98 - 0.99 (120Vac, Full Load)
- Total harmonic input
- 5.5% - 6.5% (120Vac, Full Load)
- Stand-by power consumption
- 0.30W - 0.5W (120Vac/60Hz, No Load)
- Input inrush current
- 60A (120Vac/60Hz, Cold Start)
- Leakage current
- 0.7mA (120Vac/60Hz, Full Load)

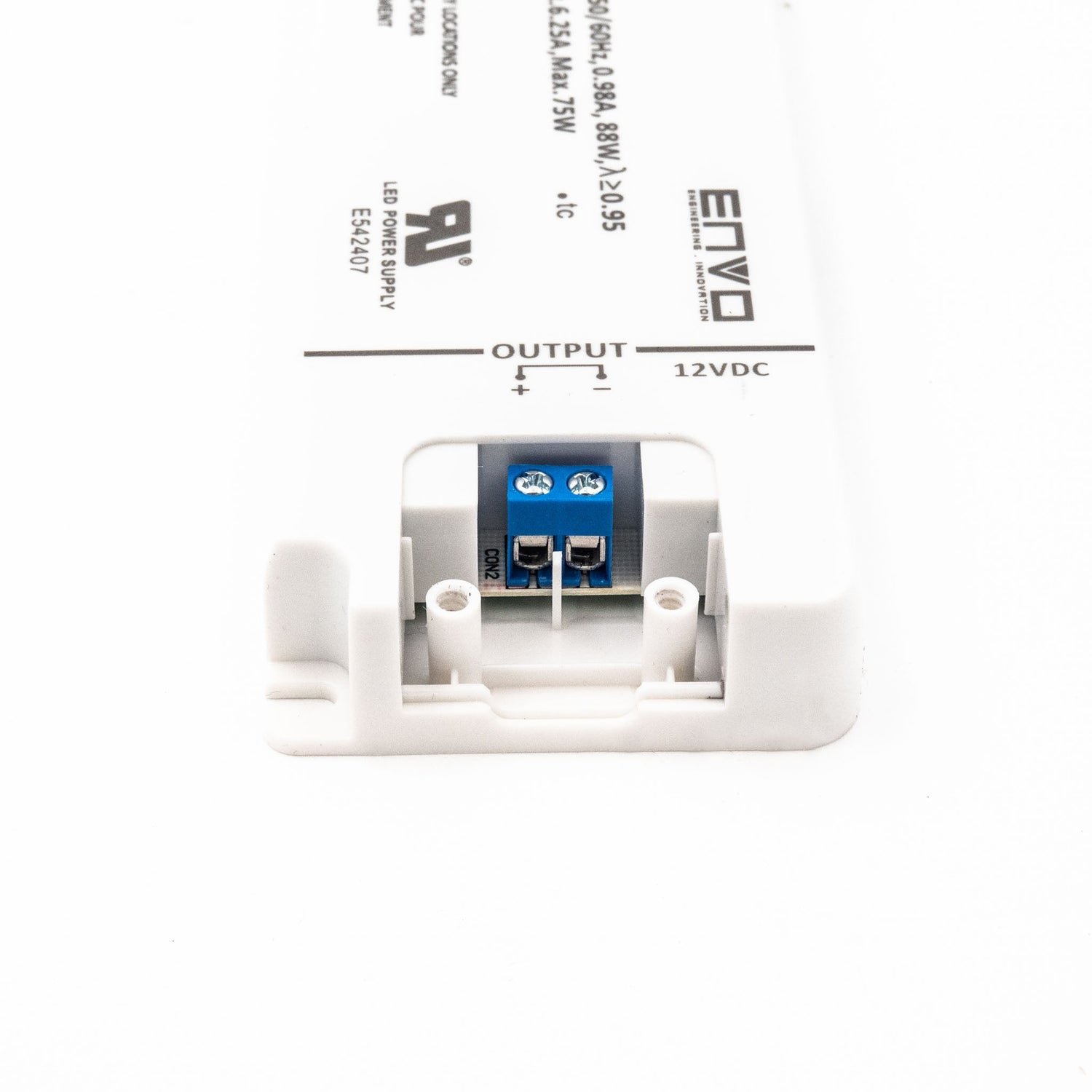

Output
- Rated output voltage
- 12VDC
- Rated output current
- 0-6.25A
- Rated output power
- 75W
- Rated output efficiency
- 87.5%
- Output voltage ripple (PK-PK)
- 3%
- Line regulation
- ±1%
- Load regulation
- ±2%
Protection
- Over load
- 1.4 times of rated load
- Short circuit
- Short circuit power≤2.0W
- Over voltage
- 1.5 times of rated output voltage
- Over temperature
- 110°C
Environment Requirement
- Working temp.
- -20°C to +45°C
- Storage temp.
- -40°C to +85°C
- Working humidity
- 10%RH - 90%RH
- Storage humidity
- 5%RH - 95%RH
- Cooling mode
- Natural cooling
Safety&EMC Standard
- UL/CUL
- UL8750
- EMC
- FCC PART 15
Others
- Lifetime
- 55,000 hours
- MTBF
- 200,000 hours
- TC
- 85°C
- Warranty
- 5 years
- Weight
- 240g
- Dimensions
- 177mm*56mm*17.2mm
Certifications & ratings
- Certification marks
- UL, CUL, FCC
Test conditions and notes2
- Remark: All parameters NOT specially mentioned are measured at 230VAC input, full load and 25°C of ambient temperature.
- Remark: All parameters NOT specially mentioned are typical values measured at 25°C of ambient temperature.
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is a US standard indoor ultra-thin constant voltage LED driver designed for LED lighting, such as indoor bathroom mirror lamps and other lighting lamps.
What are the output specifications?
It provides a constant 12VDC output with a rated current of 0-6.25A and a maximum output power of 75W. The rated efficiency is 87.5%.
What is the input voltage range?
The input voltage range is 90-132Vac, suitable for US standard mains power. The input frequency is 47-63Hz.
Where can this driver be installed?
It has an IP20 rating, making it suitable for indoor use only. The operating ambient temperature range is -20°C to +45°C.
What protections are included?
It includes short circuit, overload, overvoltage, and over temperature protections. Short circuit and overload protections feature auto-recovery.
Is this driver certified?
Yes, it complies with UL8750 safety standards and FCC Part 15 EMC standards.
What is the warranty period?
The product comes with a 5-year warranty.
