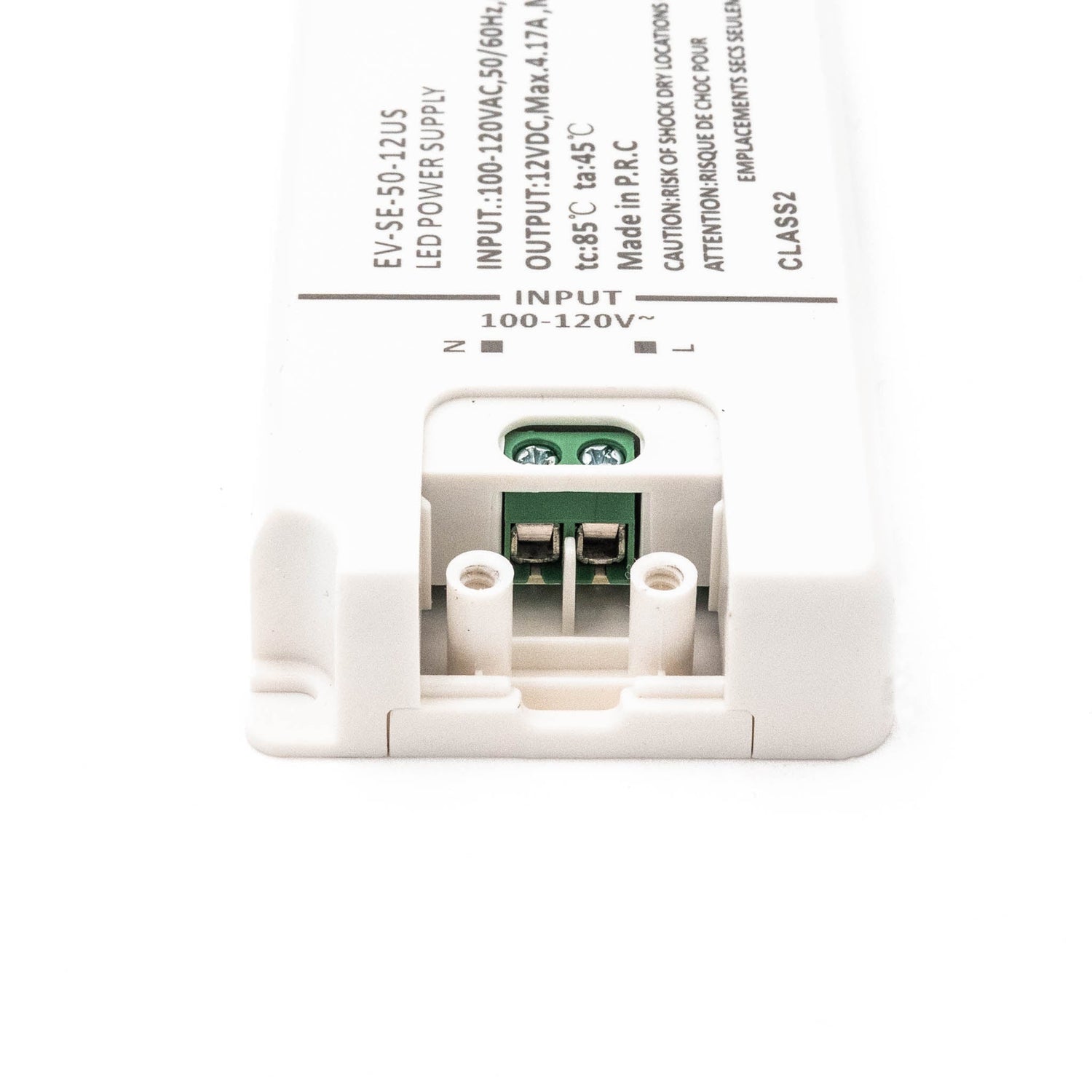

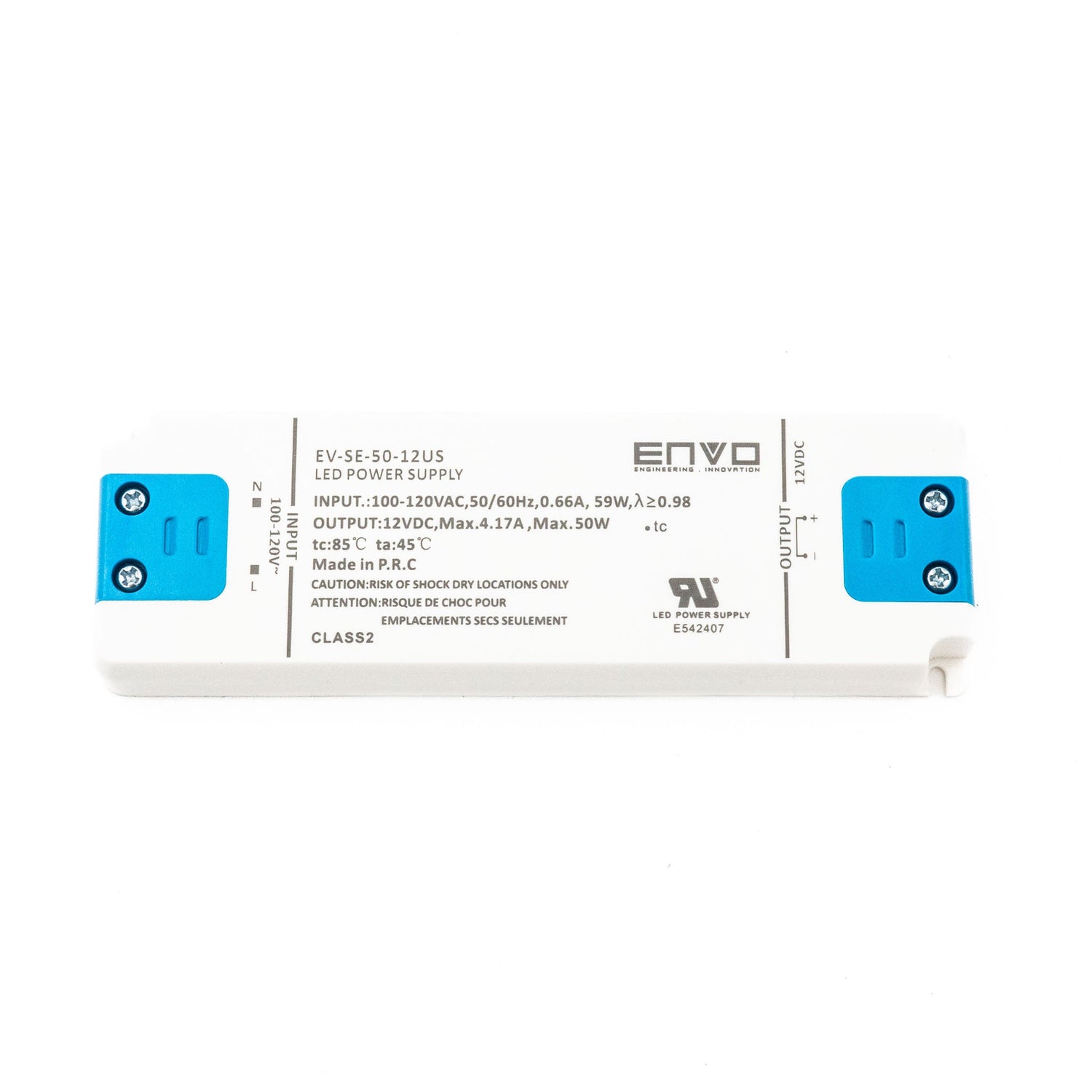

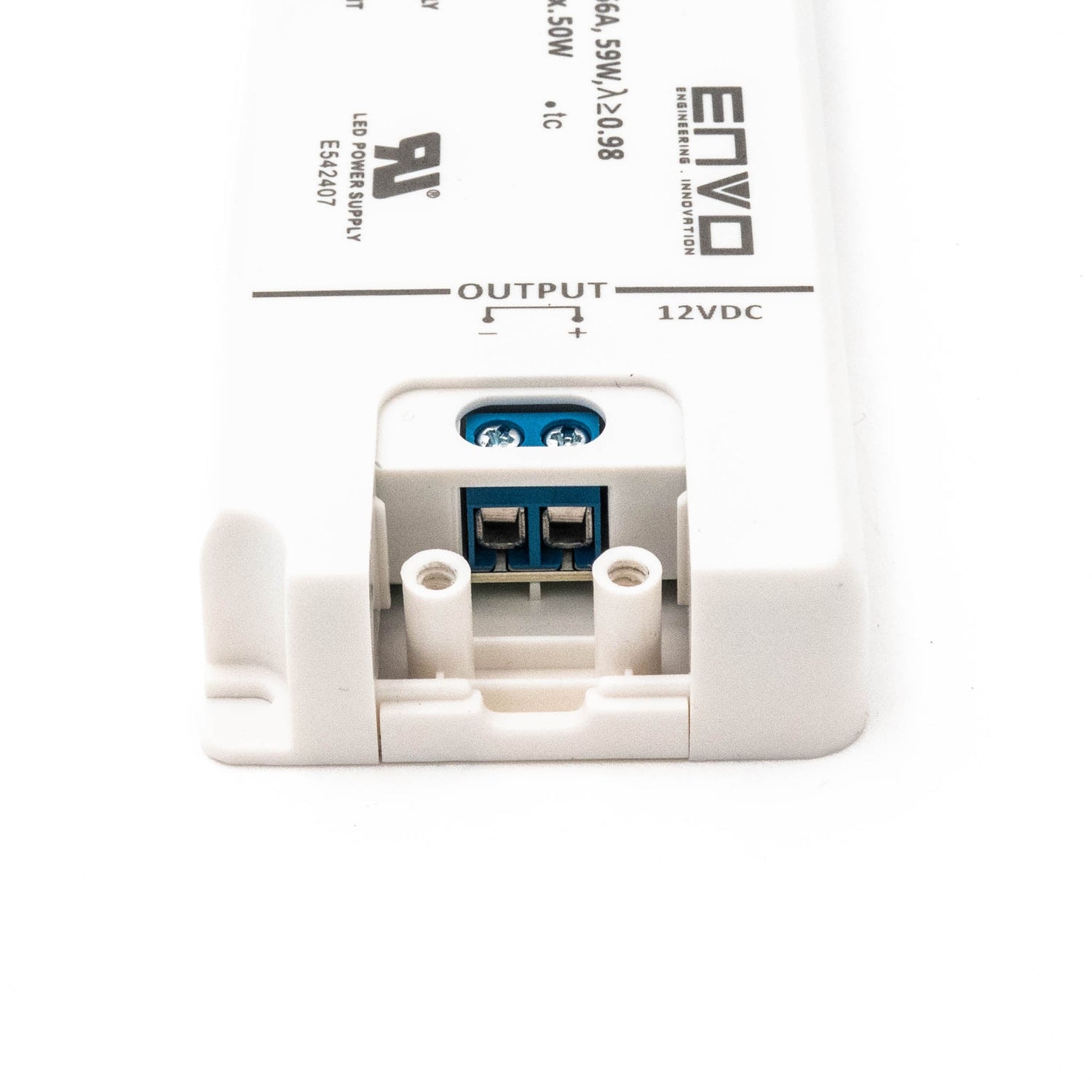

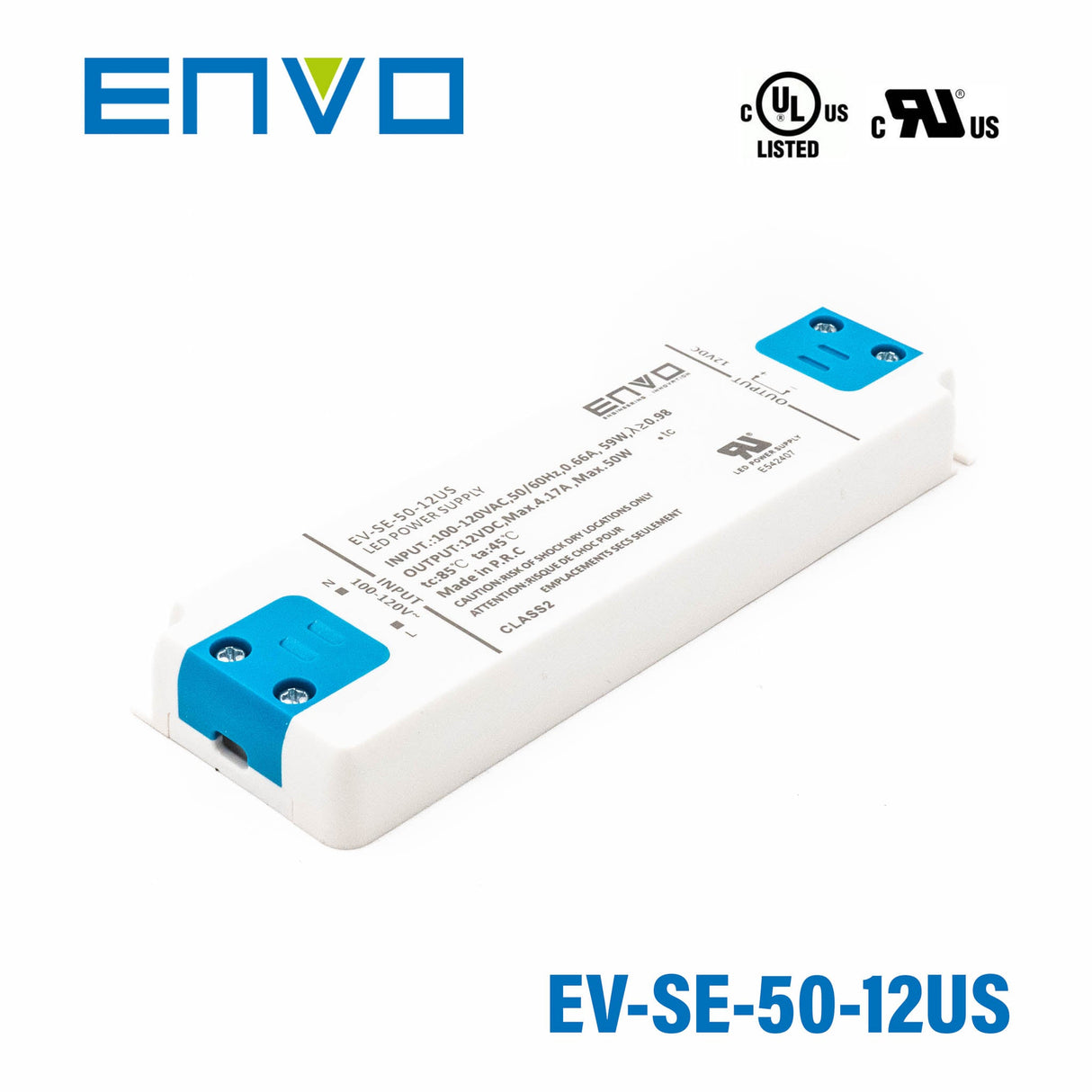

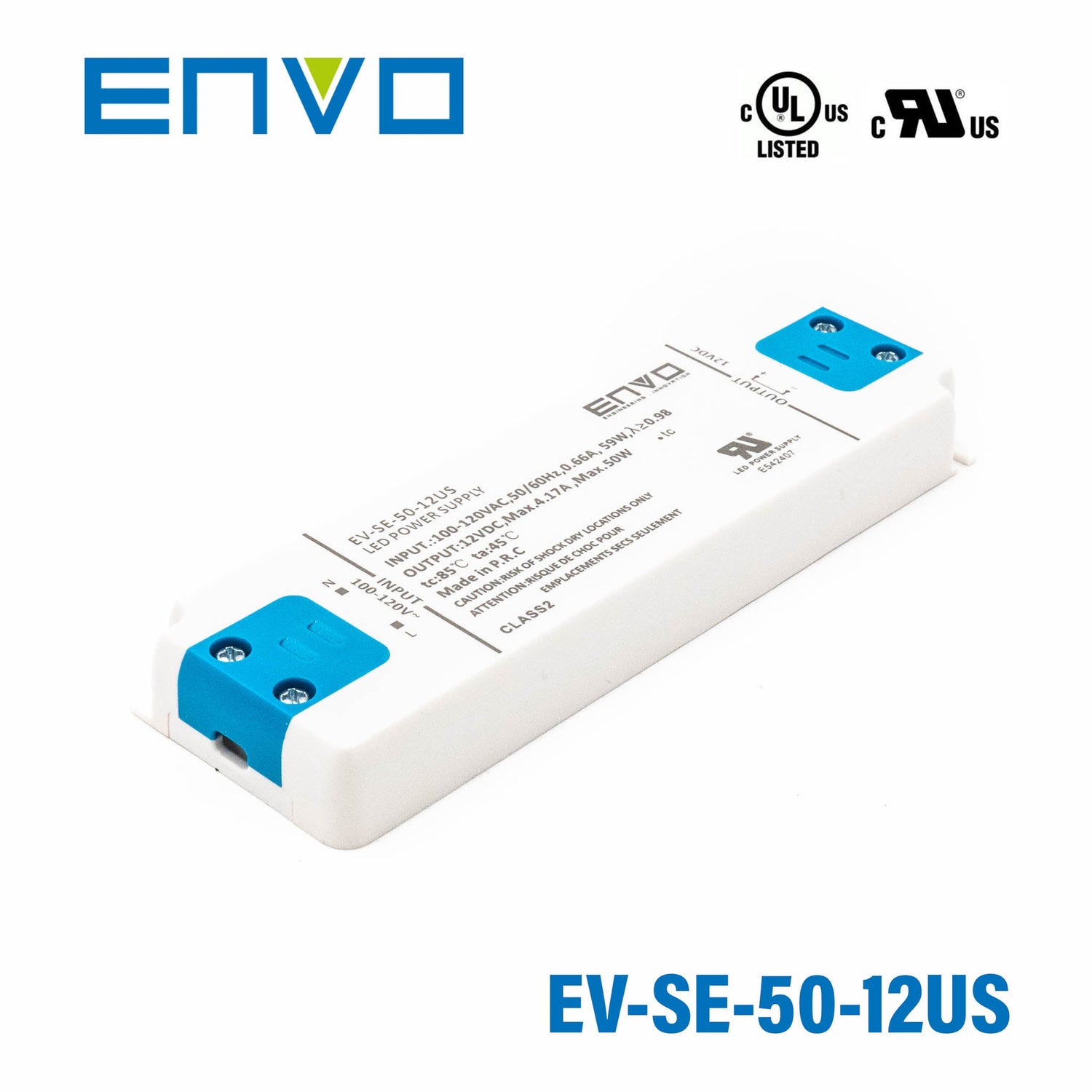

ENVO EV-SE-50-12US LED Power Supply 50W 12V 4.16A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SE-50-12US LED Power Supply 50W 12V 4.16A
Overview
EV-SE-50-12US/24US is a US standard indoor ultra-thin constant voltage LED power supply. Its input voltage range is 90-132Vac, with high efficiency up to 88%, working in the temperature range of -20°C to +45°C ambient temperature range. It has ultra-high power factor, low THD, low standby power consumption, full protection function, which not only greatly improves the reliability of the product, but also ensures the life cycle of the product. This series is designed for LED lighting such as indoor bathroom mirror lamps and other lighting.
Features
- US standard input voltage 90-132 Vac
- IP20
- Short circuit / overload / over voltage protection
- Compliance with worldwide safety regulations for lighting
- 5 years warranty
Specifications
Input
- Rated input voltage
- 100-120Vac
- Input voltage
- 90-132Vac
- Input frequency
- 47-63Hz
- Max. Input current
- 0.66A max (90Vac, Full Load)
- Input inrush current
- 60A max (120Vac/60Hz, Cold Start)
- Power factor
- 0.98 min, 0.99 typ (120Vac, Full Load)
- Total harmonic input
- 6.5% typ, 7% max (120Vac, Full Load)
- Leakage current
- 0.7mA max (120Vac/60Hz, Full Load)
- Stand-by power consumption
- 0.30W typ, 0.5W max (120Vac/60Hz, No Load)
Output
- Rated output voltage
- 12VDC
- Rated output current
- 0-4.16A
- Rated output power
- 50W
- Rated output efficiency
- 88%
- Output voltage ripple (PK-PK)
- ±2%
- Line regulation
- ±1%
- Load regulation
- ±2%
Protection
- Over load
- 1.3 times of rated load
- Short circuit
- Short circuit power≤1.3W
- Over voltage
- 1.5 times of rated output voltage
- Over temperature
- 110°C
Environment Requirement
- Working temp.
- -20°C to +45°C
- Storage temp.
- -40°C to +85°C
- Working humidity
- 10%RH - 90%RH
- Storage humidity
- 5%RH - 95%RH
- IP grade
- IP20
- Cooling mode
- Natural cooling
Safety&EMC Standard
- UL/CUL
- UL8750
- EMC
- FCC PART 15
Others
- Lifetime
- 55,000 hours
- MTBF
- 200,000hours
- TC
- 85°C
- Warranty
- 5 years
- Weight
- 145g
- Dimensions
- 156*50*17mm
Certifications & ratings
- Certification marks
- UL, CUL, FCC
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is an ultra-thin constant voltage LED power supply designed for indoor lighting applications, such as bathroom mirror lamps.
What are the output ratings?
It provides a 12VDC output with a rated current of 0-4.16A and a maximum output power of 50W.
What is the input voltage range?
It accepts a US standard input voltage range of 90-132Vac at 47-63Hz.
What is the IP rating and operating temperature?
The unit has an IP20 rating for indoor use only and operates in an ambient temperature range of -20°C to +45°C.
What protections are included?
It features short circuit, overload, over voltage, and over temperature protection with auto-recovery or restart capabilities.
Is it certified for safety?
Yes, it complies with UL8750 safety standards and FCC Part 15 EMC regulations.
What is the warranty period?
The product comes with a 5-year warranty.
