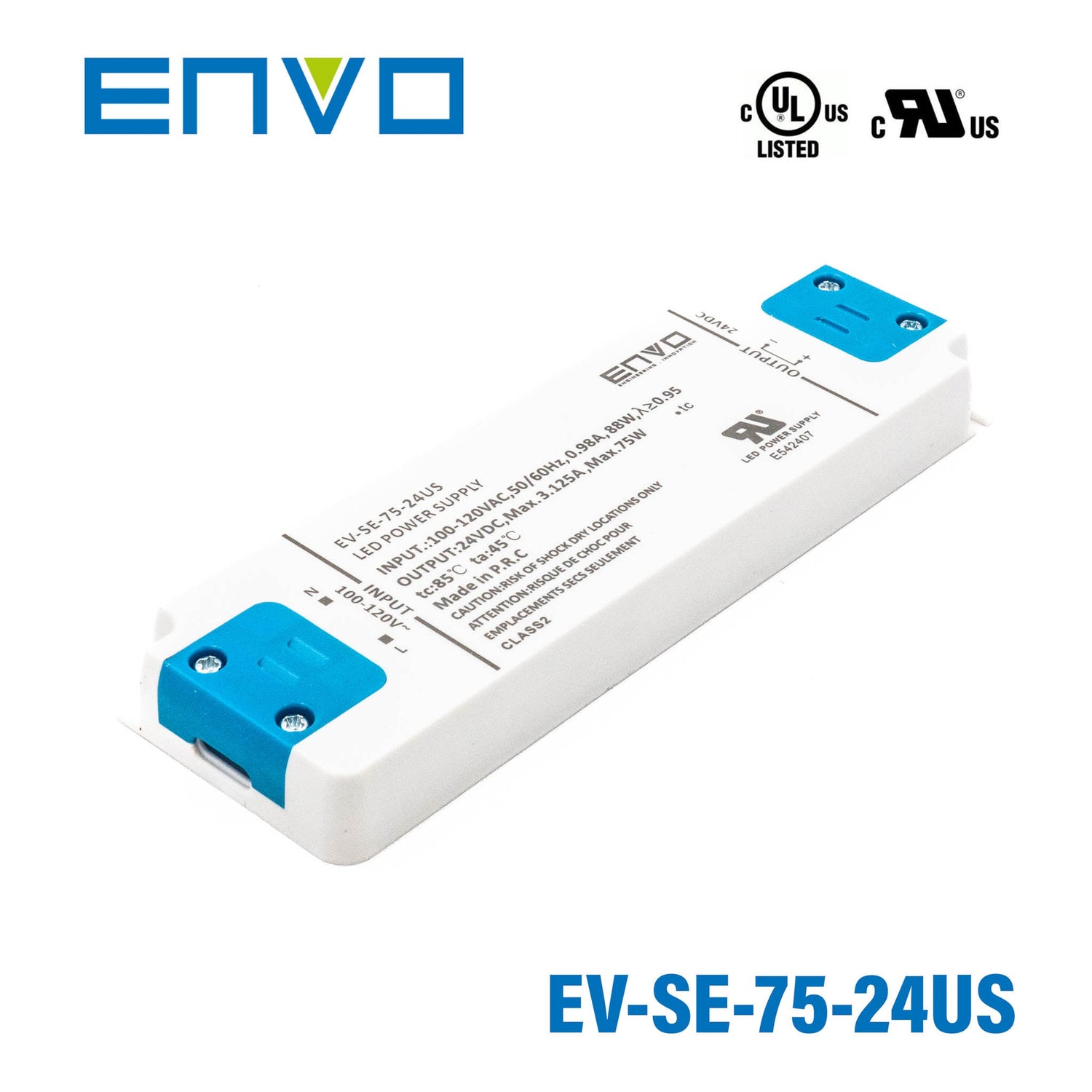

ENVO EV-SE-75-24US LED Driver 75W 24V
90~132VAC US input, ultra thin 0.677"(17.2mm)
SKU:
EV-SE-75-24US
Datasheet:
$15.39 USD
Unit price /
Unavailable
Shipping calculated at checkout.
85 in stock
Your order will be processed within 24 hours
ENVO EV-SE-75-24US LED Driver 75W 24V
$15.39 USD
Unit price /
Unavailable
Description
Description
- Output constant voltage
- US standard input voltage 90-132 Vac.
- IP20
- Protections: Short circuit / Overload/Overvoltage
- Compliance with worldwide safety regulations for lighting
- Maximum conversion efficiency of 88%
- Working Temperature at -20℃~+45°C
- 5 years warranty
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO SE Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage100V~120V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetcUL,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length6.97 in
-
Width0.68 in
-
Height2.2 in
-
Weight0.53 lb
File Downloads
File Downloads
Specification Sheet
