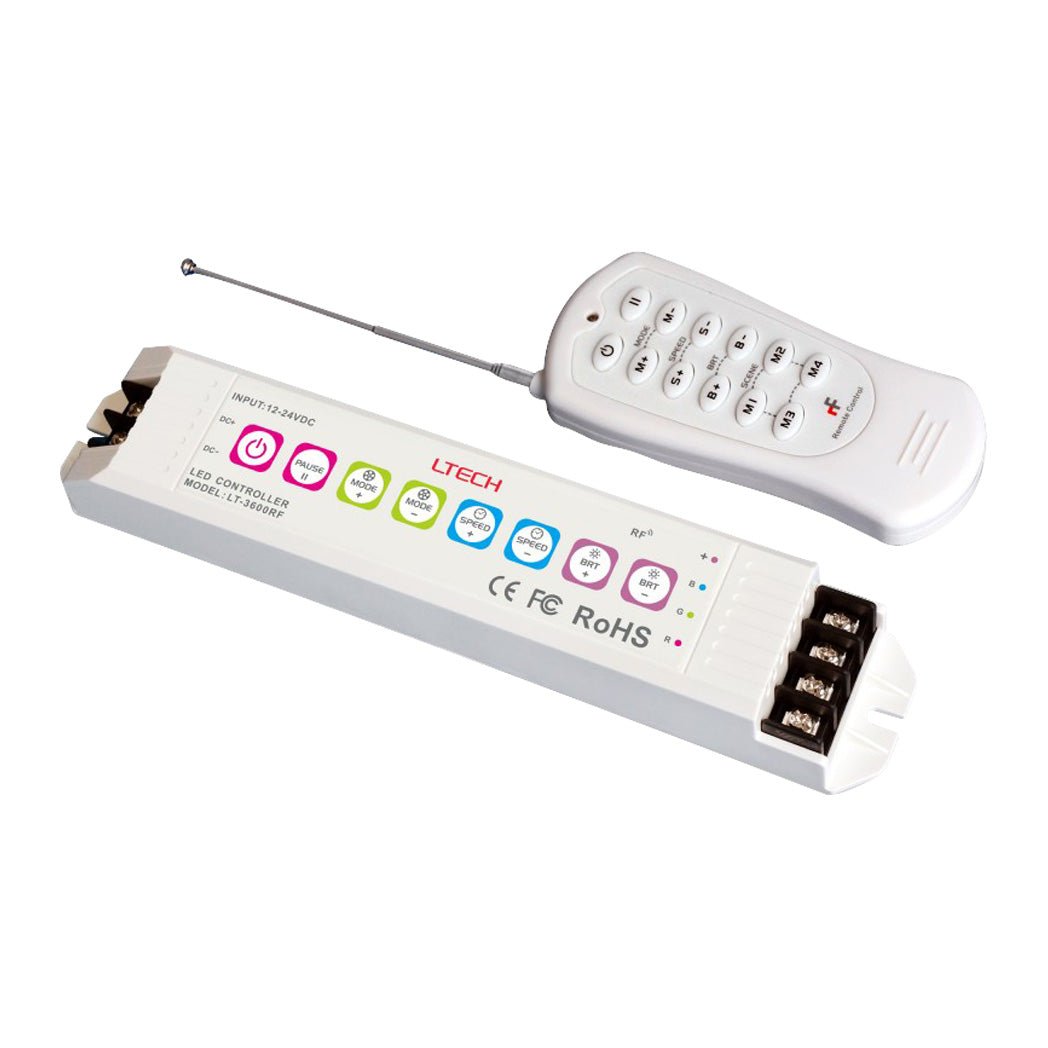

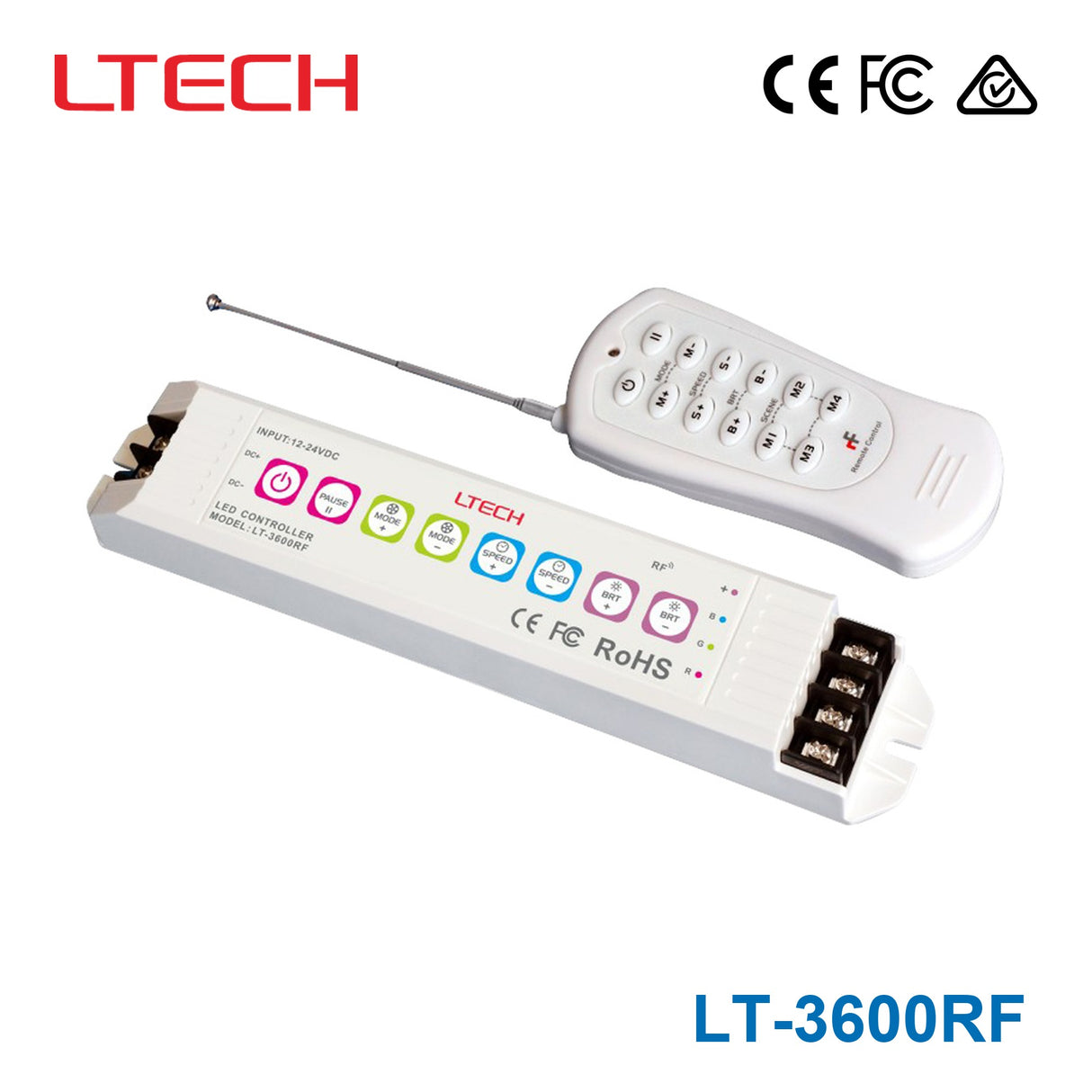

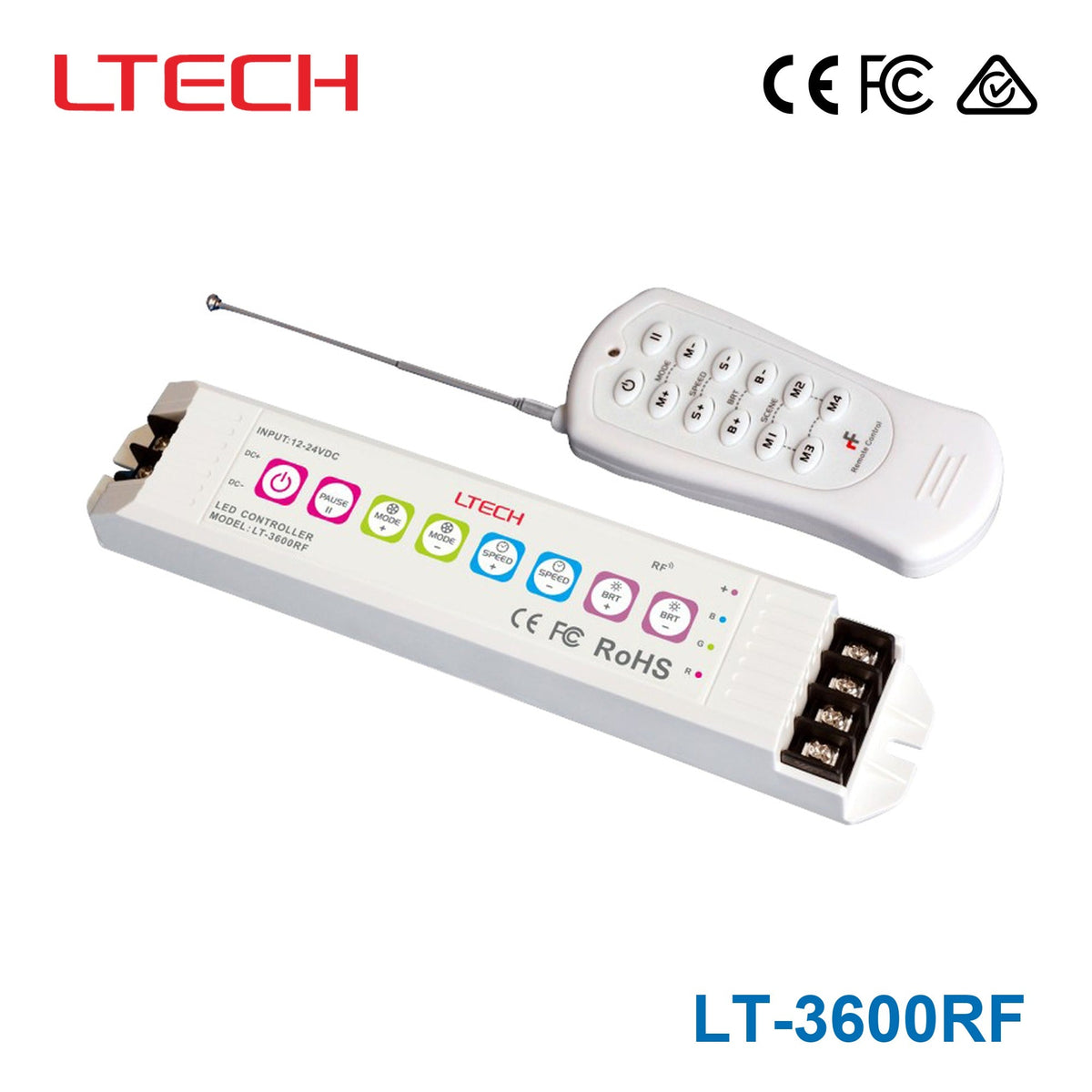

Ltech LT-3600RF LED RGB Controller
The LT-3600RF is a multi-functional RGB LED controller designed for low-power RGB LED lighting products. It supports effects control for products such as RGB LED strips and LED modules, with built-in PWM control for smooth light changes without visible flicker.
Input 12~24VDC. 3 channels at 6A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Output signal: Normal
- ✓Output channels: 6A - 3 Channel
- ✓Maximum load: 6A per channel
- ✓Maximum total load: 432W
- ✓Ingress protection: IP20
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 211 x 30 x 30mm
- ✓5 year warranty
-
BrandLtech
-
Power Rating432 Watt
-
Output Voltage24 Volt
-
Rated Current6 Ampere
-
Input Voltage12V~24V
-
No of Output3
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length8.31 in
-
Width1.18 in
-
Height1.18 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3600RF LED RGB Controller do?
The LT-3600RF is a multi-functional RGB LED controller designed for low-power RGB LED lighting products. It supports effects control for products such as RGB LED strips and LED modules, with built-in PWM control for smooth light changes without visible flicker.
Does the LT-3600RF support remote control?
Yes. This model supports RF wireless remote control for long-distance operation, and it also has 8 touch buttons on the controller itself for functions such as on/off, pause, mode selection, speed adjustment, and brightness adjustment. It also includes an ID learning function for use with compatible remotes that have different coded addresses.
Is the LT-3600RF only for RGB lighting, or can it control other LED types too?
This controller is specifically described as an RGB LED controller. It is intended for conventional RGB LED products and low-power RGB LED lights whose current is limited by resistors, so buyers looking for a single-color or non-RGB controller should confirm they need an RGB model.
What voltage and power range does the LT-3600RF support?
The LT-3600RF automatically adapts to DC 12-24V input. Its listed output voltage is 24V, rated current is 6A, and the maximum power rating provided is 432W.
How many lighting effects are built into the LT-3600RF?
This controller has 16 built-in modes. It is designed to provide smooth changing effects without flicker, which makes it suitable for RGB lighting applications where multiple preset effects are useful.
Can the LT-3600RF be used in demanding temperature conditions?
Yes. The specified operating temperature range is from -30°C to 55°C, which makes it suitable for a wide range of commercial and industrial environments. Buyers should still confirm that the full installation environment stays within that range.
What warranty comes with the Ltech LT-3600RF?
The listed warranty period for the LT-3600RF is 5 years. That is a comparatively long warranty term for a controller in this category and may matter for buyers managing long-term lighting projects.
