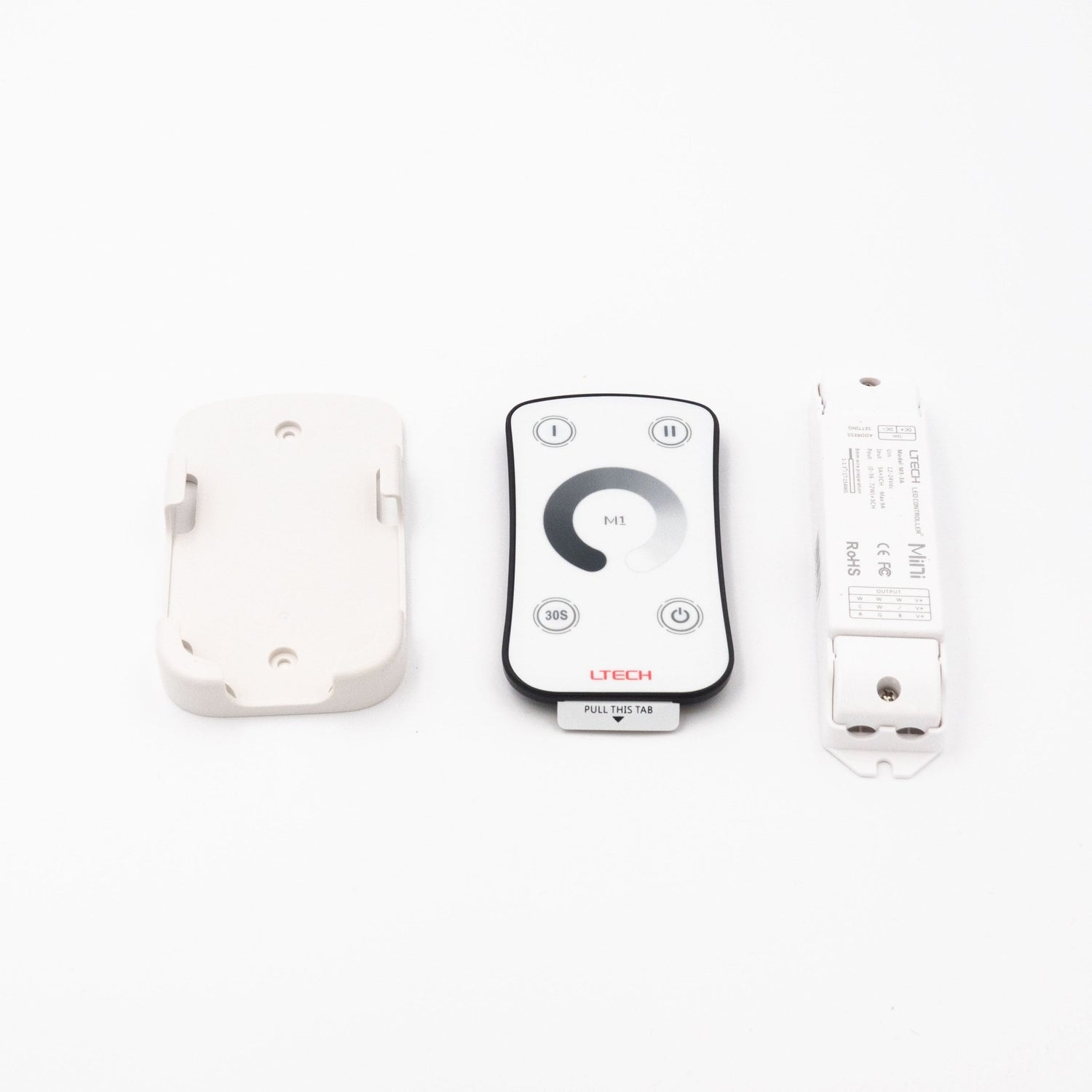

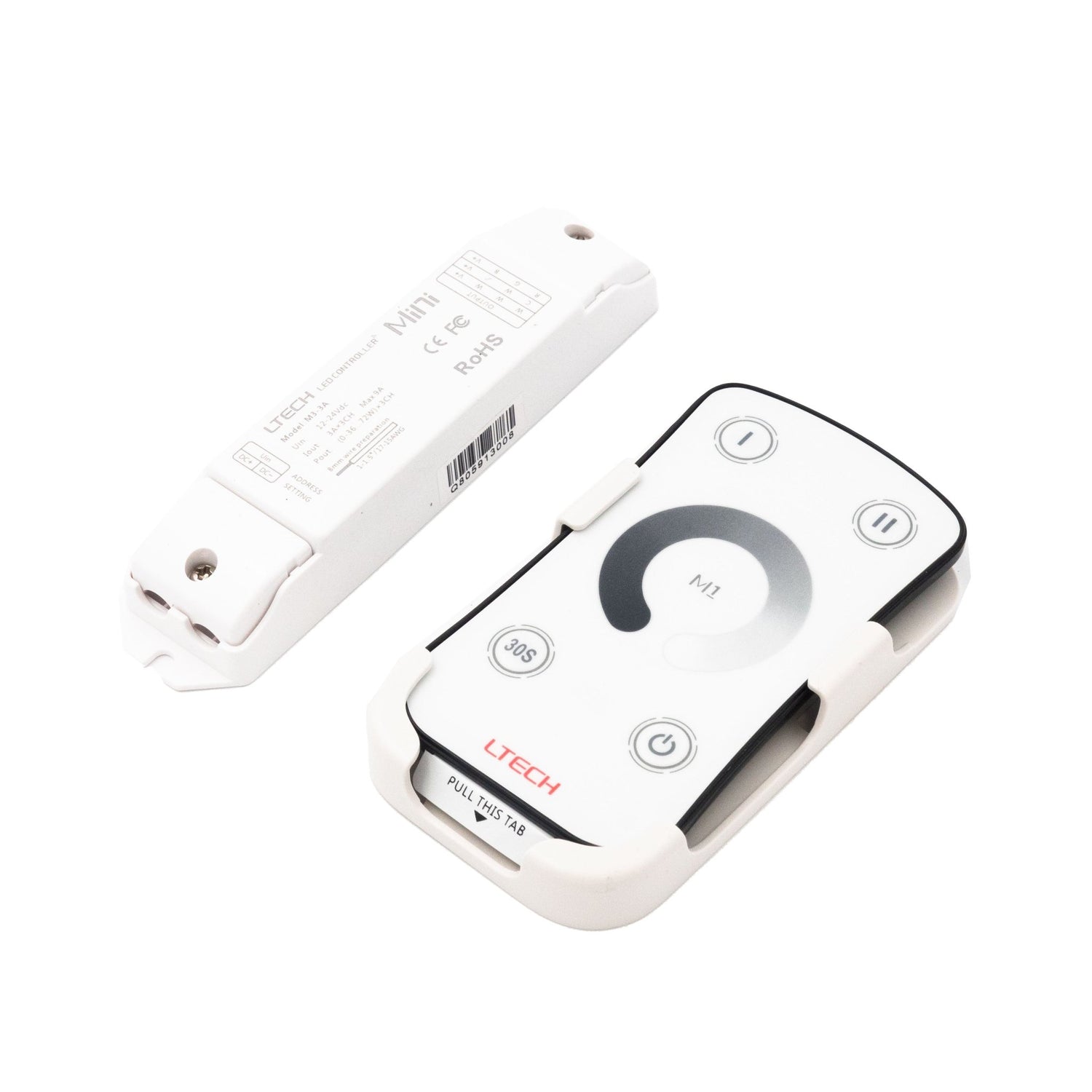

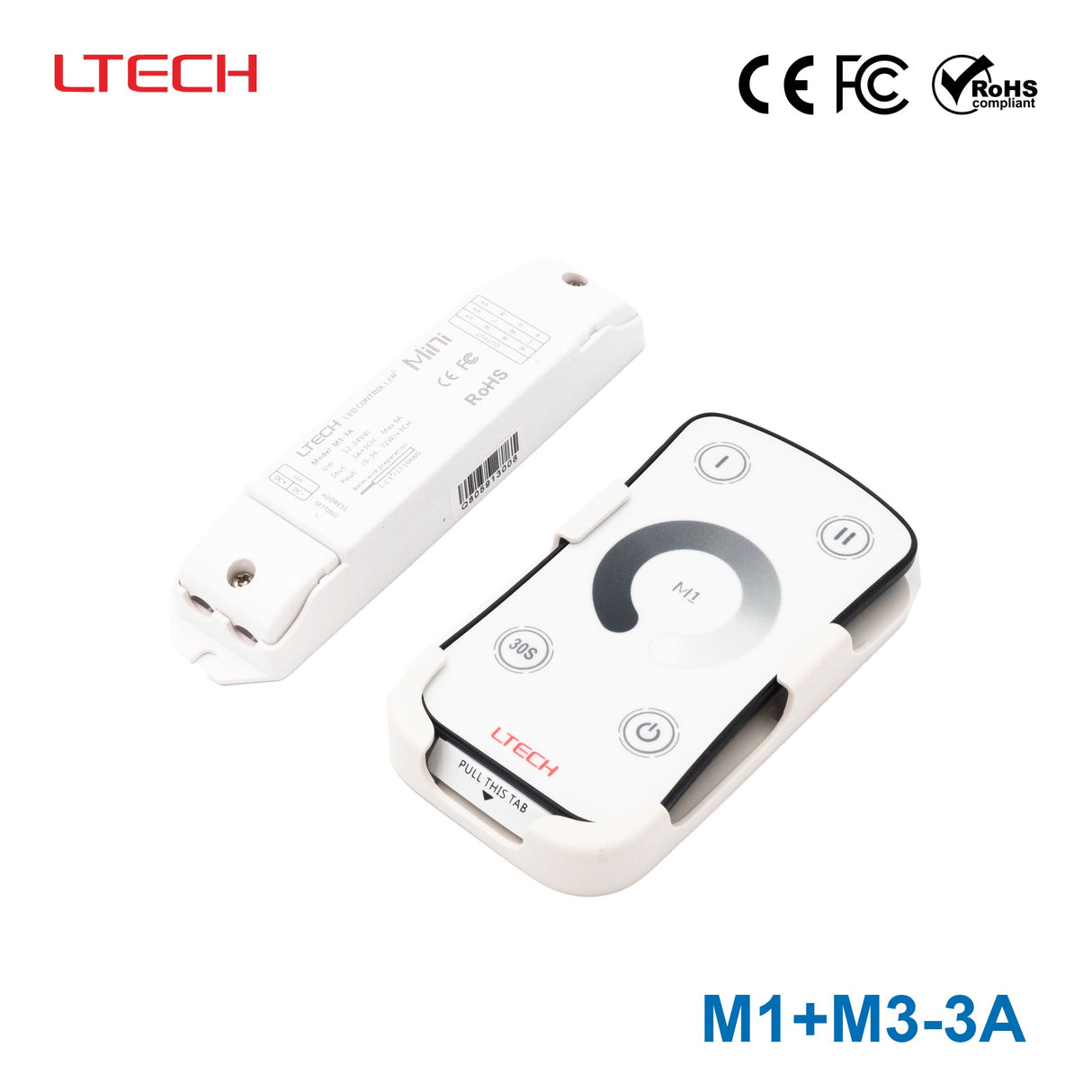

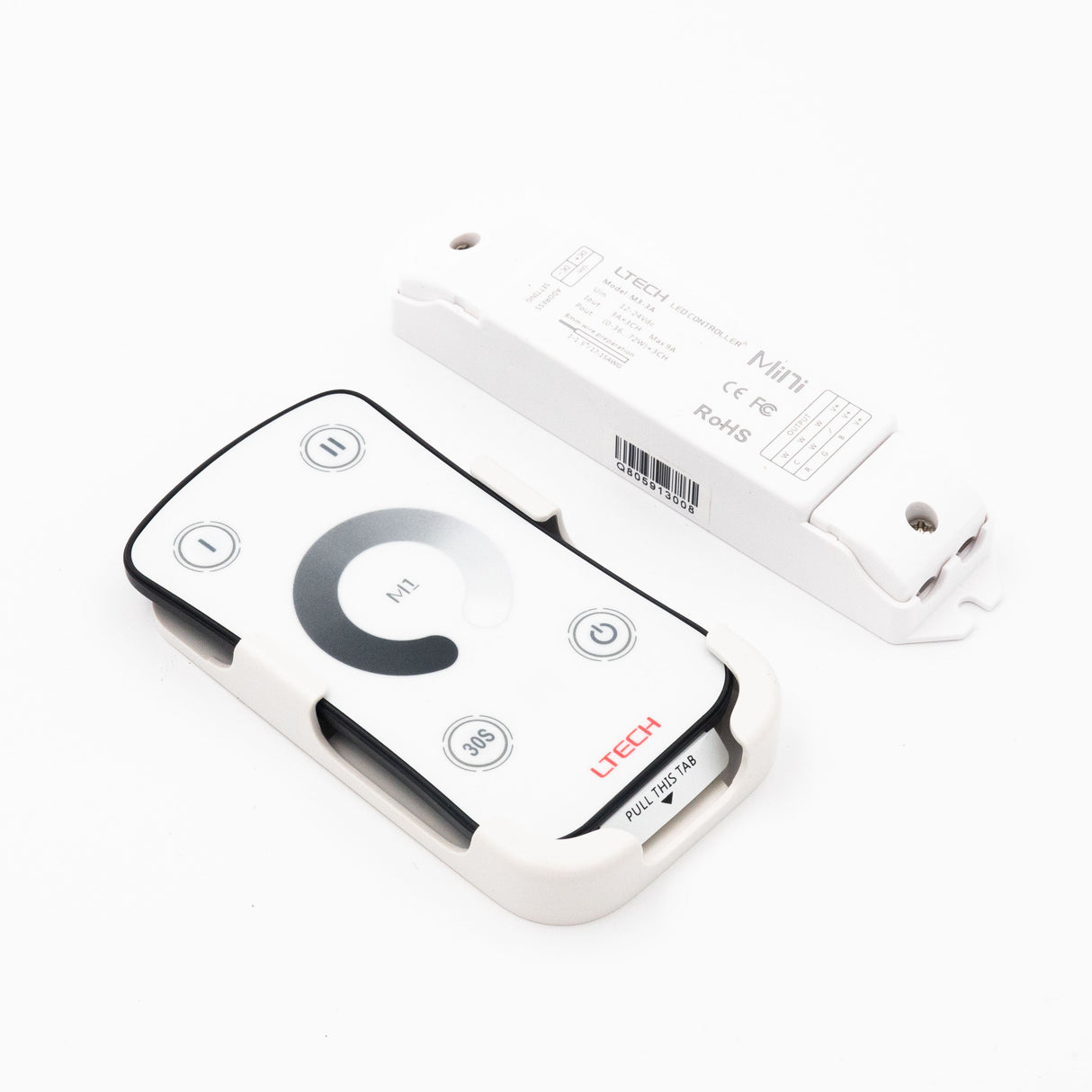

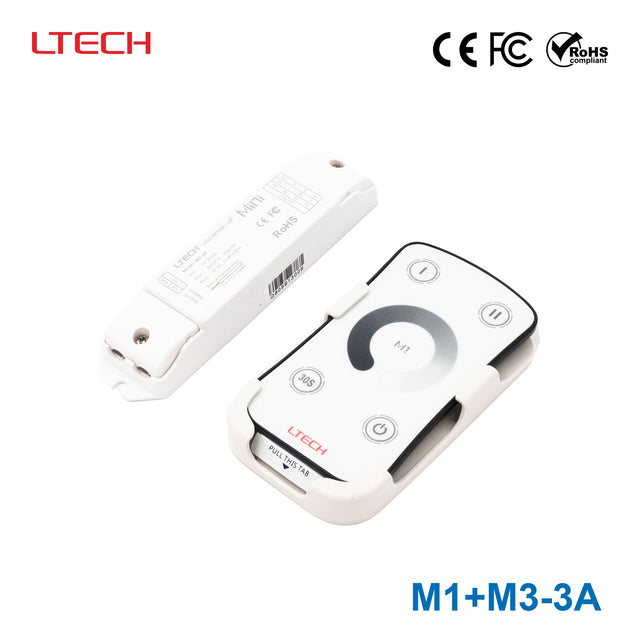

Ltech M1+M3-3A Mini Controller with RF Remote - Dimming
The Ltech M1+M3-3A is sold as a mini LED controller with an RF remote for dimming control. Its description focuses on brightness adjustment, speed adjustment, and lighting mode selection through the remote. It is intended for buyers who want wireless dimming control in a compact controller format.
Input 12~24VDC. 3 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: RF
- ✓Output channels: 3A - 3 Channel
- ✓Maximum load: 3A per channel
- ✓Maximum total load: 216W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 200 x 130 x 22mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech M Series
-
Power Rating216 Watt
-
Output Voltage24 Volt
-
Rated Current9 Ampere
-
Input Voltage12V~24V
-
No of Output3
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length7.87 in
-
Width5.12 in
-
Height0.87 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
What type of lighting control is the Ltech M1+M3-3A designed for?
The Ltech M1+M3-3A is sold as a mini LED controller with an RF remote for dimming control. Its description focuses on brightness adjustment, speed adjustment, and lighting mode selection through the remote. It is intended for buyers who want wireless dimming control in a compact controller format.
What are the main electrical specifications of the M1+M3-3A?
This model is rated for 24 V output with a total rated current of 9 A. Its listed power rating is 216 W. Those specs make it important to match the controller to a 24 V lighting setup within the stated load limit.
Is the M1+M3-3A compatible with only one remote?
No. The product description states that the M series receiver is compatible with 8 kinds of remotes with different functions. This specific listing includes RF dimming control, while the broader M series platform is described as supporting functions such as single color, CT dimming, RGB, and RGBW adjustment depending on the remote used.
What makes the M1+M3-3A different from a basic LED dimmer?
Compared with a basic dimmer that only changes brightness, this model is described as part of Ltech's M series platform with broader remote-function compatibility. The product description highlights adjustable brightness, adjustable speed, and selectable lighting change modes. That makes it better suited to buyers who want wireless control flexibility rather than simple dimming alone.
Is the Ltech M1+M3-3A suitable for demanding operating conditions?
Its listed operating temperature range is -30 C to 55 C, which supports use in a wide range of commercial and lighting-control environments. The product also carries a 5-year warranty period. Those two specs are useful for buyers comparing long-term reliability and environmental tolerance.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Ltech M Series Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech M3+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $38.80 | View |
| Ltech M7+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $35.89 | View |
| Ltech M6+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $35.35 | View |
| Ltech M4+M4-3A Mini Controller with RF Remote - RGBW | 288W | 24V | 12A | Indoor | $42.42 | View |
| Ltech M4+M4-5A LED RF 4 Channel RGBW Wireless Remote & Controller Set - RGBW | 120W | 24V | 20A | Indoor | $58.60 | View |
| Ltech M8+M4-3A Mini Controller with RF Remote - RGBW | 288W | 24V | 12A | Indoor | $42.06 | View |
| Ltech M5+M3-3A Mini Controller with RF Remote - Colour Temperature | 216W | 24V | 9A | Indoor | $40.62 | View |
| Ltech M2+M4-5A Mini Controller with RF Remote - Colour Temperature | 480W | 24V | 20A | Indoor | $53.33 | View |
