Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

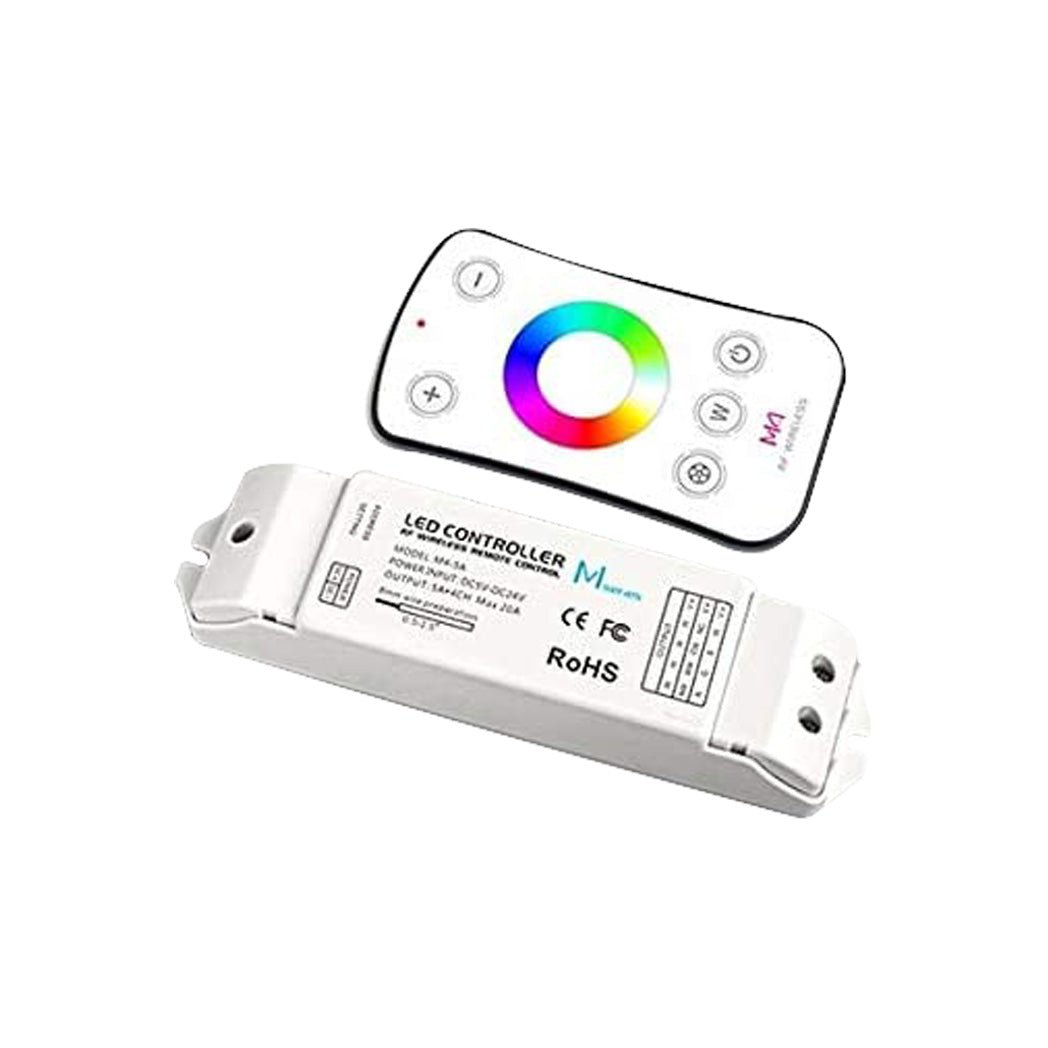

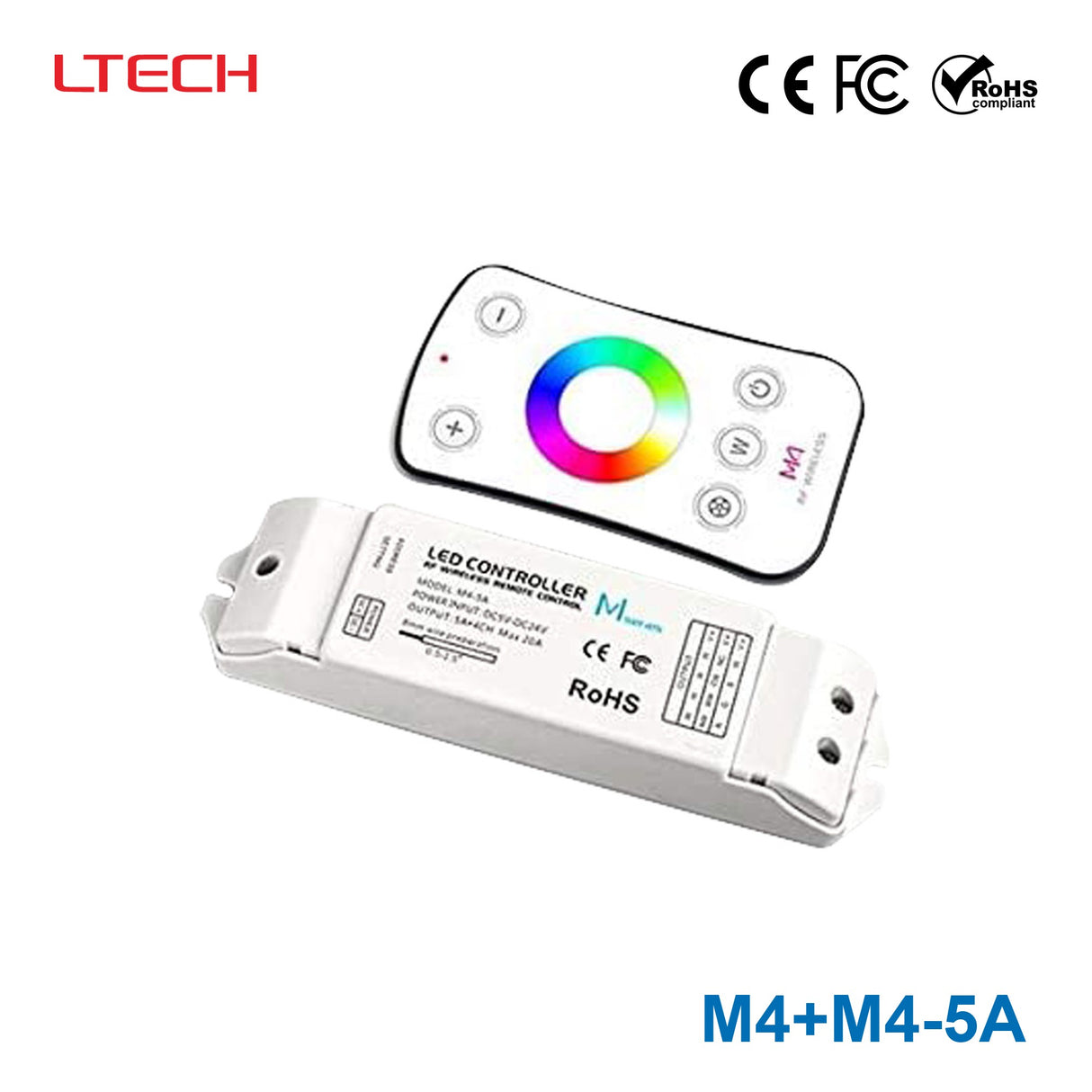

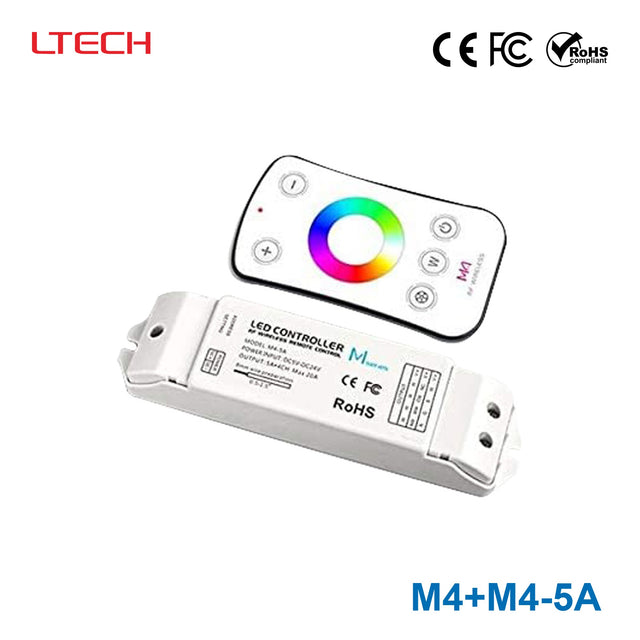

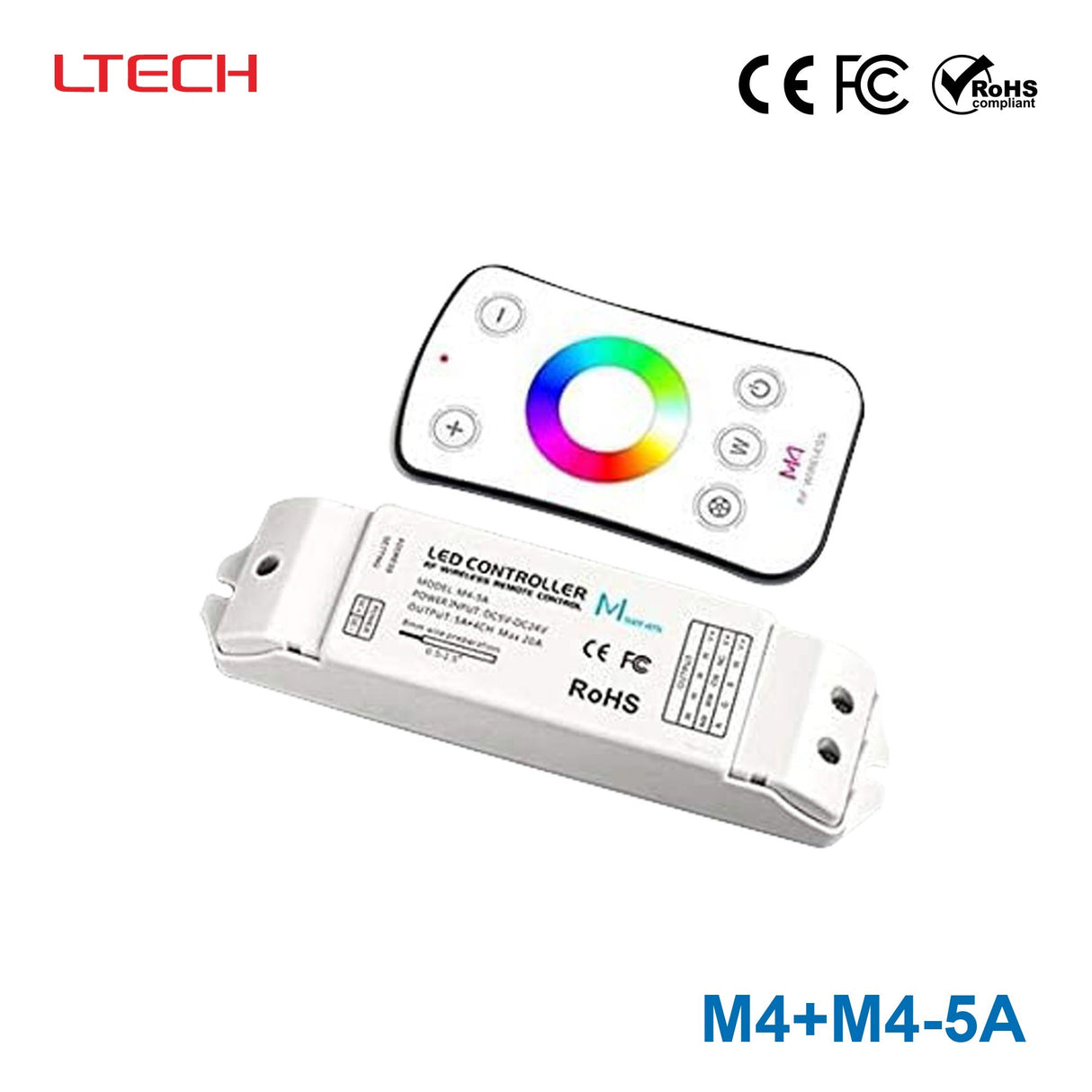

Ltech M4+M4-5A LED RF 4 Channel RGBW Wireless Remote & Controll...
The Ltech M4+M4-5A is an RF wireless RGBW LED controller and remote set designed for 4-channel lighting control. It is intended for RGBW lighting applications where users want wireless adjustment of color, brightness, speed, and lighting modes. the M4+M4-5A combines the controller with a matching RF remote for a complete control set.
Input 12~24VDC. 4 channels at 5A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: RF
- ✓Output channels: 5A - 4 Channel
- ✓Maximum load: 5A per channel
- ✓Maximum total load: 120W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 200 x 130 x 22mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech M Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage12V~24V
-
No of Output4
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length7.87 in
-
Width5.12 in
-
Height0.87 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
What does the Ltech M4+M4-5A controller set do?
The Ltech M4+M4-5A is an RF wireless RGBW LED controller and remote set designed for 4-channel lighting control. It is intended for RGBW lighting applications where users want wireless adjustment of color, brightness, speed, and lighting modes. This model combines the controller with a matching RF remote for a complete control set.
Is this model intended for RGBW lighting systems?
Yes. The M4+M4-5A is specifically identified as an RGBW 4-channel controller set. It is suited to applications that need separate control across RGBW channels rather than single-color-only dimming.
What electrical output is this controller rated for?
This model is rated for 24 V output, 20 A rated current, and 120 W power. Those published ratings define the controller's stated operating capacity for this specific model. Buyers comparing controllers should use these numbers to confirm fit with their planned lighting load.
What type of control does the M4+M4-5A use?
The M4+M4-5A uses RF control. According to the product description, the remote allows adjustment of speed and brightness, along with color customization and lighting mode selection. That makes it suitable for wireless control without relying on line-of-sight operation typical of some infrared products.
Is the M4+M4-5A compatible with more than one Ltech remote type?
Yes. The product description states that the M series controller is compatible with 8 kinds of remotes with different functions. That flexibility can be useful for buyers standardizing on the M series while supporting different lighting control preferences.
What operating environment is this controller rated for?
This model has a published operating temperature range of -30°C to 55°C. That gives it a relatively broad environmental range for demanding conditions, provided the rest of the system is also rated appropriately. The listed product weight is 0.1000 kg.
What warranty is offered for the Ltech M4+M4-5A?
The published warranty period for this model is 5 years. That is a useful point for commercial buyers who want longer-term coverage when selecting RGBW control hardware. Warranty terms still depend on the seller's policy and applicable conditions.
