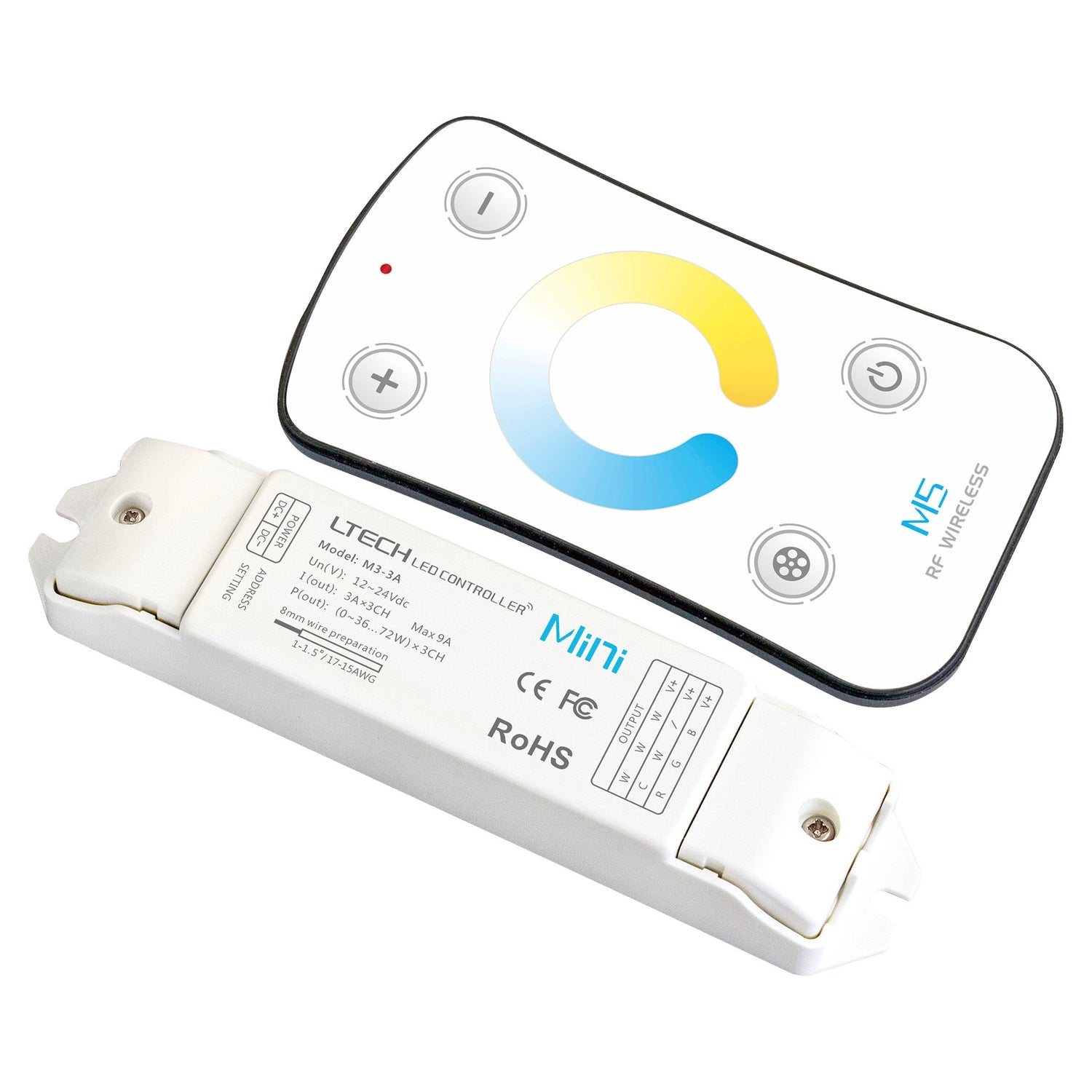

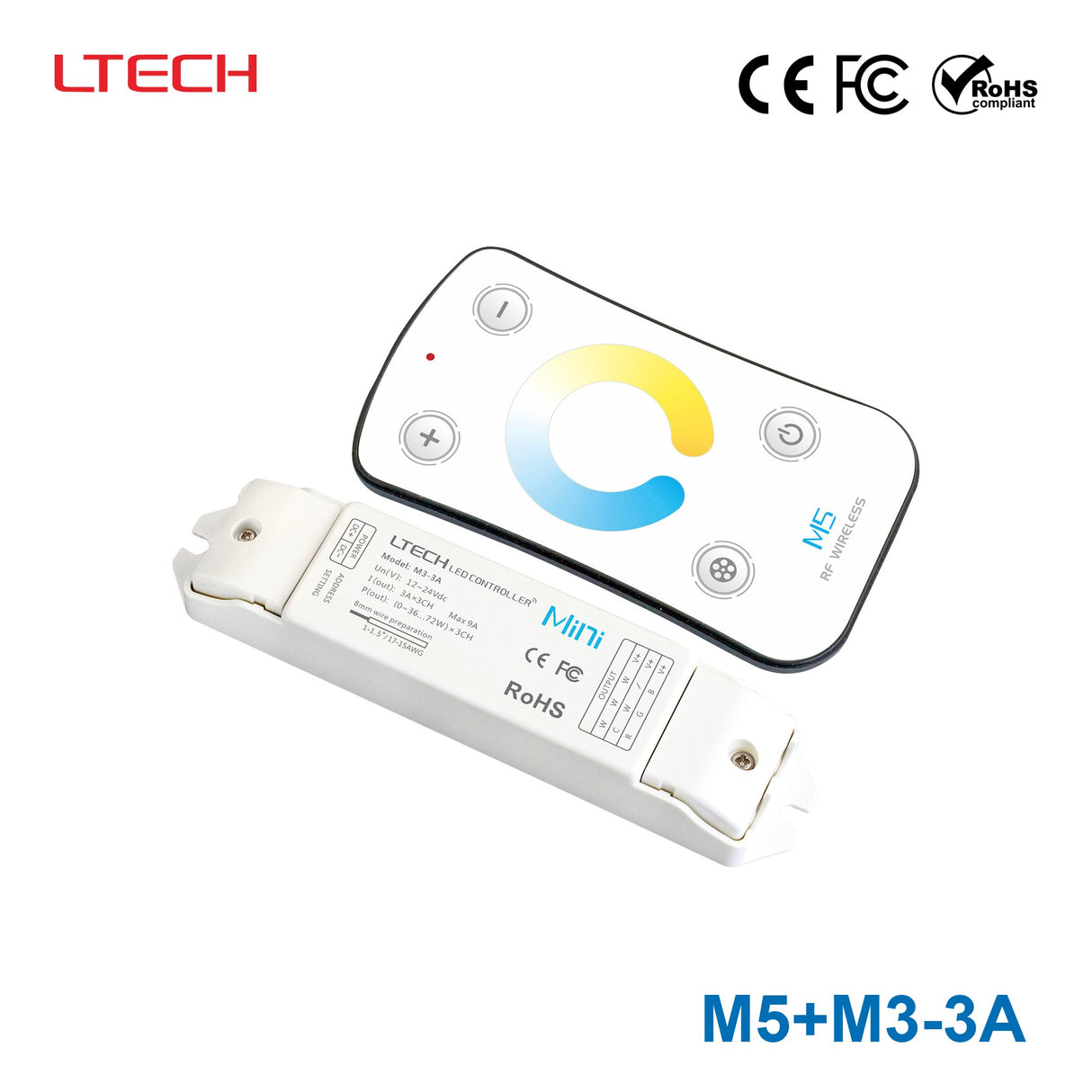

Ltech M5+M3-3A Mini Controller with RF Remote - Colour Temperature
The Ltech M5+M3-3A is a mini LED controller designed for colour temperature control. It is intended for tunable white lighting where users want to adjust the light between warmer and cooler tones using RF control.
Input 12~24VDC. 5 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: RF
- ✓Output channels: 3A - 5 Channel
- ✓Maximum load: 3A per channel
- ✓Maximum total load: 216W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 200 x 130 x 22mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech M Series
-
Power Rating216 Watt
-
Output Voltage24 Volt
-
Rated Current9 Ampere
-
Input Voltage12V~24V
-
No of Output5
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length7.87 in
-
Width5.12 in
-
Height0.87 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
What does the Ltech M5+M3-3A control?
The Ltech M5+M3-3A is a mini LED controller designed for colour temperature control. It is intended for tunable white lighting where users want to adjust the light between warmer and cooler tones using RF control.
Does this model include a remote control method?
Yes. This model uses RF dimming control and is supplied as a controller with RF remote for colour temperature adjustment. The product description also states that the M series platform is compatible with 8 kinds of remotes with different functions.
What are the electrical ratings of the M5+M3-3A?
This model is rated for 24 V output, 9 A rated current, and 216 W power. Those figures make it suitable for colour temperature LED control applications that match those electrical requirements.
Is the M5+M3-3A suitable for commercial or professional environments?
It can suit commercial and professional lighting projects that need compact RF-based colour temperature control within its stated ratings. Buyers should confirm the application stays within the 24 V, 9 A, and 216 W limits for this specific model.
What operating temperature range does this controller support?
The stated operating temperature range is -30°C to 55°C. That gives this controller a broad environmental range for installations where temperature conditions may vary significantly.
How compact and lightweight is this controller?
This is a mini controller model and its listed weight is 0.1400 kg. That low weight can be useful where a smaller, lighter control component is preferred.
What warranty is offered for the Ltech M5+M3-3A?
The listed warranty period for this model is 5 years. For B2B buyers, that can be an important factor when comparing LED control components for long-term projects.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Ltech M Series Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech M1+M3-3A Mini Controller with RF Remote - Dimming | 216W | 24V | 9A | Indoor | $25.57 | View |
| Ltech M3+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $38.80 | View |
| Ltech M7+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $35.89 | View |
| Ltech M6+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $35.35 | View |
| Ltech M4+M4-3A Mini Controller with RF Remote - RGBW | 288W | 24V | 12A | Indoor | $42.42 | View |
| Ltech M4+M4-5A LED RF 4 Channel RGBW Wireless Remote & Controller Set - RGBW | 120W | 24V | 20A | Indoor | $58.60 | View |
| Ltech M8+M4-3A Mini Controller with RF Remote - RGBW | 288W | 24V | 12A | Indoor | $42.06 | View |
| Ltech M2+M4-5A Mini Controller with RF Remote - Colour Temperature | 480W | 24V | 20A | Indoor | $53.33 | View |
