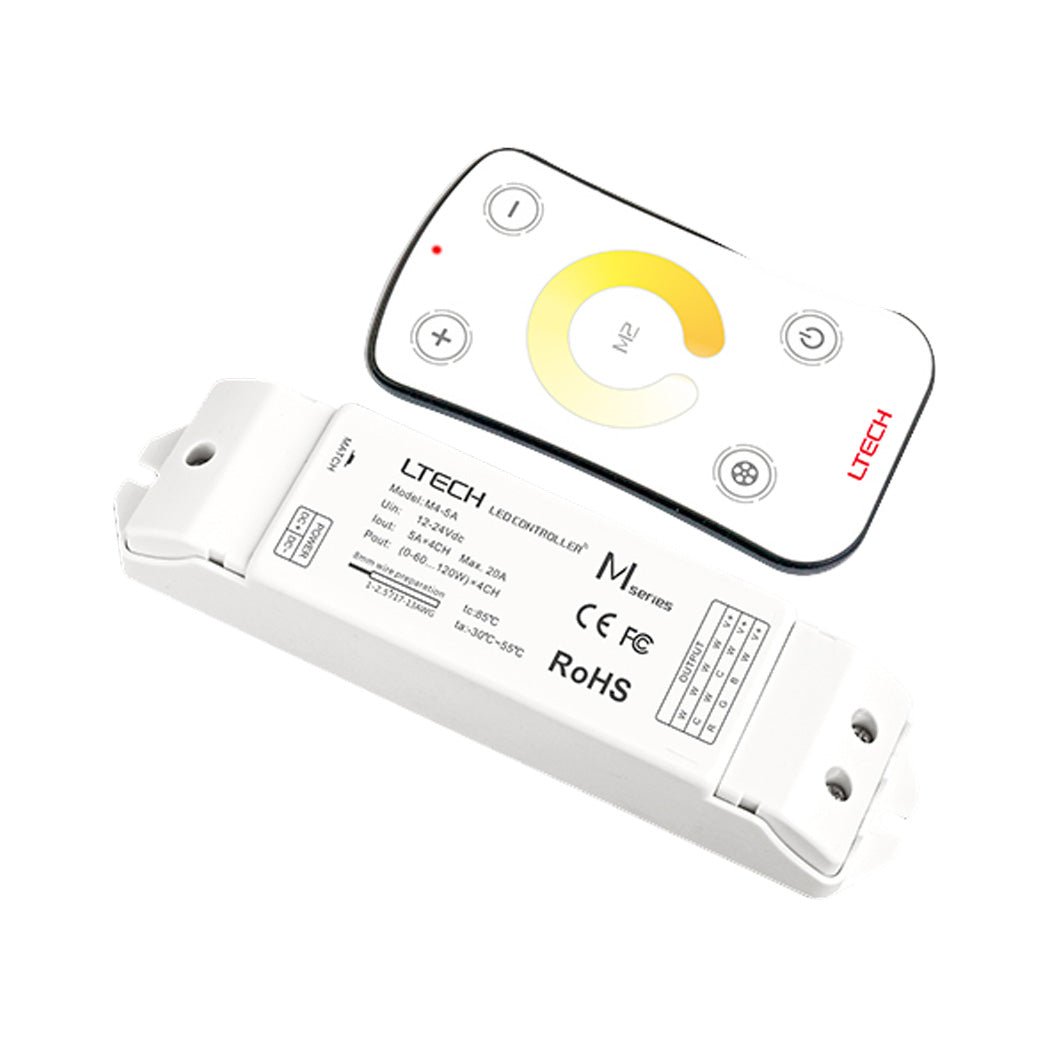

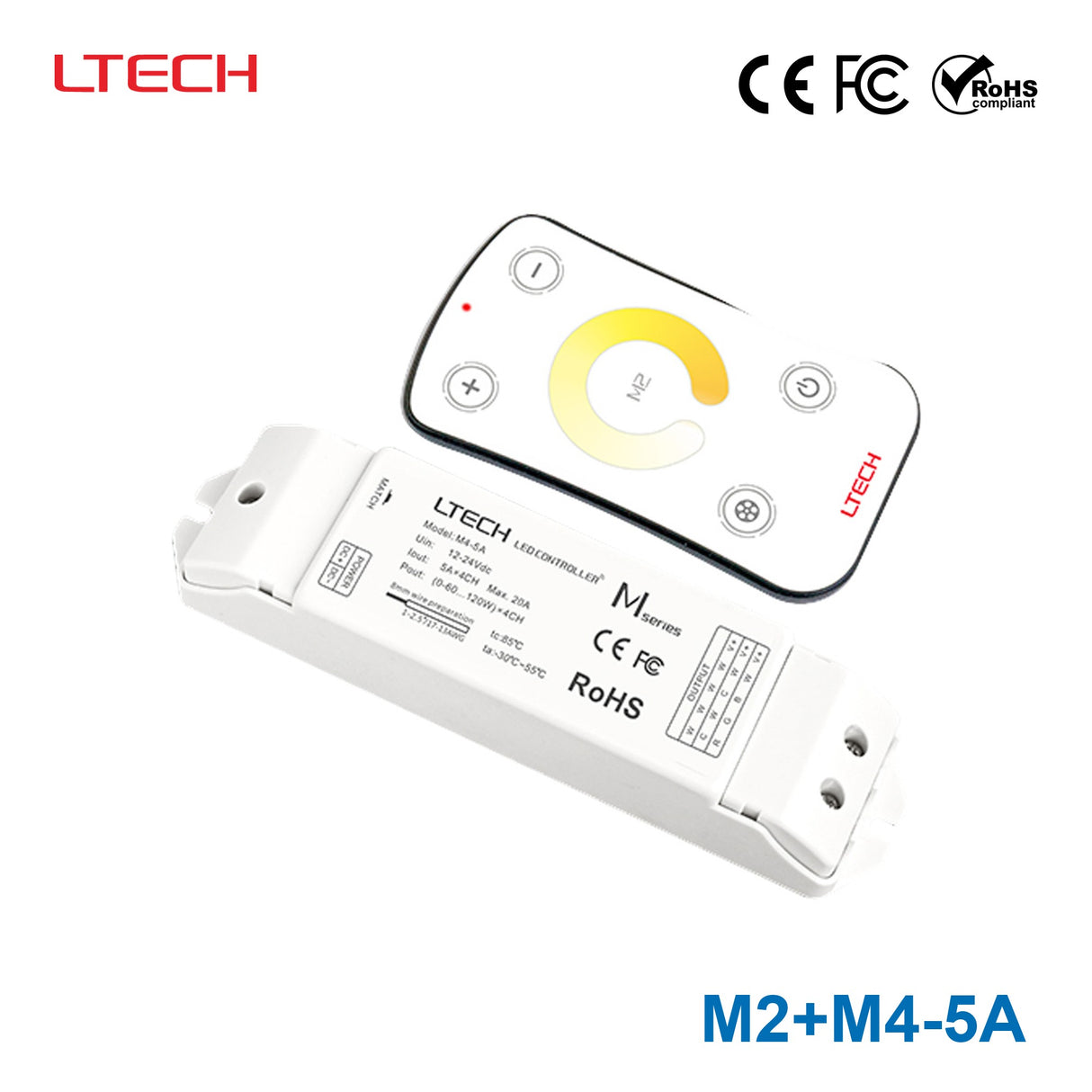

Ltech M2+M4-5A Mini Controller with RF Remote - Colour Temperature
The Ltech M2+M4-5A is a mini LED controller for colour temperature lighting control. It is intended for tunable white or CT applications where users want to adjust brightness and colour temperature with an RF remote.
Input 12~24VDC. 4 channels at 5A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: RF
- ✓Output channels: 5A - 4 Channel
- ✓Maximum load: 5A per channel
- ✓Maximum total load: 480W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 200 x 130 x 32mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech M Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage12V~24V
-
No of Output4
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length7.87 in
-
Width5.12 in
-
Height1.26 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What does the Ltech M2+M4-5A control?
The Ltech M2+M4-5A is a mini LED controller for colour temperature lighting control. It is intended for tunable white or CT applications where users want to adjust brightness and colour temperature with an RF remote.
Is this controller supplied with a remote?
Yes. This model is described as the M2+M4-5A mini controller with RF remote, so remote-based control is part of this product configuration. The RF control method supports brightness adjustment and colour temperature changes for compatible CT lighting setups.
What are the electrical ratings of the M2+M4-5A?
This controller is rated for 24V output, 20A rated current, and 480W power rating. Those figures make it suitable for higher-load 24V colour temperature LED control applications that need a compact controller format.
How does the M2+M4-5A compare with a basic single-function LED controller?
A basic controller usually supports only one control type, while the M series is described as being compatible with 8 kinds of remotes with different functions. For buyers comparing options, this makes the M2+M4-5A a more flexible choice for projects that may need different dimming or control experiences within the same series.
Is the Ltech M2+M4-5A suitable for demanding indoor environments?
It is rated to operate from -30°C to 55°C, which gives it a broad working temperature range for commercial and technical lighting environments. Buyers should still confirm that the surrounding enclosure and full system design stay within those stated temperature limits.
What warranty is offered on this controller?
The listed warranty period for the Ltech M2+M4-5A is 5 years. That longer warranty term can be useful for commercial buyers who want more confidence in long-term LED control components.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Ltech M Series Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech M1+M3-3A Mini Controller with RF Remote - Dimming | 216W | 24V | 9A | Indoor | $25.57 | View |
| Ltech M3+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $38.80 | View |
| Ltech M7+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $35.89 | View |
| Ltech M6+M3-3A Mini Controller with RF Remote - RGB | 216W | 24V | 9A | Indoor | $35.35 | View |
| Ltech M4+M4-3A Mini Controller with RF Remote - RGBW | 288W | 24V | 12A | Indoor | $42.42 | View |
| Ltech M4+M4-5A LED RF 4 Channel RGBW Wireless Remote & Controller Set - RGBW | 120W | 24V | 20A | Indoor | $58.60 | View |
| Ltech M8+M4-3A Mini Controller with RF Remote - RGBW | 288W | 24V | 12A | Indoor | $42.06 | View |
| Ltech M5+M3-3A Mini Controller with RF Remote - Colour Temperature | 216W | 24V | 9A | Indoor | $40.62 | View |
