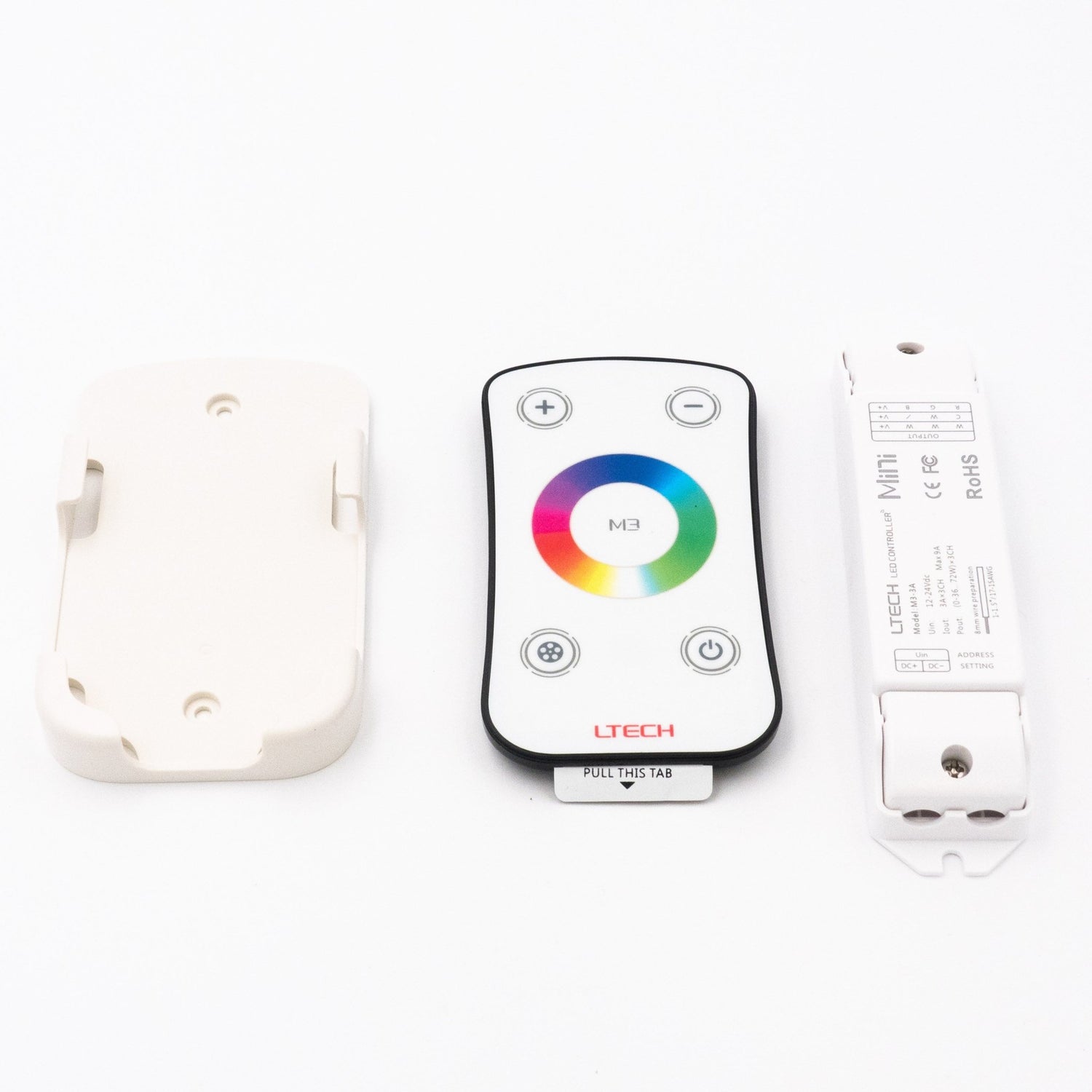

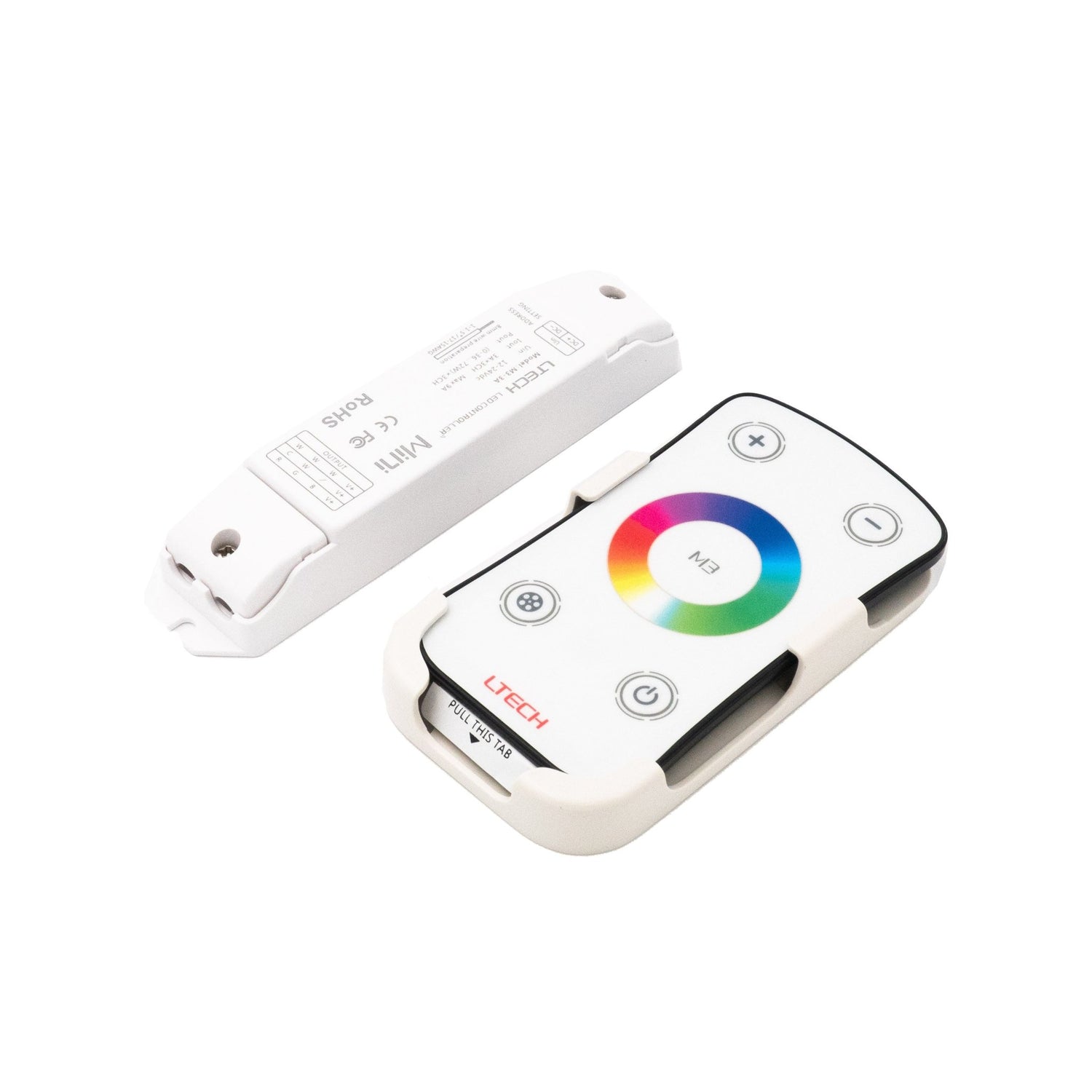

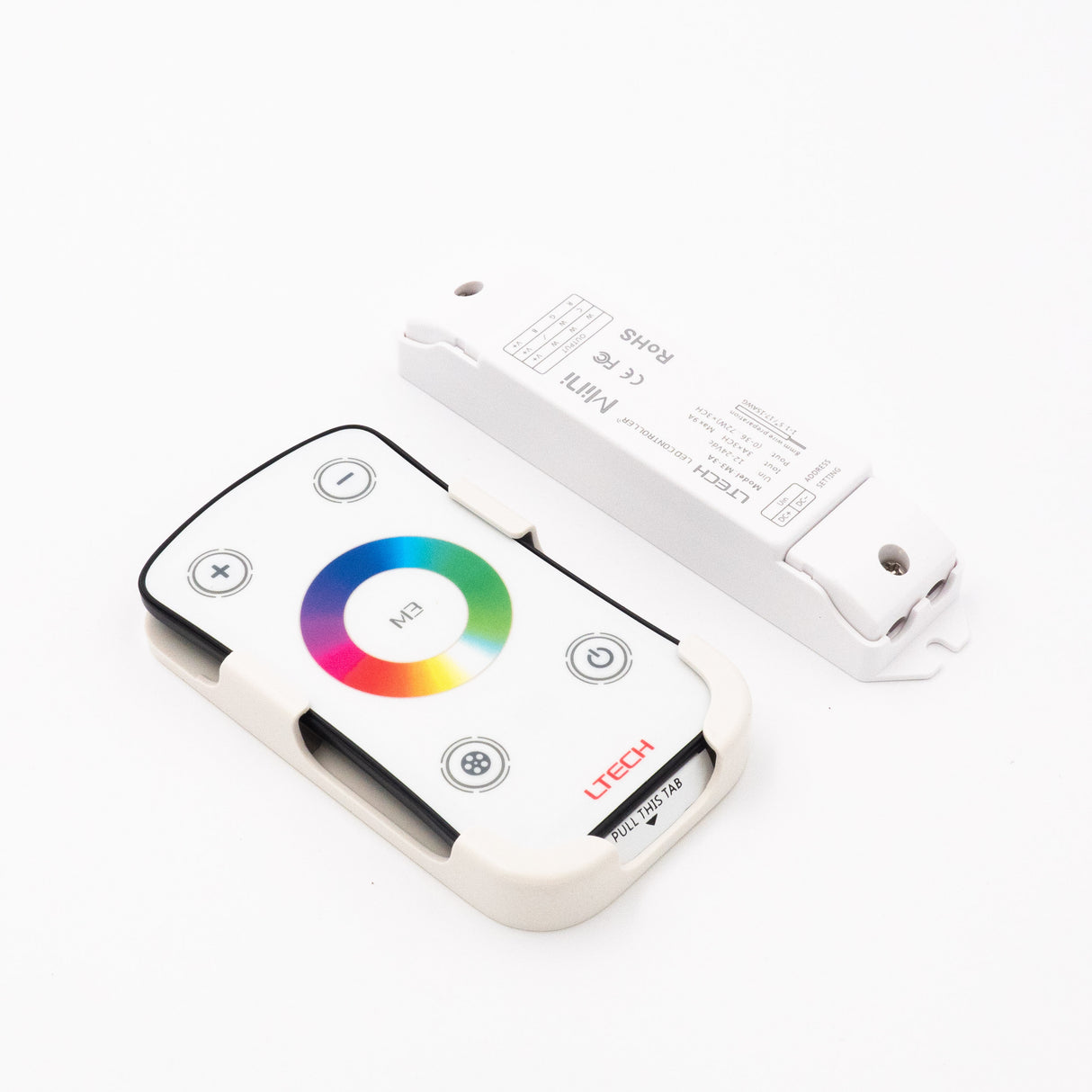

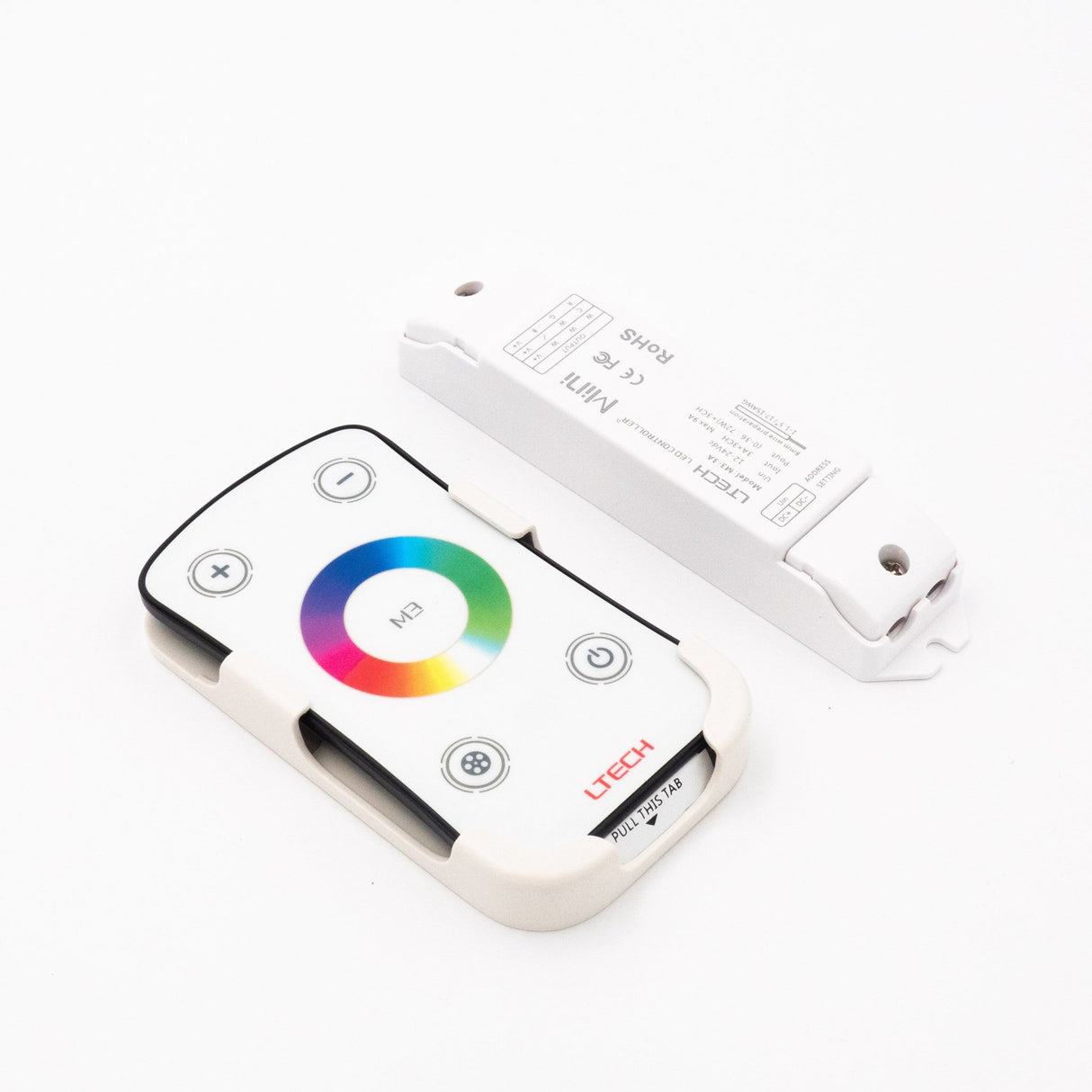

Ltech M3+M3-3A Mini Controller with RF Remote - RGB
The M3+M3-3A is an RGB LED controller designed for applications that need RF-based color and lighting mode control. It is part of Ltech's M series and is intended for buyers who want a compact controller paired with a handheld RF remote.
Input 12~24VDC. 3 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: RF
- ✓Output channels: 3A - 3 Channel
- ✓Maximum load: 3A per channel
- ✓Maximum total load: 216W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 200 x 130 x 22mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech M Series
-
Power Rating216 Watt
-
Output Voltage24 Volt
-
Rated Current9 Ampere
-
Input Voltage12V~24V
-
No of Output3
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length7.87 in
-
Width5.12 in
-
Height0.87 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
What does the Ltech M3+M3-3A Mini Controller with RF Remote control?
This model is an RGB LED controller designed for applications that need RF-based color and lighting mode control. It is part of Ltech's M series and is intended for buyers who want a compact controller paired with a handheld RF remote.
Is the M3+M3-3A a good fit for 24V LED systems?
Yes. The M3+M3-3A is rated for 24V output, so it is intended for use in 24V LED control applications. Buyers matching existing 24V lighting systems should verify the rest of the system is designed around the same voltage.
What is the maximum load capacity of the Ltech M3+M3-3A?
This controller is rated for up to 9.0A total current and 216W at 24V. That gives commercial buyers a clear upper limit when evaluating whether this model fits the power demands of their RGB lighting project.
What kind of control method does this controller use?
The M3+M3-3A uses RF dimming control. According to the product description, the RF remote supports brightness and speed adjustment as well as color and lighting mode selection.
How flexible is the M series platform compared with a single-function controller?
Ltech describes the M series receiver platform as compatible with 8 kinds of remotes with different functions. That makes it more flexible than a single-function controller platform because one receiver family can support different lighting control requirements such as single color, CT dimming, RGB, and RGBW depending on the remote used.
Can the Ltech M3+M3-3A be used in demanding indoor or commercial environments?
It is rated for an operating temperature range of -30°C to 55°C, which supports use in a wide range of non-extreme environments. For buyers comparing controllers for commercial use, that temperature range is a practical advantage when conditions are not tightly climate controlled.
What warranty comes with the Ltech M3+M3-3A Mini Controller?
This model carries a 5-year warranty period. That is useful for B2B buyers who want longer-term coverage when specifying controllers for ongoing lighting projects or repeat installations.
