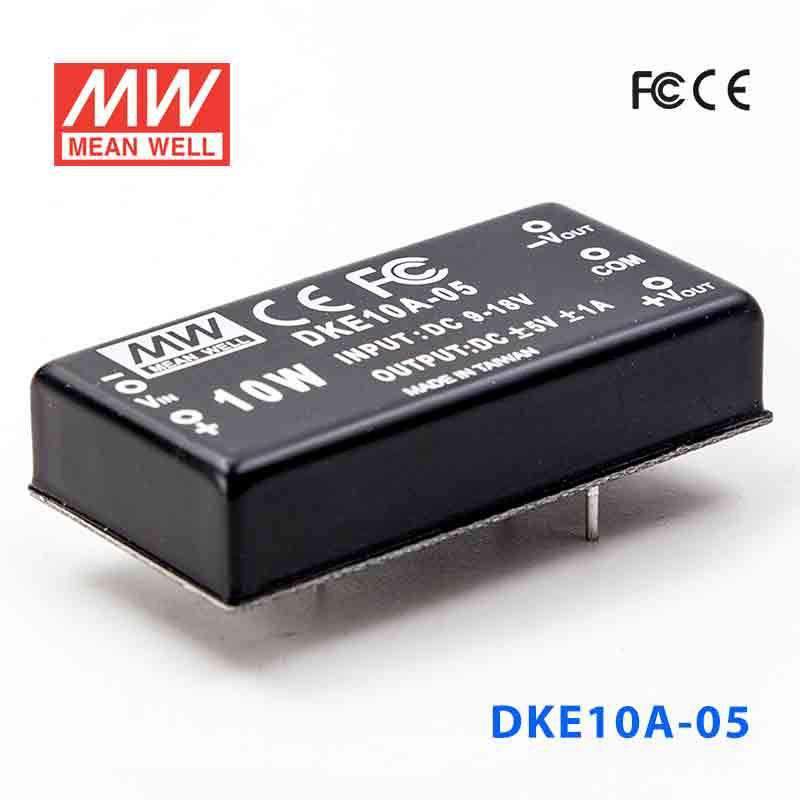

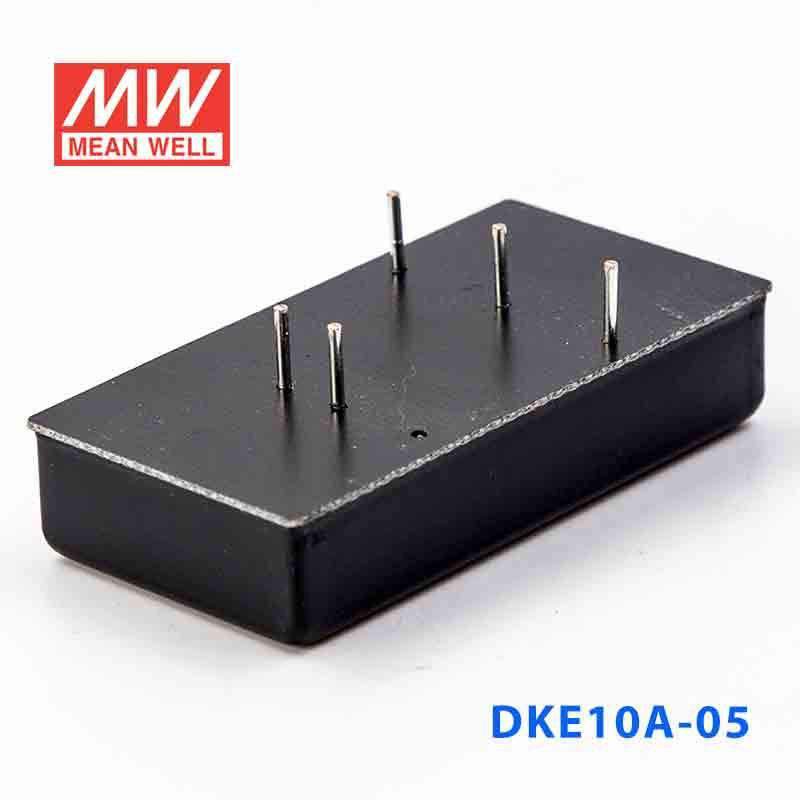

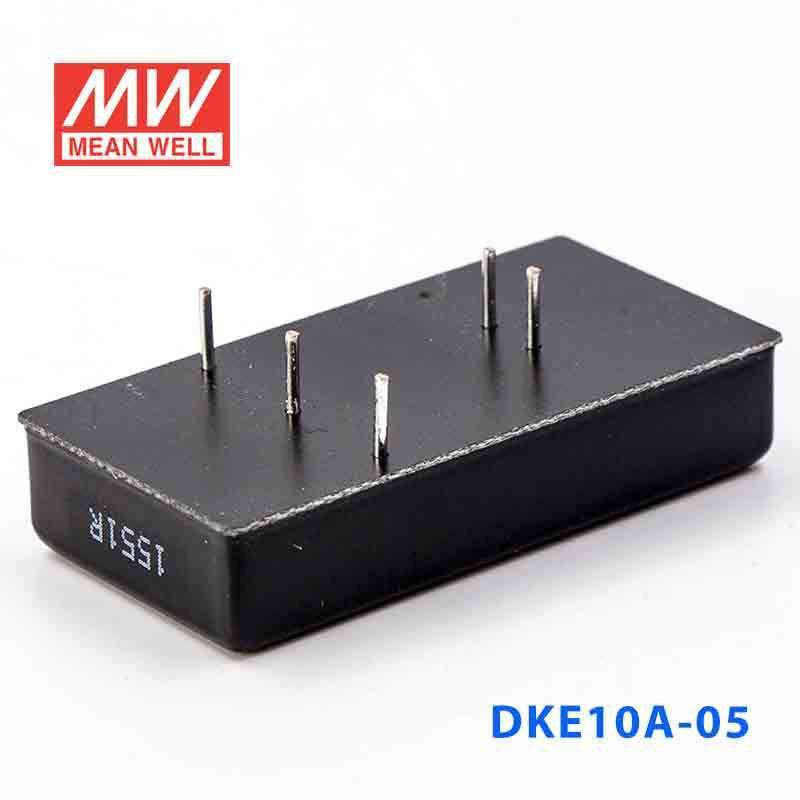

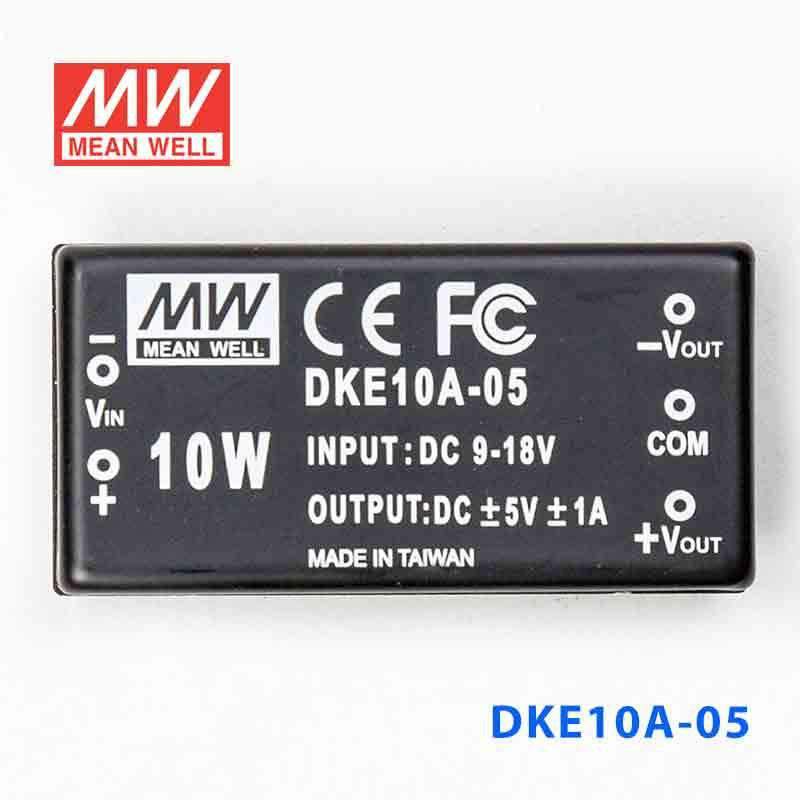

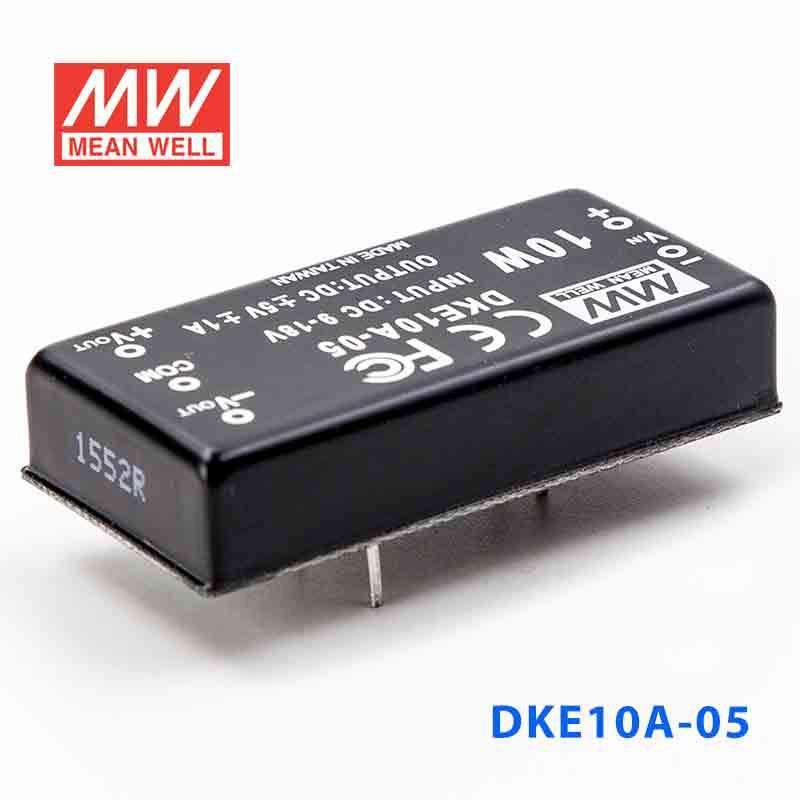

Mean Well DKE10A-05 DC-DC Converter - 10W - 9~18V in ±5V out
Description
Description
The DKE10A is a 10W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage9V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKE10A-05 for 5V embedded electronics in a compact industrial device?
It is designed for constant-voltage 5V output with a 10W power rating. The compact 50.8 × 25.4 × 11.2 mm form factor is useful where board or enclosure space is limited.
Is the DKE10A-05 suitable for powering 5V logic or microprocessor sections in automation equipment?
For equipment that needs a regulated 5V rail, this model provides constant-voltage output at 5V. The listed input range is 9-18VAC, so it is intended for systems operating within that input span.
Can this model be used for low-power 5V monitoring or communication modules?
Yes, if the module requires 5V constant-voltage power and the load stays within the product's 10W rating. Its low weight of 0.032 kg also helps in compact assemblies where component mass matters.
Does the DKE10A-05 work in harsh indoor industrial temperatures?
The specified operating temperature range is -25°C to +71°C. That makes it suitable for indoor equipment exposed to a fairly wide temperature range, as long as the application needs 5V output and 10W capacity.
Is the DKE10A-05 rated for outdoor or wet locations?
The published data includes an operating range of -25°C to +71°C, but it does not list an IP rating. Because no ingress protection rating is stated, outdoor or wet-environment suitability is not defined in the provided specs.
How does the DKE10A-05 differ from the other DKE10A versions?
All listed siblings are 10W models, but the outputs differ: DKE10A-12 is 12V and 420A, DKE10A-15 is 15V and 333A, and DKE10A-24 is 24V and 210A. The DKE10A-05 is the 5V version and is listed at 1000A.
