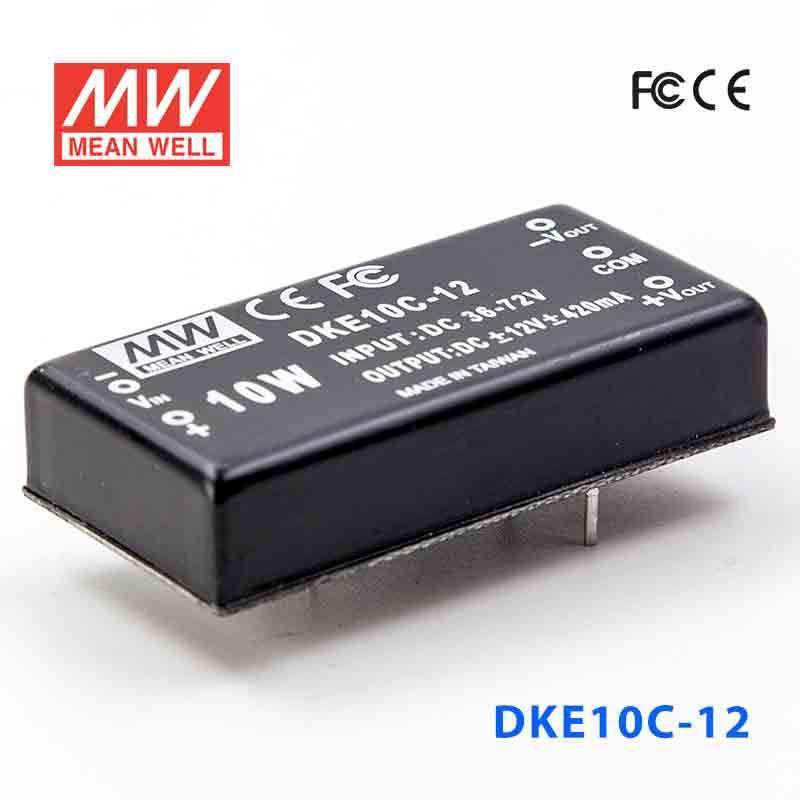

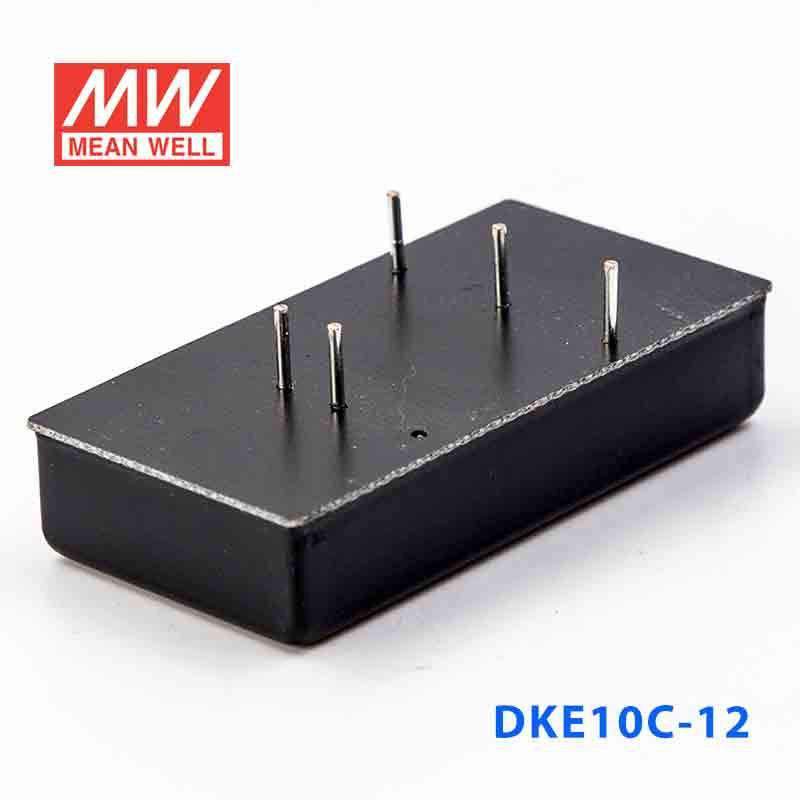

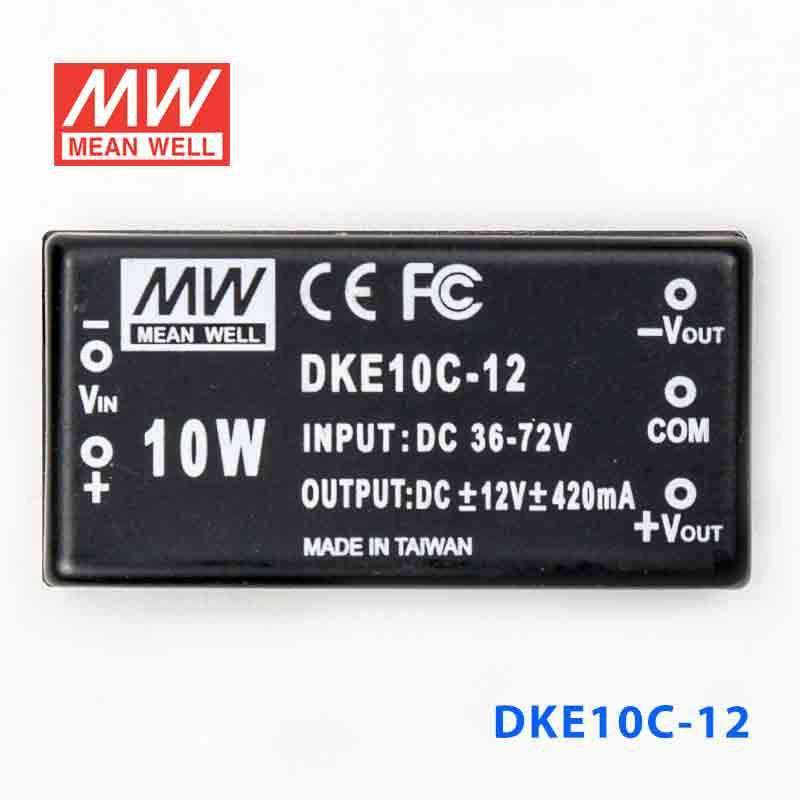

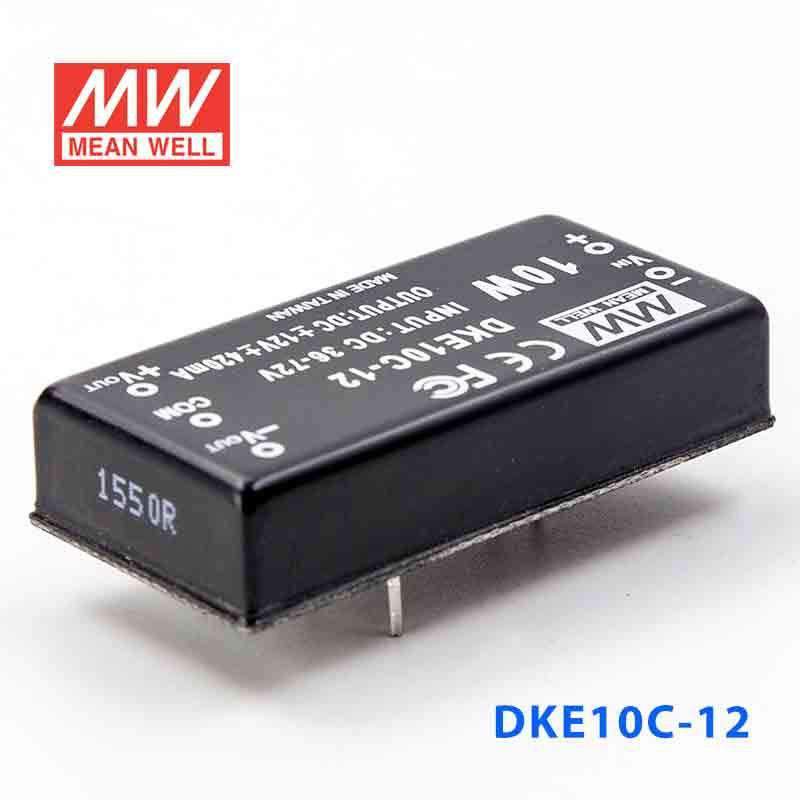

Mean Well DKE10C-12 DC-DC Converter - 10W - 36~72V in ±12V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.5% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Isolation capacitance | 80pF (max.) |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / °C (max.) |
| Dimension (LxWxH) (mm) | 2"x 1" x 0.44" |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating10 Watt
-
Output Voltage12 Volt
-
Rated Current0.42 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKE10C-12 for 12V PLC or control-panel electronics?
Yes, this version is intended for constant-voltage 12V output applications with a 36-72VAC input range. Its 10W rating makes it more appropriate for low-power PLC-related electronics and panel control circuits than for larger 12V loads.
Is the DKE10C-12 a good fit for 12V industrial sensors or interface modules?
It is suited to 12V constant-voltage loads that fit within the 10W power rating. That makes it relevant for smaller industrial sensor, interface, or signal-conditioning uses where the source available is 36-72VAC.
Can this model power 12V embedded or automation devices inside compact equipment?
Yes, if the device needs 12V constant-voltage output and does not exceed the 10W rating. The 50.8 × 25.4 × 11.2 mm package is also useful where board or enclosure space is limited.
What is the difference between the DKE10C-12 and the other DKE10C outputs?
The shared platform stays the same across the series: 10W power, 36-72VAC input, constant-voltage operation, 50.8 × 25.4 × 11.2 mm dimensions, 0.032 kg weight, and -25°C to +71°C operation. The output options are 5V at 1000A for DKE10C-05, 12V at 420A for DKE10C-12, 15V at 333A for DKE10C-15, and 24V at 210A for DKE10C-24.
Can the DKE10C-12 be used in cold or warm indoor equipment environments?
The stated operating temperature range is -25°C to +71°C, so the published specs cover both cold and warm equipment conditions within that band. No IP rating is listed, so the specs do not establish suitability for exposed outdoor environments.
