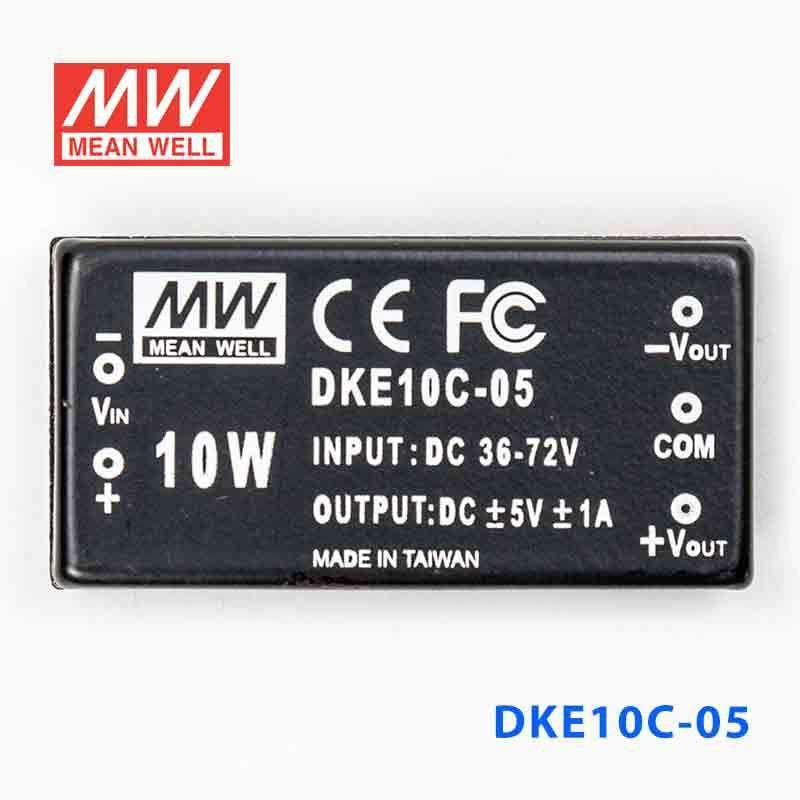

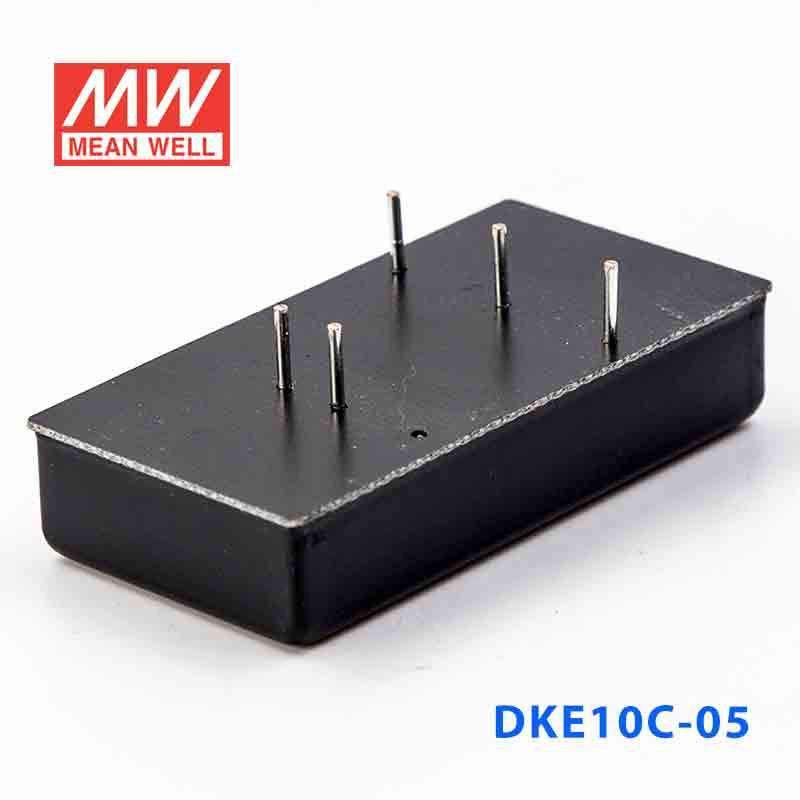

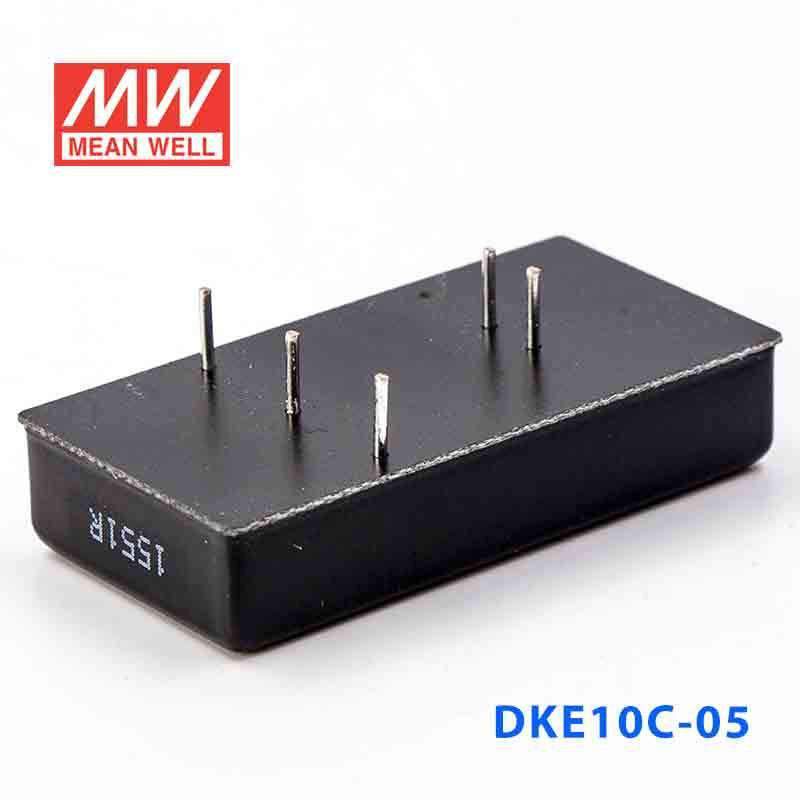

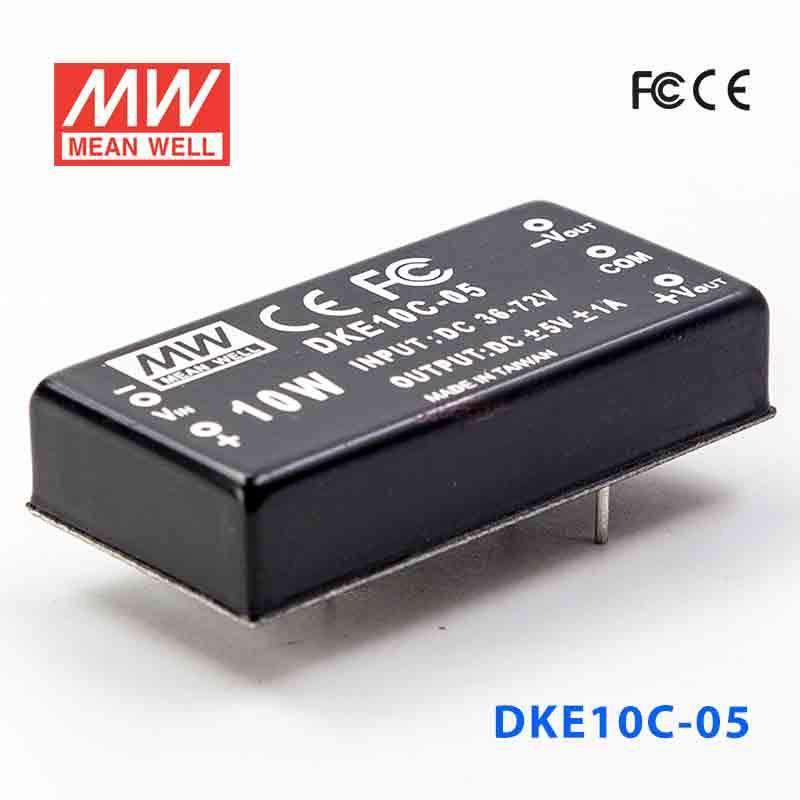

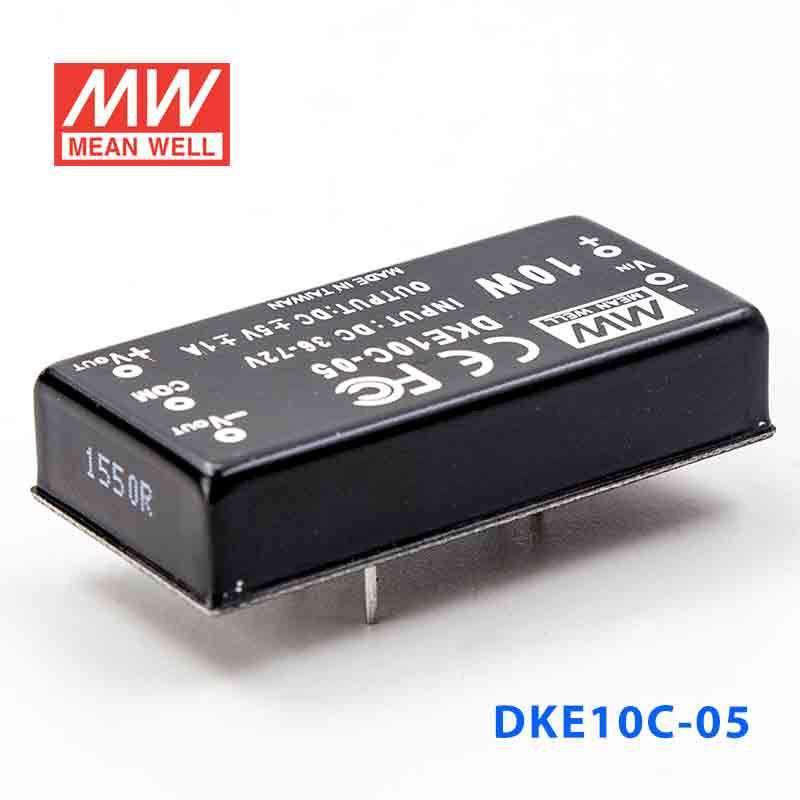

Mean Well DKE10C-05 DC-DC Converter - 10W - 36~72V in ±5V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.5% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Isolation capacitance | 80pF (max.) |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / °C (max.) |
| Dimension (LxWxH) (mm) | 2"x 1" x 0.44" |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKE10C-05 for 5V industrial control electronics in a 36-72V system?
Yes, this model is intended for constant-voltage 5V output applications where the available input is 36-72VAC. With a 10W rating, it fits low-power industrial control, embedded, or automation circuits that need 5V rather than 12V, 15V, or 24V.
Is the DKE10C-05 suitable for powering 5V embedded boards inside automation equipment?
It can fit embedded electronics that require a regulated 5V constant-voltage output and stay within the 10W power rating. Its compact 50.8 × 25.4 × 11.2 mm size also makes it easier to place inside dense control assemblies.
Can this converter be used for 5V sensor or logic-level loads in industrial equipment?
This model is designed for 5V constant-voltage output, so it is better aligned with 5V logic, sensor, or controller-side loads than higher-voltage devices. The key fit points are the 36-72VAC input range and the 10W power limit.
How does the DKE10C-05 compare with the other DKE10C models?
All DKE10C versions in this group are 10W constant-voltage converters with 36-72VAC input, 50.8 × 25.4 × 11.2 mm dimensions, 0.032 kg weight, and -25°C to +71°C operation. The difference is output: DKE10C-05 is 5V at 1000A, DKE10C-12 is 12V at 420A, DKE10C-15 is 15V at 333A, and DKE10C-24 is 24V at 210A.
Is the DKE10C-05 suitable for outdoor or exposed environments?
The listed specs give an operating temperature range of -25°C to +71°C, but no IP rating is provided. That means temperature suitability is stated, while outdoor or washdown suitability cannot be confirmed from the published specs alone.
