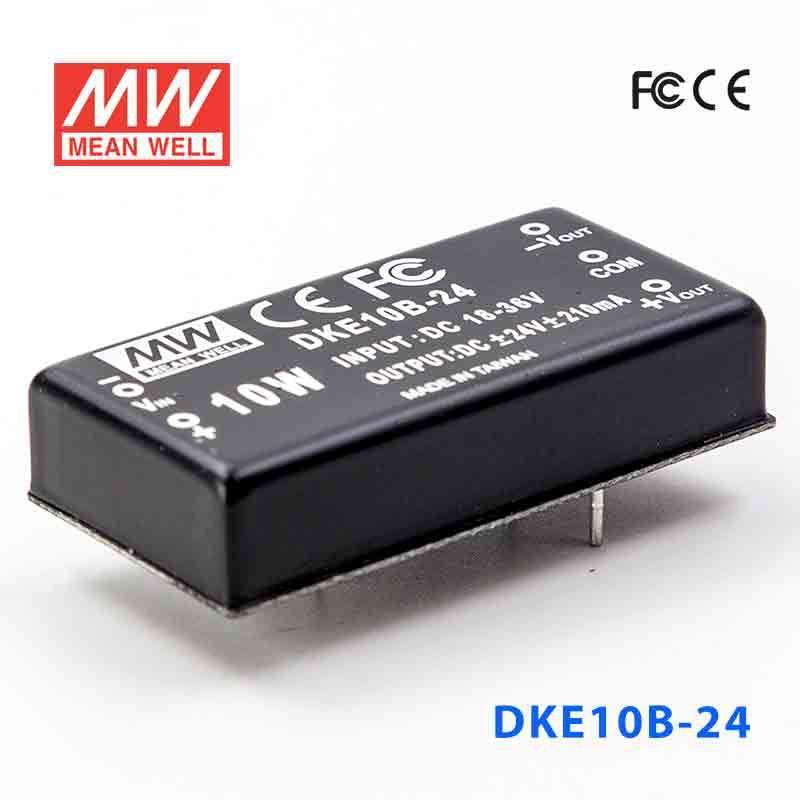

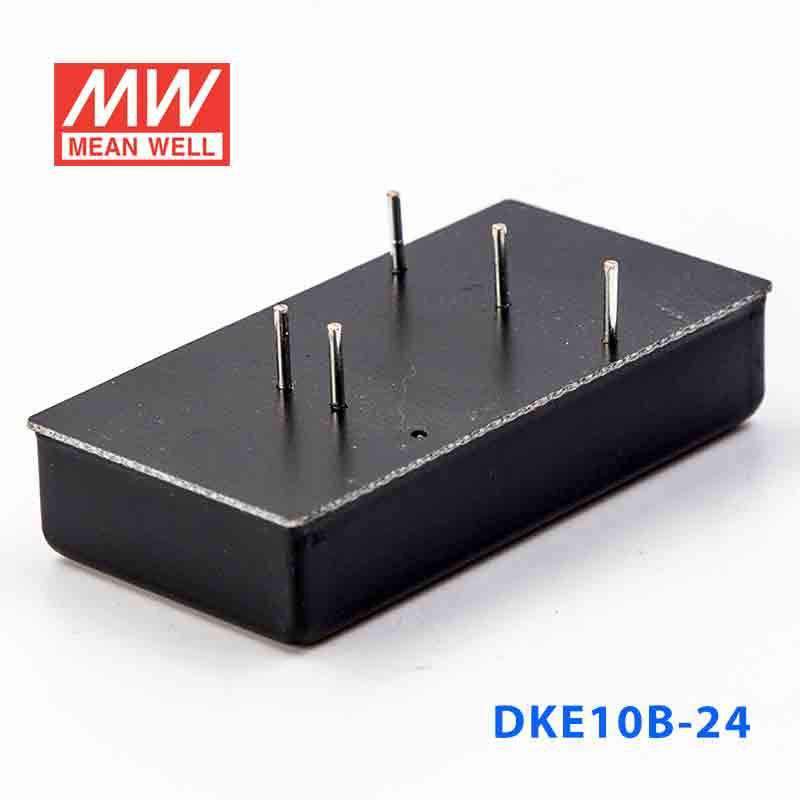

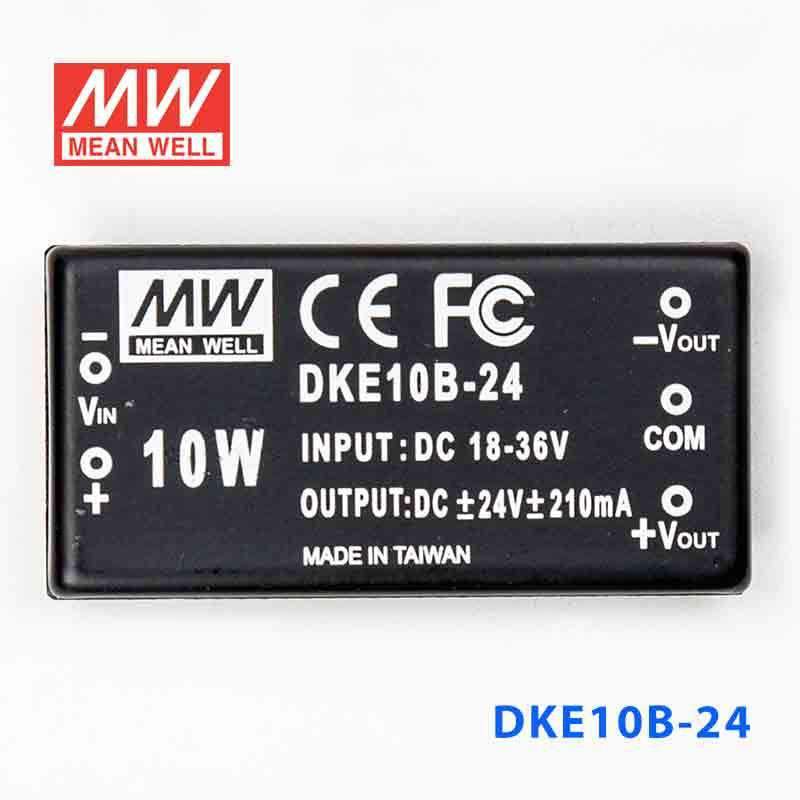

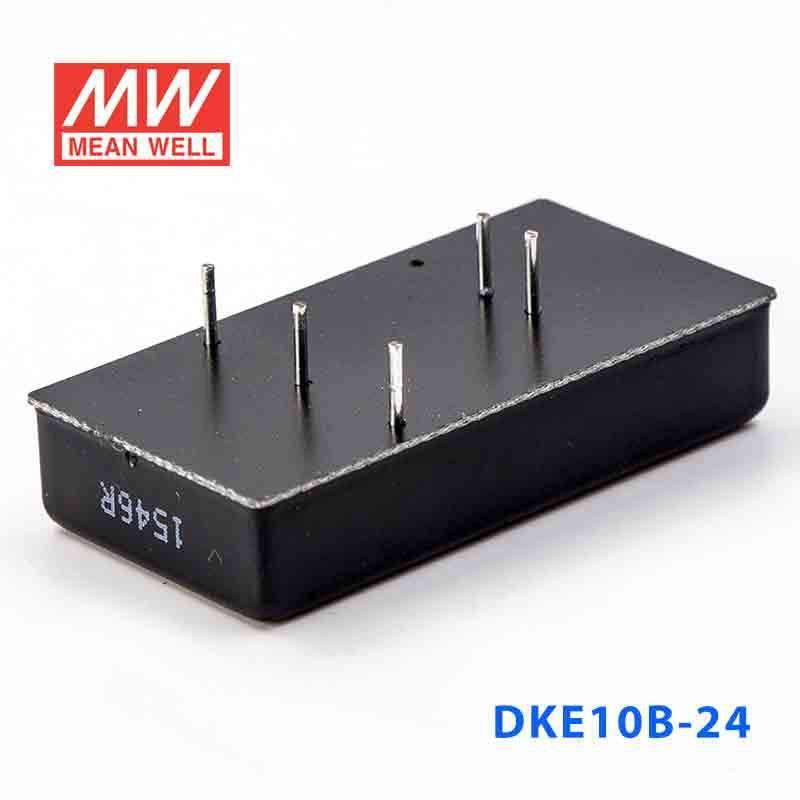

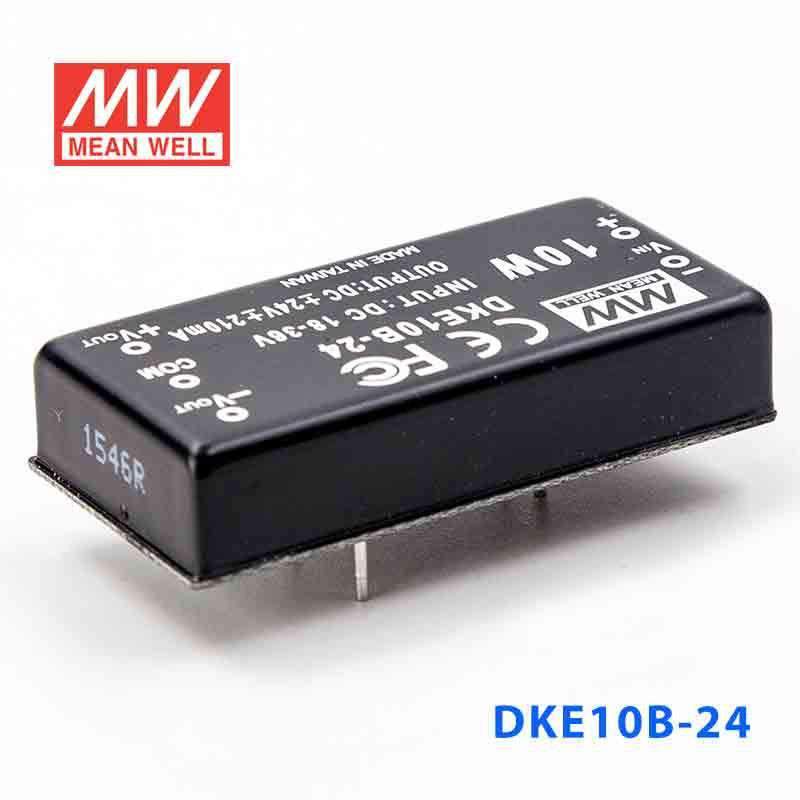

Mean Well DKE10B-24 DC-DC Converter - 10W - 18~36V in ±24V out
Description
Description
The DKE10B is a 10W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating10 Watt
-
Output Voltage24 Volt
-
Rated Current0.21 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKE10B-24 for industrial control or instrumentation that needs ±24V output?
Yes, it fits low-power industrial control or instrumentation circuits that require constant-voltage ±24V rails. The converter is rated at 10W and is designed for an 18-36VAC input range, so those values need to match the system design.
Is the DKE10B-24 suitable for embedded signal-conditioning or test equipment with bipolar 24V rails?
It can be used in embedded signal-conditioning or test assemblies that need ±24V output and only require 10W of converter power. Its 50.8 × 25.4 × 11.2 mm size also makes it easier to place inside compact electronics.
Can this converter support low-power automation modules that run from an 18-36VAC source?
It can support low-power automation modules when the available source falls within 18-36VAC and the load needs constant-voltage ±24V output. The listed CE and FCC certifications can also matter for equipment intended for regulated industrial or commercial environments.
Is the DKE10B-24 suitable for outdoor enclosures or wide-temperature indoor use?
The specified operating temperature range is -25°C to +71°C, so it is rated for a wide temperature span inside protected equipment. No IP rating is listed, so the provided specs do not indicate exposed outdoor or washdown suitability.
How does DKE10B-24 differ from the other DKE10B converters?
All DKE10B models are 10W units with the same 18-36VAC input family, but each version changes the output. DKE10B-05 is 5V at 1000A, DKE10B-12 is 12V at 420A, DKE10B-15 is 15V at 333A, and DKE10B-24 is 24V at 210A.
