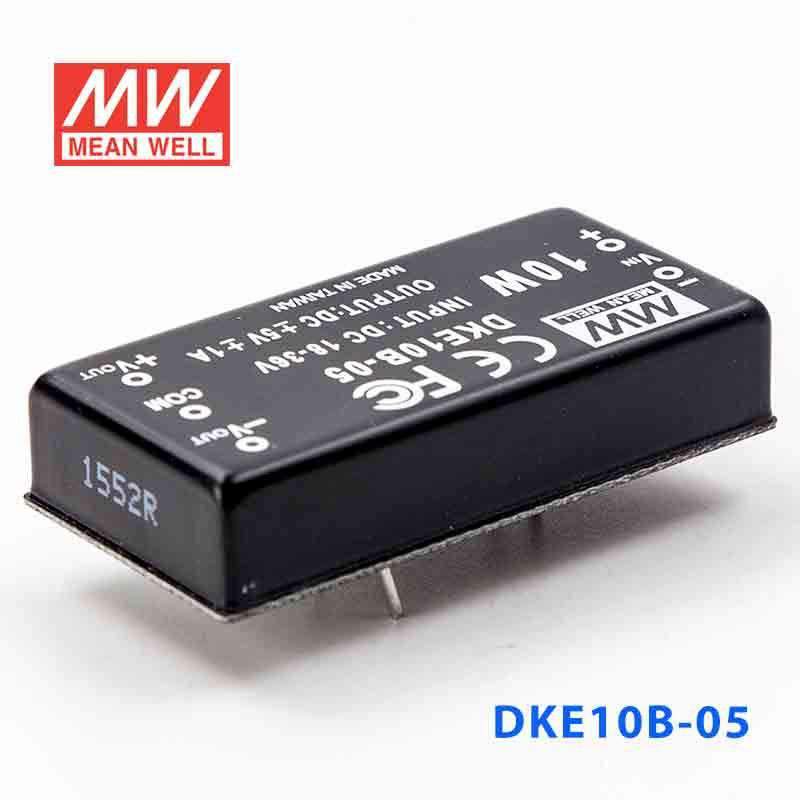

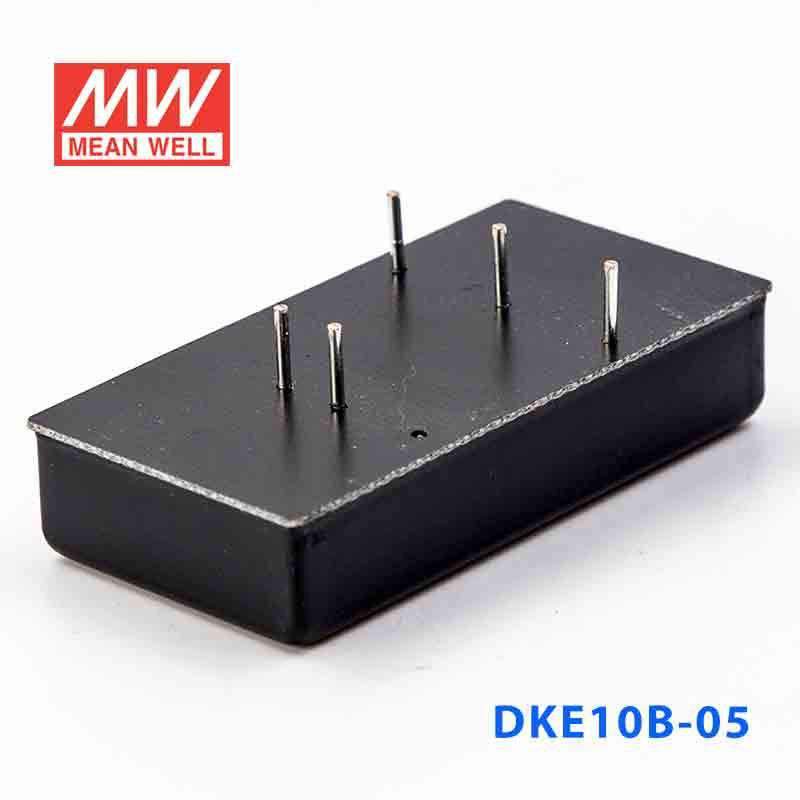

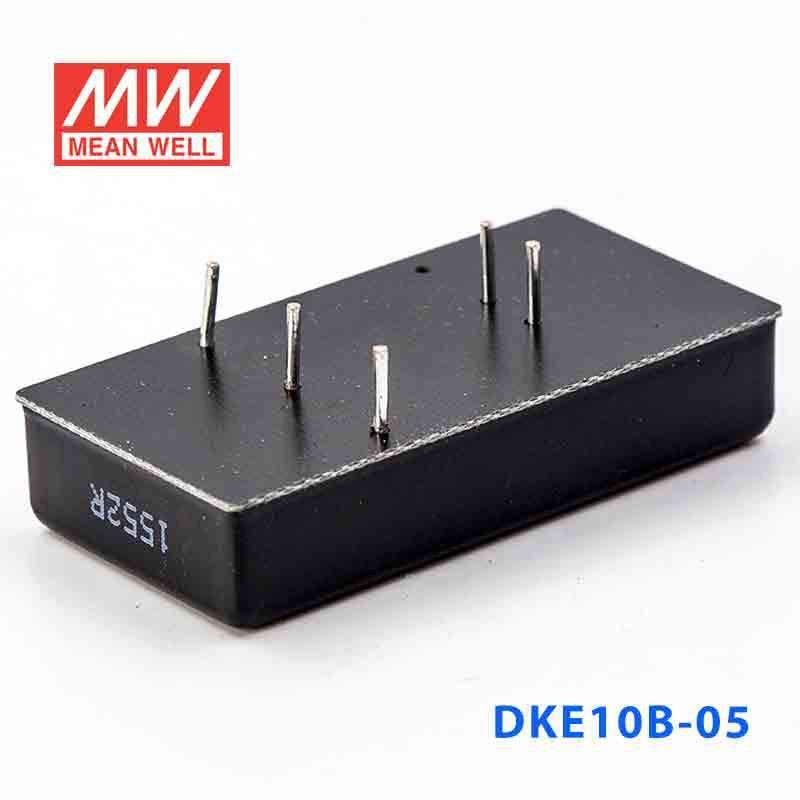

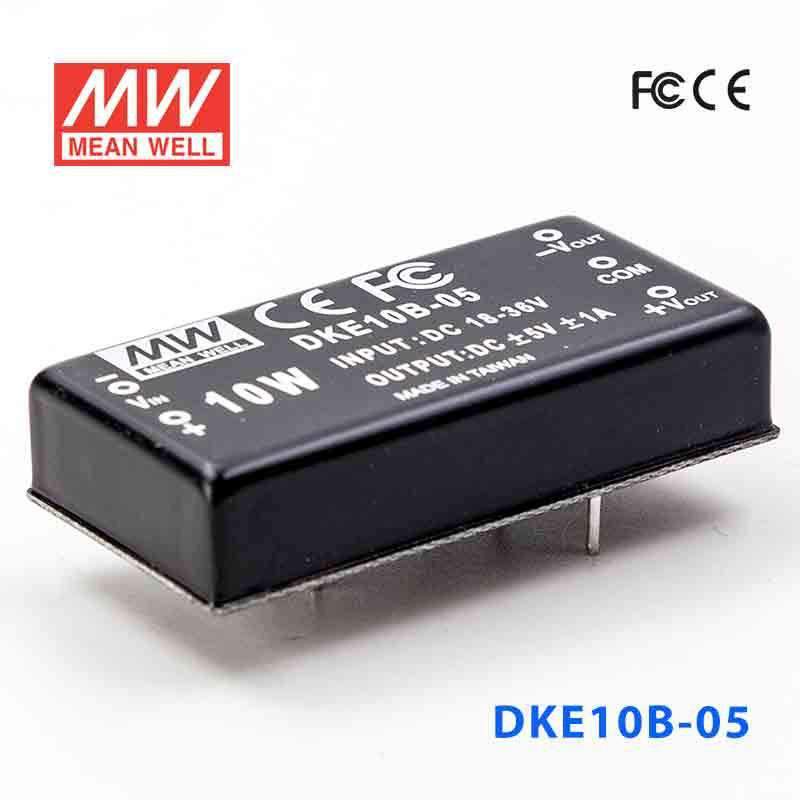

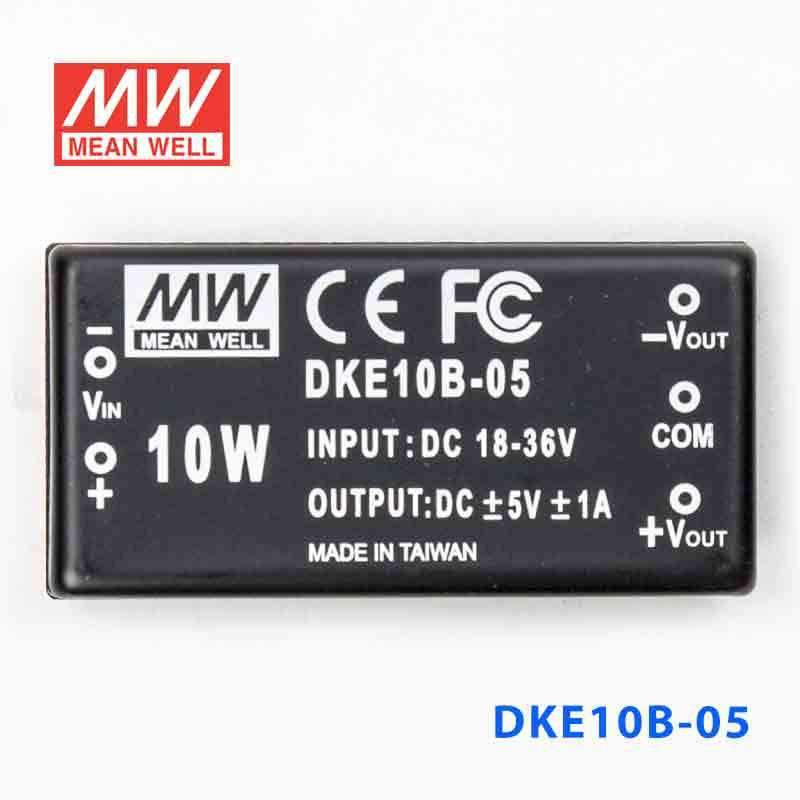

Mean Well DKE10B-05 DC-DC Converter - 10W - 18~36V in ±5V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.5% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Isolation capacitance | 80pF (max.) |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / °C (max.) |
| Dimension (LxWxH) (mm) | 2"x 1" x 0.44" |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKE10B-05 to power 5V embedded control electronics from an 18-36VAC source?
Yes, this model is intended for systems that need constant-voltage ±5V output from an 18-36VAC input range. It is a low-power 10W converter, so it fits compact embedded control, interface, or support-power duties rather than larger loads.
Is the DKE10B-05 a fit for industrial sensor interface or logic boards that need bipolar 5V power?
It can fit low-power sensor interface boards, logic support circuits, or embedded analog/digital sections that require ±5V rails. The small 50.8 × 25.4 × 11.2 mm package is useful where converter space is tight inside an instrument or controller.
Can this model be used in communications or IT equipment with low-power 5V rails?
It can be used in communications or IT assemblies that have an 18-36VAC source available and only need 10W of constant-voltage ±5V output. The CE and FCC certifications are also relevant for equipment categories where compliance documentation matters.
Is the DKE10B-05 rated for outdoor equipment cabinets?
The operating temperature range is -25°C to +71°C, which covers a broad internal equipment temperature window. However, no IP rating is listed in the provided specs, so the listing does not indicate exposed outdoor or wet-location suitability.
What is the difference between DKE10B-05 and the other DKE10B versions?
The DKE10B family keeps the same 10W platform and 18-36VAC input range while changing the output version. DKE10B-05 is 5V at 1000A, DKE10B-12 is 12V at 420A, DKE10B-15 is 15V at 333A, and DKE10B-24 is 24V at 210A.
