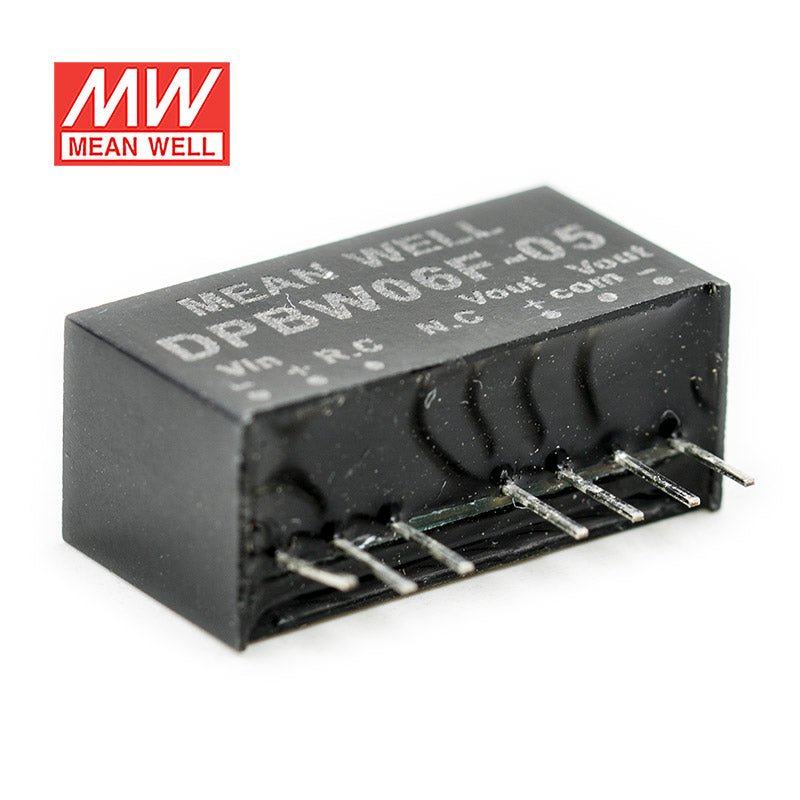

Mean Well DPBW06F-05 DC-DC Converter - 6W - 9~36V in ±5V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓✓SIP8 package with industry-standard pinout
- ✓✓4:1 wide input range
- ✓✓Wide operating temperature range -40~+85°C
- ✓✓No minimum load required
- ✓✓High efficiency up to 89%
- ✓✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓✓1.5KVDC I/O isolation
- ✓✓Remote ON/OFF control
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDPBW Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPBW06F-05 to power 5V logic in industrial automation equipment?
Yes, it is aligned with low-power 5V logic and controller sections that need a constant-voltage output. This model is rated at 6W and takes a 9-36VAC input range, which matches many compact automation and embedded control designs.
Is the DPBW06F-05 a good fit for embedded controllers or industrial IoT boards?
It can be suitable when the embedded board needs a regulated 5V rail and the total load stays within 6W. Its 21.8 x 11.1 x 9.2 mm package also supports compact designs where board space is limited.
Can this model be used for sensor and communication modules in control systems?
It is a reasonable choice for low-power 5V sensor, interface, and communication sections that require constant-voltage output. The key fit checks are the 5V output, the 6W power rating, and the 9-36VAC input range.
What is the difference between the DPBW06F-05 and the other DPBW06F versions?
All listed DPBW06F models are rated at 6W and share the same 9-36VAC input family. The DPBW06F-05 provides 5V and 600A, the DPBW06F-12 provides 12V and 250A, and the DPBW06F-15 provides 15V and 200A.
Can the DPBW06F-05 be used outdoors or in hot and cold equipment enclosures?
The specified operating temperature range is -40°C to +85°C, which supports use in equipment exposed to wide temperature swings. No IP rating is provided, so the specs do not confirm outdoor, wet-location, or dust-tight suitability.
Other DPBW06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DPBW06G-15 DC-DC Converter - 6W - 18~75V in ±15V out | 6W | 15V | 0.2A | Indoor | $10.33 | View |
| Mean Well DPBW06G-12 DC-DC Converter - 6W - 18~75V in ±12V out | 6W | 12V | 0.25A | Indoor | $10.33 | View |
| Mean Well DPBW06G-05 DC-DC Converter - 6W - 18~75V in ±5V out | 6W | 5V | 0.6A | Indoor | $10.39 | View |
| Mean Well DPBW06F-15 DC-DC Converter - 6W - 9~36V in ±15V out | 6W | 15V | 0.2A | Indoor | $10.33 | View |
| Mean Well DPBW06F-12 DC-DC Converter - 6W - 9~36V in ±12V out | 6W | 12V | 0.25A | Indoor | $10.33 | View |
