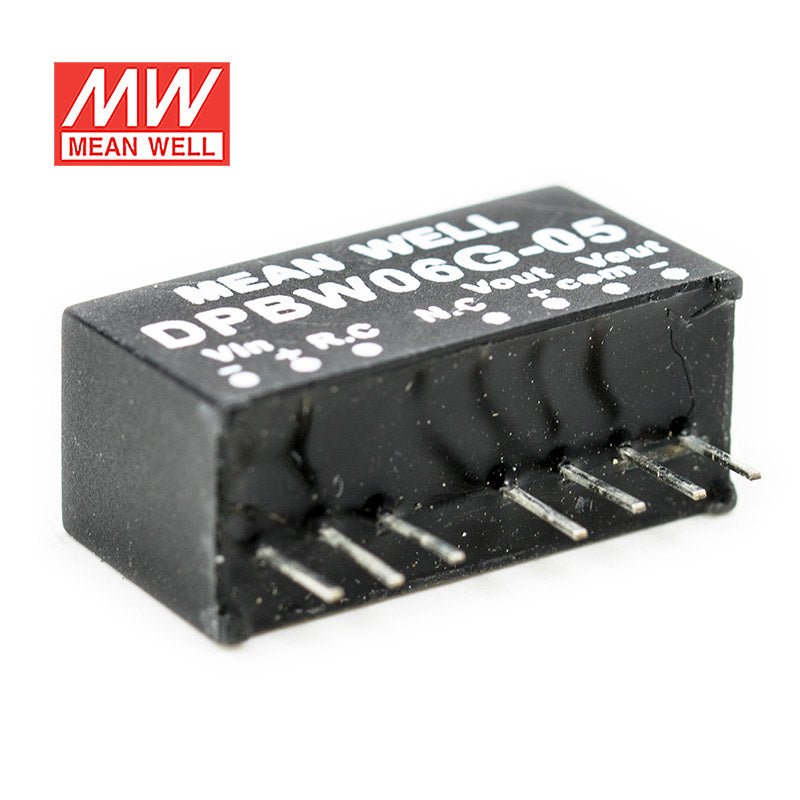

Mean Well DPBW06G-05 DC-DC Converter - 6W - 18~75V in ±5V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓✓SIP8 package with industry-standard pinout
- ✓✓4:1 wide input range
- ✓✓Wide operating temperature range -40~+85°C
- ✓✓No minimum load required
- ✓✓High efficiency up to 89%
- ✓✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓✓1.5KVDC I/O isolation
- ✓✓Remote ON/OFF control
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDPBW Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage18V~75V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPBW06G-05 for 5V control electronics in higher-input industrial systems?
Yes, it is aimed at low-power 5V electronics that need a constant-voltage output from a higher input range. This model is rated at 6W and accepts 18-75VAC input, which can be useful in industrial platforms with wider supply variation.
Is the DPBW06G-05 appropriate for embedded processors and communication boards?
It can fit embedded processor, interface, and communication sections that need a regulated 5V rail within a 6W budget. Its compact 21.8 x 11.1 x 9.2 mm form factor also helps where space is constrained.
Can this converter be used in automation monitoring or sensor nodes that need 5V power?
It is suitable for low-power 5V monitoring and sensor electronics when the system input is within 18-75VAC. The constant-voltage output and 6W rating make it a control-power component rather than a high-load 5V supply.
How does the DPBW06G-05 compare with the other DPBW06G versions?
The listed DPBW06G siblings all share a 6W rating. The DPBW06G-05 is 5V and 600A, the DPBW06G-12 is 12V and 250A, and the DPBW06G-15 is 15V and 200A.
Is the DPBW06G-05 rated for outdoor conditions or wide ambient temperatures?
The operating temperature range is -40°C to +85°C, so the temperature specification is broad. No IP rating is provided in the listed specs, so the product data does not confirm outdoor or weather-exposed use.
Other DPBW06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DPBW06G-15 DC-DC Converter - 6W - 18~75V in ±15V out | 6W | 15V | 0.2A | Indoor | $10.33 | View |
| Mean Well DPBW06G-12 DC-DC Converter - 6W - 18~75V in ±12V out | 6W | 12V | 0.25A | Indoor | $10.33 | View |
| Mean Well DPBW06F-15 DC-DC Converter - 6W - 9~36V in ±15V out | 6W | 15V | 0.2A | Indoor | $10.33 | View |
| Mean Well DPBW06F-12 DC-DC Converter - 6W - 9~36V in ±12V out | 6W | 12V | 0.25A | Indoor | $10.33 | View |
| Mean Well DPBW06F-05 DC-DC Converter - 6W - 9~36V in ±5V out | 6W | 5V | 0.6A | Indoor | $10.33 | View |
