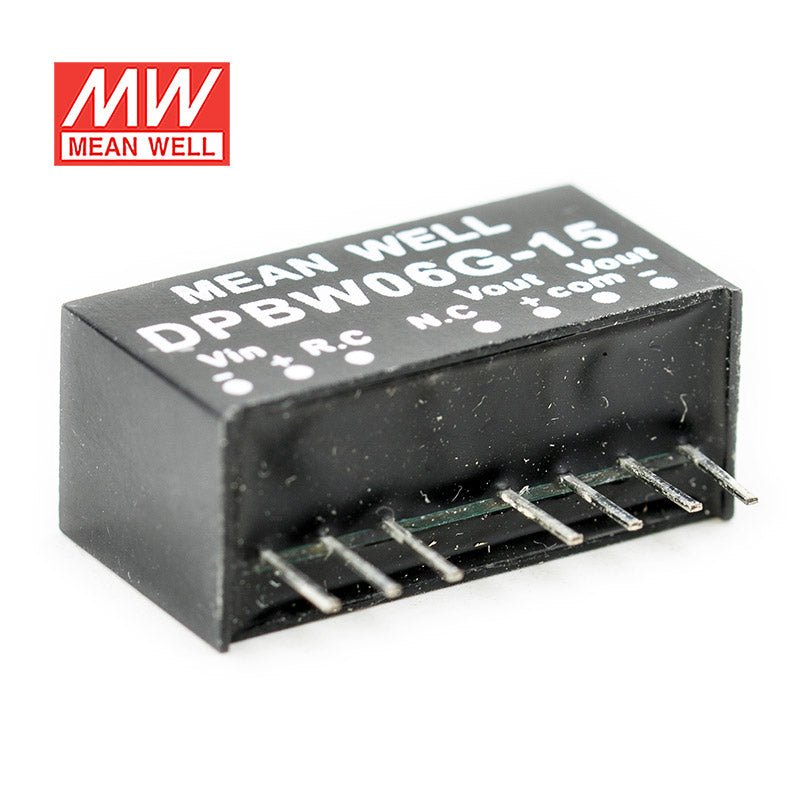

Mean Well DPBW06G-15 DC-DC Converter - 6W - 18~75V in ±15V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓✓SIP8 package with industry-standard pinout
- ✓✓4:1 wide input range
- ✓✓Wide operating temperature range -40~+85°C
- ✓✓No minimum load required
- ✓✓High efficiency up to 89%
- ✓✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓✓1.5KVDC I/O isolation
- ✓✓Remote ON/OFF control
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDPBW Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage18V~75V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPBW06G-15 in a 24V or 48V automation system that needs 15V output?
Yes, it is specified for a wide 18-75V input range and provides a constant-voltage 15V output. With a 6W rating, it is better suited to low-power automation electronics than higher-power field loads.
Is the DPBW06G-15 a fit for industrial instrumentation that requires a regulated 15V rail?
It is intended for applications that need a constant-voltage 15V output from an 18-75V input range. The 6W output rating makes it suitable for lower-power instrumentation and interface sections.
Can this converter support embedded analog or interface circuits that run on 15V?
Yes, if the design needs a regulated 15V output and remains within the converter's 6W rating. Its compact 21.8 x 11.1 x 9.2 mm package also helps in space-constrained embedded assemblies.
Would the DPBW06G-15 make sense for compact board-level power conversion in control equipment?
It is well suited to compact control hardware because it measures 21.8 x 11.1 x 9.2 mm and weighs 0.0048 kg. The listed output is constant-voltage 15V at 6W total power.
How does the DPBW06G-15 compare with the other DPBW06G models?
The DPBW06G-05, DPBW06G-12, and DPBW06G-15 are all 6W models. Their listed outputs are 5V at 600A, 12V at 250A, and 15V at 200A respectively.
Can the DPBW06G-15 be used in outdoor or wide-temperature environments?
The specified operating temperature range is -40°C to +85°C, so it is built for wide-temperature operation. No IP rating is provided, so the published specs do not indicate outdoor exposure protection.
Other DPBW06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DPBW06G-12 DC-DC Converter - 6W - 18~75V in ±12V out | 6W | 12V | 0.25A | Indoor | $10.33 | View |
| Mean Well DPBW06G-05 DC-DC Converter - 6W - 18~75V in ±5V out | 6W | 5V | 0.6A | Indoor | $10.39 | View |
| Mean Well DPBW06F-15 DC-DC Converter - 6W - 9~36V in ±15V out | 6W | 15V | 0.2A | Indoor | $10.33 | View |
| Mean Well DPBW06F-12 DC-DC Converter - 6W - 9~36V in ±12V out | 6W | 12V | 0.25A | Indoor | $10.33 | View |
| Mean Well DPBW06F-05 DC-DC Converter - 6W - 9~36V in ±5V out | 6W | 5V | 0.6A | Indoor | $10.33 | View |
