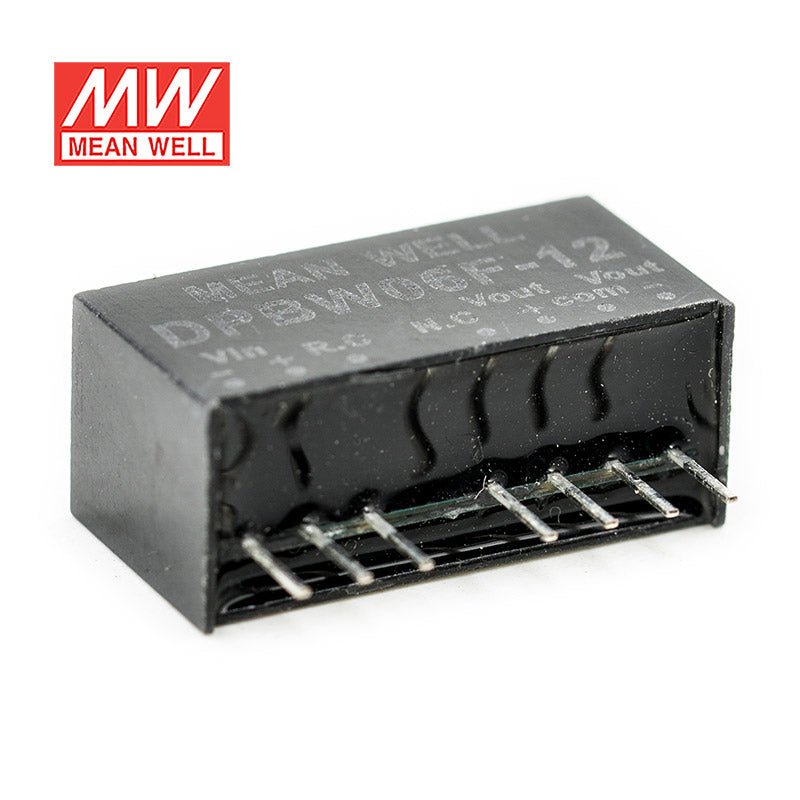

Mean Well DPBW06F-12 DC-DC Converter - 6W - 9~36V in ±12V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓✓SIP8 package with industry-standard pinout
- ✓✓4:1 wide input range
- ✓✓Wide operating temperature range -40~+85°C
- ✓✓No minimum load required
- ✓✓High efficiency up to 89%
- ✓✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓✓1.5KVDC I/O isolation
- ✓✓Remote ON/OFF control
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDPBW Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage9V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPBW06F-12 for 12V control circuits in factory equipment?
Yes, it is suited to low-power 12V control electronics that need constant-voltage output. The unit is rated at 6W and supports a 9-36VAC input range, which fits many compact industrial control designs.
Is the DPBW06F-12 appropriate for embedded 12V sensor or relay subsystems?
It can be a fit for embedded 12V subsystems where the total demand stays within 6W. Its 21.8 x 11.1 x 9.2 mm dimensions also make it practical in dense boards or small automation assemblies.
Can this converter support 12V instrumentation electronics in a wide-input system?
It is intended for low-power 12V instrumentation or monitoring sections that need a constant-voltage rail from a 9-36VAC input. The 6W rating means it is better for control and interface electronics than for heavier 12V loads.
How does the DPBW06F-12 compare with the 5V and 15V versions in the same series?
The listed DPBW06F siblings all have a 6W rating. The DPBW06F-05 is 5V and 600A, the DPBW06F-12 is 12V and 250A, and the DPBW06F-15 is 15V and 200A.
Is the DPBW06F-12 suitable for outdoor use or temperature-challenging environments?
Its operating temperature is specified from -40°C to +85°C, so the temperature range is broad. Because no IP rating is listed, the provided specs do not establish suitability for direct outdoor exposure.
Other DPBW06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DPBW06G-15 DC-DC Converter - 6W - 18~75V in ±15V out | 6W | 15V | 0.2A | Indoor | $10.33 | View |
| Mean Well DPBW06G-12 DC-DC Converter - 6W - 18~75V in ±12V out | 6W | 12V | 0.25A | Indoor | $10.33 | View |
| Mean Well DPBW06G-05 DC-DC Converter - 6W - 18~75V in ±5V out | 6W | 5V | 0.6A | Indoor | $10.39 | View |
| Mean Well DPBW06F-15 DC-DC Converter - 6W - 9~36V in ±15V out | 6W | 15V | 0.2A | Indoor | $10.33 | View |
| Mean Well DPBW06F-05 DC-DC Converter - 6W - 9~36V in ±5V out | 6W | 5V | 0.6A | Indoor | $10.33 | View |
