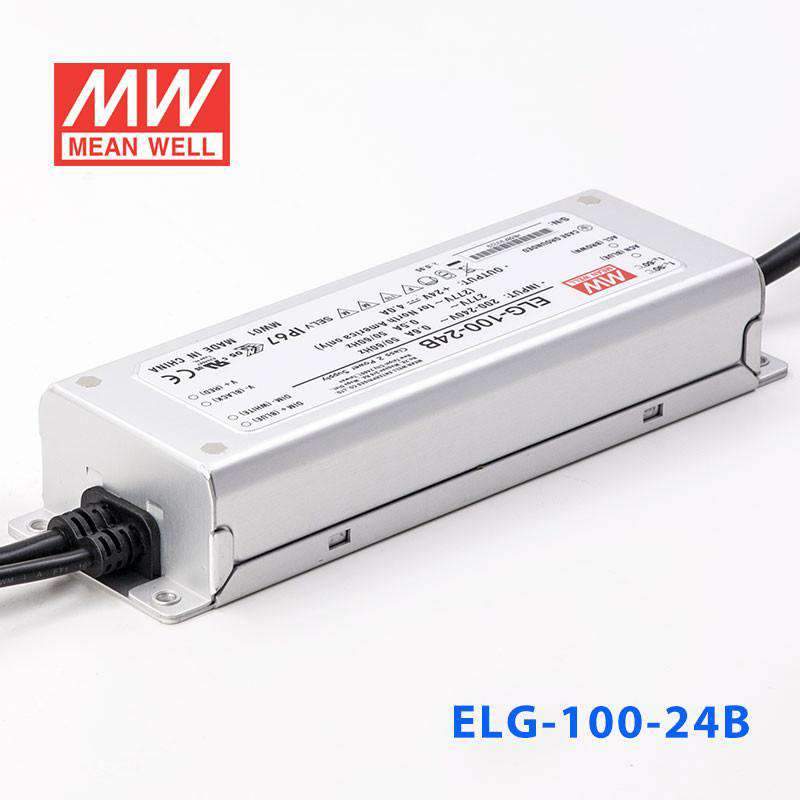

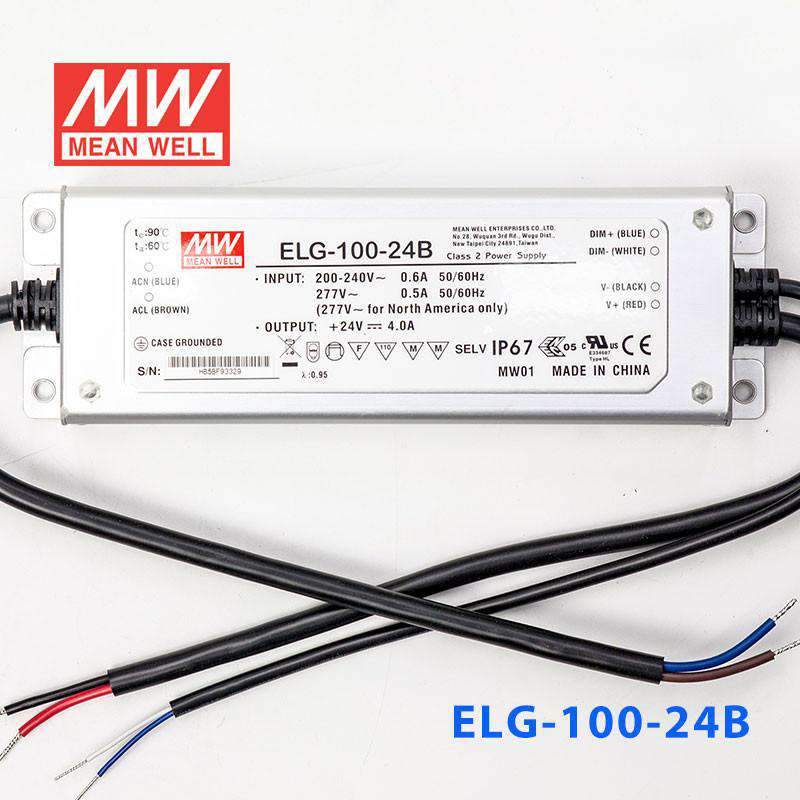

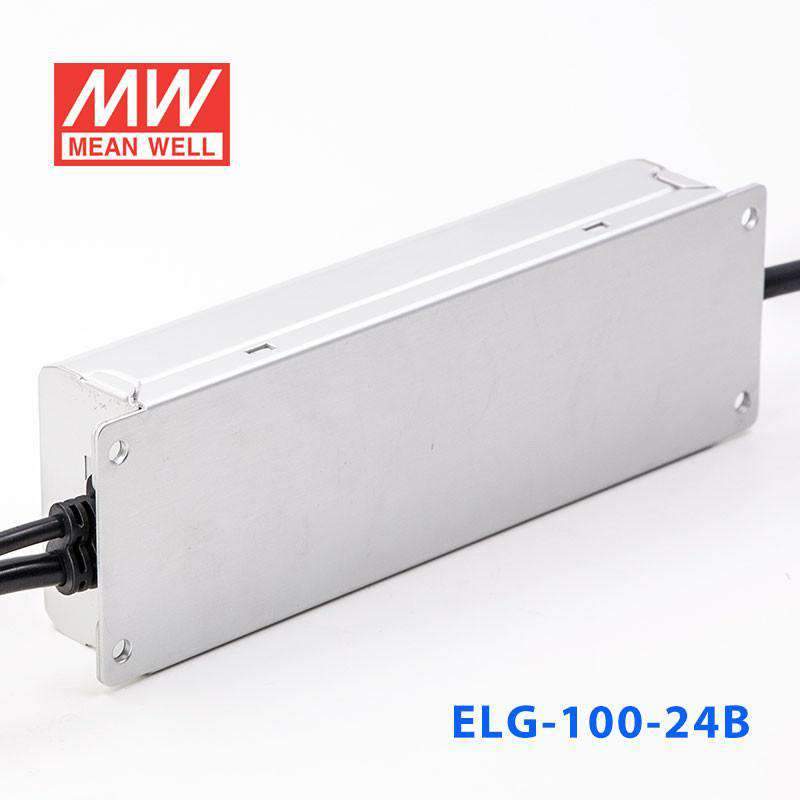

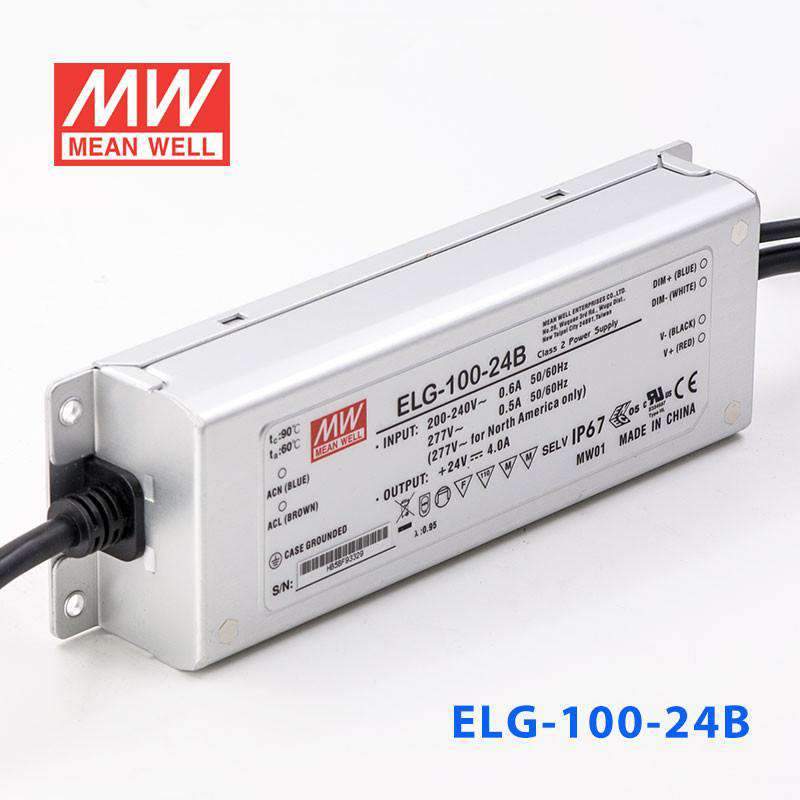

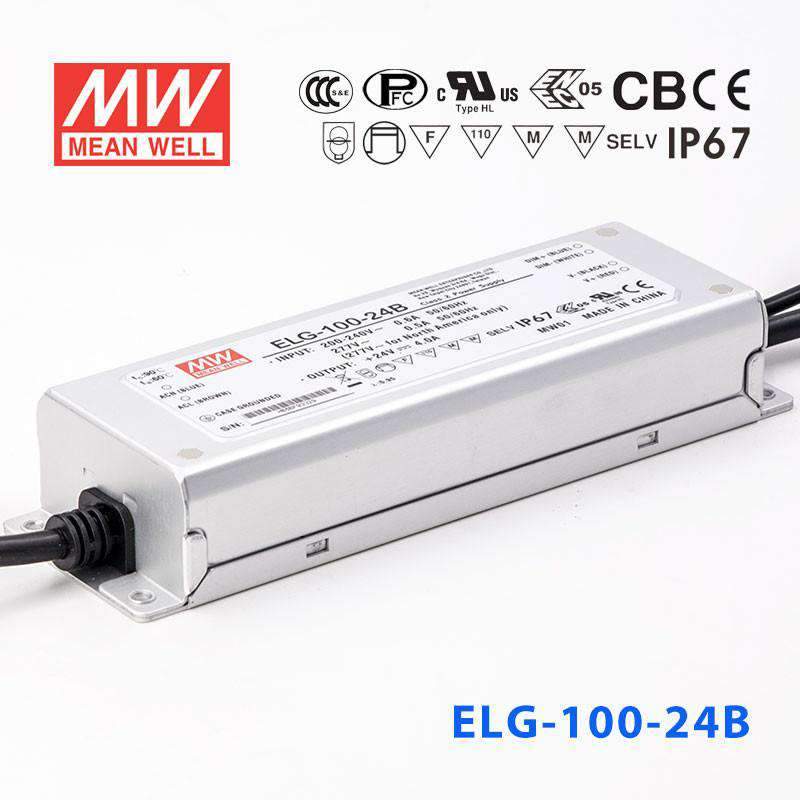

Mean Well ELG-100-24B Power Supply 96W 24V - Dimmable
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-24B be mounted outdoors in a wet location?
Yes. The ELG-100-24B carries an IP67 waterproof rating, meaning it is protected against dust ingress and temporary immersion in water up to 1 meter. It is appropriate for wet outdoor applications such as exterior building lighting or outdoor signage boxes.
What dimming methods does the ELG-100-24B support?
The 'B' suffix indicates 3-in-1 dimming: the driver accepts a 1–10V analog signal, a PWM signal, or a variable resistance input for brightness control. This makes it compatible with most commercial lighting control systems and 0-10V wall dimmers.
How many meters of 24V LED strip can the ELG-100-24B power?
The ELG-100-24B delivers 96W at 24V. For a 9.6 W/m strip that equals 10 meters; for a 14.4 W/m strip, approximately 6.6 meters. Always check your strip's rated power per meter and apply a 20% derating for continuous load safety.
Can the ELG-100-24B be used for dimmable outdoor landscape lighting?
Yes. The combination of IP67 waterproof protection and 3-in-1 dimming makes the ELG-100-24B well suited for outdoor landscape lighting systems where a 24V LED source requires brightness control via a low-voltage dimming signal. The -40°C to +90°C temperature range accommodates cold climates.
Is the ELG-100-24B a good choice for powering dimmable LED strip in a retail display?
Yes. With 96W at 24V and 3-in-1 dimming, it can power a retail display strip run and integrate with a 0-10V dimming system for scene control. The IP67 housing also tolerates the dust and cleaning sprays common in retail environments.
Can I use the ELG-100-24B for dimmable 24V LED strip lighting on a covered outdoor stage or event structure?
Yes. The IP67 rating protects against rain and moisture on outdoor stages, and the PWM or 0-10V dimming input allows integration with an event lighting controller. At 96W / 24V it can drive a substantial run of performance lighting strip.
How does the ELG-100-24B differ from the ELG-100-24 and ELG-100-24A?
The ELG-100-24 (base model) has no dimming or adjustment and is rated IP67 at 96W. The ELG-100-24A adds a potentiometer for output voltage trimming but is IP65. The ELG-100-24B adds 3-in-1 dimming (without the trim pot) and retains IP67 waterproof protection—making it the preferred choice when external dimming control is required in wet locations.
