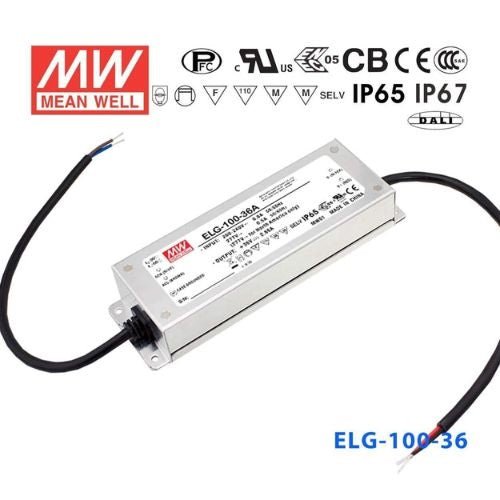

Mean Well ELG-100-36DA Power Supply 95.76W 36V - DALI
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating95.76 Watt
-
Output Voltage36 Volt
-
Rated Current2.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I integrate the ELG-100-36DA into a DALI-based building lighting control system?
Yes. The DA suffix confirms this unit includes a DALI interface, allowing it to be addressed and dimmed by any DALI-compatible lighting controller or BMS. It outputs 95.76W at 36V and 2.66A, and its IP67 rating supports installations in indoor or sheltered outdoor locations.
Is the ELG-100-36DA suitable for outdoor 36V LED installations with centralized DALI control?
Yes. With an IP67 waterproof rating and DALI dimming capability, the ELG-100-36DA can be deployed in outdoor 36V LED lighting systems — such as facade strips or architectural feature lighting — where DALI-based scene control or scheduled dimming is required.
Can the ELG-100-36DA power 36V LED strip in a commercial office or hospitality space controlled by DALI?
Yes. DALI allows each driver to be individually addressed, making the ELG-100-36DA suitable for zone-controlled office, hotel, or restaurant LED lighting where individual circuit dimming is needed. It provides 95.76W at 36V, sufficient for a meaningful LED strip zone or luminaire group.
How many meters of 36V LED strip can the ELG-100-36DA power?
The ELG-100-36DA delivers up to 95.76W. Divide 95.76 by your strip's rated power per meter to find the maximum run length. For a 36V strip at 11W/m, that is approximately 8.7 meters (95.76W / 11W per meter). Always confirm your strip's rated power per meter and load totals before sizing.
Is the ELG-100-36DA suitable for a damp or outdoor installation environment?
Yes. The ELG-100-36DA is IP67 rated, meaning it is protected against temporary water immersion up to 1 meter. It operates across -40°C to +90°C, making it appropriate for outdoor sheltered locations, parking structures, or damp indoor environments alongside DALI control infrastructure.
What is the difference between the ELG-100-36DA and the ELG-100-36DA-3Y?
The ELG-100-36DA is rated at 95.76W and accepts 100-305VAC input with a CC voltage range of 18-36V. The ELG-100-36DA-3Y is rated at 100W, has a wider input acceptance and CC voltage range of 100-305V, and holds BSMI, CB, CE, EAC, and UL certifications. Both are IP67 and carry a 5-year warranty.
