Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

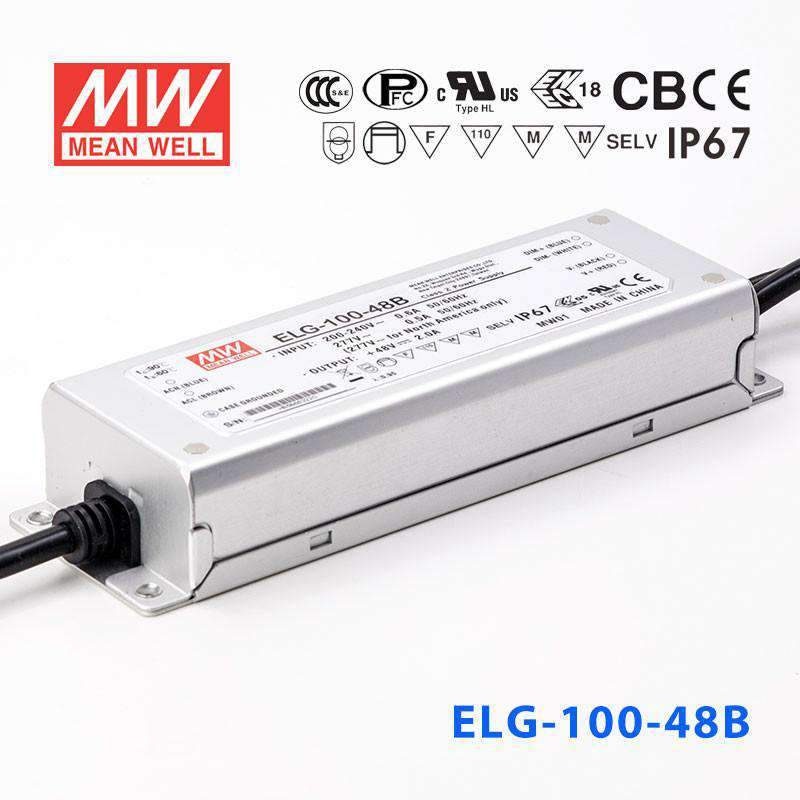

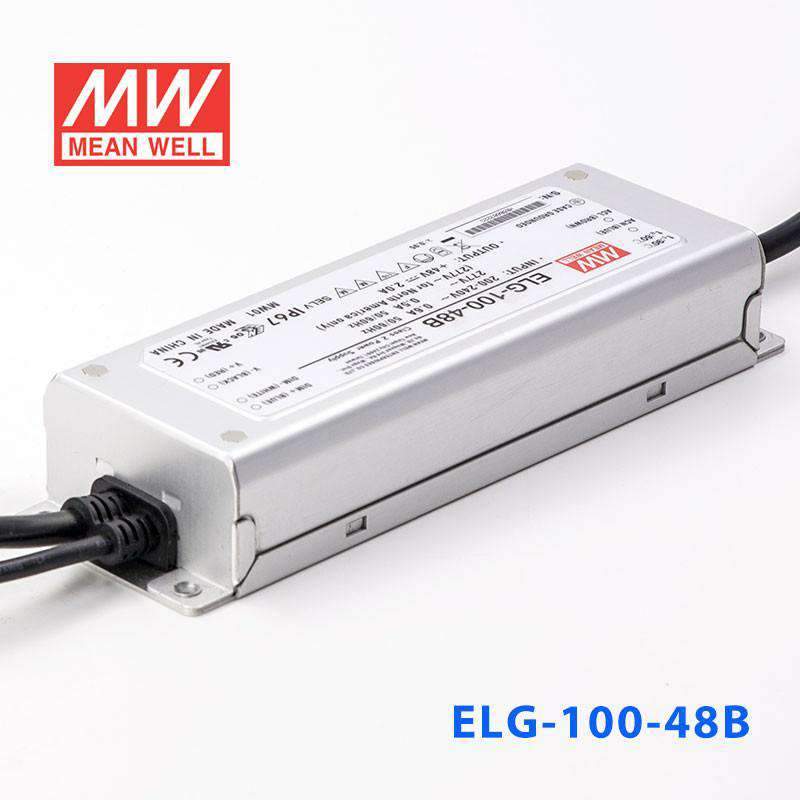

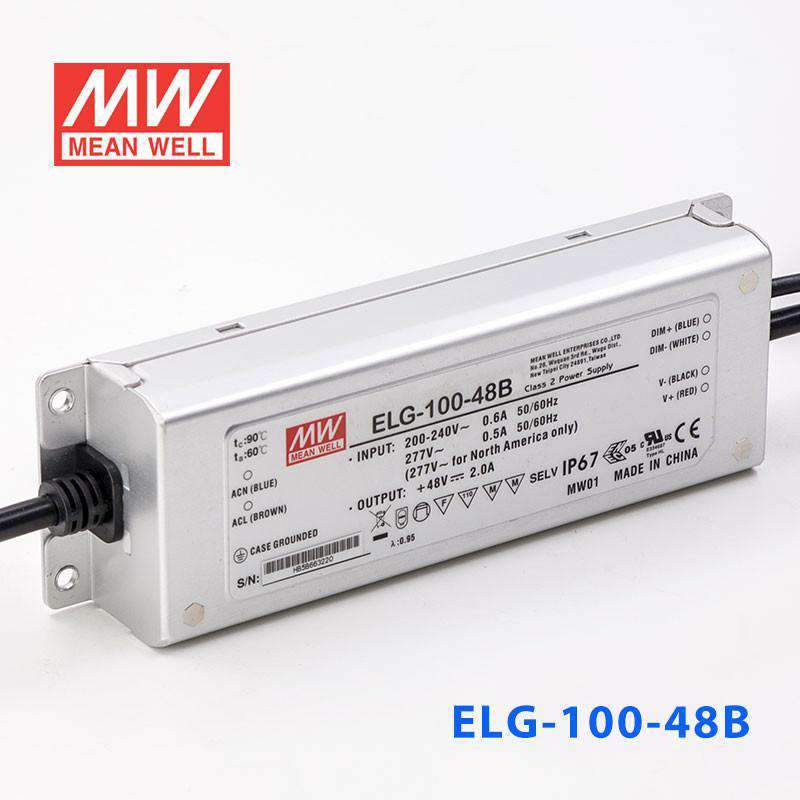

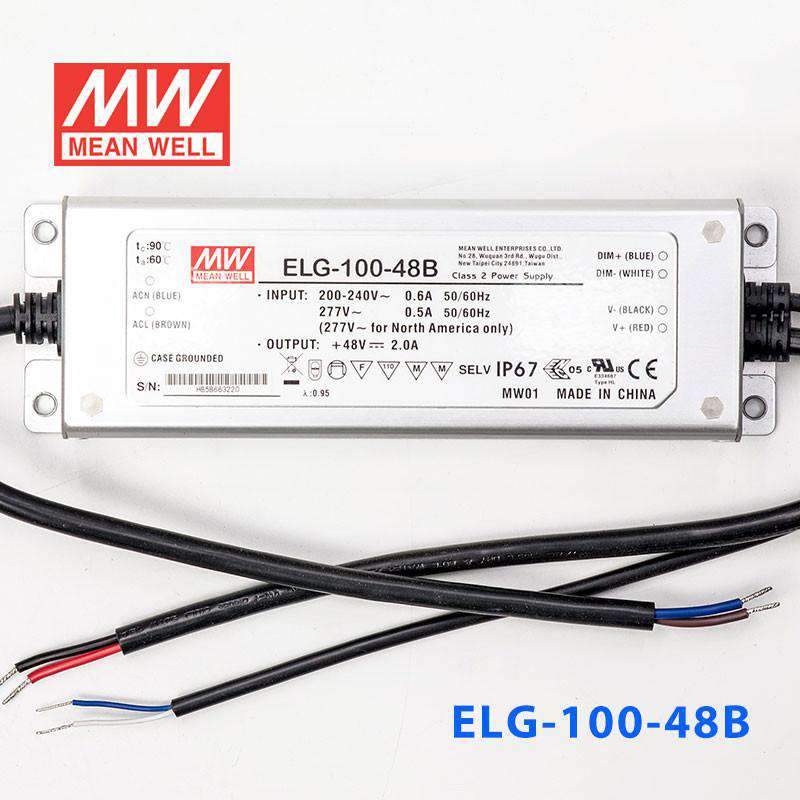

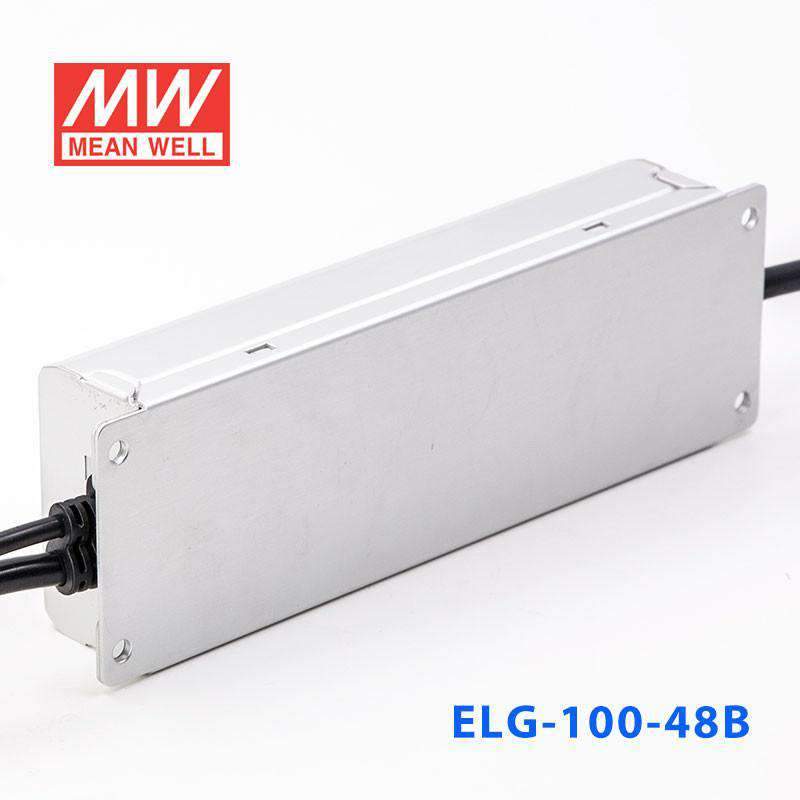

Mean Well ELG-100-48B Power Supply 96W 48V - Dimmable
metal case, IP65/IP67, 5 years warranty
SKU:
ELG-100-48B
Datasheet:
$39.65 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-100-48B Power Supply 96W 48V - Dimmable
$39.65 USD
Unit price /
Unavailable
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 40 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 199x63x35.5 |
| Packing | 16pcs / 14.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating96 Watt
-
Output Voltage48 Volt
-
Rated Current2 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
File Downloads
File Downloads
Specification Sheet
Certificates
- CB Certificate (ELG-100)(EN)
- UL Certificate (ELG-100)(EN)
- EMC Certificate (ELG-100)(EN)
- ERP Certificate (ELG-100)(EN)
- ENEC Certificate (ELG-100)(EN)
Test Reports
Catalog
