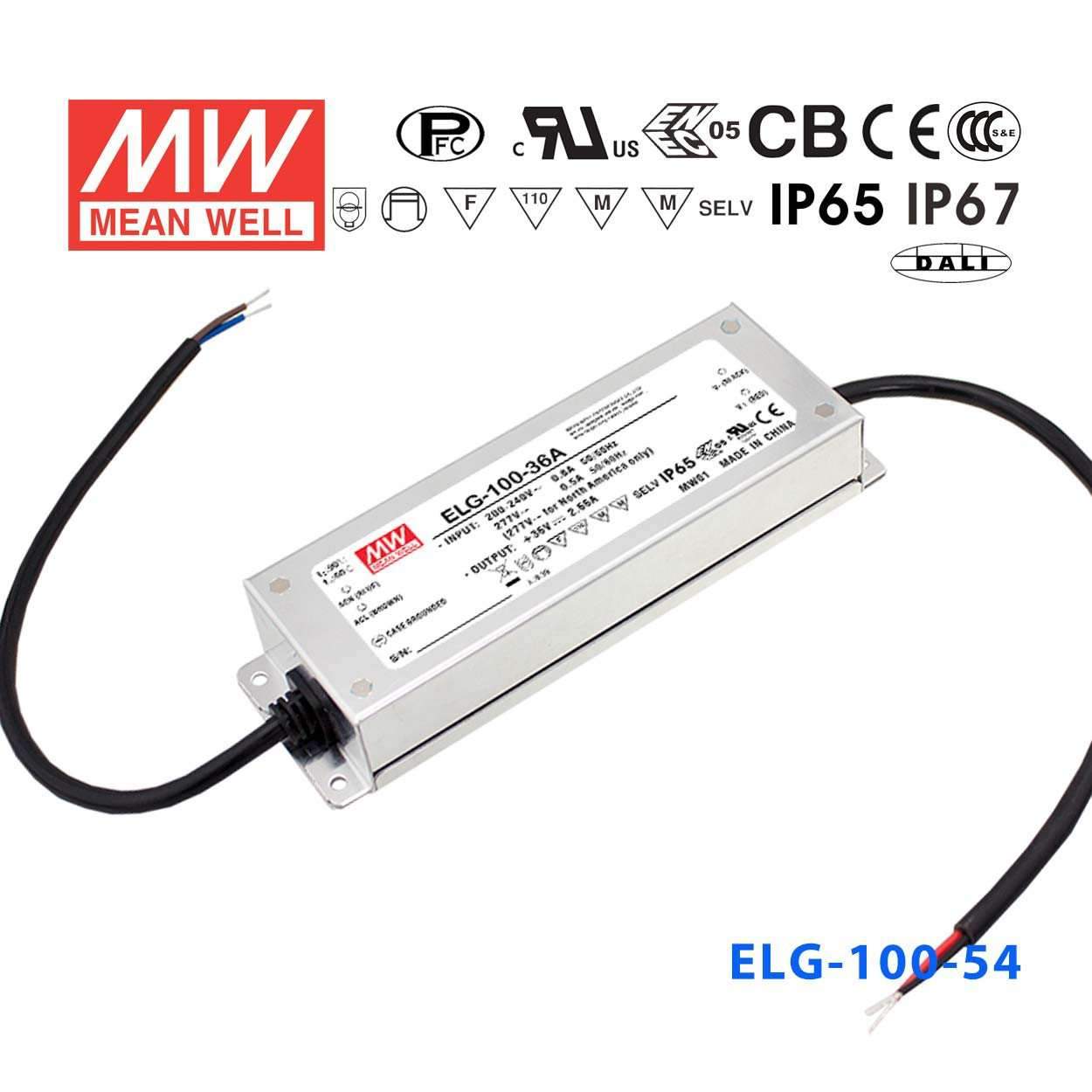

Mean Well ELG-100-54 Power Supply 96.12W 54V
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 40 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 199x63x35.5 |
| Packing | 16pcs / 14.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating96.12 Watt
-
Output Voltage54 Volt
-
Rated Current1.78 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-100-54 power 54V LED modules used in high-bay or industrial lighting fixtures?
Yes. The ELG-100-54 outputs 54V at 1.78A (96.12W total), which is appropriate for 54V LED module arrays used in high-bay or industrial pendant fixtures. Its IP67 waterproof rating also makes it suitable for factory environments with wash-down requirements.
Is the ELG-100-54 suitable for outdoor LED street or pathway lighting?
Yes. The ELG-100-54 carries an IP67 waterproof rating and operates from -40°C to +90°C, making it appropriate for street lighting fixtures, pathway bollards, or outdoor area luminaires using 54V LED modules. It accepts 100–305VAC input to accommodate global mains voltages.
How long a run of 54V LED strip can the ELG-100-54 support?
The ELG-100-54 delivers a maximum of 96.12W. Divide this by your strip's rated watts per meter: at 10 W/m, approximately 9.6 m; at 14 W/m, approximately 6.8 m. Always check your strip's rated power per meter and leave a derating margin of at least 10%.
Can the ELG-100-54 be used for 54V LED linear lighting in an outdoor pedestrian bridge or underpass?
Yes. The IP67 rating and -40°C to +90°C operating range make the ELG-100-54 well suited for outdoor infrastructure lighting such as bridges or underpasses where condensation, humidity, and temperature extremes are common. The 96.12W output supports a meaningful LED strip run per driver.
What certifications does the ELG-100-54 hold for use in commercial LED projects?
The ELG-100-54 is certified to c_bsi, CB, CCC, CE, EAC, ENEC, c_rcm, and UL. These certifications cover major commercial markets including North America (UL), Europe (CE, ENEC), Australia/New Zealand (c_rcm), and China (CCC). The 5-year warranty further supports its use in long-term commercial installations.
How does the ELG-100-54 differ from the 48V models in the ELG-100 series?
The ELG-100-54 outputs 54V at 1.78A (~96.12W) with a CC voltage range of 27–54V, while the ELG-100-48 outputs 48V at 2A (96W) with a CC range of 24–48V. The 54V variant is intended for LED loads specifically rated at 54V; using it on a 48V LED system requires the 48V models. All variants share the same physical dimensions and IP67 enclosure.
