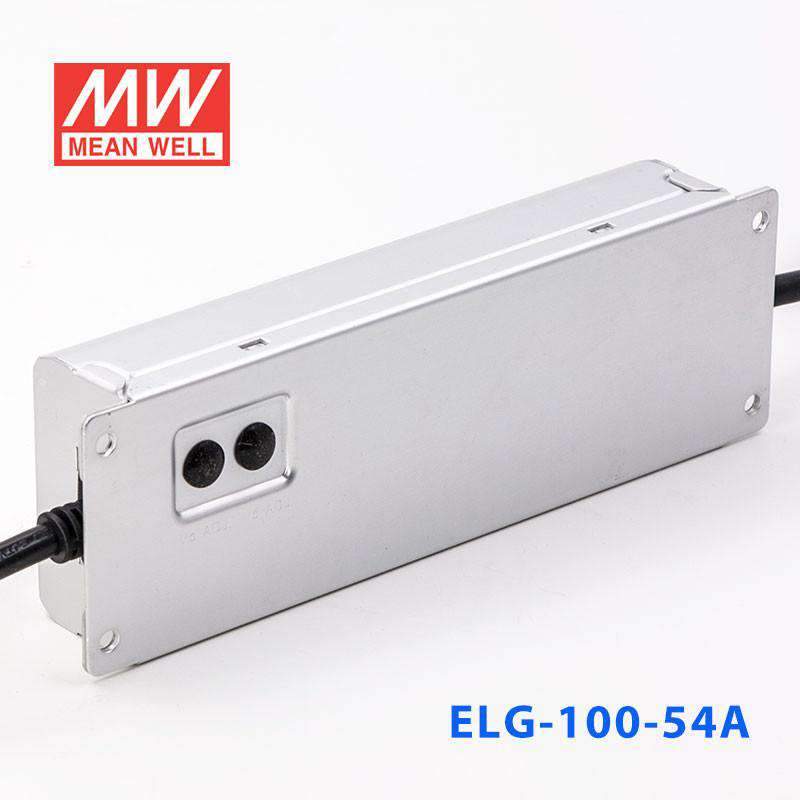

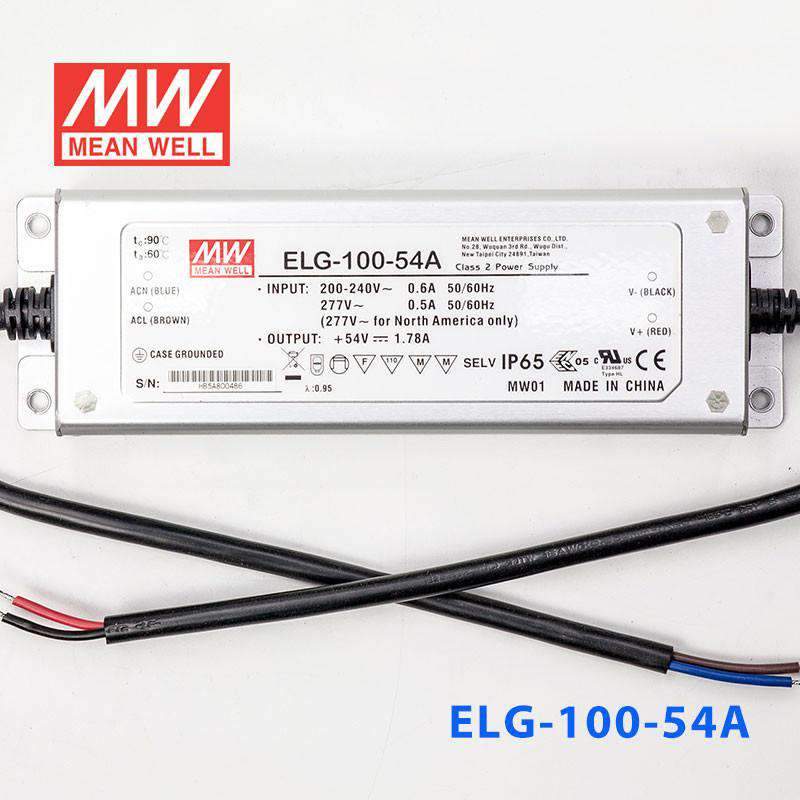

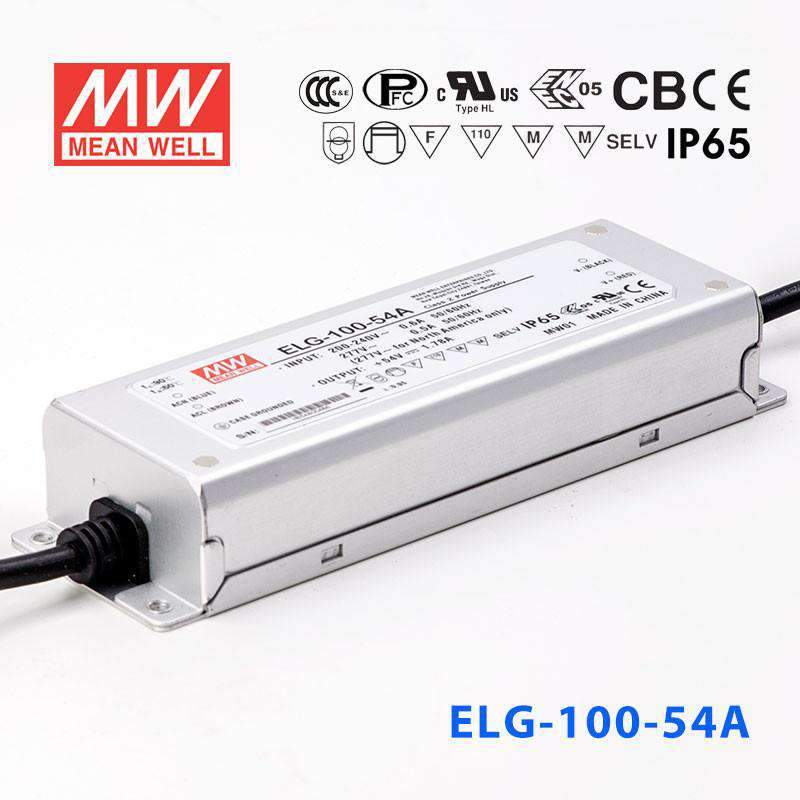

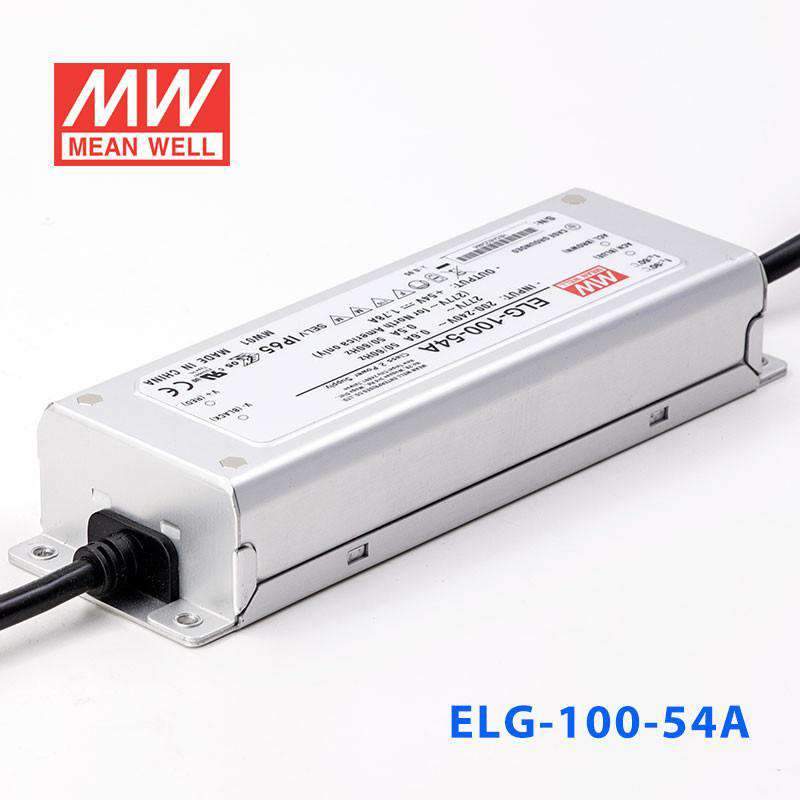

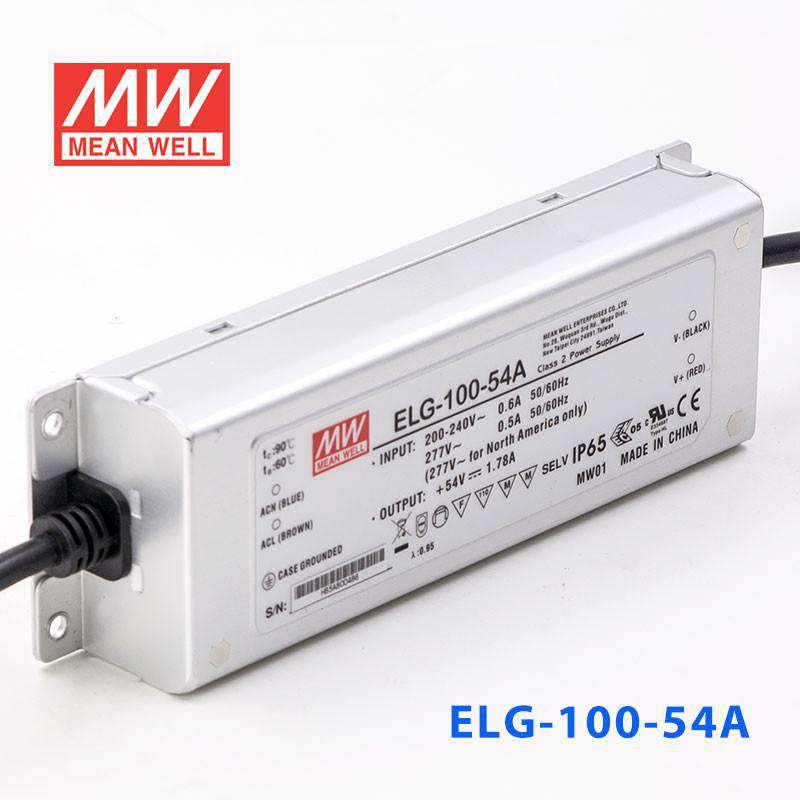

Mean Well ELG-100-54A Power Supply 96.12W 54V - Adjustable
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating96.12 Watt
-
Output Voltage54 Volt
-
Rated Current1.78 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-54A be used to power 54V LED strips in indoor retail lighting with fine brightness control?
Yes. The A suffix indicates an adjustable output voltage via a built-in potentiometer, allowing output fine-tuning within the 27–54V CC range. This is useful in retail settings where LED strip brightness needs to be set precisely at commissioning. The 96.12W capacity supports typical 54V strip runs for shelf or display lighting.
Is the ELG-100-54A rated for damp or outdoor locations?
The ELG-100-54A carries an IP65 water-resistant rating, protecting it against dust ingress and low-pressure water jets. It is appropriate for damp indoor environments and protected outdoor installations such as covered canopies or enclosed luminaire housings. For fully exposed outdoor use, the IP67-rated ELG-100-54 would be more appropriate.
How much 54V LED strip can the ELG-100-54A drive?
The ELG-100-54A outputs up to 96.12W at 54V. For a 54V strip rated at 10 W/m, that allows approximately 9.6 m per driver. For an 8 W/m strip, up to about 12 m. Divide 96.12W by your strip's rated power per meter and apply a 10% derating margin.
Can the ELG-100-54A be used for 54V LED modules in a horticultural grow-light fixture?
Yes. The ELG-100-54A's 96.12W output, IP65 protection, and wide operating temperature range (-40°C to +90°C) make it suitable for grow-light applications where humidity and temperature variation are common. The adjustable output allows calibration to the LED module's optimal drive point.
Can I use the ELG-100-54A for 54V LED architectural linear fixtures in a commercial office renovation?
Yes. The ELG-100-54A is well suited for 54V LED linear systems used in suspended or recessed architectural fixtures in commercial offices. The adjustable output enables commissioning-time calibration, and the UL, CE, and ENEC certifications meet typical commercial project specification requirements.
What certifications does the ELG-100-54A hold, and is it approved for use in Australia?
The ELG-100-54A holds c_bsi, CB, CCC, CE, EAC, ENEC, c_rcm, and UL certifications. The c_rcm mark is the RCM (Regulatory Compliance Mark) required for electrical equipment sold in Australia and New Zealand, confirming it meets Australian safety and EMC requirements.
