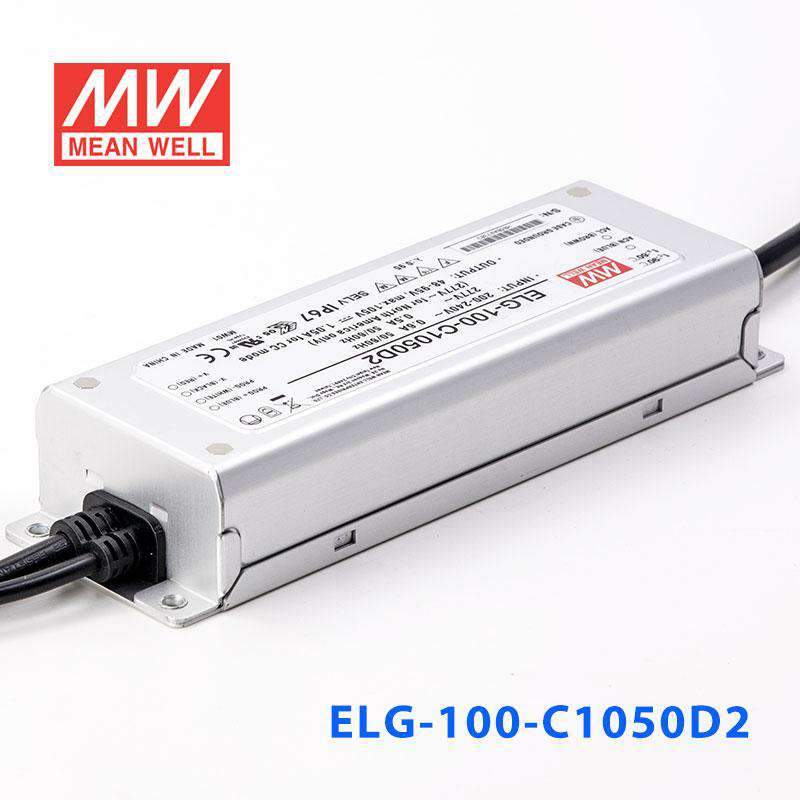

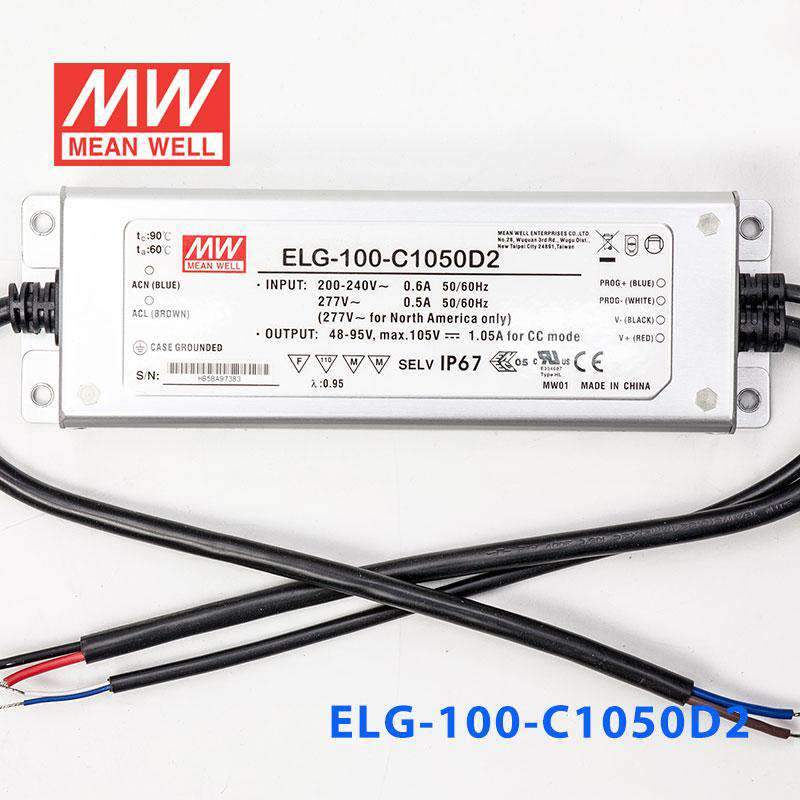

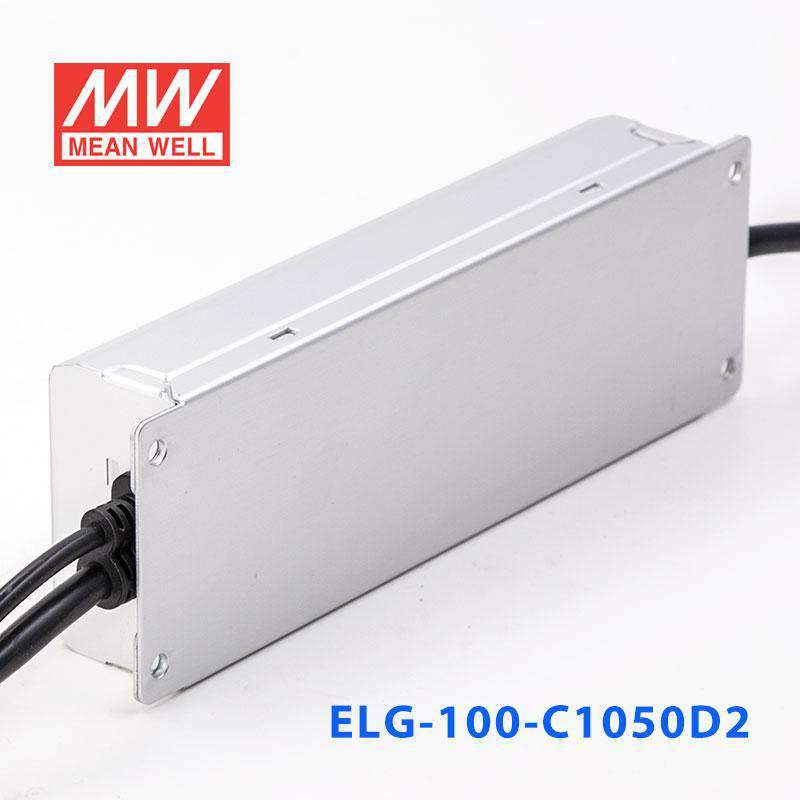

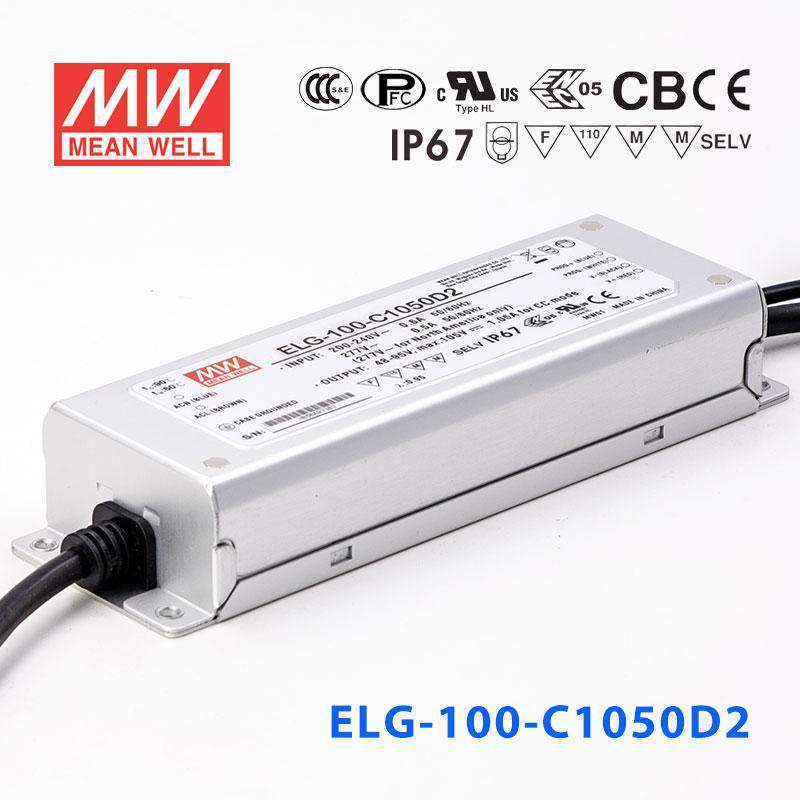

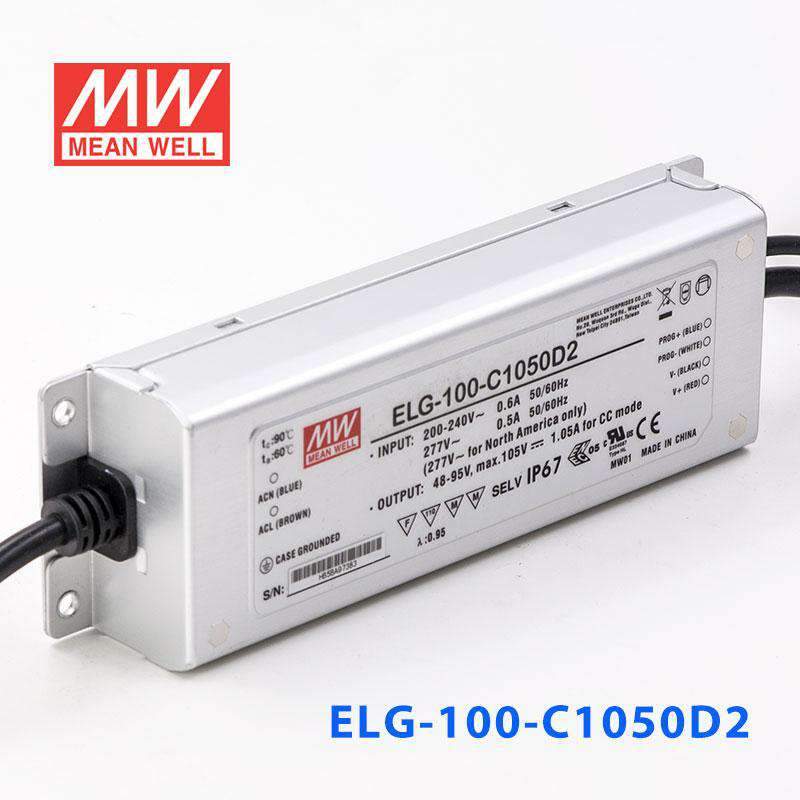

Mean Well ELG-100-C1050D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-100-C1050D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating100 Watt
-
Output Voltage95 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-C1050D2 be used for LED area lighting fixtures mounted in outdoor enclosures?
Yes. The ELG-100-C1050D2 is rated IP67 waterproof, making it suitable for direct mounting inside outdoor area light housings exposed to rain or high humidity. It operates across -40°C to +90°C.
Is the ELG-100-C1050D2 suitable for powering large LED downlight arrays in commercial ceilings?
Yes. Operating at 100W in constant current mode, this driver can power mid-to-high lumen LED modules used in commercial recessed downlight applications. Its wide AC input (100–305VAC) accommodates standard commercial supply voltages.
What does the 'D2' suffix indicate on the ELG-100-C1050D2?
The 'D2' designation indicates that this variant includes a DALI-2 digital dimming interface. DALI-2 allows the driver to be addressed and controlled individually within a digital lighting control network, enabling scene management, fault reporting, and grouped control.
Can the ELG-100-C1050D2 integrate into a DALI-2 smart building lighting system?
Yes. The D2 interface is fully compliant with the DALI-2 protocol, enabling integration with DALI-2 certified controllers and building management systems for individual addressing, dimming, and status monitoring.
What LED string voltage range works with the ELG-100-C1050D2?
The CC output voltage range for this driver is listed in its datasheet; the product header shows 95V output at 1.05A. Series LED strings whose combined forward voltage falls within the CC operating range are compatible, with string LED count depending on each LED's forward voltage.
Is the ELG-100-C1050D2 a good choice for museum lighting systems that use DALI for scene control?
Yes. The DALI-2 interface allows precise individual fixture control from a central lighting controller, which is valuable in museum environments that require different scene levels for exhibitions. The 100W constant current output supports LED spotlights and accent fixtures.
