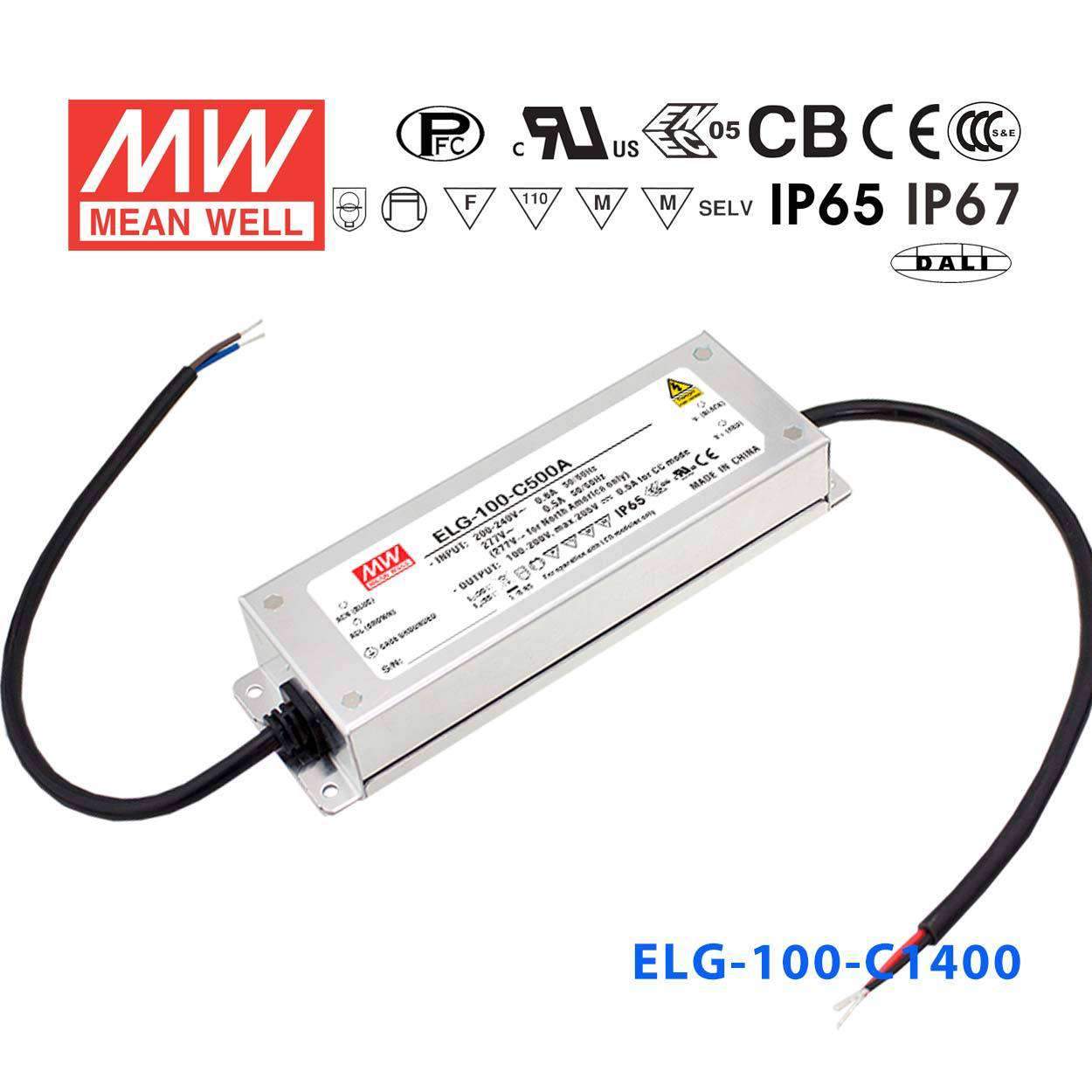

Mean Well ELG-100-C1400D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-100-C1400D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating100 Watt
-
Output Voltage72 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-C1400D2 be used to drive LED modules in a high-bay industrial lighting fixture?
The ELG-100-C1400D2 is a constant current LED driver rated at 100W with an IP67 waterproof enclosure, making it suitable for enclosed industrial high-bay fixtures where moisture and dust protection are required. It accepts a wide 100–305VAC input, accommodating both standard and industrial power supplies. The CC voltage range should be verified against the forward voltage of the LED modules used in the fixture.
Is the ELG-100-C1400D2 appropriate for outdoor LED applications that need to withstand wet conditions?
Yes. The ELG-100-C1400D2 carries an IP67 waterproof rating, providing complete protection against dust and temporary water immersion up to 1 meter, which is suitable for outdoor LED luminaires exposed to rain, sprinklers, or wash-down. Its operating temperature extends from -40°C to +90°C, covering most outdoor climates. The driver accepts universal 100–305VAC input.
What is the D2 suffix on the ELG-100-C1400D2, and how does it affect dimming?
The 'D2' suffix indicates the driver supports two-in-one dimming via the DALI protocol as well as a push-button dim interface. This allows the driver to be integrated into DALI lighting control networks or dimmed locally using a simple switch, without requiring a dedicated 0–10V or analog dimmer. The output remains at a constant current of 1400mA when running at full output.
How many LEDs can I connect in series to the ELG-100-C1400D2?
The number of LEDs in series is determined by their individual forward voltages. Verify that the total combined Vf of the series string falls within the driver's CC voltage compliance range as specified in the datasheet. The ELG-100-C1400D2 is a 100W, constant current driver at 1400mA, and the LED count will vary based on the Vf of the specific LEDs used.
Can the ELG-100-C1400D2 power LED downlights in a DALI-controlled commercial building?
Yes. The ELG-100-C1400D2 supports DALI dimming as part of its D2 two-in-one dimming capability, enabling it to respond to DALI commands from a building management system for scene-setting and scheduled dimming. It delivers a constant 1400mA at 100W to maintain consistent LED brightness. Its IP67 rating also provides flexibility in installation location, including humid or partially wet ceiling spaces.
Is the ELG-100-C1400D2 suitable for LED signage modules in an outdoor kiosk that requires network-controlled dimming?
The ELG-100-C1400D2 supports DALI dimming, which allows brightness control from a DALI-capable network controller, making it suitable for managed signage kiosk installations where remote brightness adjustment is needed. The IP67 rating ensures the driver is protected against outdoor moisture exposure. At 100W and 1400mA constant current output, it can power medium-power LED signage arrays.
