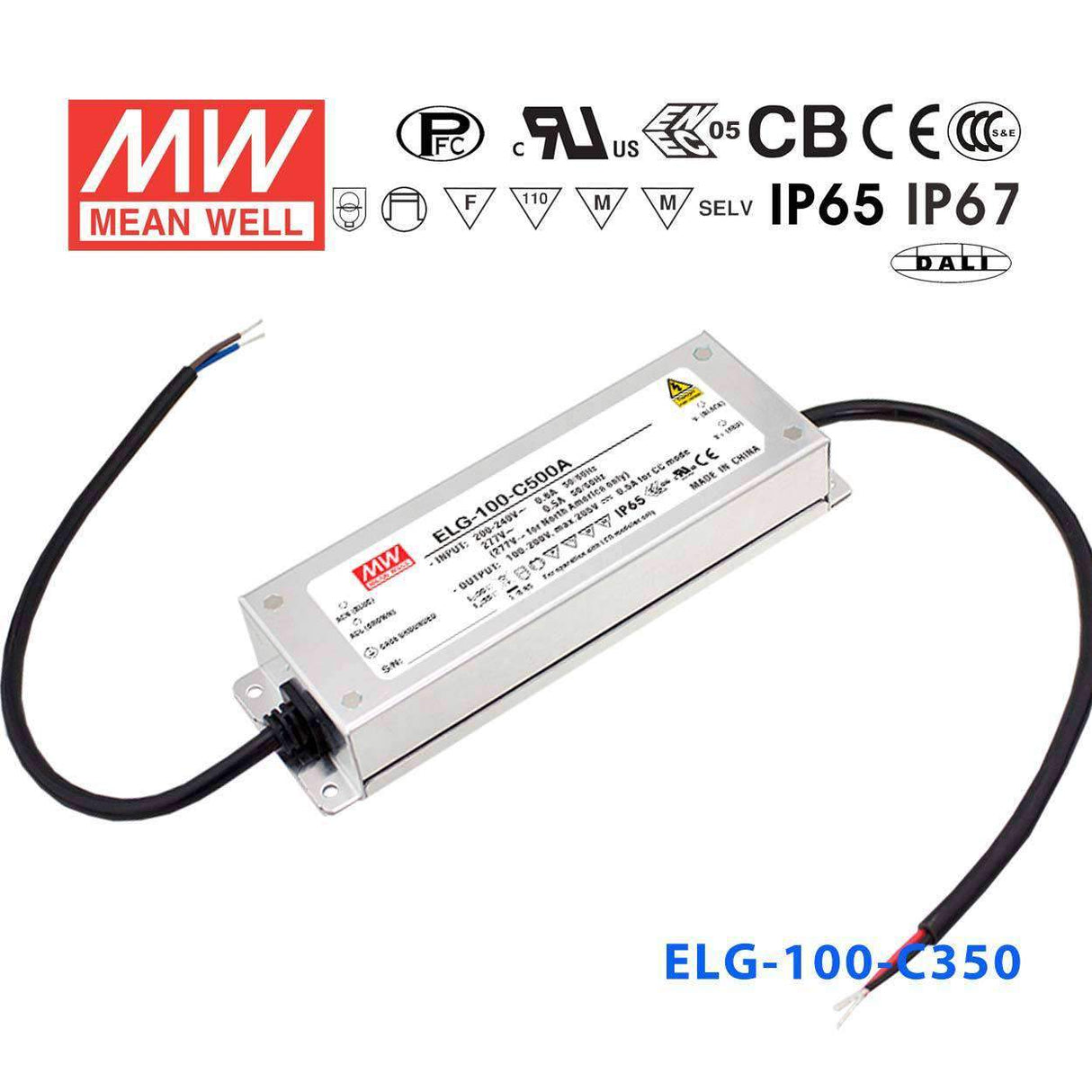

Mean Well ELG-100-C350D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-100-C350D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating100 Watt
-
Output Voltage286 Volt
-
Rated Current0.35 Ampere
-
Input Voltage-40V~80V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-C350D2 be used to power a series string of LEDs in an outdoor architectural lighting fixture?
Yes. The ELG-100-C350D2 is IP67 rated and tolerates operating temperatures from -40°C to +90°C, making it well suited for outdoor architectural or facade lighting. It delivers a constant 350mA with a CC voltage range that accommodates the output requirements of high-voltage LED strings used in such fixtures.
Is the ELG-100-C350D2 appropriate for LED downlight arrays in a commercial building?
Yes. This driver accepts input voltages from 100–305VAC, covering both North American and international mains, and supplies a constant 350mA to the LED load. It is well suited for commercial downlight applications where consistent current control and long-term reliability are required.
What dimming protocol does the ELG-100-C350D2 support?
The D2 suffix indicates support for DALI-2 digital dimming control. This allows integration into DALI-based building automation and lighting management systems for addressable, digital dimming of individual luminaires.
How does the CC voltage range of the ELG-100-C350D2 affect LED string compatibility?
The driver operates in constant current mode with the output voltage adjusting to match the string's forward voltage requirement. The number of LEDs supported in series depends on each LED's individual forward voltage — you should verify that your total string forward voltage falls within the driver's rated CC voltage range to ensure proper regulation.
Can the ELG-100-C350D2 be installed in a wet or wash-down location?
Yes. The IP67 rating means the driver is fully protected against temporary immersion in water and resists dust ingress entirely. It is suitable for wash-down industrial environments, outdoor utility enclosures, and similar wet-location installations.
