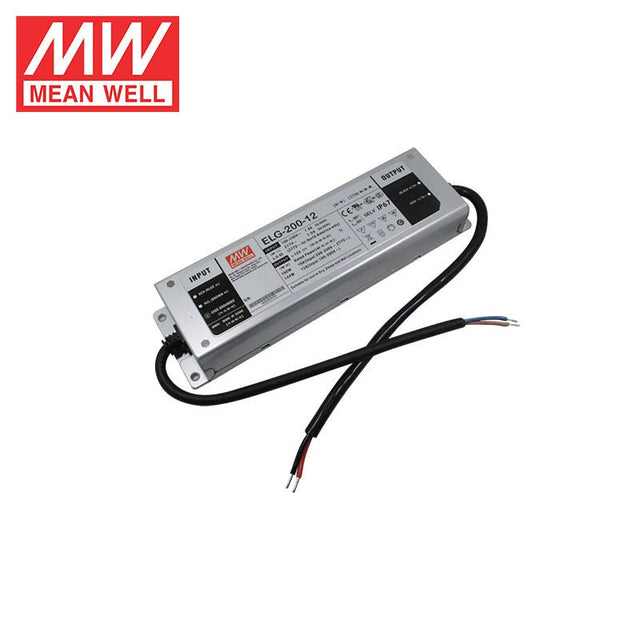

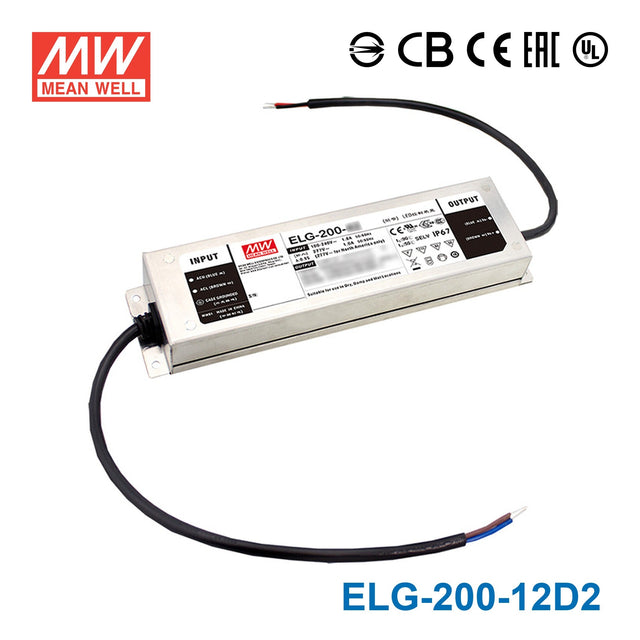

Mean Well ELG-200-12D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
What does the D2 suffix mean on the ELG-200-12D2, and how does it affect use?
The D2 suffix designates a digital dimming interface variant. The ELG-200-12D2 supports a two-wire external dimming signal for integration with digital lighting-control systems. It differs from the A (adjustable potentiometer), B (3-in-1 analog/PWM/resistance), and DA (DALI) variants in its control interface.
Can the ELG-200-12D2 be used in outdoor or wet environments?
Yes. The ELG-200-12D2 carries an IP67 waterproof rating, providing complete dust protection and resistance to temporary water submersion. This makes it suitable for outdoor LED installations, wet-location signage enclosures, and underground or exposed equipment housings.
How much 12V LED strip can the ELG-200-12D2 drive?
The ELG-200-12D2 provides 200W at 12V and 16A. At 14.4W/m strip density, that supports approximately 13.8 meters; at 9.6W/m, approximately 20.8 meters. Divide 200W by your strip's rated power per meter for the exact figure, and leave a 20% safety margin.
Is the ELG-200-12D2 appropriate for 12V LED strips in an architectural façade with digital dimming control?
Yes. The ELG-200-12D2's digital dimming interface suits automated building or architectural lighting systems that require programmable output control. Its 200W / 12V rating supports large LED strip runs across a façade, and its IP67 rating protects the driver when mounted in outdoor enclosures.
What is the operating temperature range of the ELG-200-12D2?
The ELG-200-12D2 is rated for -40°C to +90°C operation. This wide range accommodates cold-climate outdoor installations as well as high-ambient industrial or rooftop environments without performance derating.
Does the ELG-200-12D2 accept both 120V and 230V mains input?
Yes. The ELG-200-12D2 accepts 100–305VAC input, so it works on 120V North American, 230V European, and 277V US commercial supplies without any hardware change.
