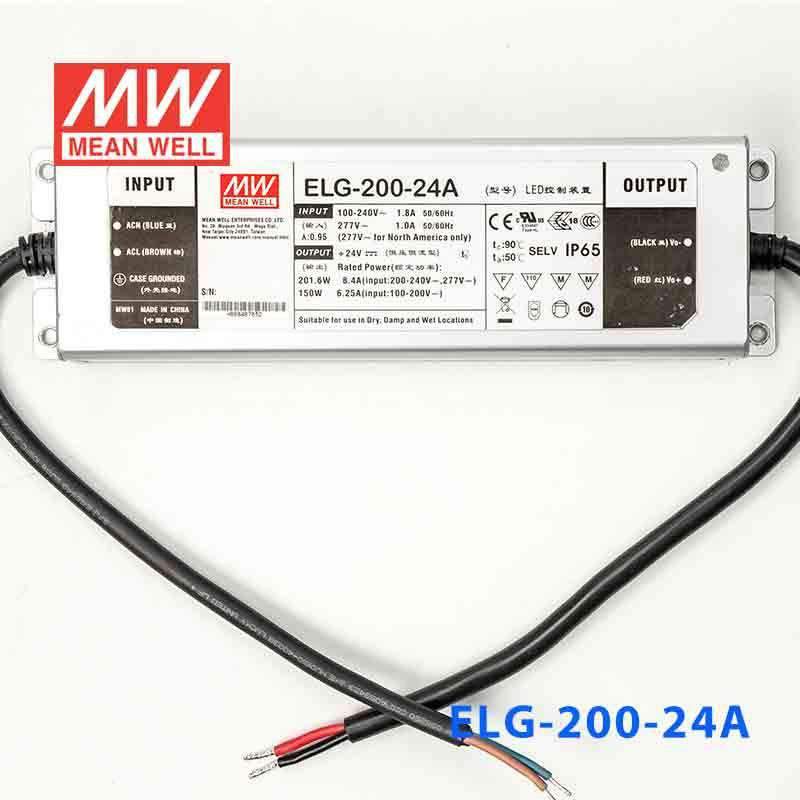

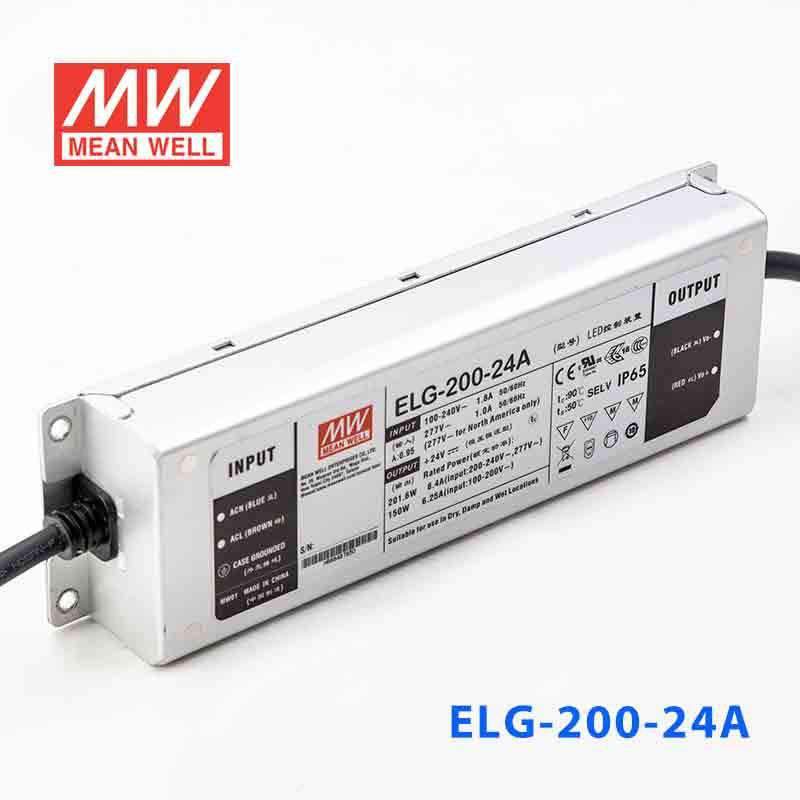

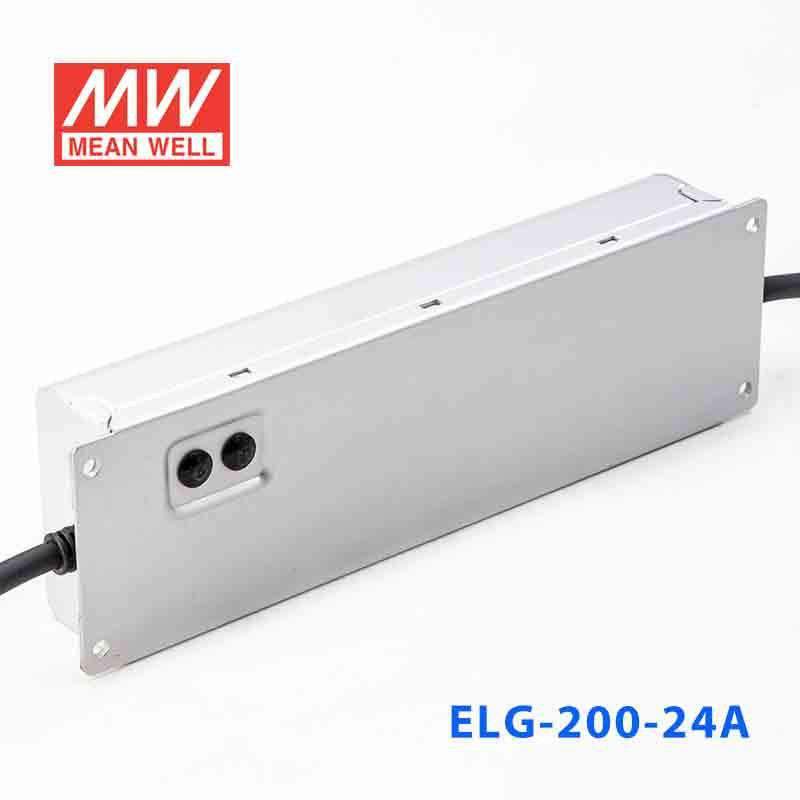

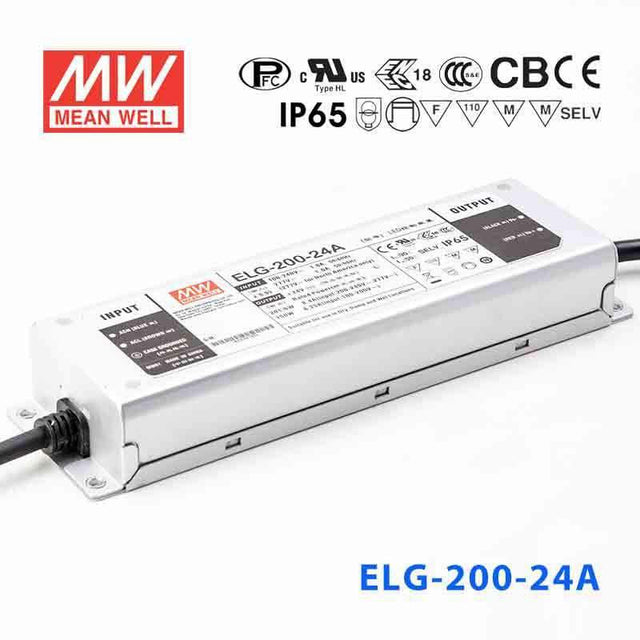

Mean Well ELG-200-24A Power Supply 200W 24V - Adjustable
Description
Description
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-200-24A power a large 24V LED strip installation for retail signage?
Yes. The ELG-200-24A delivers 201.6W at 24V, making it well suited for powering long runs of 24V LED strips in illuminated retail signs or channel-letter displays. At 8.4A continuous output, it can sustain high-brightness strips without voltage sag.
How many meters of 24V LED strip can the ELG-200-24A drive?
The driver provides 201.6W at 24V. Divide 201.6W by your strip's rated wattage per meter — for a 14.4 W/m strip that gives approximately 14 meters, and for a 9.6 W/m strip roughly 21 meters. Always verify your strip's rated power per meter before finalising the run length.
Is the ELG-200-24A suitable for outdoor LED lighting installations?
The ELG-200-24A carries an IP65 rating, meaning it is protected against dust ingress and low-pressure water jets. It is appropriate for covered outdoor locations such as building facades, outdoor signage cabinets, and canopy lighting where direct rain contact is avoided.
Can I use the ELG-200-24A for architectural LED cove lighting in a commercial building?
Yes. Its 24V constant-voltage output with 201.6W capacity is a common fit for architectural cove and linear LED installations. The metal enclosure and IP65 rating also allow it to be mounted in ceiling voids or behind panels where some moisture exposure may occur.
What does the 'A' suffix mean on the ELG-200-24A, and how does it differ from the ELG-200-24B?
In Mean Well's ELG naming, the 'A' suffix indicates output voltage and current adjustment via an internal trimmer potentiometer, while 'B' indicates dimming via an external PWM or resistor signal. Both are 201.6W, 24V, 8.4A with IP65/IP67 construction; choose the A variant when you need to fine-tune the output at installation, and the B variant when ongoing dimming control is required.
Can the ELG-200-24A operate in cold storage or freezer environments?
Yes. The ELG-200-24A is rated for operation down to -40°C, making it suitable for cold-chain facilities, freezer-room lighting, and outdoor installations in harsh winter climates.
Other ELG-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ELG-200-24DA Power Supply 200W 24V - DALI | 201.6W | 24V | 8.4A | IP67 | $56.01 | View |
| Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable | 201.6W | 24V | 8.4A | IP67 | $53.51 | View |
| Mean Well ELG-200-24 Power Supply 200W 24V | 201.6W | 24V | 8.4A | IP67 | $51.37 | View |
| Mean Well ELG-200-12 Power Supply 192W 12V | 192W | 12V | 16A | IP67 | $49.88 | View |
| Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable | 192W | 12V | 16A | IP65 | $51.37 | View |
| Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC | 200W | 12V | 16A | IP67 | $59.29 | View |
| Mean Well ELG-200-C1050A Power Supply 200W 1050mA - Adjustable | 199.5W | 200V | 1.05A | IP65 | $56.25 | View |
