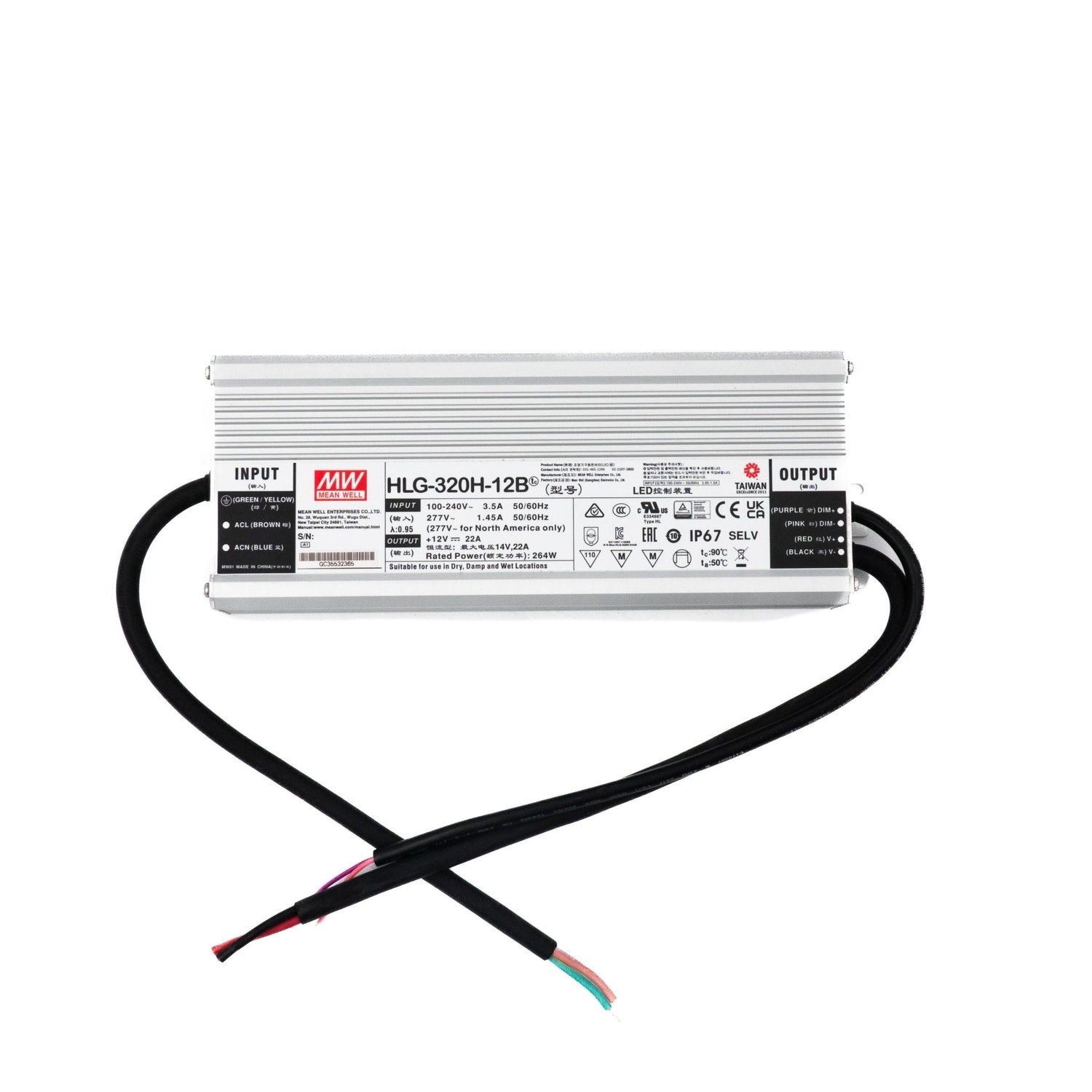

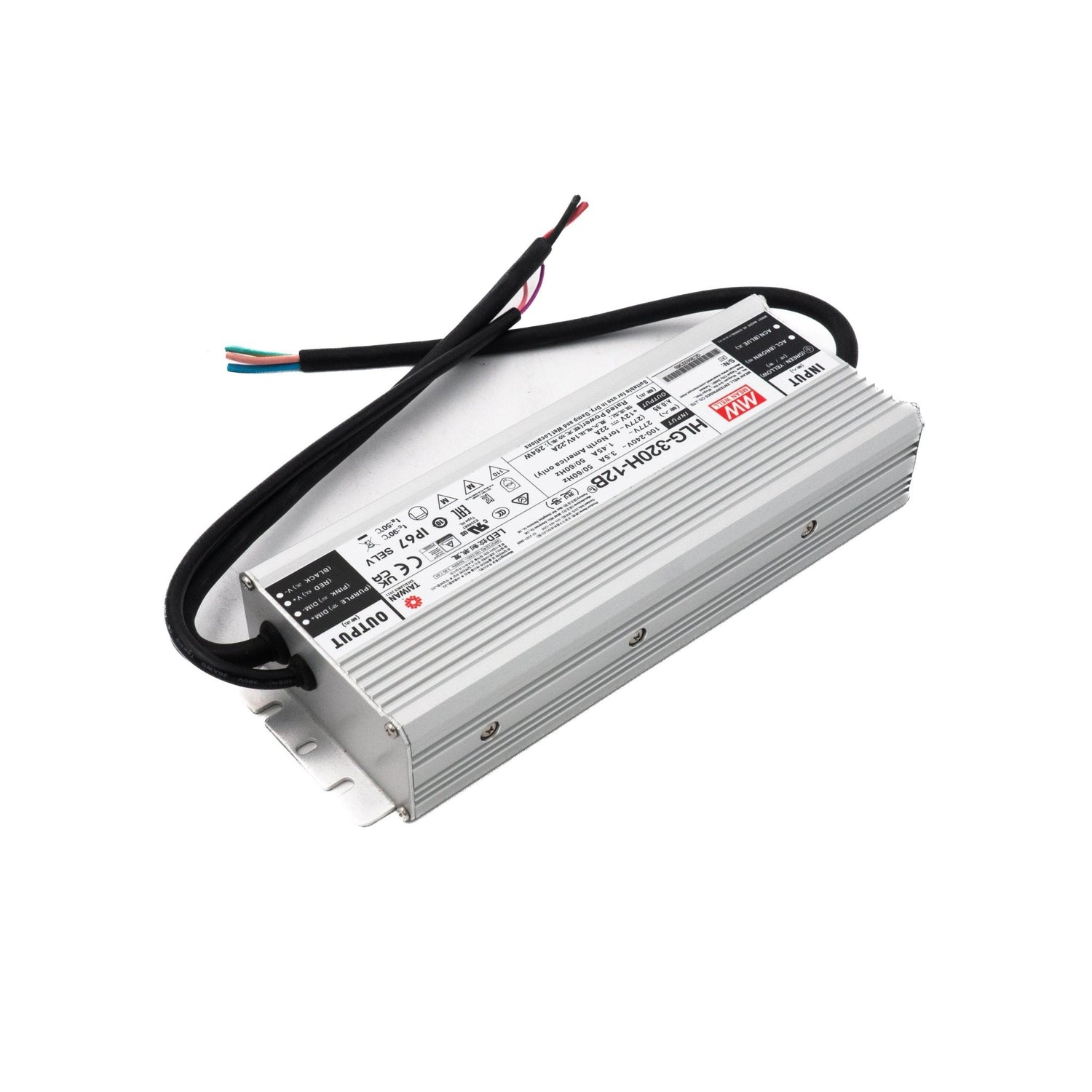

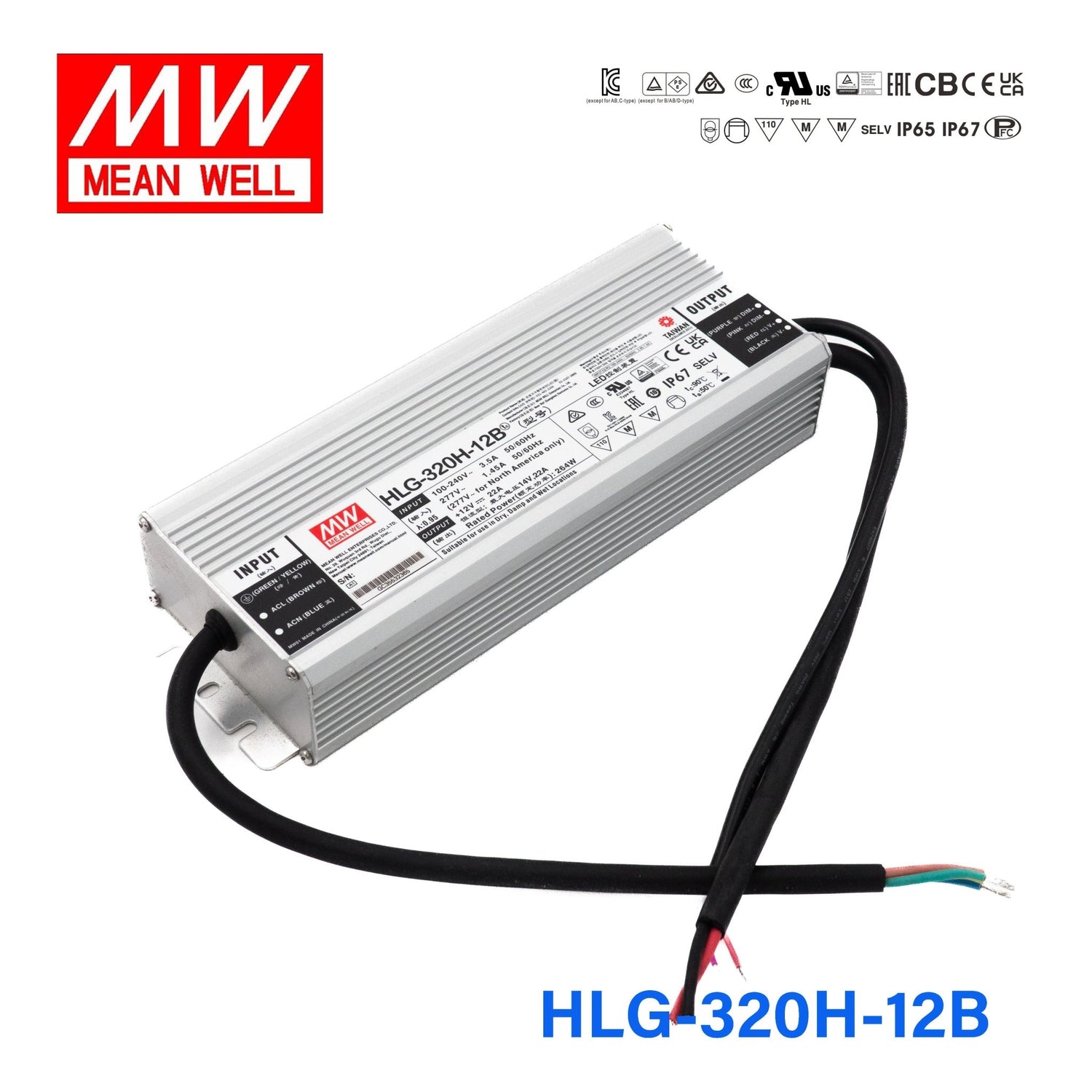

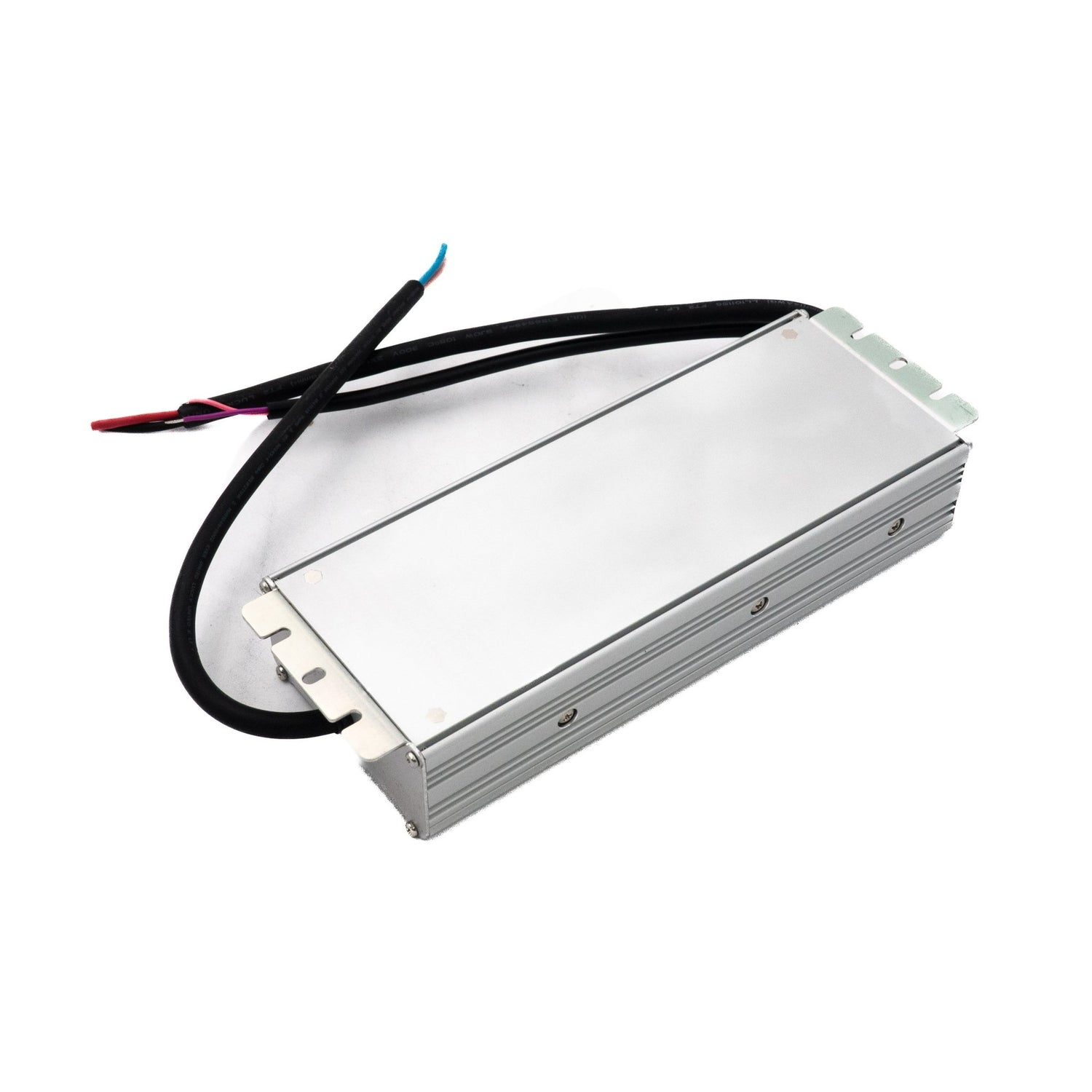

Mean Well HLG-320H-12B Power Supply 264W 12V - Dimmable

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 95%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Cooling by free air convection

Output current adjustable

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	±6% rated output voltage
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm);
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block
Dimension (LxWxH) (mm)	252x 90x 43.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

264 Watt
Output Voltage

12 Volt
Rated Current

22 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

9.92 in
Width

3.54 in
Height

1.72 in
Weight

4.14 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-320H-12B to power 12V LED strips for an outdoor architectural facade?

Yes. The HLG-320H-12B delivers 264W at 12V and carries an IP67 waterproof rating, meaning it can withstand dust and temporary water immersion. This makes it an excellent choice for fully exposed outdoor facade lighting where the driver may encounter rain, snow, or washdown conditions.

Is the HLG-320H-12B a good driver for 12V LED landscape lighting?

Yes. With 264W at 12V and IP67 waterproof protection, the HLG-320H-12B is well suited for landscape and garden LED systems. It can be mounted in ground-level junction boxes or outdoor enclosures exposed to irrigation spray and seasonal weather.

Can the HLG-320H-12B drive 12V LED lighting in a car wash or wet industrial area?

Yes. The IP67 waterproof enclosure is rated for temporary immersion and full dust protection, making it suitable for high-moisture environments like car washes, food processing areas, or wash-down zones. The 264W at 12V output handles substantial LED loads in these settings.

How many meters of 12V LED strip can I run from the HLG-320H-12B?

The HLG-320H-12B provides up to 264W at 12V. Divide 264W by your strip's rated wattage per meter to find the maximum length. For instance, a strip rated at 10W/m would allow up to 264 / 10 = 26.4 meters. Always check your strip's rated power per meter and stay within the 264W total.

Can the HLG-320H-12B handle extreme cold or heat in outdoor installations?

Yes. The HLG-320H-12B has an operating temperature range of -40°C to +90°C, covering harsh winter cold through intense summer heat. Combined with its IP67 waterproof rating, it is designed for year-round outdoor deployment in virtually any climate.

Can the HLG-320H-12B be dimmed, and how does dimming work on this model?

Yes. The -B suffix indicates a built-in dimming function that accepts 1-10V, PWM, or resistance signals. This allows integration with external dimmers or automation controllers. Unlike the -AB model, the -12B does not include a potentiometer for manual voltage/current adjustment.
