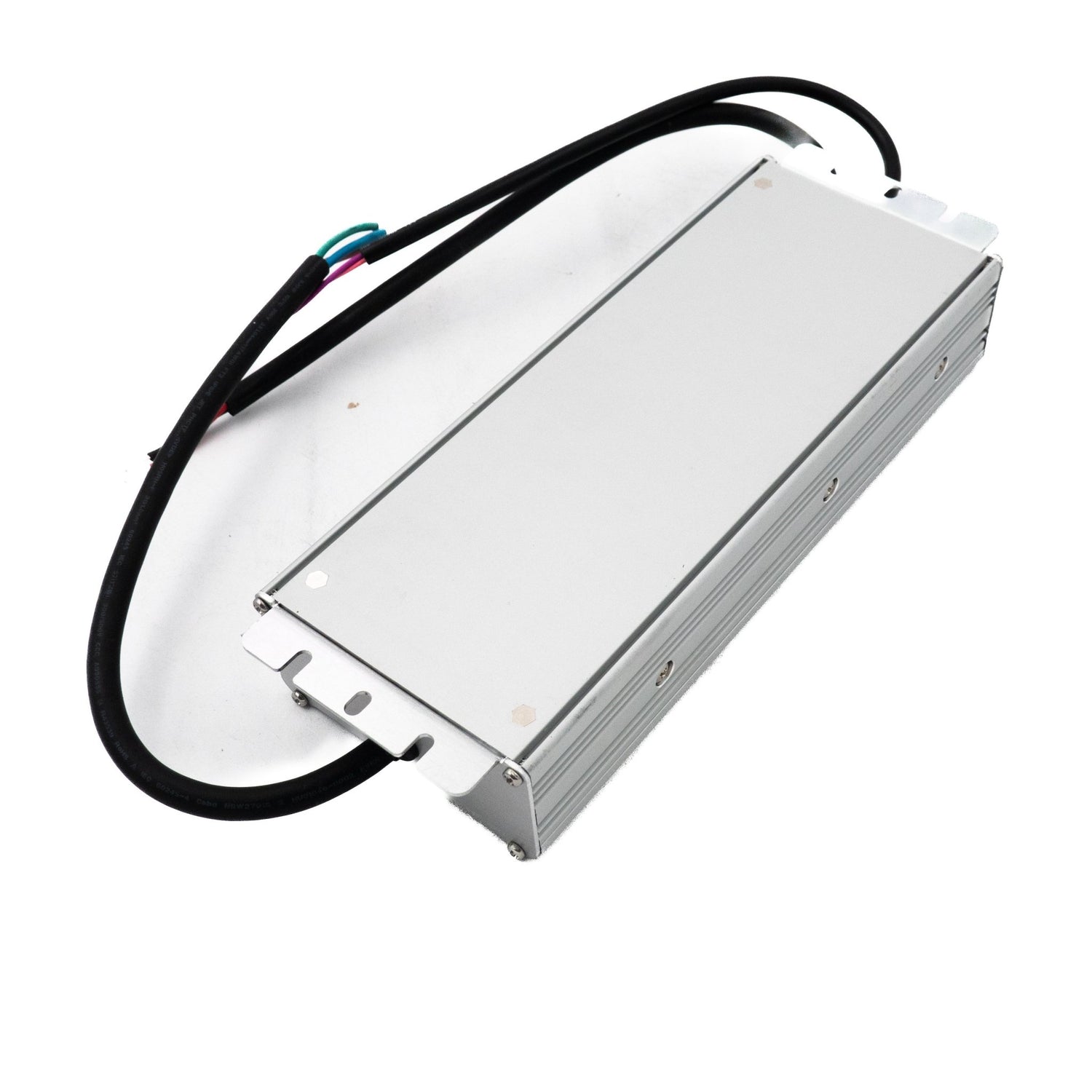

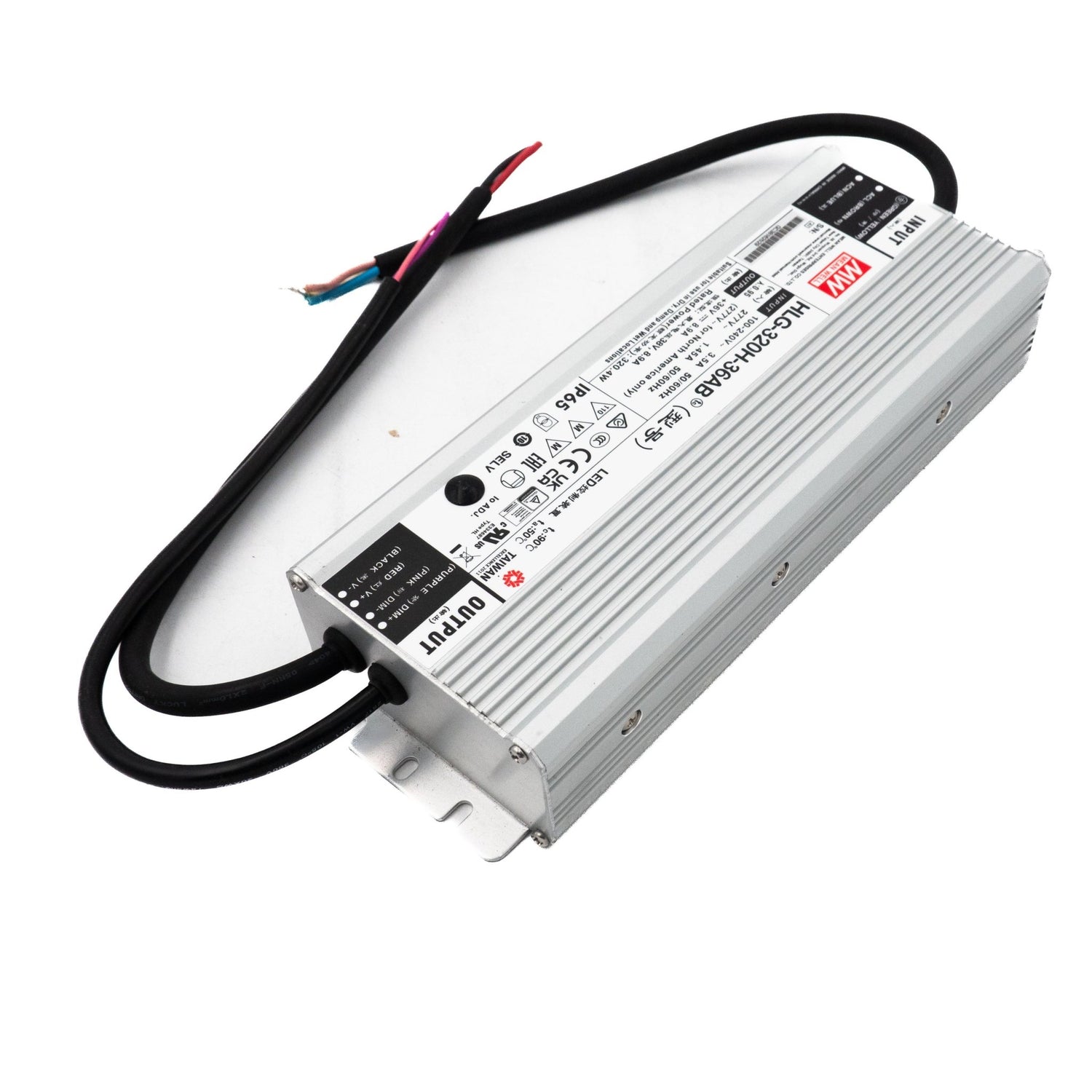

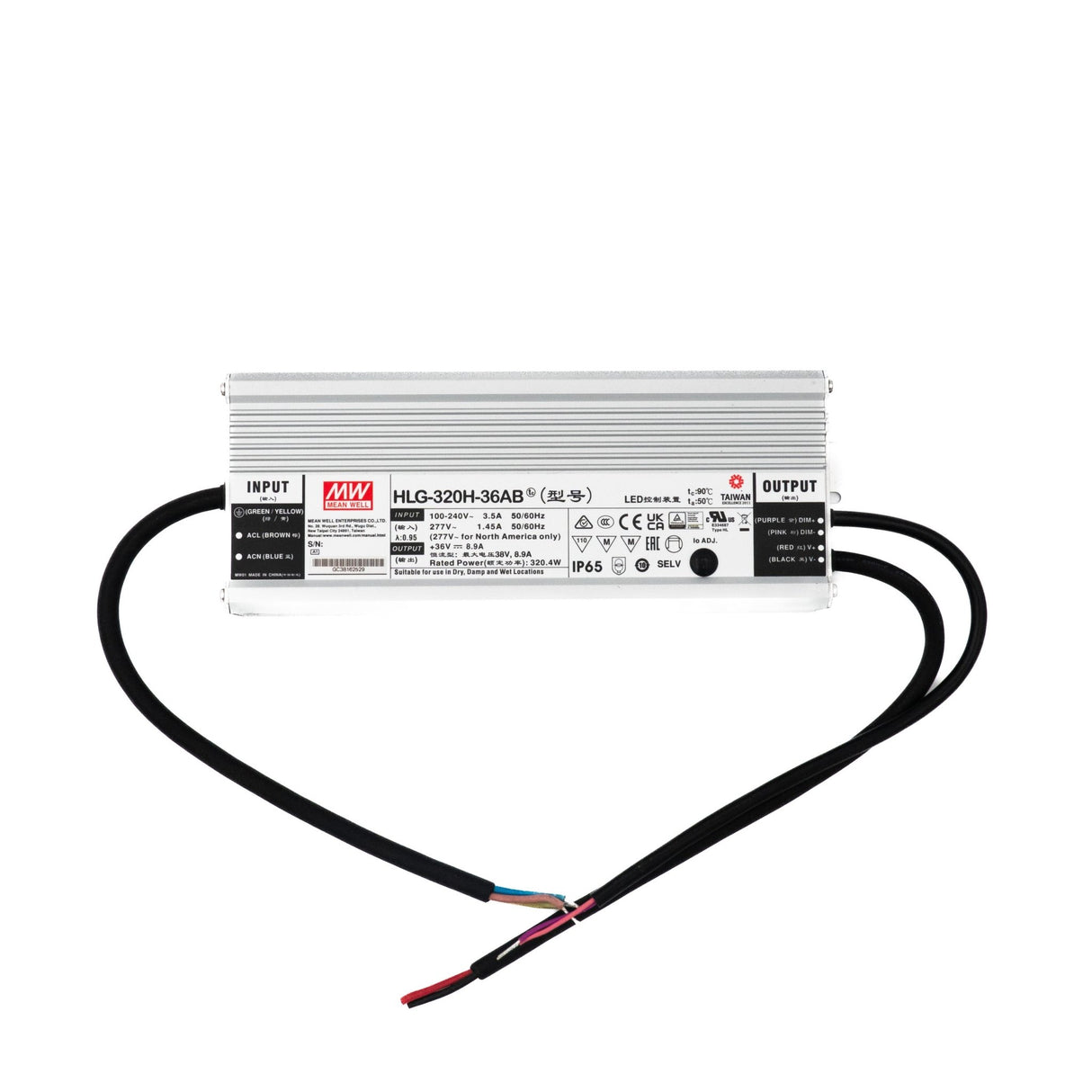

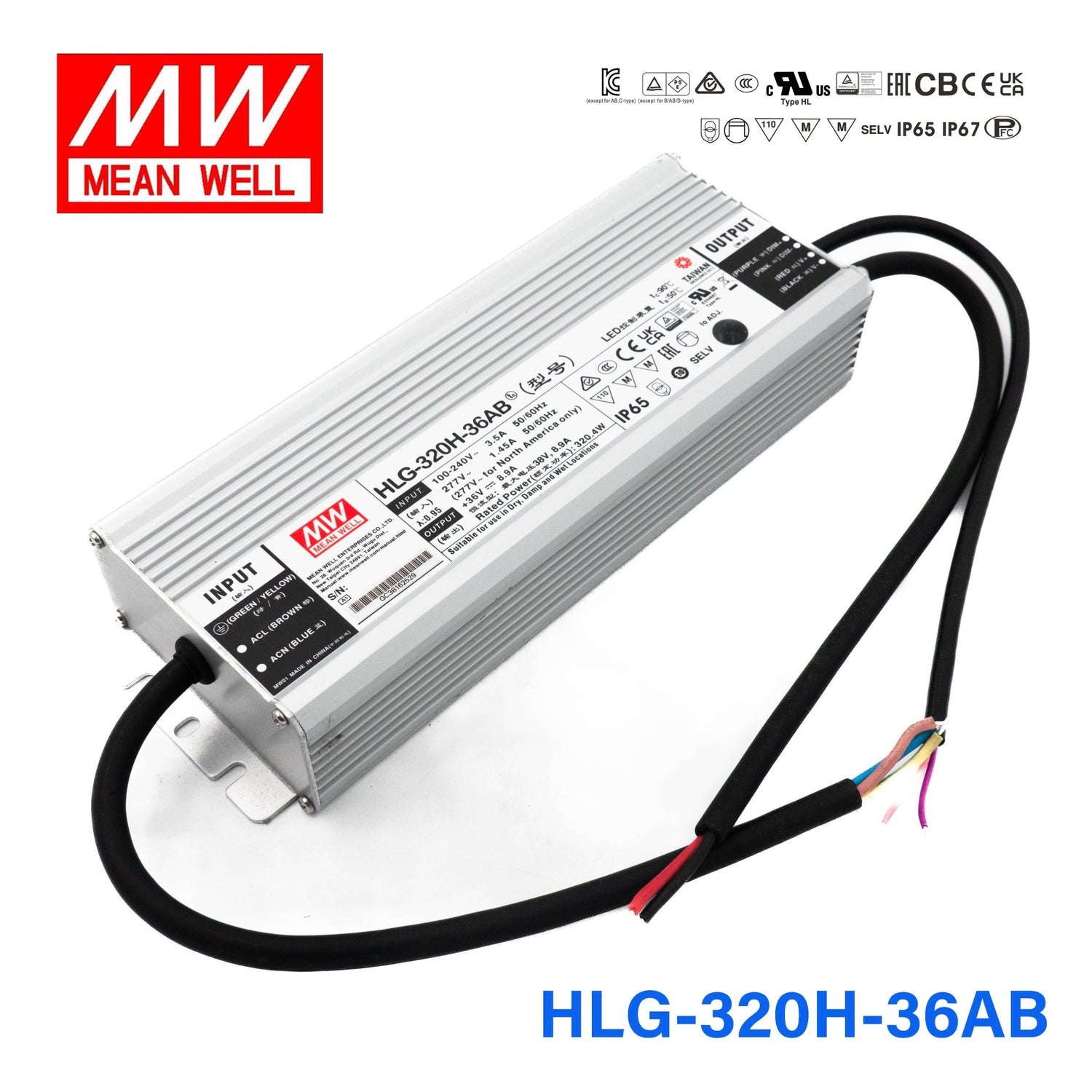

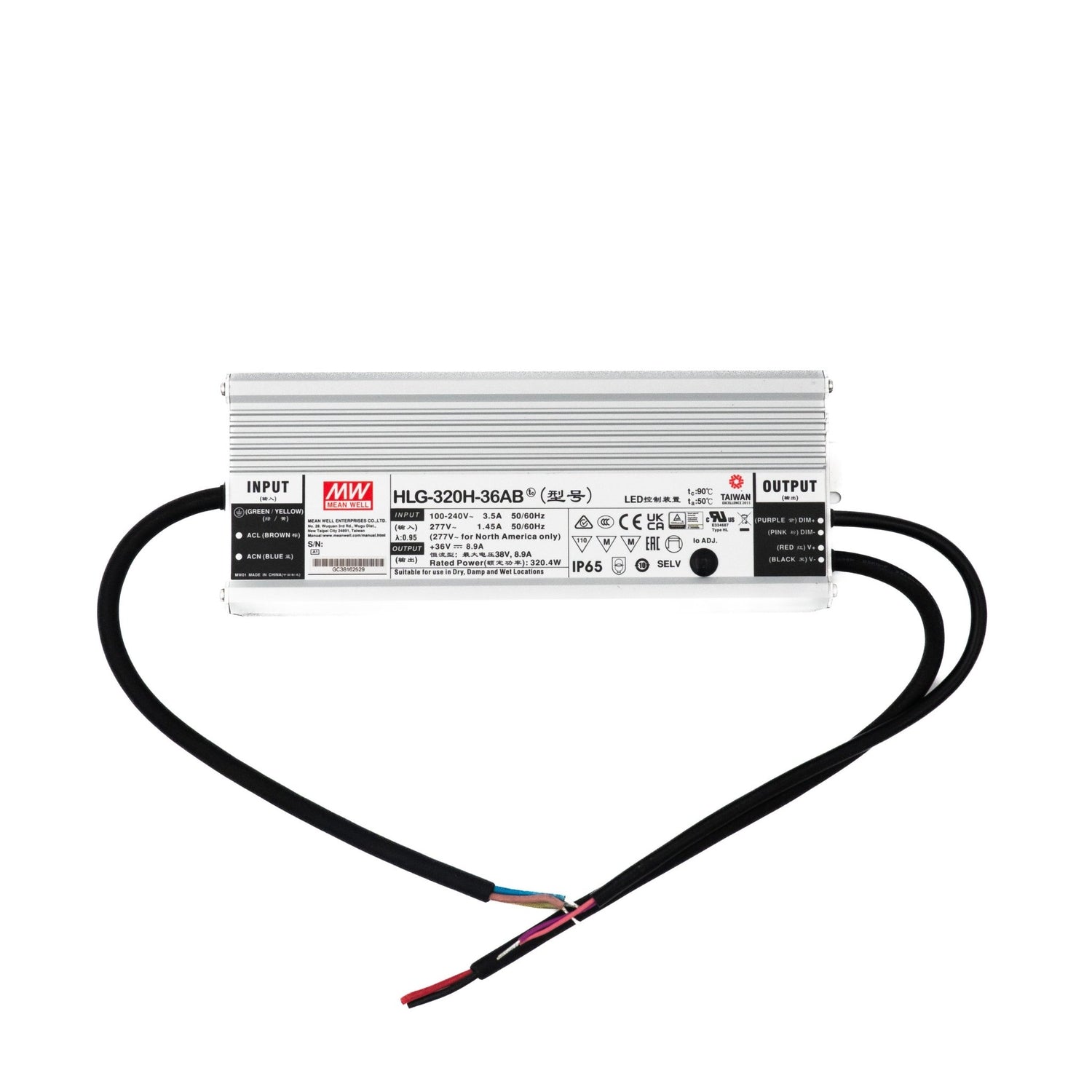

Mean Well HLG-320H-36AB Power Supply 320W 36V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-36AB Power Supply 320W 36V - Adjustable and Dimm...
The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating320 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HLG-320H-36AB with a 0-10V dimmer for 36V LED retail display lighting?
Yes. The HLG-320H-36AB supports dimming via 1-10V, PWM, and resistance signals, making it compatible with standard 0-10V dimmers. Combined with 320W at 36V and adjustable output, it is a strong choice for retail environments where scene-based brightness control is needed.
Is the HLG-320H-36AB suitable for dimmable 36V LED stage or studio lighting?
It works well for stage and studio lighting where smooth dimming and precise current control are critical. The built-in potentiometer sets the baseline output within the 18-36V range, while the dimming input allows real-time brightness adjustments during performances or shoots.
Can I power a dimmable 36V LED light panel array with the HLG-320H-36AB?
Yes, as long as the total load does not exceed 320W. The HLG-320H-36AB delivers 36V at up to 8.9A with both adjustable output and dimming, letting you fine-tune base brightness and provide dynamic dimming control for panel arrays in commercial or architectural settings.
How many meters of 36V LED strip can the HLG-320H-36AB drive?
Divide 320W by your strip's rated power per meter. A strip drawing 12W/m could run approximately 26.6 meters (320W / 12W per meter). A higher-power strip at 20W/m would allow about 16 meters. Always check your strip's rated power per meter and keep total load at or below 320W.
Can the HLG-320H-36AB be used in an outdoor covered patio or pergola?
Yes. Its IP65 rating protects against dust and low-pressure water jets, which is adequate for covered outdoor areas where the driver is shielded from direct rain and standing water. For fully exposed locations, consider the IP67-rated HLG-320H-36B instead.
What does the 'AB' suffix mean on the HLG-320H-36AB compared to the other 36V variants?
The 'AB' suffix indicates the model combines both adjustable output (potentiometer) and dimming capability. The base HLG-320H-36 has fixed output and IP67. The -36A has adjustable output only at IP65. The -36B has dimming only at IP67. The -36AB (this model) offers both features at IP65.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-320H Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-320H-24 Power Supply 320W 24V | 320W | 24V | 13.34A | IP67 | $81.83 | View |
| Mean Well HLG-320H-12 Power Supply 264W 12V | 264W | 12V | 22A | IP67 | $78.41 | View |
| Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable | 320W | 24V | 13.34A | IP67 | $81.04 | View |
| Mean Well HLG-320H-12A Power Supply 264W 12V - Adjustable | 264W | 12V | 22A | IP65 | $82.04 | View |
| Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable | 320W | 24V | 13.34A | IP65 | $93.02 | View |
| Mean Well HLG-320H-48B Power Supply 320W 48V- Dimmable | 320W | 48V | 6.7A | IP67 | $81.04 | View |
| Mean Well HLG-320H-42A Power Supply 320W 42V - Adjustable | 320W | 42V | 7.65A | IP65 | $86.45 | View |
| Mean Well HLG-320H-54A Power Supply 320W 54V - Adjustable | 320W | 54V | 5.95A | IP65 | $99.33 | View |
| Mean Well HLG-320H-42B Power Supply 320W 42V- Dimmable | 320W | 42V | 7.65A | IP67 | $96.14 | View |
