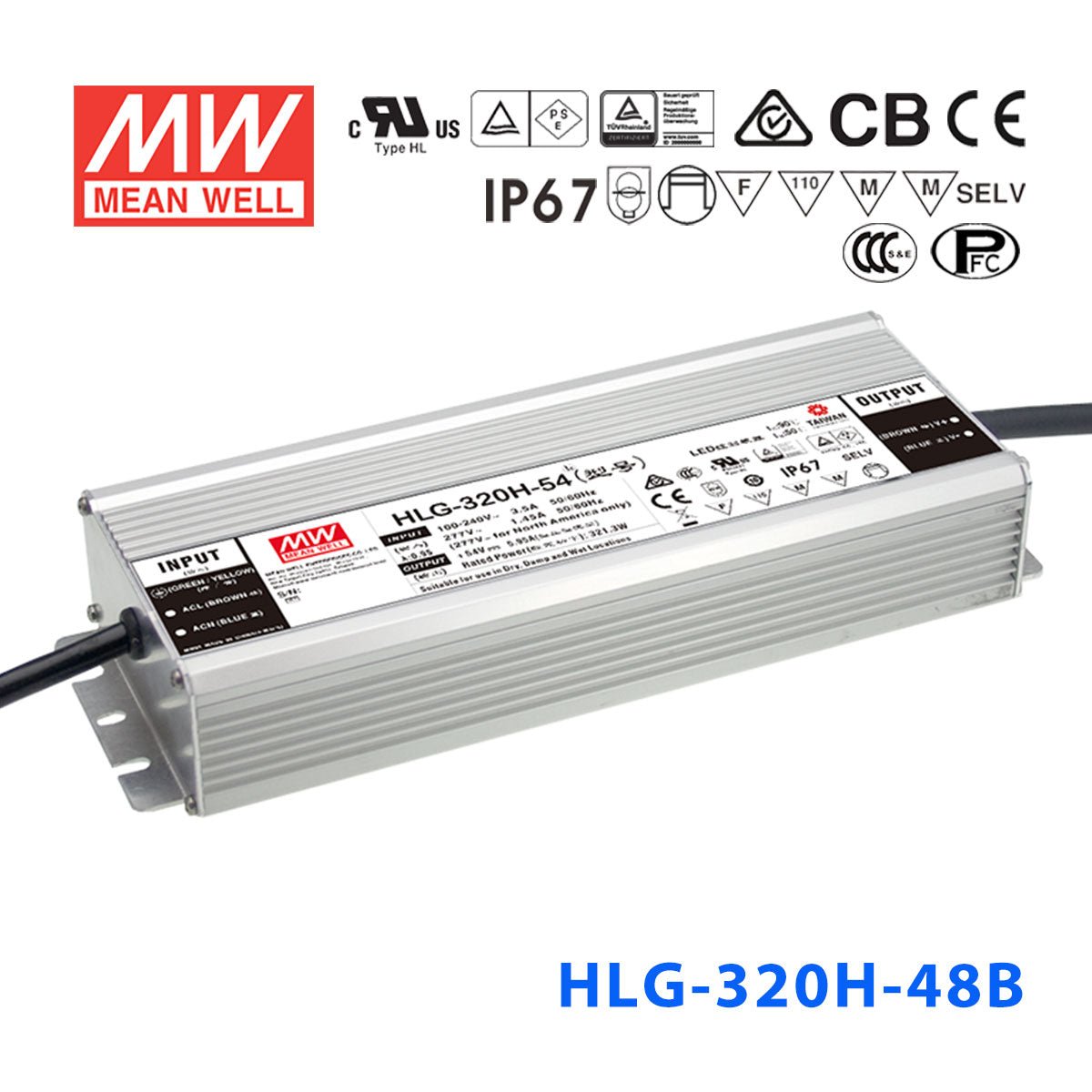

Mean Well HLG-320H-48AB Power Supply 320W 48V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-48AB Power Supply 320W 48V - Adjustable and Dimm...
The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating320 Watt
-
Output Voltage48 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HLG-320H-48AB to power dimmable 48V LED strip installations?
Yes. The HLG-320H-48AB delivers 48V at up to 6.7A (320W) and accepts 1-10V or PWM dimming signals. This makes it ideal for 48V LED strip installations where you need external brightness control, such as architectural accent lighting or daylight-responsive systems.
Is the HLG-320H-48AB suitable for smart building 48V LED lighting with automated dimming?
Yes. The AB suffix means this model has both output adjustment via potentiometer and a 1-10V/PWM dimming input. You can integrate it with building management systems, occupancy sensors, or daylight harvesters for automated brightness control at up to 320W.
Can the HLG-320H-48AB drive 48V LED fixtures in a retail display setting?
Yes. At 320W and 48V, it can power extended runs of retail display lighting. The dimming input allows scene-setting for different merchandise presentations, and the adjustable output lets you trim voltage to match the exact fixture requirements for uniform brightness.
Can I use the HLG-320H-48AB for 48V horticultural LED panels with light-schedule control?
Yes. The 320W output handles high-power grow panels at 48V, and the dimming input can be driven by a grow-light controller to adjust intensity for different growth stages. The adjustable output also lets you fine-tune voltage to the panel's optimal operating point.
How many meters of 48V LED strip can the HLG-320H-48AB power?
Divide 320W by your strip's rated power per meter. For example, a strip rated at 12W/m would allow about 26.6 meters (320W / 12W per meter). Always check your strip's rated power per meter and keep the total load at or below 320W for reliable operation.
Is the HLG-320H-48AB weatherproof enough for a covered outdoor patio installation?
Yes. Its IP65 rating protects against low-pressure water jets and dust, which is sufficient for covered patios, pergolas, or soffit-mounted applications. For fully exposed rain installations, the IP67-rated HLG-320H-48B with dimming would be a better choice.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-320H Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-320H-24 Power Supply 320W 24V | 320W | 24V | 13.34A | IP67 | $81.83 | View |
| Mean Well HLG-320H-12 Power Supply 264W 12V | 264W | 12V | 22A | IP67 | $78.41 | View |
| Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable | 320W | 24V | 13.34A | IP67 | $81.04 | View |
| Mean Well HLG-320H-12A Power Supply 264W 12V - Adjustable | 264W | 12V | 22A | IP65 | $80.77 | View |
| Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable | 320W | 24V | 13.34A | IP65 | $93.02 | View |
| Mean Well HLG-320H-48B Power Supply 320W 48V- Dimmable | 320W | 48V | 6.7A | IP67 | $81.04 | View |
| Mean Well HLG-320H-42A Power Supply 320W 42V - Adjustable | 320W | 42V | 7.65A | IP65 | $86.45 | View |
| Mean Well HLG-320H-54A Power Supply 320W 54V - Adjustable | 320W | 54V | 5.95A | IP65 | $99.33 | View |
| Mean Well HLG-320H-42B Power Supply 320W 42V- Dimmable | 320W | 42V | 7.65A | IP67 | $96.14 | View |
