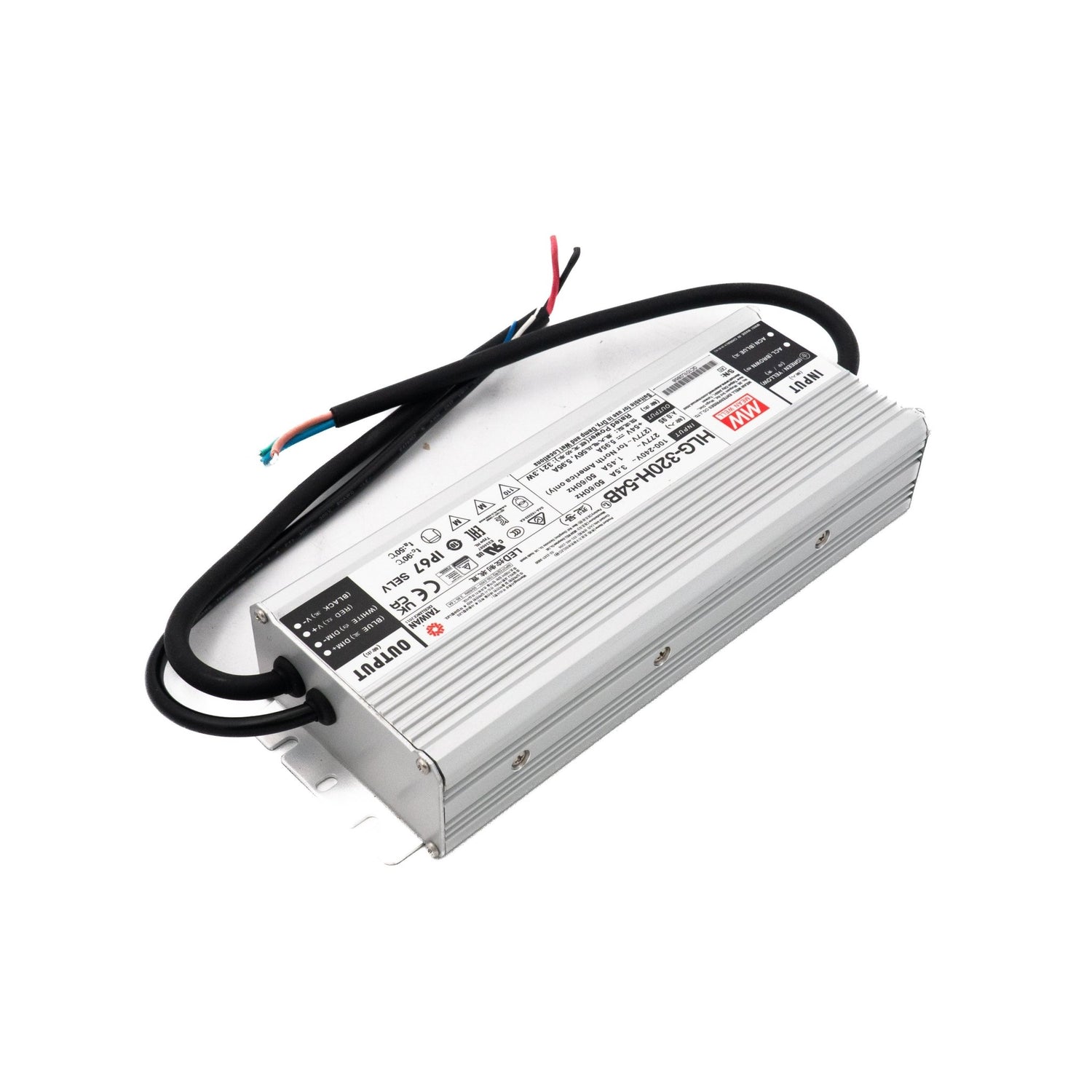

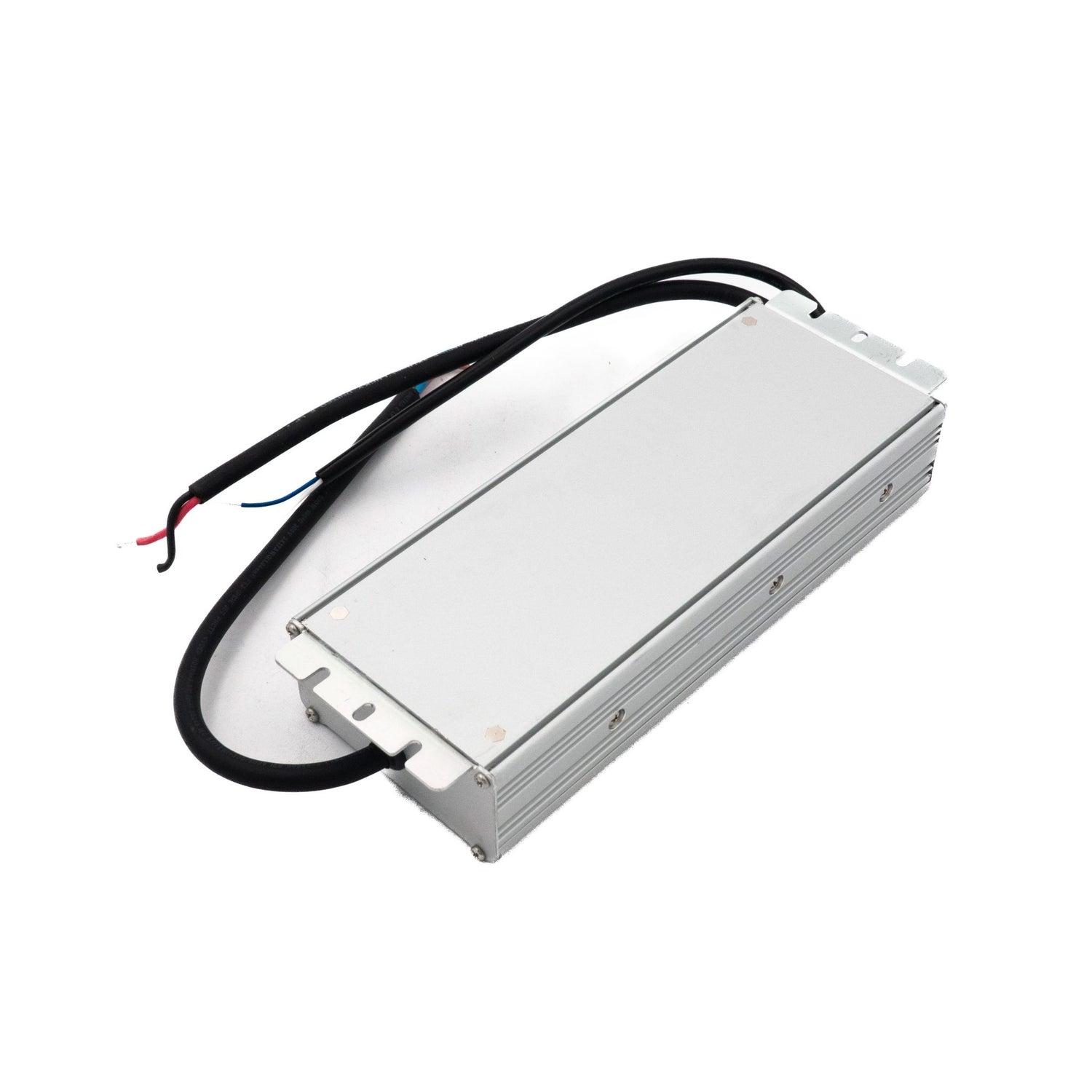

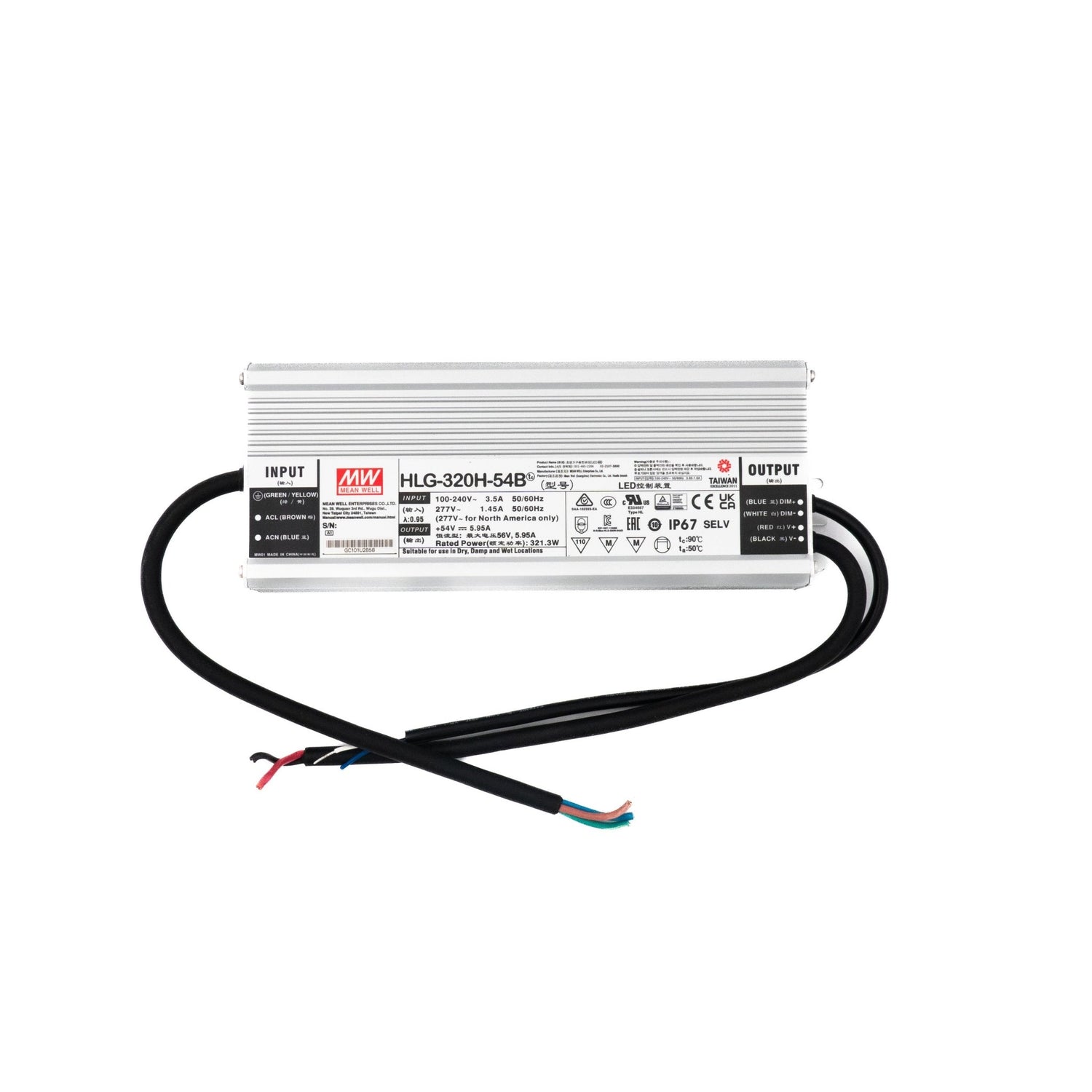

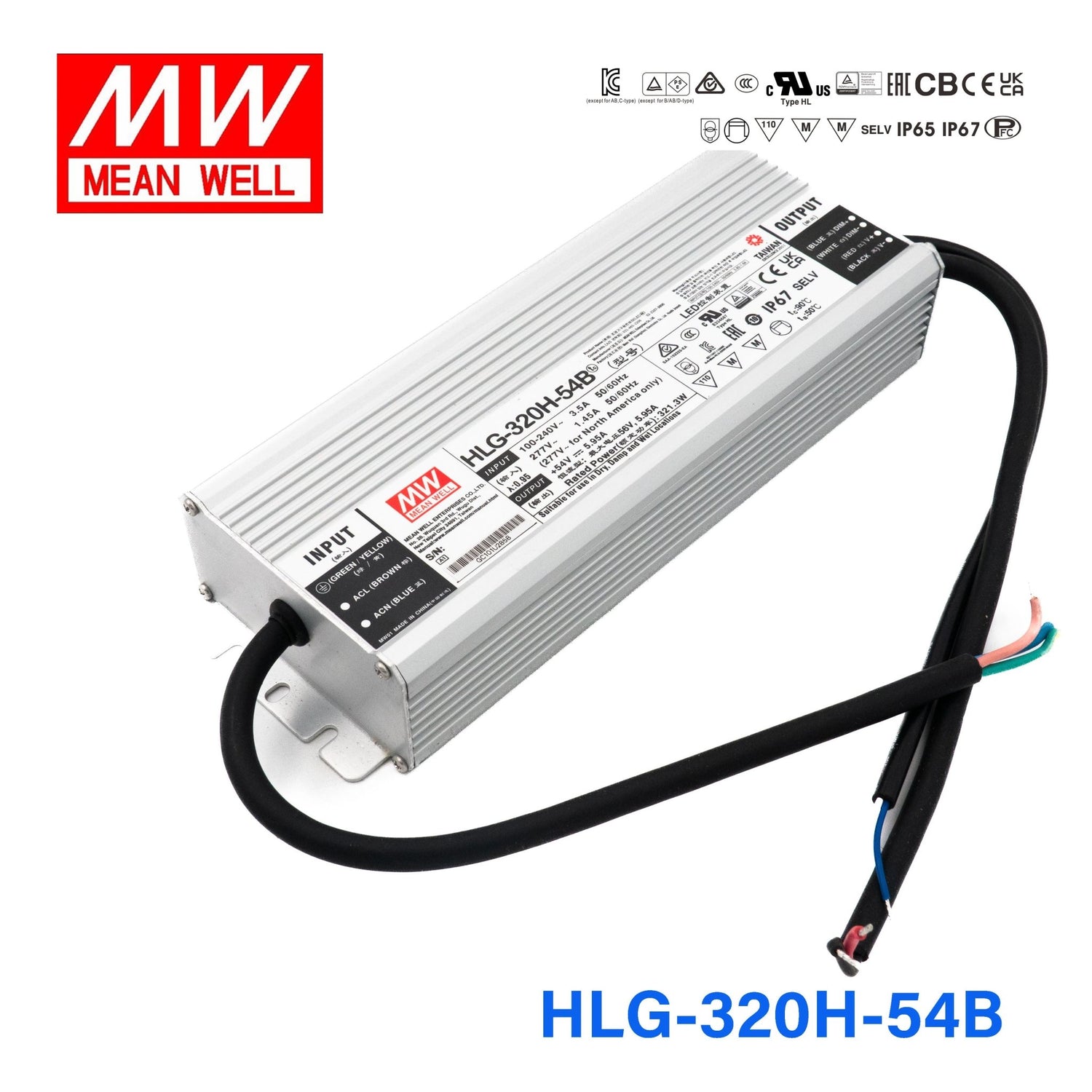

Mean Well HLG-320H-54B Power Supply 320W 54V- Dimmable
The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating320 Watt
-
Output Voltage54 Volt
-
Rated Current5.95 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HLG-320H-54B to power 54V LED floodlights in a fully exposed outdoor setting?
Yes. The HLG-320H-54B delivers 320W at 54V and carries an IP67 waterproof rating, protecting it against temporary submersion and heavy rain. This makes it suitable for outdoor floodlight, area lighting, and facade installations with direct weather exposure.
Is the HLG-320H-54B suitable for dimming 54V LED high-bay fixtures in a warehouse?
Yes. The -B suffix indicates built-in dimming input compatible with 1-10V, PWM, or resistance signals, allowing integration with building management or occupancy-based lighting controls. At 320W output, it can handle high-wattage 54V high-bay fixtures.
Can I use the HLG-320H-54B for outdoor 54V LED signage installations?
Yes. Its 320W capacity at 54V can drive large sign modules or multiple sign cabinets wired in parallel. The IP67 waterproof rating and wide 90-305VAC input make it reliable for roadside or building-mounted signs exposed to weather and varying mains voltages.
How many meters of 54V LED strip can the HLG-320H-54B support?
That depends on the strip's rated wattage per meter. The HLG-320H-54B supplies up to 320W at 54V. For a strip rated at 16W/m, you could run up to 20 meters (320W / 16W per meter = 20m). Always check your strip's rated power per meter and keep total load at or below 320W.
Can the HLG-320H-54B handle extreme cold in a northern climate outdoor installation?
Yes. It has an operating temperature range of -40°C to +90°C, so it can start and run reliably in sub-zero winter conditions. The IP67 waterproof enclosure also protects against snow, ice melt, and condensation.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-320H Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-320H-24 Power Supply 320W 24V | 320W | 24V | 13.34A | IP67 | $81.83 | View |
| Mean Well HLG-320H-12 Power Supply 264W 12V | 264W | 12V | 22A | IP67 | $78.40 | View |
| Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable | 320W | 24V | 13.34A | IP67 | $81.04 | View |
| Mean Well HLG-320H-12A Power Supply 264W 12V - Adjustable | 264W | 12V | 22A | IP65 | $80.77 | View |
| Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable | 320W | 24V | 13.34A | IP65 | $93.02 | View |
| Mean Well HLG-320H-48B Power Supply 320W 48V- Dimmable | 320W | 48V | 6.7A | IP67 | $81.04 | View |
| Mean Well HLG-320H-42A Power Supply 320W 42V - Adjustable | 320W | 42V | 7.65A | IP65 | $86.45 | View |
| Mean Well HLG-320H-54A Power Supply 320W 54V - Adjustable | 320W | 54V | 5.95A | IP65 | $99.33 | View |
| Mean Well HLG-320H-42B Power Supply 320W 42V- Dimmable | 320W | 42V | 7.65A | IP67 | $96.14 | View |
