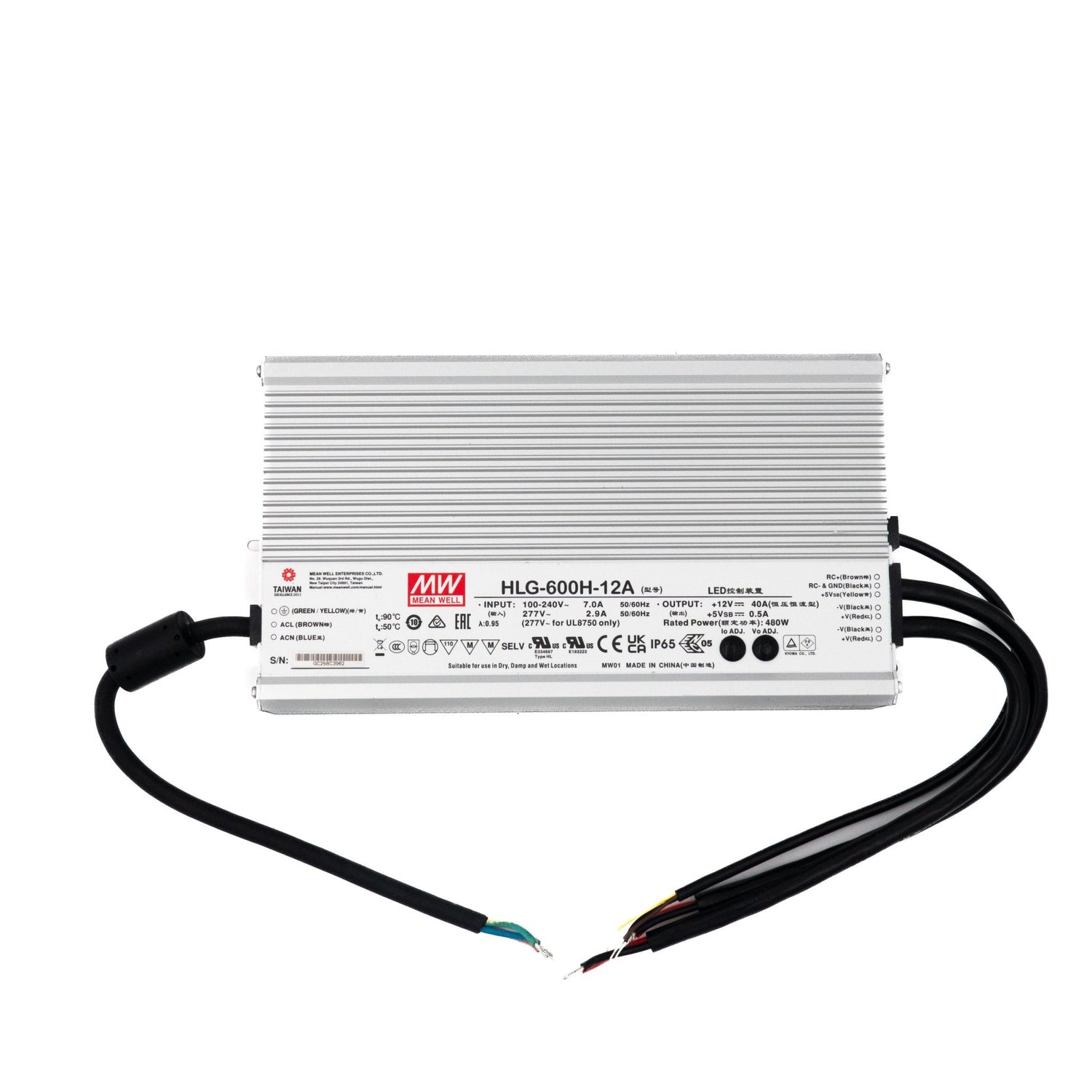

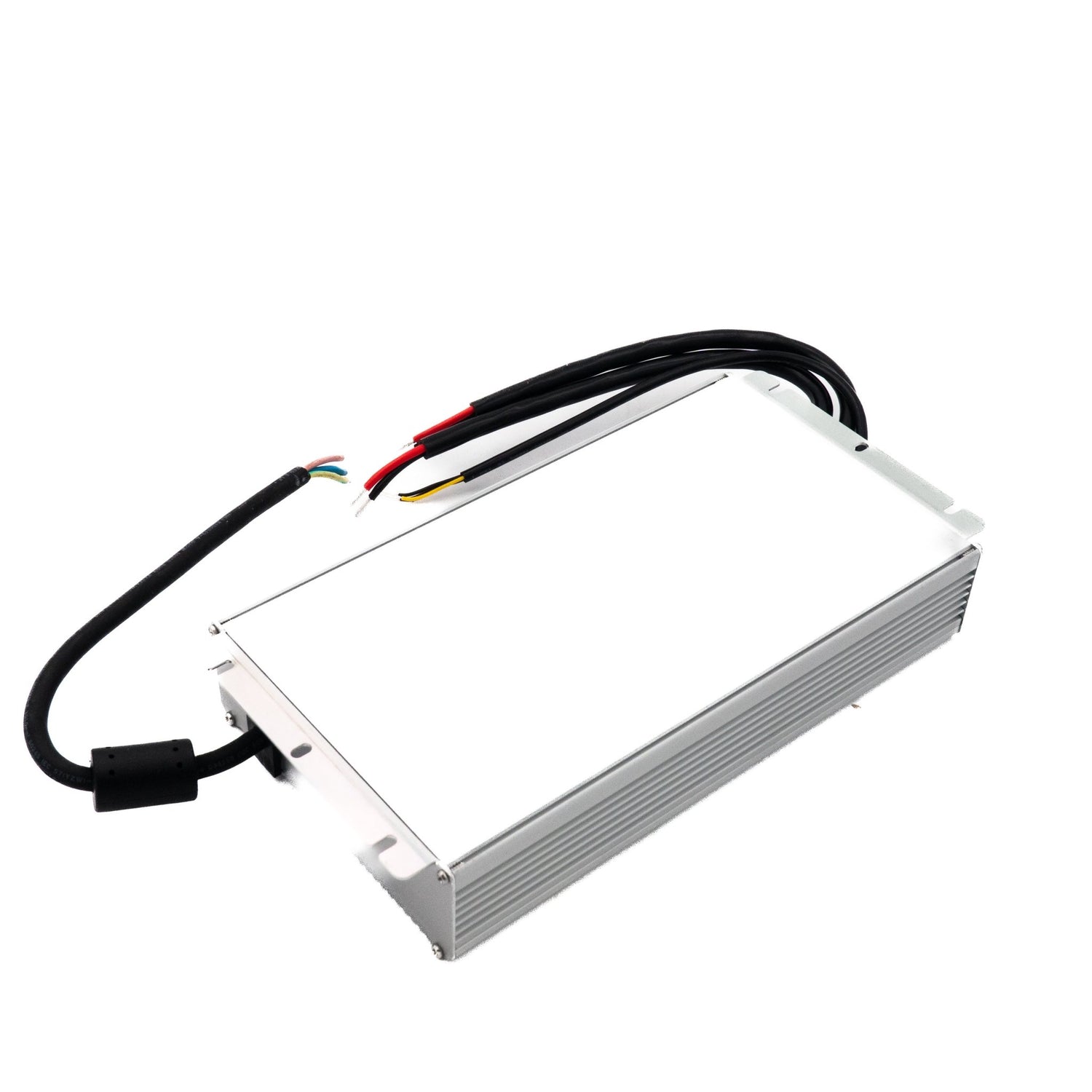

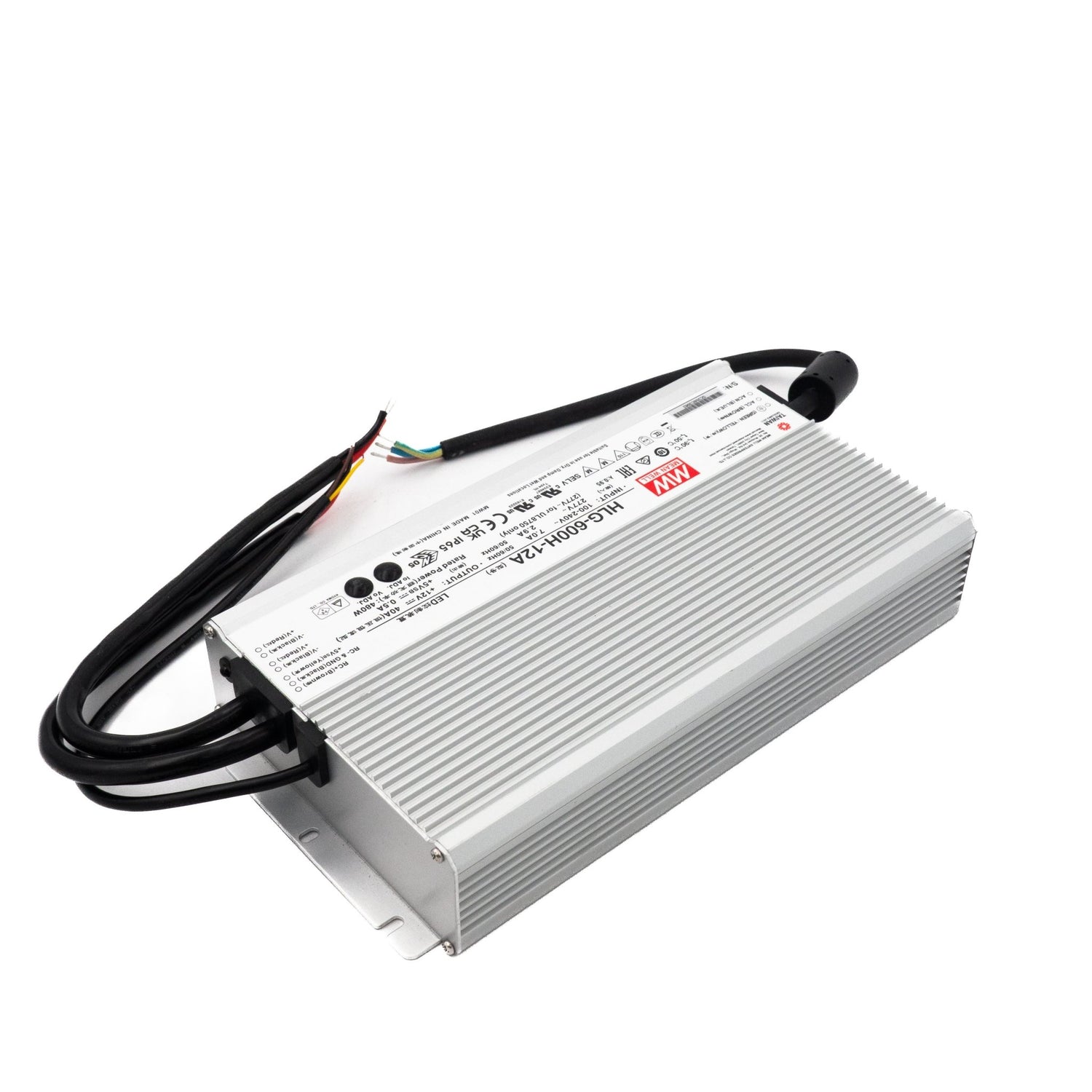

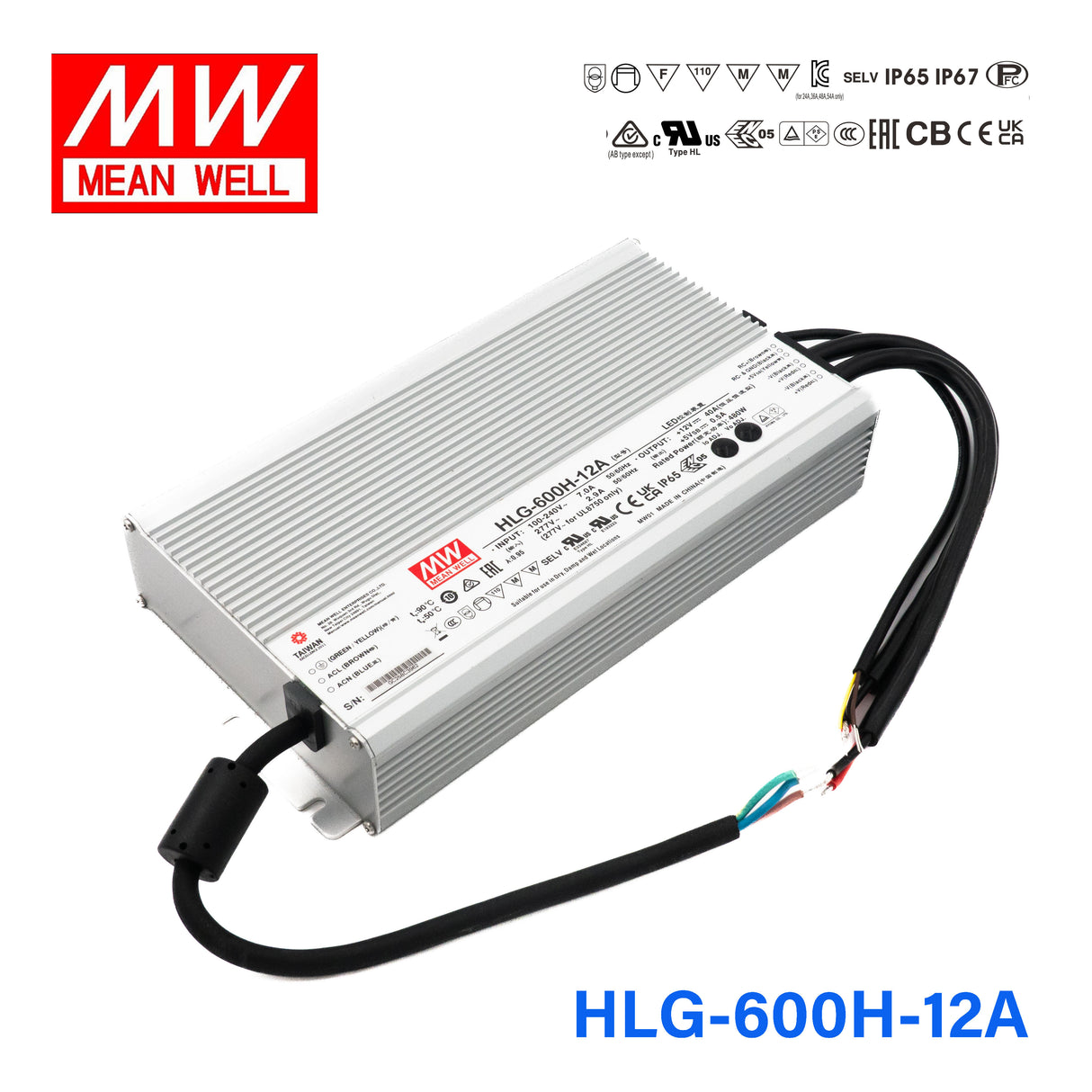

Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Protections: Short circuit / Over current / Over voltage / Over temp. |
| Built-in active PFC function |
| High efficiency up to 96% |
| IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type) |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| No load power consumption <0.5W at remote off (HLG-600H) |
| Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires |
| LED indicator for power on (HLG-600H A-Type only) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection (HLG-320H only) Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only) D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | -15%~+5% rated output voltage (A-Type only) |
| Over voltage protection | 110%~140% rated output voltage |
| Over current protection | 95%~108% constant current limiting, auto- recovery |
| Current adjustment range | 50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type) |
| Setup, rise, hold up time | 500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 280x 144x 48.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-600H-12A to power a large adjustable 12V LED strip system?
Yes. The HLG-600H-12A delivers 480W at 12V with up to 40A of output current and includes a built-in potentiometer for voltage and current adjustment. This lets you trim the output to optimize brightness and match the exact voltage needs of your 12V LED strips.
Is the HLG-600H-12A suitable for 12V LED signage where output tuning is needed?
Yes. Its 480W capacity at 12V can drive large 12V LED module arrays in channel letters or sign cabinets. The adjustable output is useful when different sections of a sign have slightly different voltage requirements, allowing you to set the optimal level for uniform brightness.
Can the HLG-600H-12A power multiple 12V LED landscape fixtures from a single driver?
Yes. At 480W and 40A, it can supply many 12V landscape path lights, spotlights, or bollards in parallel. The output adjustment potentiometer lets you fine-tune voltage to compensate for cable losses on longer homerun wires, helping maintain consistent brightness across all fixtures.
How many meters of 12V LED strip can the HLG-600H-12A support?
That depends on the strip's rated power per meter. The HLG-600H-12A supplies up to 480W at 12V. For example, a strip drawing 14.4W/m could run about 33 meters total (480W / 14.4W per meter = 33.3m), though 12V strips typically need power re-injection every 5 meters. Always check your strip's rated power per meter.
Can the HLG-600H-12A be installed in a sheltered outdoor location?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for under-eave, canopy, or ventilated enclosure mounting. For fully exposed rain or submersion scenarios, the IP67-rated HLG-600H-12 is a better choice.
