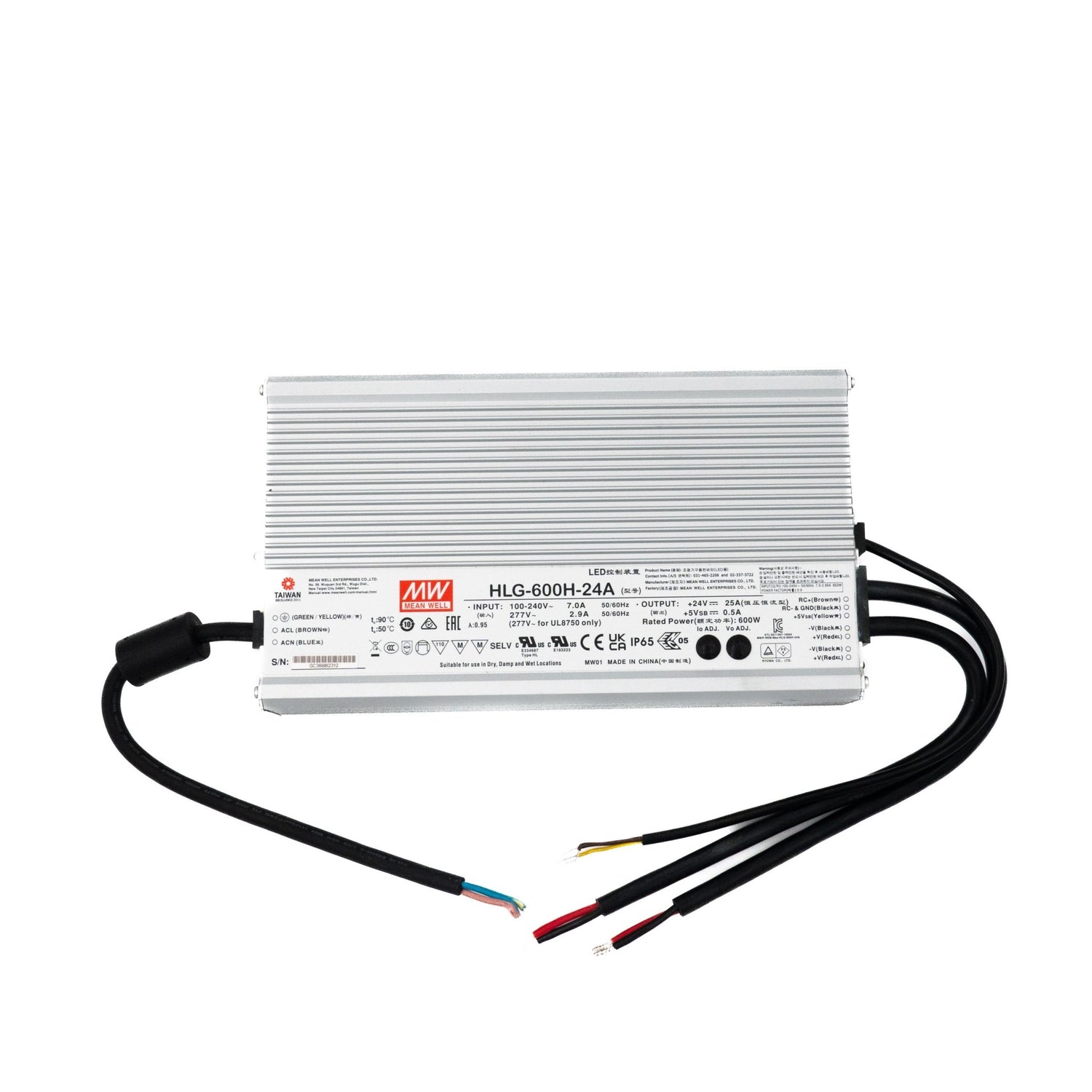

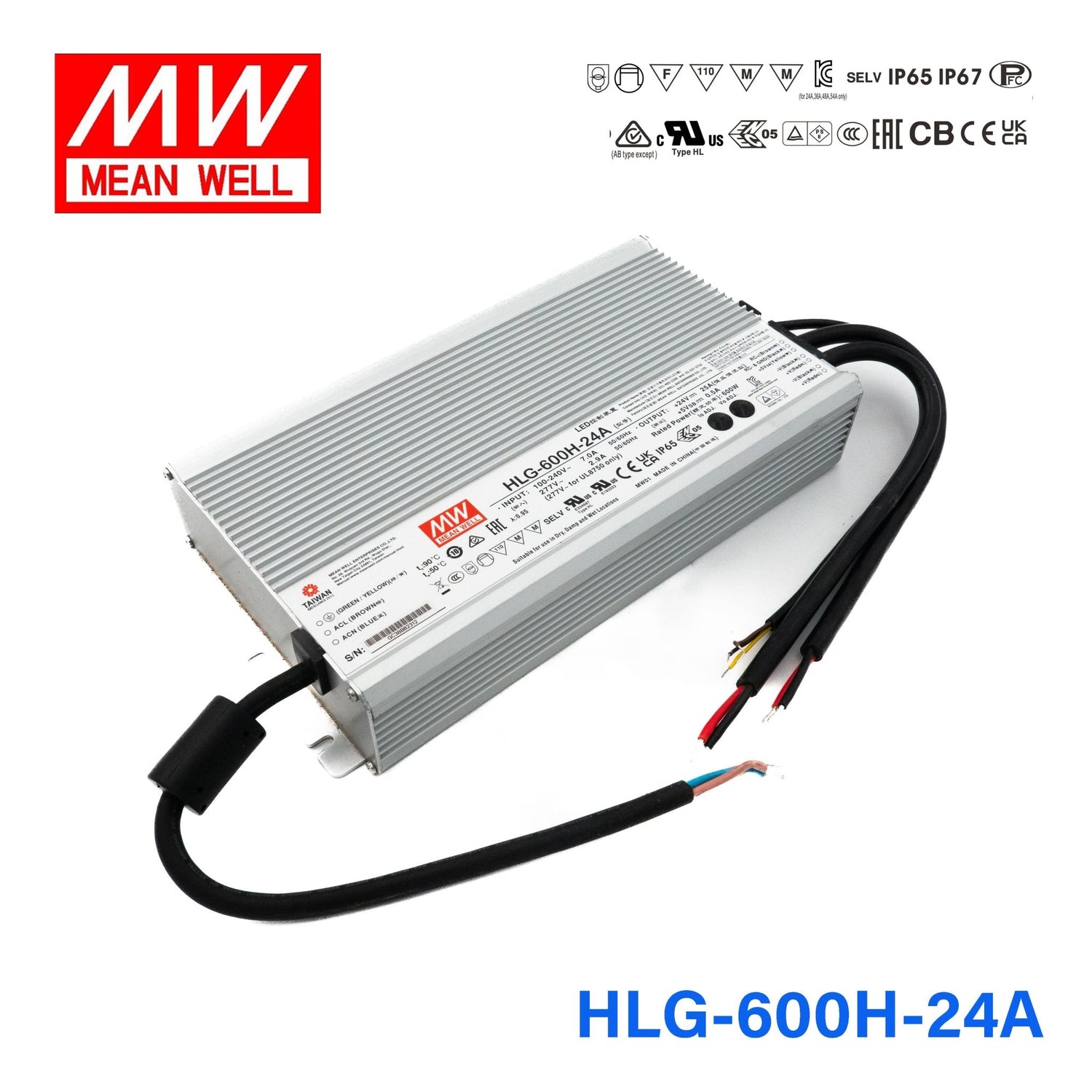

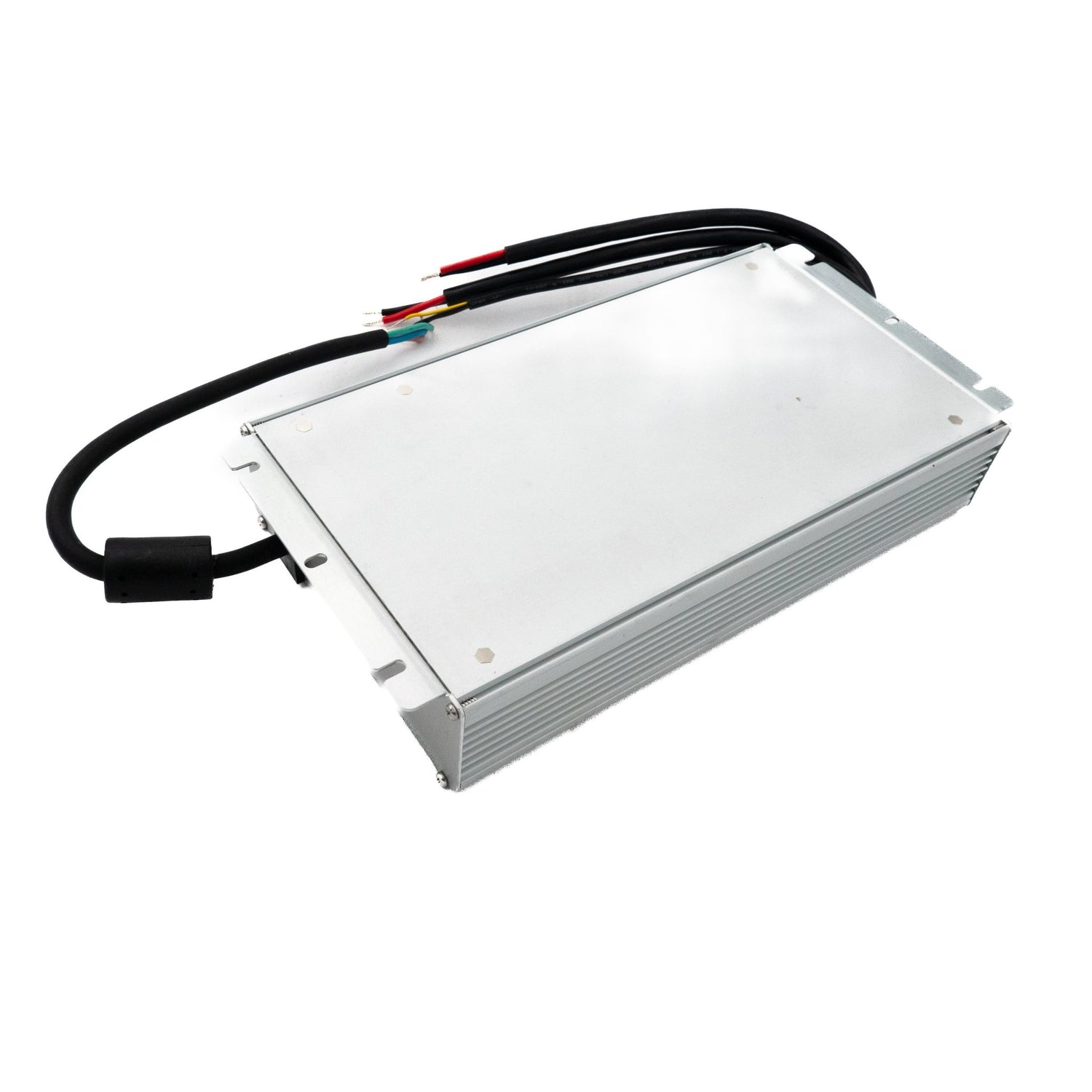

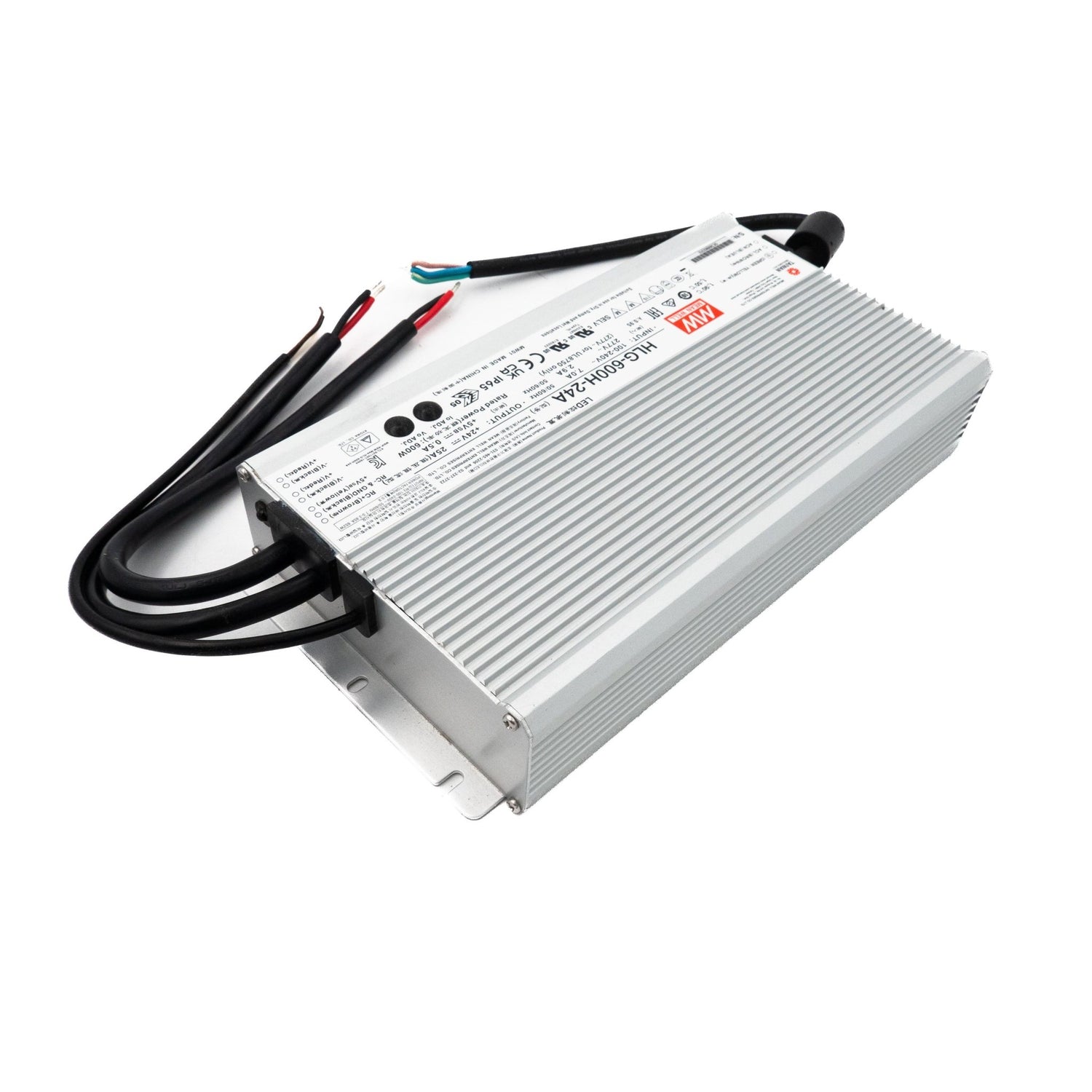

Mean Well HLG-600H-24A Power Supply

Q: Can I use the HLG-600H-24A for a large 24V LED strip project where I need to fine-tune the output voltage?

Yes. The HLG-600H-24A delivers 24V at up to 25A (600W) and includes a potentiometer for adjusting the output voltage and current. This lets you match the driver precisely to your LED strips' optimal operating point, which can extend strip life and improve efficiency across long runs.

Q: Is the HLG-600H-24A suitable for powering 24V LED display cases or retail lighting?

Yes. At 600W, it can power a substantial amount of 24V retail lighting across display cases, shelving, and accent fixtures. The adjustable output lets you fine-tune voltage for consistent brightness. Its IP65 rating suits indoor and sheltered commercial environments.

Q: Can the HLG-600H-24A power 24V LED fixtures in a parking structure?

Yes. The 600W output at 24V can supply multiple LED fixtures across a large area. The aluminium casing, -40°C to +90°C operating range, and IP65 water-resistance rating suit covered parking structures where dust and occasional water spray are common but full rain exposure is not expected.

Q: How many meters of 24V LED strip can the HLG-600H-24A power?

Divide 600W by your strip's rated power per meter. A 24V strip rated at 12W/m allows 50 meters (600W / 12W per meter = 50m). A denser strip at 20W/m allows 30 meters. Always check your strip's rated power per meter and keep total load at or below 600W.

Q: Is the HLG-600H-24A weather-rated for outdoor use?

The HLG-600H-24A carries an IP65 rating, meaning it is protected against dust ingress and low-pressure water jets. It works well in sheltered outdoor areas like canopies or covered walkways. For fully exposed outdoor locations with direct rain, consider the IP67-rated HLG-600H-24 or HLG-600H-24B instead.

Description

Features

Universal AC input (up to 305VAC) / Full range

Protections: Short circuit / Over current / Over voltage / Over temp.

Built-in active PFC function

High efficiency up to 96%

IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type)

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

No load power consumption <0.5W at remote off (HLG-600H)

Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires

LED indicator for power on (HLG-600H A-Type only)

Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer
B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
C-Type: Terminal block for I/O connection (HLG-320H only)
Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only)
D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	-15%~+5% rated output voltage (A-Type only)
Over voltage protection	110%~140% rated output voltage
Over current protection	95%~108% constant current limiting, auto- recovery
Current adjustment range	50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type)
Setup, rise, hold up time	500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	280x 144x 48.5

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

600 Watt
Output Voltage

24 Volt
Rated Current

25 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

11.02 in
Width

5.67 in
Height

1.91 in
Weight

8.6 lb
