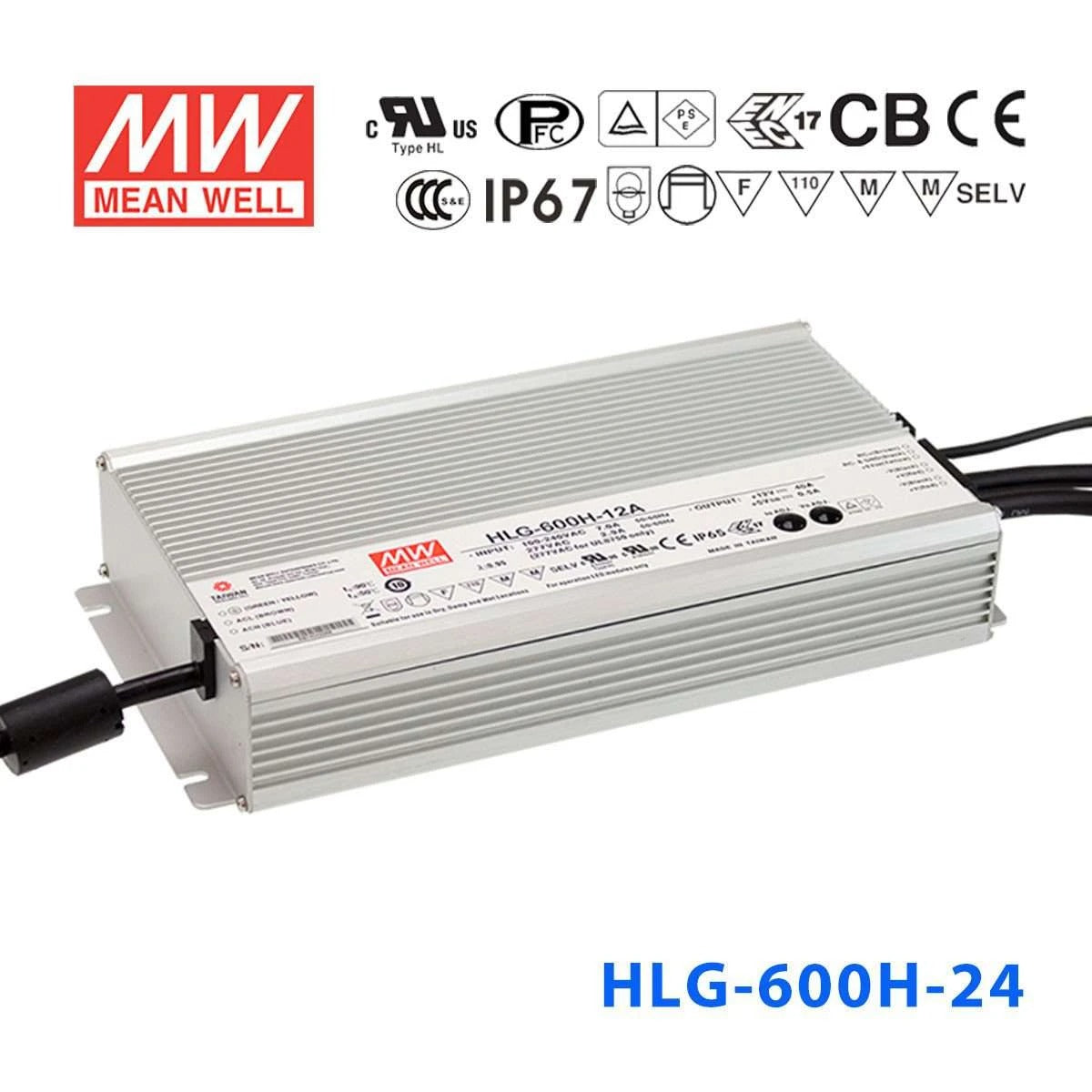

Mean Well HLG-600H-24 Power Supply - 600W 24V LED Driver

Q: Can I use the HLG-600H-24 to power a large 24V LED strip installation?

Yes. The HLG-600H-24 delivers 24V at up to 25A (600W), making it one of the highest-wattage options in the HLG series for 24V loads. It can drive extensive continuous runs of 24V LED strip in commercial or architectural lighting projects. The IP67 waterproof rating allows outdoor placement without an enclosure.

Q: Is the HLG-600H-24 a good fit for powering 24V LED high-bay lights in a warehouse?

Yes. With 600W at 24V and a constant-current range of 12-24V, it can supply multiple 24V high-bay or linear fixtures. The aluminium casing dissipates heat effectively, and the -40°C to +90°C operating range handles the wide temperature swings typical in industrial spaces.

Q: Can the HLG-600H-24 drive 24V LED modules in a large outdoor sign?

Yes, provided the total module load stays at or below 600W. The fixed 24V output and IP67 waterproof rating make it straightforward for outdoor signage installations. The constant-current voltage range of 12-24V accommodates LED modules with slightly varying forward voltage requirements.

Q: How many meters of 24V LED strip can the HLG-600H-24 handle?

Divide 600W by your strip's rated power per meter. For example, a 24V strip at 14.4W/m allows roughly 41 meters (600W / 14.4W per meter ≈ 41.6m). A 10W/m strip allows 60 meters. Always verify your strip's rated power per meter and ensure total draw does not exceed 600W.

Q: Can the HLG-600H-24 withstand direct exposure to rain and snow year-round?

Yes. The HLG-600H-24 is rated IP67, which means it is dust-tight and can handle temporary water immersion up to 1 meter. It can be mounted outdoors in direct weather exposure. The operating temperature range of -40°C to +90°C covers cold-climate winters and hot rooftop summers.

Q: What are the differences between the HLG-600H-24, 24A, 24AB, and 24B variants?

All four deliver 600W at 24V / 25A with a CC range of 12-24V. The base HLG-600H-24 has fixed output and IP67 waterproofing. The -24A adds output voltage/current adjustment (IP65). The -24AB adds both adjustment and 1-10V/PWM dimming (IP65). The -24B provides dimming only and keeps IP67 waterproofing.

Description

Features

Universal AC input (up to 305VAC) / Full range

Protections: Short circuit / Over current / Over voltage / Over temp.

Built-in active PFC function

High efficiency up to 96%

IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type)

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

No load power consumption <0.5W at remote off (HLG-600H)

Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires

LED indicator for power on (HLG-600H A-Type only)

Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer
B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
C-Type: Terminal block for I/O connection (HLG-320H only)
Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only)
D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	-15%~+5% rated output voltage (A-Type only)
Over voltage protection	110%~140% rated output voltage
Over current protection	95%~108% constant current limiting, auto- recovery
Current adjustment range	50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type)
Setup, rise, hold up time	500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	280x 144x 48.5

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

600 Watt
Output Voltage

24 Volt
Rated Current

25 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

11.02 in
Width

5.67 in
Height

1.91 in
Weight

8.6 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-600H-24 to power a large 24V LED strip installation?

Yes. The HLG-600H-24 delivers 24V at up to 25A (600W), making it one of the highest-wattage options in the HLG series for 24V loads. It can drive extensive continuous runs of 24V LED strip in commercial or architectural lighting projects. The IP67 waterproof rating allows outdoor placement without an enclosure.

Is the HLG-600H-24 a good fit for powering 24V LED high-bay lights in a warehouse?

Yes. With 600W at 24V and a constant-current range of 12-24V, it can supply multiple 24V high-bay or linear fixtures. The aluminium casing dissipates heat effectively, and the -40°C to +90°C operating range handles the wide temperature swings typical in industrial spaces.

Can the HLG-600H-24 drive 24V LED modules in a large outdoor sign?

Yes, provided the total module load stays at or below 600W. The fixed 24V output and IP67 waterproof rating make it straightforward for outdoor signage installations. The constant-current voltage range of 12-24V accommodates LED modules with slightly varying forward voltage requirements.

How many meters of 24V LED strip can the HLG-600H-24 handle?

Divide 600W by your strip's rated power per meter. For example, a 24V strip at 14.4W/m allows roughly 41 meters (600W / 14.4W per meter ≈ 41.6m). A 10W/m strip allows 60 meters. Always verify your strip's rated power per meter and ensure total draw does not exceed 600W.

Can the HLG-600H-24 withstand direct exposure to rain and snow year-round?

Yes. The HLG-600H-24 is rated IP67, which means it is dust-tight and can handle temporary water immersion up to 1 meter. It can be mounted outdoors in direct weather exposure. The operating temperature range of -40°C to +90°C covers cold-climate winters and hot rooftop summers.

What are the differences between the HLG-600H-24, 24A, 24AB, and 24B variants?
