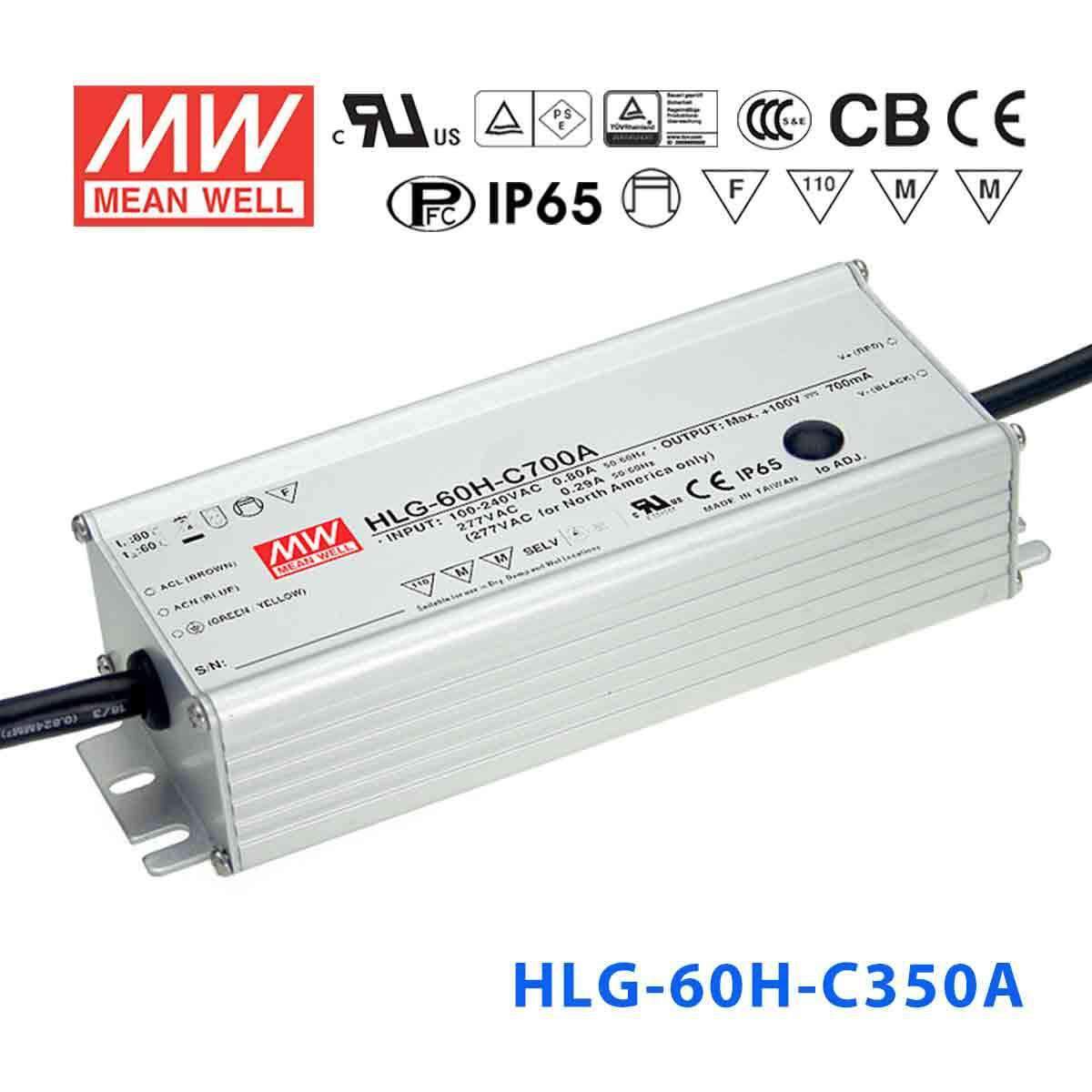

Mean Well HLG-60H-C350A Power Supply 70W 350mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-C350A Power Supply 70W 350mA - Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 90.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details. |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171x 61.5x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating70 Watt
-
Output Voltage200 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-60H-C350A to power small LED downlights?
Yes. The HLG-60H-C350A delivers 70W at 350mA constant current with a CC voltage range of 100-200V. At 350mA, it is well-matched to standard-current LED modules used in recessed downlights for residential and commercial ceilings.
Is the HLG-60H-C350A suitable for driving LED signage modules?
Yes, provided the signage modules operate at 350mA and their series string voltage falls within 100-200V. The 70W total capacity supports a moderate string of LED sign modules, and the IP65 rating allows installation in covered outdoor sign cabinets.
Can I use the HLG-60H-C350A for small LED array or accent lighting?
Yes. At 350mA and 70W, it suits small to medium LED arrays used in accent lighting, display cases, or architectural cove lighting. The built-in potentiometer lets you fine-tune the output to match the exact LED load without an external controller.
Can I adjust the output on the HLG-60H-C350A?
Yes. The A suffix indicates a built-in potentiometer for manual output voltage and current adjustment. This is useful for trimming the drive current to match specific LED modules. However, it does not accept external dimming signals — for that, you would need the AB or B variant.
How do I know if my LED string is compatible with the HLG-60H-C350A?
Your series LED string's total forward voltage must be between 100V and 200V for the driver to regulate at 350mA. Add the forward voltages of each LED in the string and verify the sum is within that range. The exact number of LEDs depends on each LED's individual forward voltage.
Can the HLG-60H-C350A be installed in a damp or dusty location?
Yes. It carries an IP65 water-resistant rating, protecting against dust and low-pressure water jets. This makes it suitable for covered outdoor areas, garages, basements, and light-industrial spaces. Its compact 171 x 61.5 x 36.8 mm size also fits in tight mounting locations.
