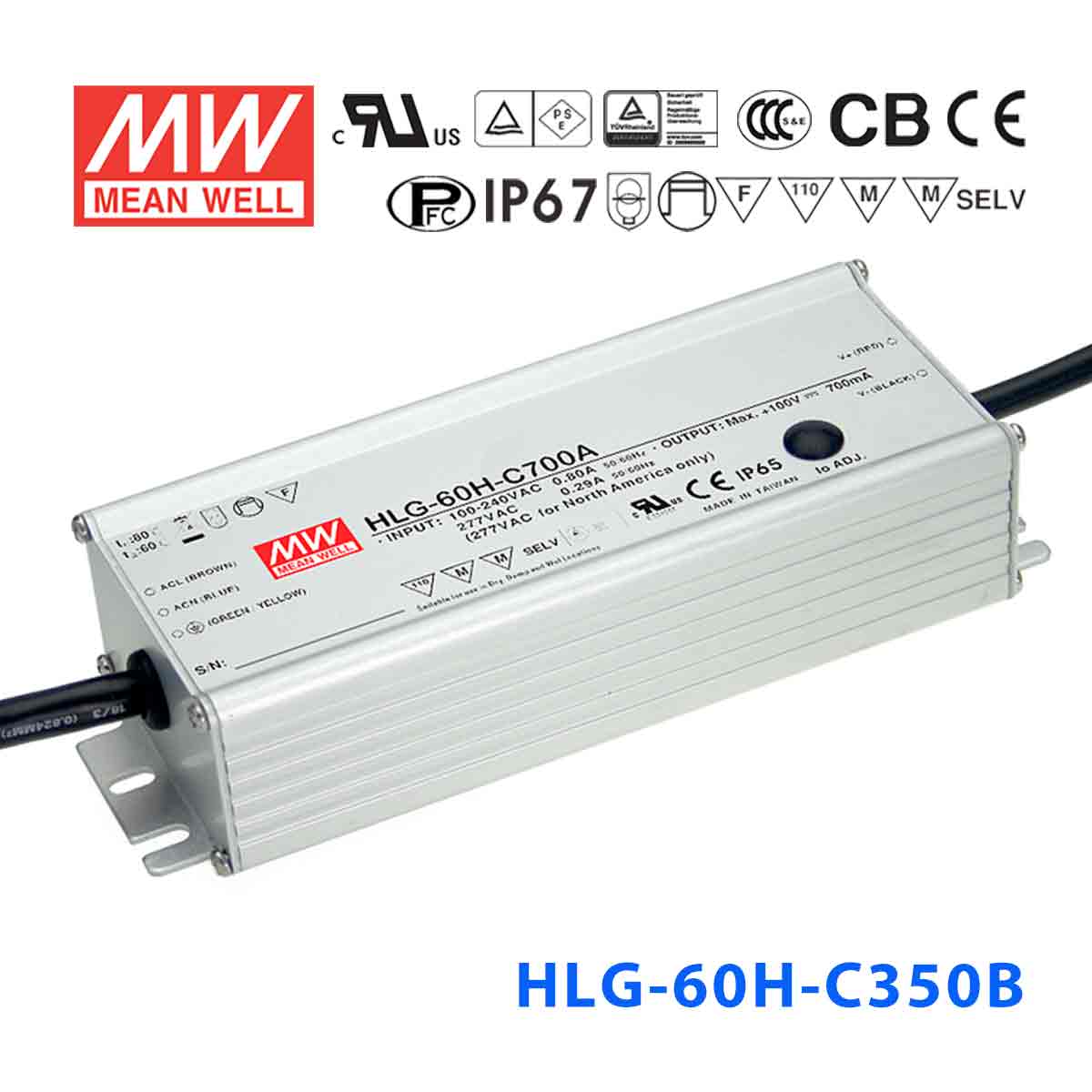

Mean Well HLG-60H-C350AB Power Supply 70W 350mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-C350AB Power Supply 70W 350mA - Adjustable and Di...
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 90.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details. |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171x 61.5x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating70 Watt
-
Output Voltage200 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-60H-C350AB to power dimmable LED downlights?
Yes. The HLG-60H-C350AB delivers 70W at 350mA constant current and includes both a potentiometer for output adjustment and an external dimming input (1-10V, PWM, or resistance). This makes it ideal for recessed LED downlights in spaces where dimming control is needed, such as restaurants, galleries, or conference rooms.
Is the HLG-60H-C350AB a good choice for dimmable LED accent or display lighting?
Yes. At 350mA and 70W, it suits small LED arrays used in retail display cases, museum accent lighting, or architectural highlights. The AB variant's dual control — built-in potentiometer plus external dimming input — lets you set a baseline level and then dim remotely as needed.
Can I use the HLG-60H-C350AB for outdoor LED signage with brightness control?
Yes, provided the sign modules run at 350mA with a series string voltage between 100V and 200V. The IP65 rating protects the driver in covered sign cabinets, and the dimming input lets you reduce brightness at night to comply with local lighting ordinances or save energy.
What dimming and adjustment features does the HLG-60H-C350AB include?
The AB suffix means it has both a built-in potentiometer for manual output trimming and an external dimming interface supporting 1-10V analog, PWM, and resistance signals. The A-only variant has just the potentiometer, while the B-only variant has just the external dimming input.
What LED string voltage range does the HLG-60H-C350AB support?
The CC voltage range is 100-200V. Your series-connected LED string's total forward voltage must fall within that window. The number of LEDs in the string depends on each LED's individual forward voltage at 350mA drive current.
Can the HLG-60H-C350AB handle humid conditions in a covered patio or canopy?
Yes. Its IP65 rating provides protection against dust ingress and low-pressure water jets, which is sufficient for sheltered outdoor areas like patios, canopies, and open-air retail environments. The compact 171 x 61.5 x 36.8 mm form factor fits easily in tight canopy enclosures.
