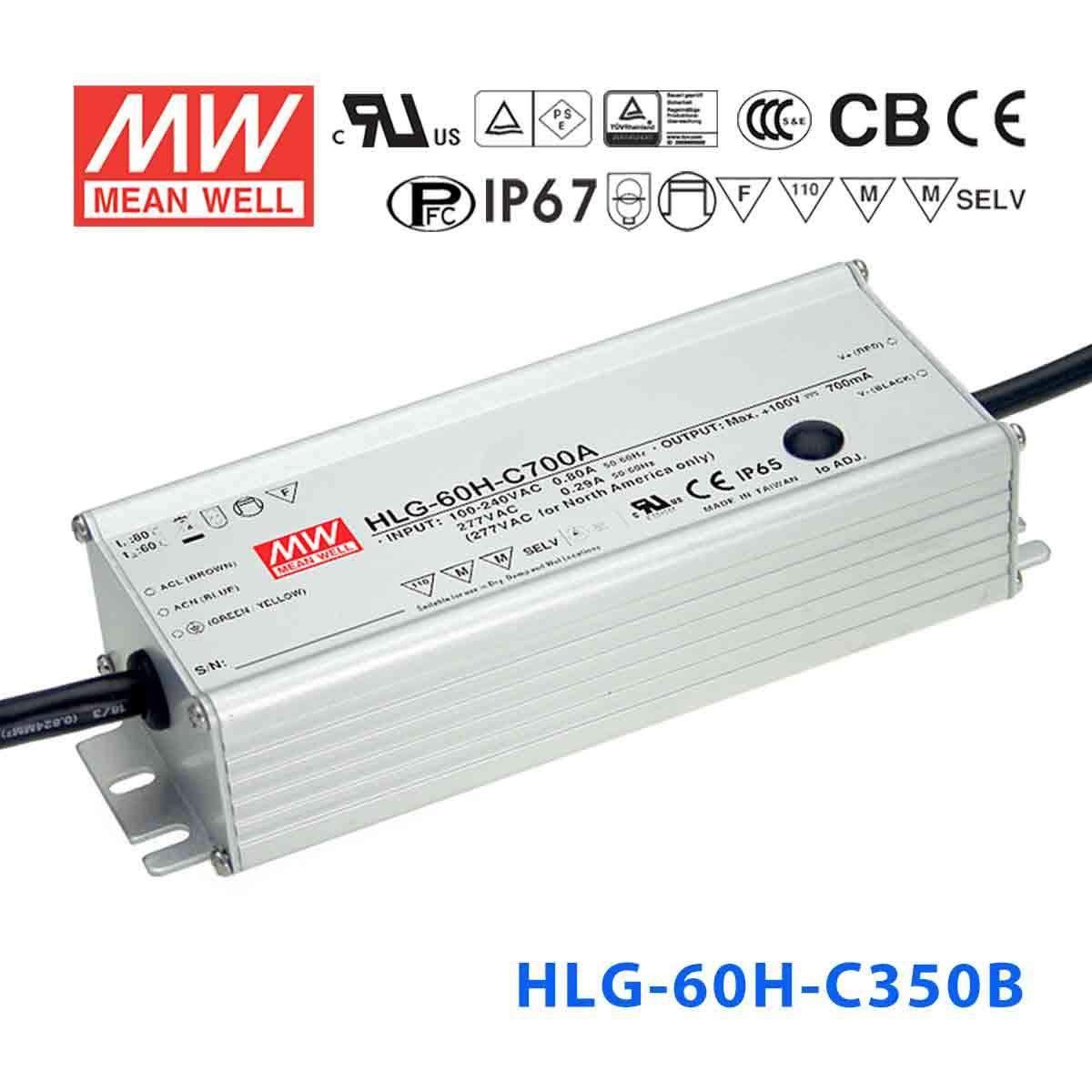

Mean Well HLG-60H-C350B Power Supply 70W 350mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-C350B Power Supply 70W 350mA - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 90.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details. |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171x 61.5x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating70 Watt
-
Output Voltage200 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-60H-C350B for dimmable LED downlight applications?
Yes. The HLG-60H-C350B provides 70W at 350mA constant current and includes an external dimming input for 1-10V, PWM, or resistance signals. This makes it well-suited for residential or commercial recessed downlights connected to a wall dimmer or building automation system.
Is the HLG-60H-C350B appropriate for small LED arrays in retail display lighting?
Yes. At 350mA and 70W, it can drive small LED modules used in display cases, jewelry showcases, or shelf lighting. The dimming input allows brightness adjustments throughout the day to match store ambiance or highlight specific merchandise.
Can the HLG-60H-C350B power LED modules in outdoor sign cabinets?
Yes, as long as the sign modules operate at 350mA and their combined series voltage is between 100V and 200V. The IP65 enclosure protects the driver inside weather-exposed sign cabinets, and the dimming feature enables night-time brightness reduction for energy savings.
How does the HLG-60H-C350B differ from the C350A and C350AB variants?
All three share the same 70W, 350mA, 100-200V CC core specifications and IP65 rating. The B variant has an external dimming input but no potentiometer. The A variant has a built-in potentiometer for manual adjustment but no external dimming input. The AB variant includes both the potentiometer and the external dimming input.
What LED forward voltage range does the HLG-60H-C350B require?
The CC voltage range is 100-200V. pair with your LEDs in series so that their combined forward voltage totals between 100V and 200V. The driver will then maintain a steady 350mA through the string. The number of LEDs depends on each LED's individual forward voltage.
Is the HLG-60H-C350B rated for cold outdoor environments?
Yes. It operates from -40°C to +80°C, so it handles freezing winter temperatures as well as warm summer conditions. Combined with its IP65 water-resistant rating, it can be installed in sheltered outdoor locations such as covered walkways, building overhangs, or sign enclosures in cold climates.
