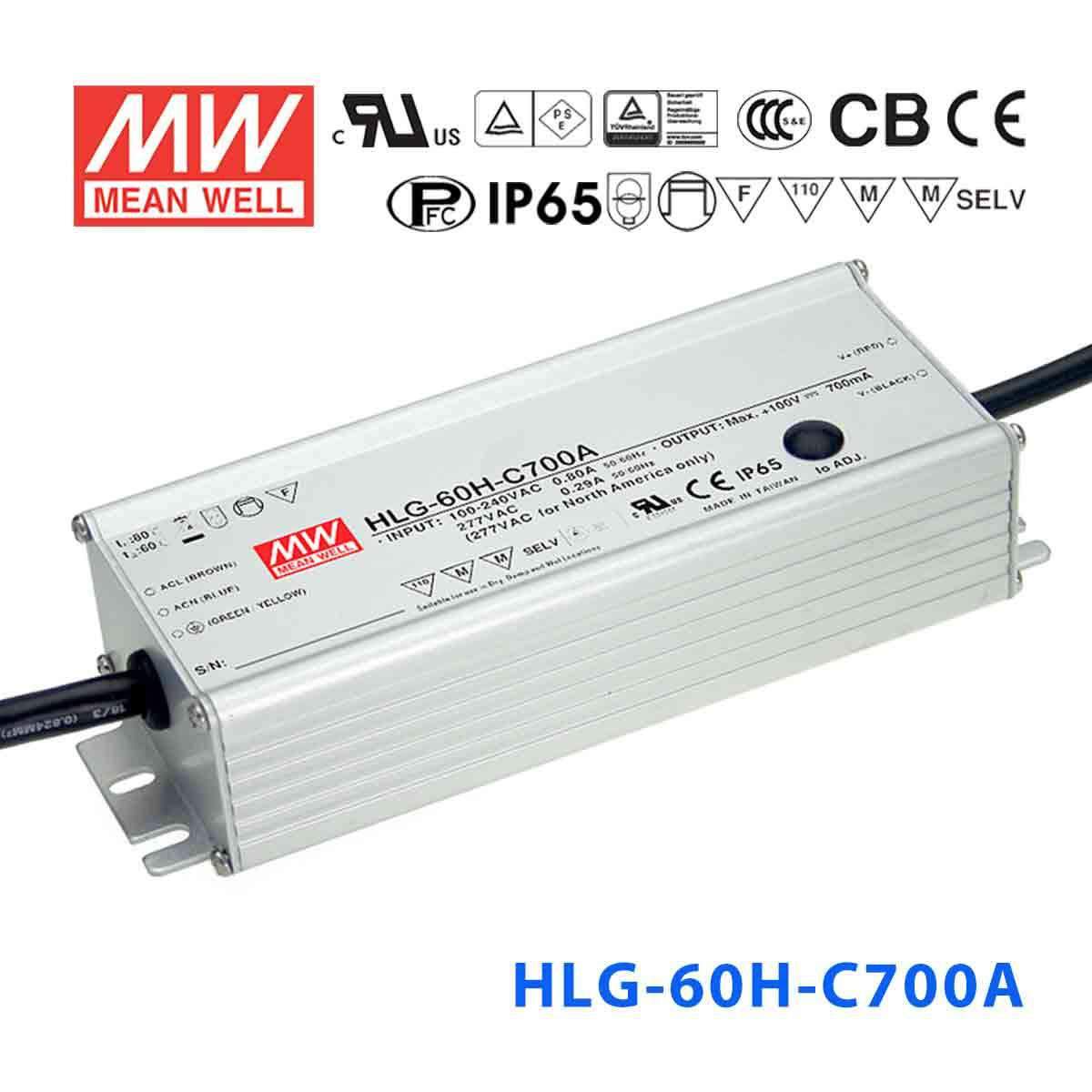

Mean Well HLG-60H-C700A Power Supply 70W 700mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-C700A Power Supply 70W 700mA - Adjustable
Overview
HLG-60H-C700A is the model of this series: rated current 700mA, rated power 70W, typical efficiency 90.5%. Type A: Io adjustable through built-in potentiometer (IP65).
HLG-60H-C series is a 70W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-60H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 700mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer
- Typical lifettime>62000 hours
- 7 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- RATED POWER
- 70W
- CONSTANT CURRENT REGIONNote.2
- 50 ~ 100V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer)
- CURRENT ADJ. RANGE
- 420 ~ 700mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 750ms/115VAC, 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧60% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
- EFFICIENCY (Typ.)
- 90.5%
- AC CURRENT (Typ.)
- 0.69A / 115VAC 0.35A / 230VAC 0.29A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 60A(twidth=275μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 8 units (circuit breaker of type B) / 13 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 120 ~ 140V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+80℃
- WORKING HUMIDITY
- 10 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.6
- UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1,BS EN/EN 61347-2-13 independent, GB/T19510.1,GB/T19510. 213, EAC TP TC 004,IP65 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.6
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 3113.4K hrs min. Telcordia SR-332 (Bellcore) ; 336.0K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 171*61.5*36.8 mm (L*W*H)
- PACKING
- 0.73Kg; 20pcs/15.6Kg/0.9CUFT
MODEL ENCODING
- A (this model)
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the HLG-60H-C700A to power LED downlights in a residential ceiling?
Yes, the HLG-60H-C700A is a good match for LED downlights that require 700mA constant current. It delivers up to 70W with a CC voltage range of 50-100V, so it can drive one or several downlight modules in series as long as their combined forward voltage stays within that window. The adjustable output lets you trim the current to match your specific LED modules.
Is the HLG-60H-C700A suitable for small LED signage modules?
Yes. At 700mA constant current and up to 70W, the HLG-60H-C700A can power compact signage modules whose total forward voltage falls between 50V and 100V. The series' IP65 or IP67 approval makes it suitable for both indoor and sheltered outdoor sign installations.
Can I use the HLG-60H-C700A to drive a small LED array or light panel?
Yes, this driver works well for small LED arrays or light panels requiring 700mA constant current. The total forward voltage of the array must fall between 50V and 100V. At 70W it is sized for compact LED assemblies rather than large-area fixtures.
How many LEDs can I run with the HLG-60H-C700A?
The number of LEDs depends on each LED's individual forward voltage. The HLG-60H-C700A operates in constant current mode at 700mA with a CC voltage range of 50-100V, so you need to add up the forward voltages of your LEDs in series and ensure the total falls within that range. The maximum power output is 70W.
Can the HLG-60H-C700A be installed outdoors or in a damp location?
The HLG-60H-C series is IP65 or IP67 approved, protecting it against dust and water. According to the datasheet, a waterproof connector can be fitted to the output cable so the driver can run in dry, wet, damp or outdoor environments, such as covered walkways, canopies, or damp indoor spaces. Follow MEAN WELL's installation manual for waterproof installation.
What is the difference between the HLG-60H-C700A, C700AB, and C700B models?
All three share the same 70W, 700mA, 50-100V constant current output, and the series is IP65 or IP67 approved. The C700A (this model) offers adjustable output via a built-in potentiometer but has no external dimming input. The C700AB adds both the potentiometer and a 1-10V/PWM/resistance dimming input. The C700B has the dimming input only, without the potentiometer adjustment.
