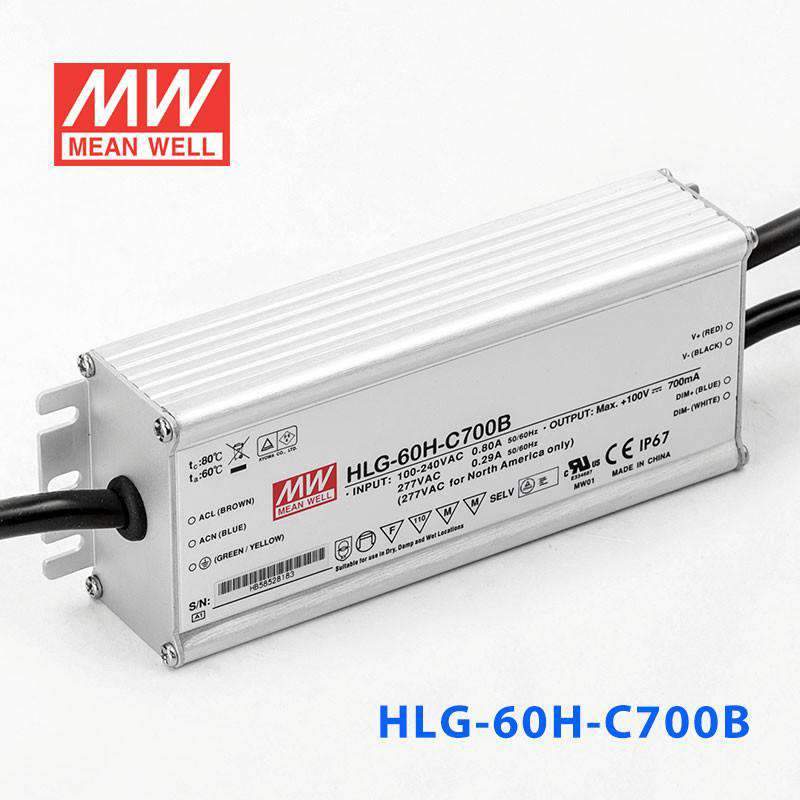

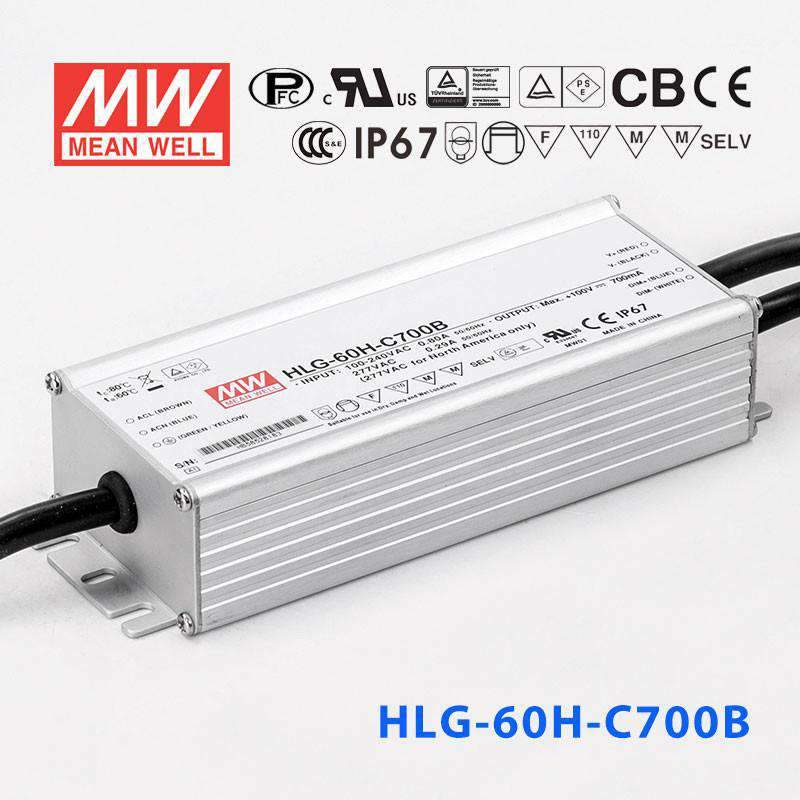

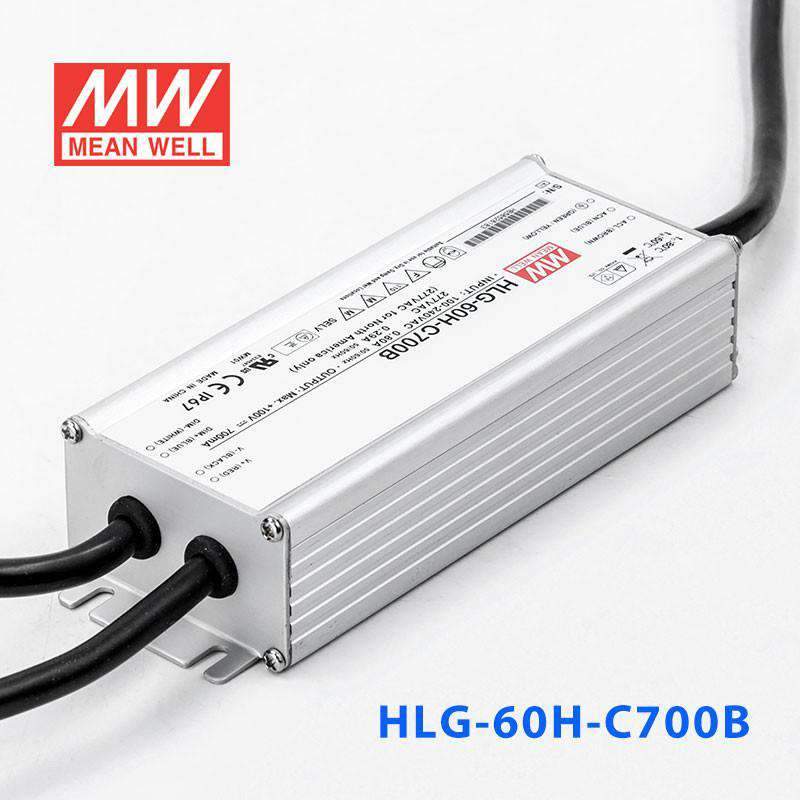

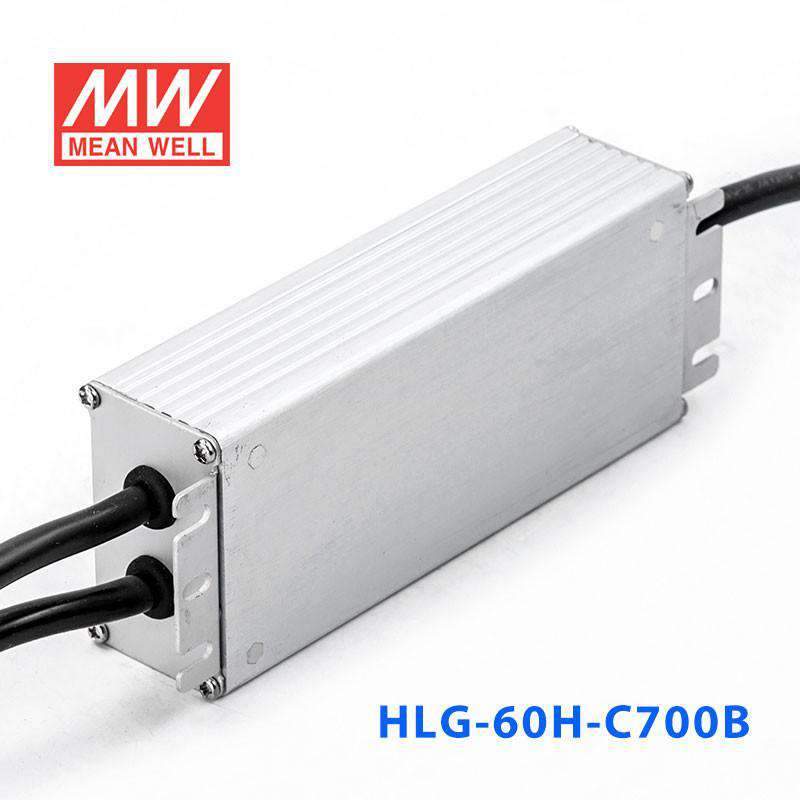

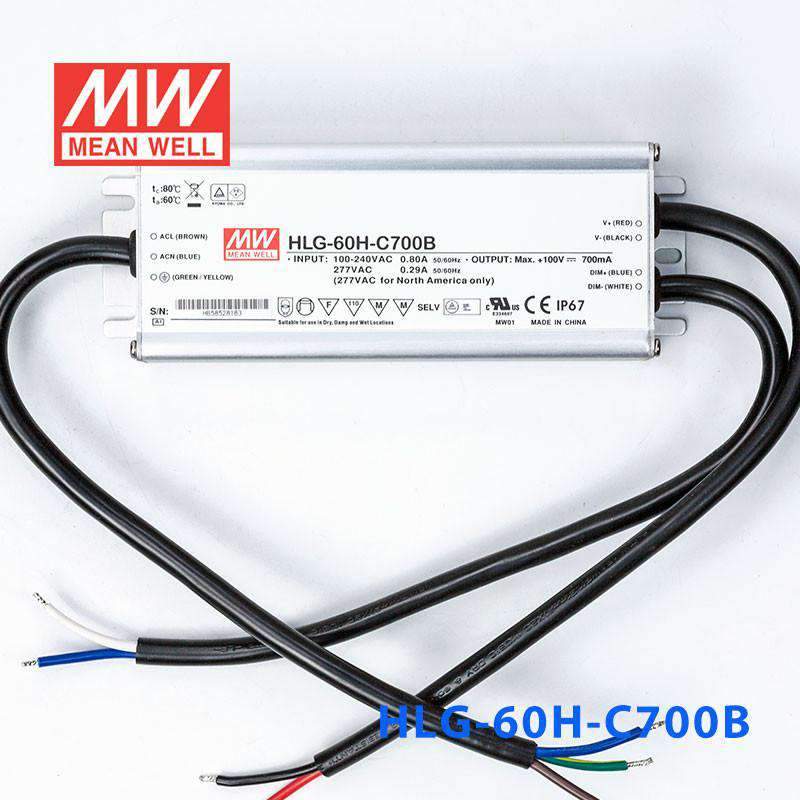

Mean Well HLG-60H-C700B Power Supply 70W 700mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-C700B Power Supply 70W 700mA - Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating70 Watt
-
Output Voltage100 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-C700B to power dimmable LED downlights?
Yes. The HLG-60H-C700B provides 700mA constant current at up to 70W with a CC voltage range of 50-100V, making it suitable for LED downlights within that voltage window. The B suffix means it includes a dimming input for 1-10V, PWM, or resistance dimming, allowing smooth brightness control from an external controller.
Is the HLG-60H-C700B suitable for small LED signage where brightness control is needed?
Yes. This driver provides 700mA constant current with a maximum of 70W, fitting compact signage modules whose series voltage totals between 50V and 100V. The built-in dimming input lets you schedule brightness changes for daytime versus nighttime operation.
Can the HLG-60H-C700B drive a compact LED light panel with dimming?
Yes, it can power LED panels running at 700mA constant current with a total forward voltage between 50V and 100V. The dimming input accepts 1-10V, PWM, or resistance signals, so you can integrate it with building management systems or standalone dimmers for variable light output.
How does the HLG-60H-C700B differ from the C700A and C700AB versions?
All three models share the same 70W, 700mA output and 50-100V CC voltage range with IP65 protection. The C700B (this model) includes a dimming input (1-10V/PWM/resistance) but no output adjustment potentiometer. The C700A has only the potentiometer with no dimming input. The C700AB combines both the potentiometer and the dimming input.
How many LEDs can the HLG-60H-C700B drive?
That depends on each LED's forward voltage. The driver operates at 700mA constant current with a CC voltage range of 50-100V and delivers up to 70W. configure your LEDs in series and ensure their total forward voltage stays within the 50-100V range.
Can the HLG-60H-C700B be mounted in a damp or semi-outdoor location?
Yes. With its IP65 water-resistant rating, the HLG-60H-C700B is protected against dust ingress and low-pressure water jets. It is appropriate for damp indoor areas, covered patios, and canopies. Its operating temperature range of -40°C to +80°C covers both cold and hot environments.
