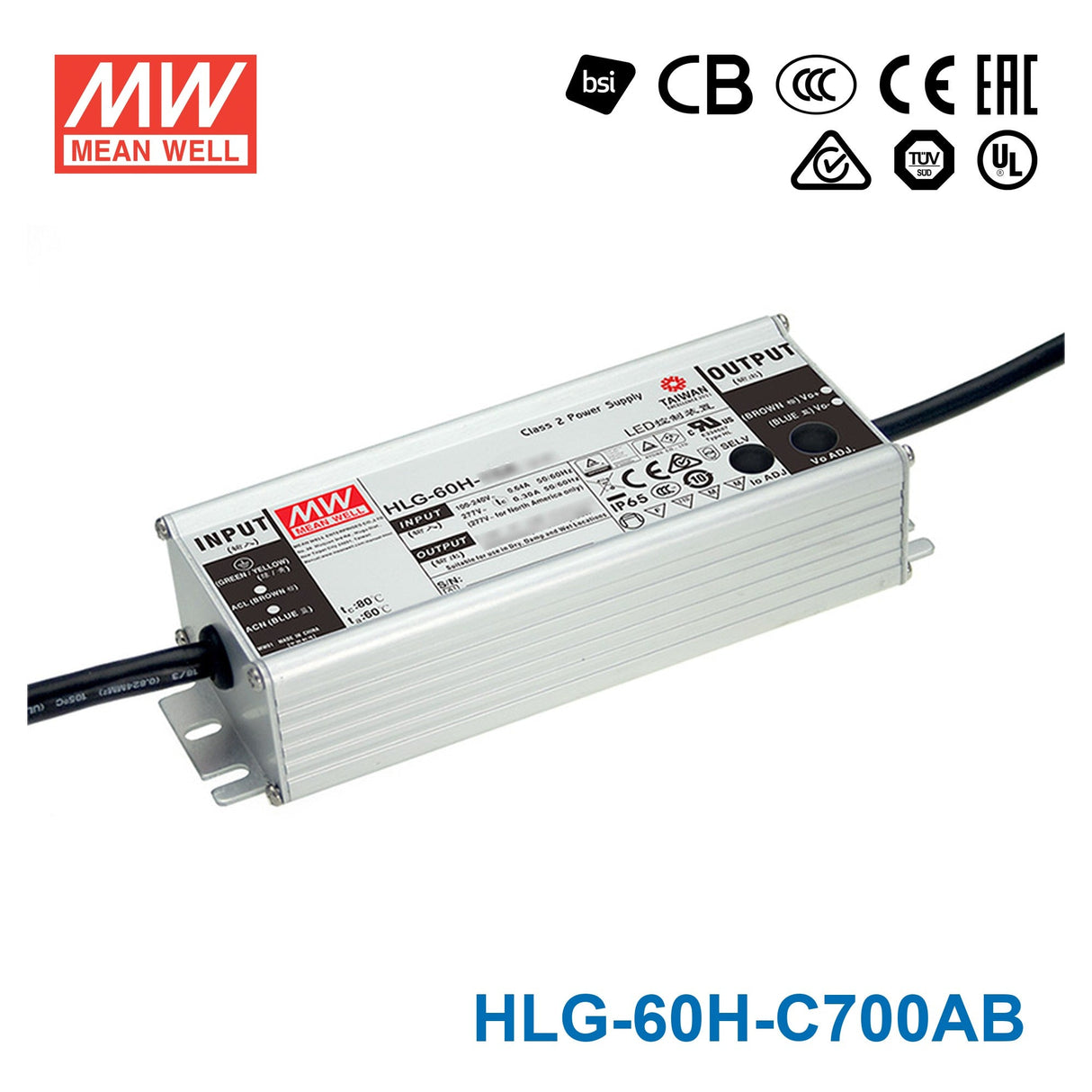

Mean Well HLG-60H-C700AB Power Supply 70W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-C700AB Power Supply 70W 700mA - Adjustable and Di...
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 90.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details. |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171x 61.5x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating70 Watt
-
Output Voltage100 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-60H-C700AB to power dimmable LED downlights?
Yes. The HLG-60H-C700AB delivers 700mA constant current at up to 70W, which suits LED downlights whose combined forward voltage falls within 50-100V. Because the AB suffix provides both adjustable output and 1-10V/PWM dimming capability, you can fine-tune brightness levels from a compatible dimming controller.
Is the HLG-60H-C700AB a good choice for dimmable LED signage?
Yes, it is well suited for small dimmable signage applications requiring 700mA constant current. The CC voltage range of 50-100V accommodates compact LED sign modules wired in series, and the built-in dimming input lets you adjust brightness for time-of-day or ambient-light scheduling.
Can the HLG-60H-C700AB drive a small LED array where brightness needs to be adjustable?
Yes. This driver provides 700mA constant current with a CC output range of 50-100V and up to 70W. The AB variant includes both a potentiometer for output trimming and a dimming input (1-10V/PWM), making it ideal for arrays where you need to adjust light output after installation.
What dimming methods does the HLG-60H-C700AB support?
The HLG-60H-C700AB supports 3-in-1 dimming via 1-10V analog signal, PWM signal, or resistance. This makes it compatible with a wide range of external dimming controllers. In addition, the built-in potentiometer allows manual output current adjustment independently of the dimming input.
How many LEDs can the HLG-60H-C700AB drive in series?
The number of LEDs depends on each LED's forward voltage. The HLG-60H-C700AB operates at 700mA constant current with a CC voltage range of 50-100V and a maximum power of 70W. Add up the forward voltages of your LEDs in series and verify the total falls within that 50-100V window.
Can the HLG-60H-C700AB handle freezing temperatures or hot enclosed spaces?
Yes. The HLG-60H-C700AB is rated for operating temperatures from -40°C to +80°C, covering both cold-storage environments and warm enclosures. The IP65 water-resistant rating and aluminium casing further protect it against moisture and dust in demanding conditions.
